988108 (HE 1748 FL) - Gravely Pro-Hydro 48" Walk-Behind Mower, 17hp Kawasaki, Elect. Start (SN: 000101 - 001999) Engine, Fuel And Exhaust System Parts Diagram

Pro-Hydro 48" Walk-Behind Mower, 17hp Kawasaki, Elect. Start

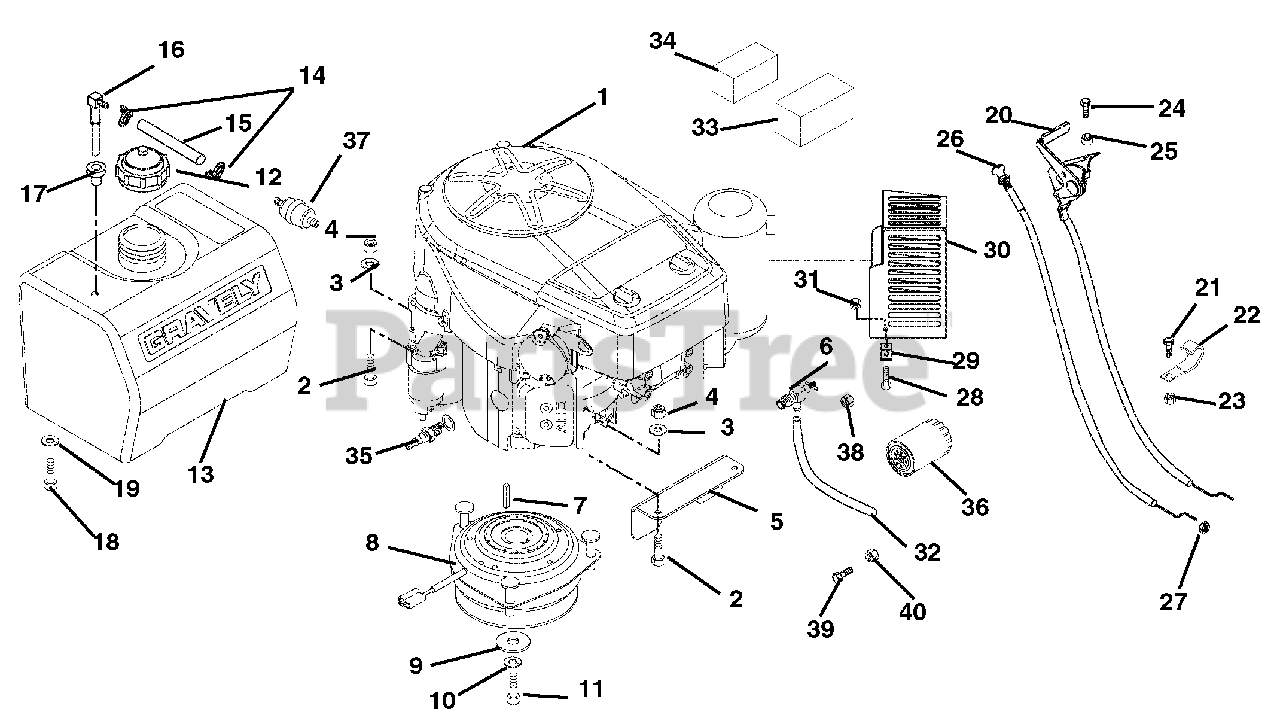

Engine, Fuel And Exhaust System Parts Diagram

  • Title

1

Gravely 08266900

ENGINE, 17 HP KAWASAKI FH500V

Note: (108, 109)

$

$

Not available

Gravely 08266800

ENGINE, 15 HP KAWASAKI

Note: (105 - 107, 113, 312)

$

$

Not available

2

Gravely 05957400

BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$3.49

$

In Stock, Qty 10

0

3

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 06529200

NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$1.49

$

In Stock, Qty 8

0

5

Gravely 04923551

BRACKET, CLUTCH
(Superseded to 03292451)

$32.99

$

Usually ships in 4-12 days

0

6

Gravely 04923600

VALVE, OIL DRAIN

$53.99

$

Usually ships in 4-12 days

0

7

Gravely 06603400

KEY-SQ .25 X 1.25 X .25 SAE

$3.99

$

In Stock, Qty 11

0

8

Gravely 04915400

CLUTCH, ELECTRIC

$475.99

$

In Stock, only 1 left!

0

9

Gravely 06443600

WSHR-FL-STL .469X2.00X.25 YWZC
(Superseded to 06401111)

$7.99

$

In Stock, Qty 20+

0

10

Gravely 06309300

WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, Qty 20+

0

11

Gravely 05965700

BLT-HEX .44-20X3.00 GR5 YWZC
(Superseded to 05900037)

$7.49

$

In Stock, Qty 14

0

12

Gravely 09239500

CAP - FUEL
(Superseded to 03859100)

$29.99

$

In Stock, Qty 20+

0

13

Gravely 04914000

TANK, FUEL

$

$

Not available

14

Gravely 06939100

CLAMP-HOSE WIRE .490/.510X.116

$3.99

$

In Stock, Qty 20+

0

15

Gravely 021134

HOSE, .25 LOW-PERM BULK GAS
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 09112300

FITTING, TANK
(Superseded to 03875300)

$15.99

$

In Stock, only 2 left!

0

17

Gravely 050246

BSHG-FLG .375 X 1.062 X .625 R
(Superseded to 07511400)

$3.99

$

In Stock, Qty 20+

0

18

Gravely 05959400

BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.99

$

In Stock, Qty 14

0

19

Gravely 06308800

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 06949800

CABLE, THROTTLE--W/LINER

$59.99

$

In Stock, only 1 left!

0

21

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

22

Gravely 044715

J-CLAMP
(Superseded to 06916000)

$2.99

$

Usually ships in 4-12 days

0

23

Gravely 06530200

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0

24

Gravely 06116900

SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

$2.49

$

In Stock, Qty 11

0

25

Gravely 06536000

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

26

Gravely 035137

CONTROL,CHOKE
(Superseded to 06924800)

$

$

Not available

27

Gravely 06534700

NUT-JAM .375-24 YWZC
(Superseded to 06500739)

$2.49

$

In Stock, only 3 left!

0

28

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

Note: (312)

$1.99

$

In Stock, Qty 20+

0

29

Gravely 04935951

BRACKET, MUFFLER GUARD

Note: (312)

$

$

Not available

30

Gravely 04935651

GUARD, MUFFLER

Note: (312)

$

$

Not available

31

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

Note: (312)

$1.49

$

In Stock, Qty 20+

0

32

Gravely 00918300

HOSE,1/4 IN VINYL

$

$

Not available

33

Gravely 21538000

AIR FLTR,PAPER KAWASAKI

Note: (105 - 107, 113, 312)

$22.99

$

In Stock, Qty 20+

0

Gravely 21538200

AIR FLTR,PAPER

Note: (108, 109)

$21.99

$

In Stock, Qty 20+

0

34

Gravely 21538100

AIR FLTR,FOAM KAW

Note: (105 - 107, 113, 312)

$13.99

$

In Stock, Qty 14

0

Gravely 21538300

FILTER, FOAM AIR PRE-

Note: (108, 109)

$11.99

$

Usually ships in 4-12 days

0

35

Gravely 215833600

Spark Plug

$

$

Not available

36

Gravely 21535800

FILTER,OIL - KAW
(Superseded to 49065-0724)

$18.99

$

Usually ships in 2-5 days

0

37

Gravely 21538400

FUEL FILTER - KAWASAKI
(Superseded to 21573800)

$15.99

$

Usually ships in 4-12 days

0

38

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

Note: (312)

$1.99

$

In Stock, Qty 20+

0

39

Gravely 05959400

BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

Note: (312)

$1.99

$

In Stock, Qty 14

0

40

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

Note: (312)

$1.49

$

In Stock, Qty 20+

0
