988108 (HE 1748 FL) - Gravely Pro-Hydro 48" Walk-Behind Mower, 17hp Kawasaki, Elect. Start (SN: 007000 & Above) Speed Controls Parts Diagram

Pro-Hydro 48" Walk-Behind Mower, 17hp Kawasaki, Elect. Start

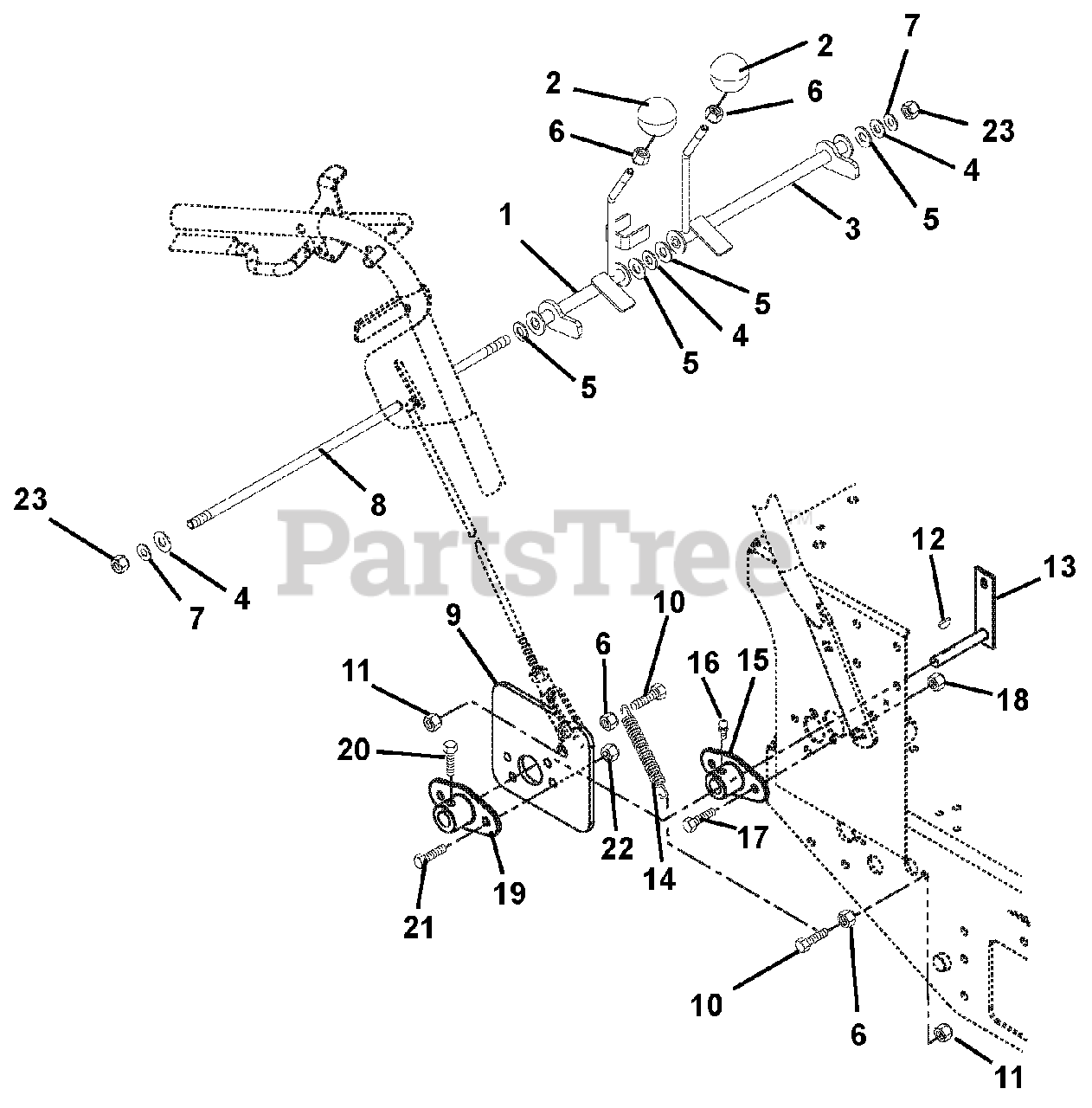

Speed Controls Parts Diagram

  • Title

1

Gravely 04926300

WELDMENT, RH LEVER

$

$

Not available

2

Gravely 07533500

KNOB,BALL -BLACK 1.47" .375-16

$10.99

$

In Stock, Qty 13

0

3

Gravely 04926400

WELDMENT, LH LEVER

$138.99

$

Usually ships in 4-12 days

0

4

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$2.49

$

In Stock, Qty 20+

0

5

Gravely 06435500

WSHR-FL-NYL .390X1.000X.062

$3.49

$

Usually ships in 4-12 days

0

6

Gravely 06529400

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.99

$

In Stock, Qty 20+

0

7

Gravely 06308800

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.99

$

In Stock, Qty 20+

0

8

Gravely 04926600

ROD, SPEED CONTROL

$36.99

$

Usually ships in 4-12 days

0

9

Gravely 04926751

PLATE, SPEED CONTROL

$

$

Not available

10

Gravely 05957900

BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$2.49

$

In Stock, Qty 13

0

11

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.99

$

In Stock, Qty 20+

0

12

Gravely 06608600

KEY-WDRF .125X.75

$3.49

$

Usually ships in 4-12 days

0

13

Gravely 08848500

WLDMT,PUMP CONTROL L.H.

$117.99

$

Usually ships in 4-12 days

0

14

Gravely 08346800

SG-TENS .105X1.00X5.0

$15.99

$

In Stock, only 4 left!

0

15

Gravely 01522000

BUSHING, FLANGED

$36.99

$

In Stock, only 1 left!

0

16

Gravely 07012600

FTG-LUBE .25-28X.256 YWZC
(Superseded to 07001806)

$

$

Not available

17

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$2.49

$

In Stock, Qty 20+

0

18

Gravely 06530200

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.99

$

In Stock, Qty 5

0

19

Gravely 01525500

ARM, SPEED CONTROL

$21.99

$

Usually ships in 4-12 days

0

20

Gravely 05947900

BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.99

$

In Stock, Qty 20+

0

22

Gravely 06531000

NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$5.99

$

In Stock, Qty 12

0

23

Gravely 06522900

NUT-HEX .375-24 YWZC
(Superseded to 06500940)

$3.99

$

In Stock, only 2 left!

0
