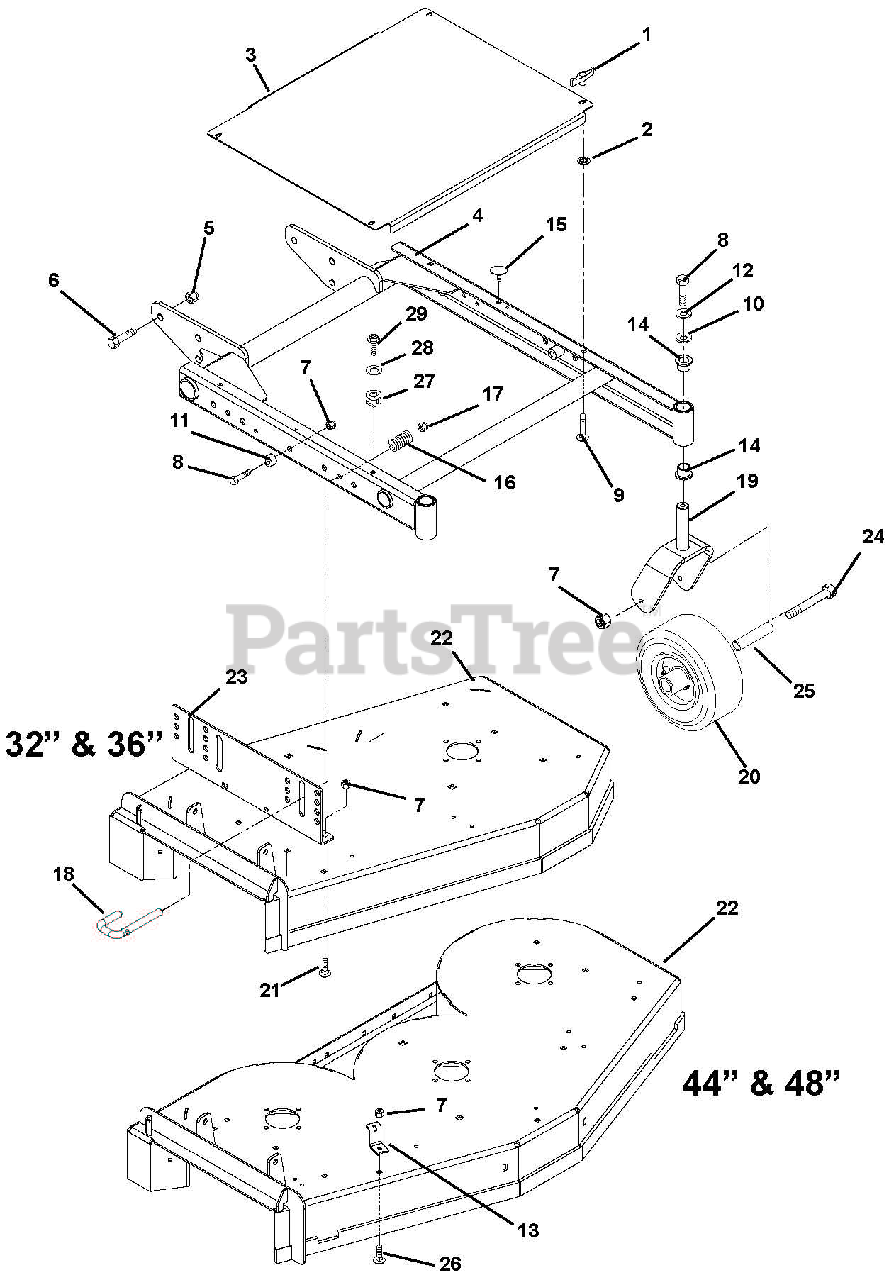

988110 (GR 1332 FX) - Gravely Pro-Gear 32" Walk-Behind Mower, Fixed Deck, 13hp Kawasaki (SN: 000101 - 002999) 32", 36", 44" And 48" Fixed Deck And Mower Frame Parts Diagram

Pro-Gear 32" Walk-Behind Mower, Fixed Deck, 13hp Kawasaki

32", 36", 44" And 48" Fixed Deck And Mower Frame Parts Diagram

  • Title

1

Gravely 07531700

Knob- Wing .312-18
(Superseded to 07534800)

Note: (988100, 101, 102, 110, 112, 114, 115, 118, 119)

$7.99

$

In Stock, Qty 13

0

2

Gravely 06514900

Nut-Push .312

Note: (988100, 101, 102, 110, 112, 114, 115, 118, 119)

$0.99

$

In Stock, Qty 13

0

3

Gravely 04916753

Cover, Belt Pro Mower

Note: (988100, 101, 114)

$

$

Not available

3

Gravely 04919853

Cover, Belt Pro Mower

Note: (988102, 115)

$56.99

$

Usually ships in 4-12 days

0

3

Gravely 04929753

Cover- Belt- Pro- 32

Note: (988110, 118, 311, 313)

$

$

Not available

3

Gravely 04940153

Cover- Belt- Pro- 44

Note: (988112, 115)

$

$

Not available

4

Gravely 04916653

Weldment - Mower Frame 36"

Note: (988100, 101, 114)

$

$

Not available

4

Gravely 04919753

Weldment - Mower Frame 48"

Note: (988102, 115)

$

$

Not available

4

Gravely 04940053

Weldment - Mower Frame 44"

Note: (988112, 119)

$

$

Not available

4

Gravely 04929653

Weldment - Mower Frame 32"

Note: (988110, 118, 311, 313)

$

$

Not available

5

Gravely 06540700

Nut-Locking-Nylon .625-11

$3.99

$

In Stock, Qty 16

0

6

Gravely 05968700

Bolt-Hex .62-11 x 1.50

$3.99

$

Usually ships in 4-12 days

0

7

Gravely 06542000

Nut-Locking-Top-Flange .38-16
(Superseded to 06500822)

Note: (988100, 101, 110, 114, 118, 311, 313)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 06542000

Nut-Locking-Top-Flange .38-16
(Superseded to 06500822)

Note: (988102, 112, 115, 119)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 05958000

Bolt-Hex .38-16 x 1.25 Grade 5
(Superseded to 05901724)

$1.49

$

In Stock, Qty 7

0

9

Gravely 06221800

Bolt-Round Head Square Neck .31-18 x 1.00
(Superseded to 06200237)

Note: (988100, 101, 102, 110, 112, 114, 115, 118, 119, 313)

$2.49

$

In Stock, only 3 left!

0

10

Gravely 06443400

Washer-Flat-Steel .38 x 1.50 x .125
(Superseded to 06401106)

$3.49

$

In Stock, Qty 20+

0

11

Gravely 08553700

Bushing

$5.99

$

In Stock, Qty 15

0

12

Gravely 06308800

Washer-Locking .38 x .094 Regular
(Superseded to 06300116)

$0.99

$

In Stock, Qty 19

0

13

Gravely 09245353

Anchor, Spring

Note: (988102, 112, 115, 119)

$40.99

$

Usually ships in 4-12 days

0

14

Gravely 05533600

Bushing-Flange 1.00 x 1.25 x 1.50 x 1.50
(Superseded to 05500934)

$6.99

$

In Stock, Qty 20+

0

15

Gravely 07503100

Bumper Grommet .125 x .25 Dia.

$3.49

$

In Stock, only 3 left!

0

16

Gravely 08325900

Spring-Compression .058 x .65 x 2.13

$9.49

$

Usually ships in 4-12 days

0

17

Gravely 06536300

Nut-Locking-Center .50-13
(Superseded to 06500827)

$3.99

$

In Stock, only 4 left!

0

18

Gravely 04920400

Pin- Latch

$36.99

$

Usually ships in 4-12 days

0

19

Gravely 04917053

Weldment-Caster Fork

$148.99

$

In Stock, only 2 left!

0

20

Gravely 07157200

Wheel 9 x 3.50
(Superseded to 07100931)

$136.99

$

In Stock, only 4 left!

0

21

Gravely 06223600

Bolt-Round Head Square Neck .38-16 x 1.00 Grade 5
(Superseded to 06200313)

$2.49

$

In Stock, Qty 20+

0

22

Gravely 58804500

Kit, 36" Fixed Mower Deck with Decals

Note: (988100, 101, 114)

$475.99

$

Usually ships in 4-12 days

0

22

Gravely 58804600

Kit, 48" Fixed Mower Deck with Decals

Note: (988102, 115)

$

$

Not available

22

Gravely 58806100

Kit, 44" Fixed Mower Deck with Decals

Note: (988112, 119)

$

$

Not available

22

Gravely 58804400

Kit, 32" Fixed Mower Deck with Decals

Note: (988110, 118, 311, 313)

$

$

Not available

23

Gravely 58806600

Kit-Mower Side Support Bracket-Right Hand and Left Hand

$157.99

$

Usually ships in 4-12 days

0

24

Gravely 05925400

Bolt-Hex .38-16 x 5.50
(Superseded to 05982000)

$3.99

$

In Stock, only 2 left!

0

25

Gravely 04916900

Bearing .625 x .380 x 4.08

$71.99

$

Usually ships in 4-12 days

0

26

Gravely 06223900

Bolt-Round Head Square Neck .38-16 x .75 Grade 5
(Superseded to 06200312)

$1.49

$

Usually ships in 4-12 days

0

27

Gravely 07538100

Grommet, Plastic

Note: (988311, 313)

$1.49

$

In Stock, Qty 11

0

28

Gravely 06437300

Washer-Flat-Steel .281 x .62 x .065
(Superseded to 06401001)

Note: (988311, 313)

$0.99

$

In Stock, Qty 15

0

29

Gravely 07412000

Screw-Tapping .25-20 x .50 Hex Washer Head
(Superseded to 07400122)

Note: (988311, 313)

$0.99

$

In Stock, Qty 20+

0
