988110 (GR 1332 FX) - Gravely Pro-Gear 32" Walk-Behind Mower, Fixed Deck, 13hp Kawasaki (SN: 006000 & Above) Hand Controls - Pistol Grips Parts Diagram

Pro-Gear 32" Walk-Behind Mower, Fixed Deck, 13hp Kawasaki

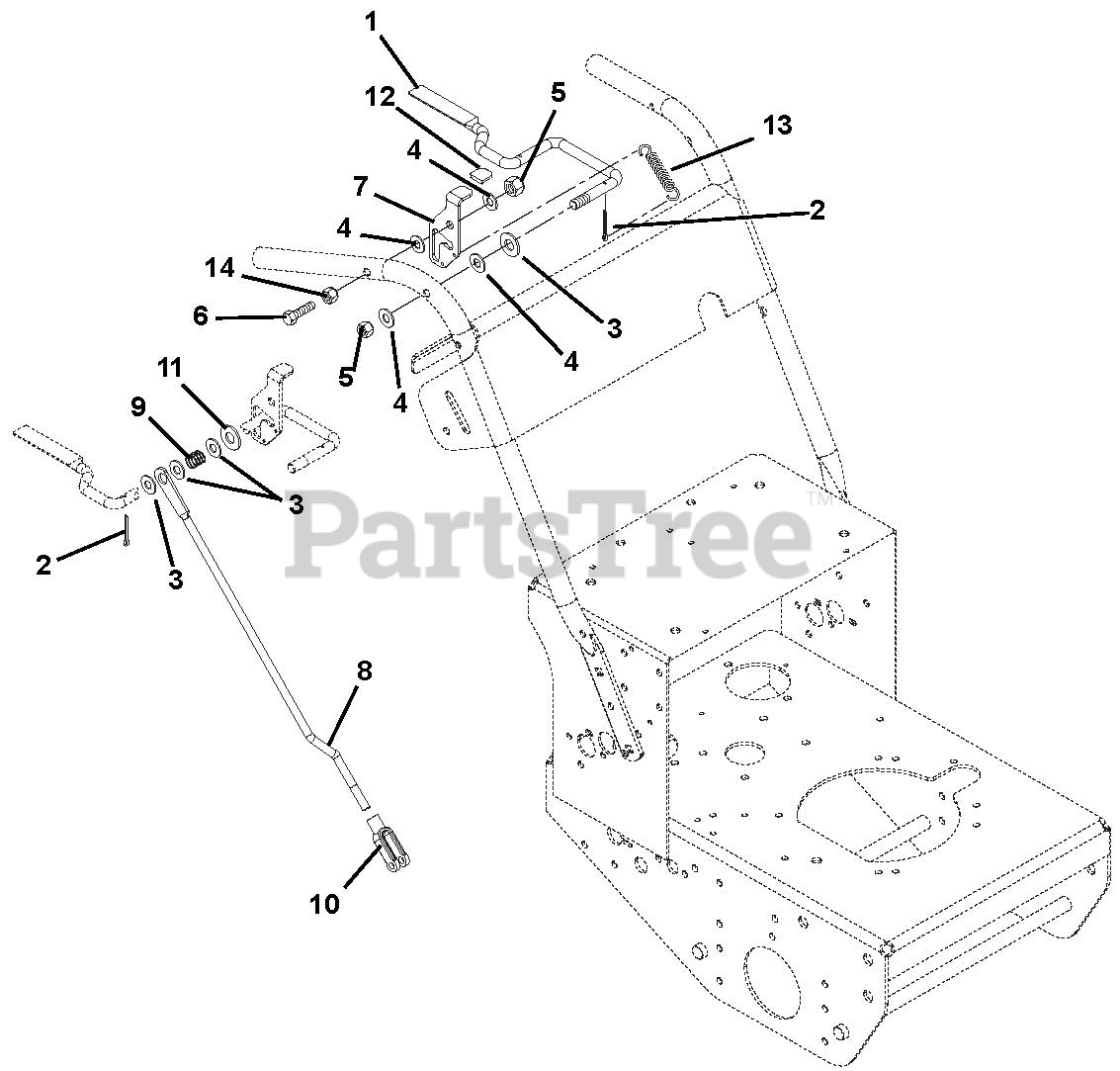

Hand Controls - Pistol Grips Parts Diagram

  • Title

1

Gravely 04905200

Lever, Hand Control Left Hand

$81.99

$

In Stock, only 2 left!

0

1

Gravely 04922400

Lever, Hand Control Right Hand

$73.99

$

In Stock, Qty 5

0

2

Gravely 06706900

Pin, Cotter .09 x .75

$0.99

$

In Stock, Qty 8

0

3

Gravely 06436200

Washer, Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 06433600

Washer, Flat-Nylon .375 x .75 x .060

$0.99

$

In Stock, Qty 9

0

5

Gravely 06529600

Nut, Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 05921600

Bolt, Hex .38-16 x 2.50 Grade 2

$3.49

$

In Stock, only 3 left!

0

7

Gravely 04922700

Latch, Right Hand Thumb

$18.99

$

Usually ships in 4-12 days

0

7

Gravely 04922600

Latch, Left Hand Thumb

$17.99

$

Usually ships in 4-12 days

0

8

Gravely 04947800

Rod, Steering Link

$25.99

$

Usually ships in 4-12 days

0

9

Gravely 08338800

Spring-Compression .045 x .60 x .75

$7.49

$

In Stock, only 2 left!

0

10

Gravely 08800400

Clevis, .38-24 Adjustable

$11.99

$

Usually ships in 4-12 days

0

11

Gravely 06441000

Washer, Flat-Steel .50 x 1.25 x .083
(Superseded to 06401202)

$3.49

$

In Stock, only 4 left!

0

12

Gravely 04928700

Grip, Thumb Latch

$3.99

$

Usually ships in 4-12 days

0

13

Gravely 08339300

Spring, Tension .041 x .50 x 1.75

$6.49

$

In Stock, Qty 12

0

14

Gravely 06537200

Nut, Locking-Jam-Center .375-16
(Superseded to 06500914)

$1.49

$

In Stock, Qty 20+

0
