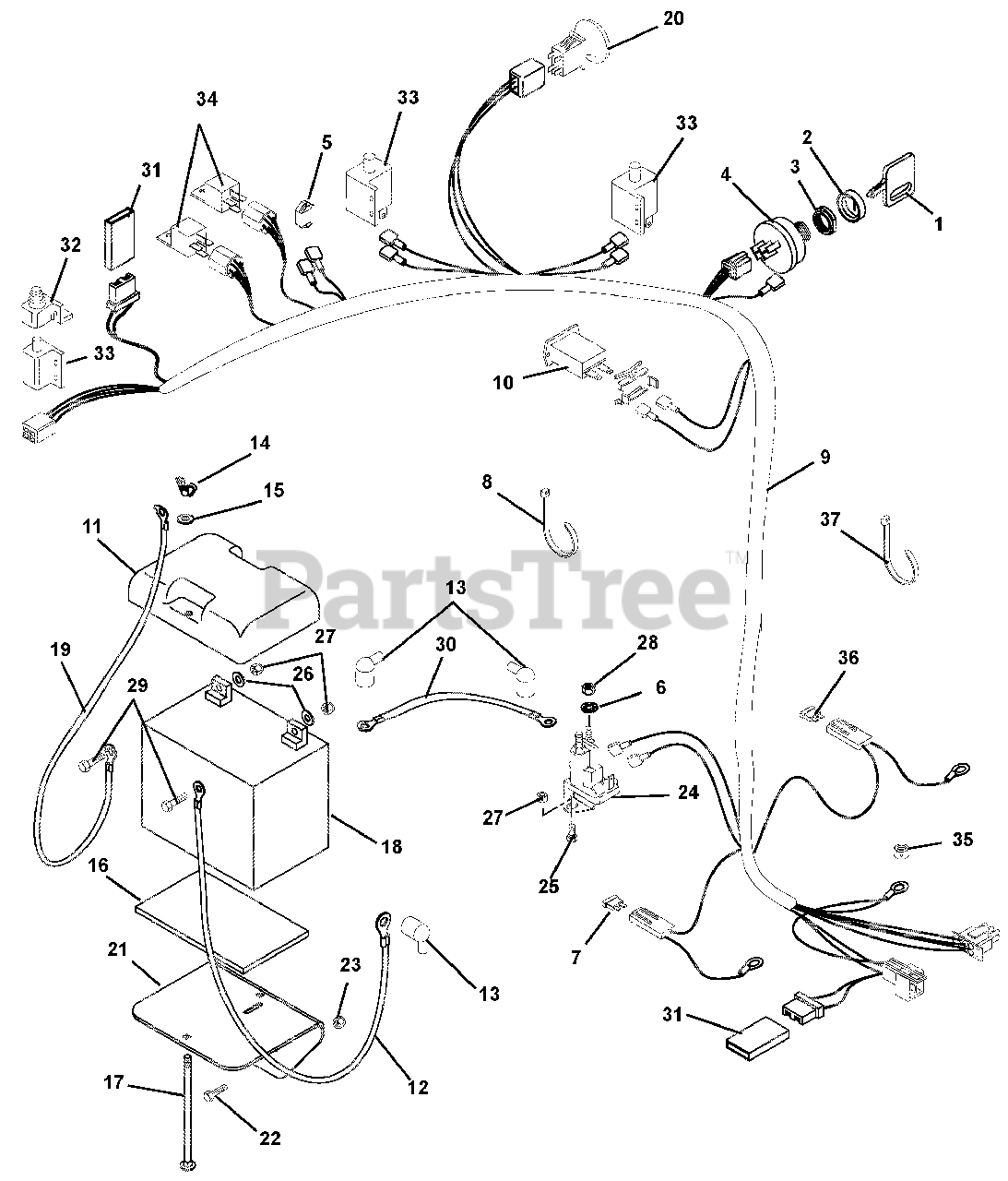

988117 (HE 1752 FLP) - Gravely Pro-Hydro 52" Walk-Behind Mower, Pro-Steer, 17hp Kawasaki (SN: 000101 - 002999) Electrical System - Electric Start - Pro Steer Parts Diagram

Pro-Hydro 52" Walk-Behind Mower, Pro-Steer, 17hp Kawasaki

Electrical System - Electric Start - Pro Steer Parts Diagram

  • Title

1

Gravely 02460700

KEY -W/CAP

$10.99

$

In Stock, Qty 20+

0

2

Gravely 045490

CAP - IGNITION SWITCH
(Superseded to 07517700)

$3.99

$

In Stock, Qty 11

0

3

Gravely 045489

NUT- PANEL .562-24 GRECO
(Superseded to 06517400)

$21.99

$

In Stock, Qty 6

0

4

Gravely 03602300

KEY SWITCH

$26.99

$

In Stock, Qty 14

0

5

Gravely 050673

LIGHT, INDICATOR (RED)
(Superseded to 05128700)

$7.99

$

In Stock, Qty 8

0

6

Gravely 06310500

WSHR-LOCK INT .31 YWZC

$0.99

$

In Stock, Qty 8

0

7

Gravely 09351100

FUSE-25 AMP ATC TYPE
(Superseded to 08961800)

$3.99

$

In Stock, Qty 12

0

8

Gravely 036313

CABLE TIE LG 5-1/2
(Superseded to 07517300)

$1.49

$

Usually ships in 4-12 days

0

9

Gravely 04937600

WIRE HARNESS-ERGO HYDRO ELEC.
(Superseded to 03287700)

$

$

Not available

10

Gravely 04935700

HOURMETER-QUARTZ 80VDCMAX
(Superseded to 59208200)

$63.99

$

Usually ships in 4-12 days

0

11

Gravely 04912900

COVER, BATTERY

$11.99

$

In Stock, only 2 left!

0

12

Gravely 02743300

START CABLE 22"
(Superseded to 03287200)

$21.99

$

In Stock, only 2 left!

0

13

Gravely 07533200

BOOT, EYELET TERMINAL

$3.99

$

In Stock, Qty 18

0

14

Gravely 06537500

NUT-LK WING .250-20 YWZC
(Superseded to 06500805)

$5.49

$

In Stock, Qty 20+

0

15

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 050417

PAD,BATTERY
(Superseded to 08803400)

$7.49

$

Usually ships in 4-12 days

0

17

Gravely 06220400

BLT-RDHDSQNK .25-20X7.00 G2YZ
(Superseded to 06200229)

$5.49

$

In Stock, Qty 20+

0

18

Gravely 01554800

BATTERY, 300 CCA 10U1L

$

$

Not available

19

Gravely 042130

CABLE-NEGATIVE BATTERY 24.00"
(Superseded to 03288100)

$20.99

$

In Stock, only 2 left!

0

20

Gravely 04940800

SWITCH - PTO - NMIR

$

$

Not available

21

Gravely 04924451

WELDMENT, BATTERY TRAY

$92.99

$

Usually ships in 4-12 days

0

22

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

23

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

24

Gravely 03679000

SOLENOID
(Superseded to 59223400)

$63.99

$

In Stock, Qty 20+

0

25

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, only 3 left!

0

26

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 06530100

NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

Note: (108, 109)

$1.49

$

In Stock, only 3 left!

0

28

Gravely 06536700

NUT-JAM .31-24 YWZC
(Superseded to 06500923)

$1.49

$

In Stock, only 2 left!

0

29

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, only 3 left!

0

30

Gravely 042696

STARTER CABLE 6.75"
(Superseded to 00145900)

$

$

Not available

31

Gravely 09293500

DIODE, CONNECTOR SHELL
(Superseded to 09293501)

$13.99

$

In Stock, Qty 20+

0

32

Gravely 07534400

BOOT, RUBBER

$6.49

$

Usually ships in 4-12 days

0

33

Gravely 046219

SWITCH,INTERLOCK
(Superseded to 08828100)

$21.99

$

In Stock, only 1 left!

0

34

Gravely 03042800

RELAY
(Superseded to 00432101)

$25.99

$

In Stock, Qty 20+

0

35

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

36

Gravely 00580600

FUSE 20AMP

$6.99

$

In Stock, Qty 10

0

37

Gravely 04003800

TIE WRAP

$

$

Not available
