988117 (HE 1752 FLP) - Gravely Pro-Hydro 52" Walk-Behind Mower, Pro-Steer, 17hp Kawasaki (SN: 000101 - 002999) Engine, Fuel And Exhaust System Parts Diagram

Pro-Hydro 52" Walk-Behind Mower, Pro-Steer, 17hp Kawasaki

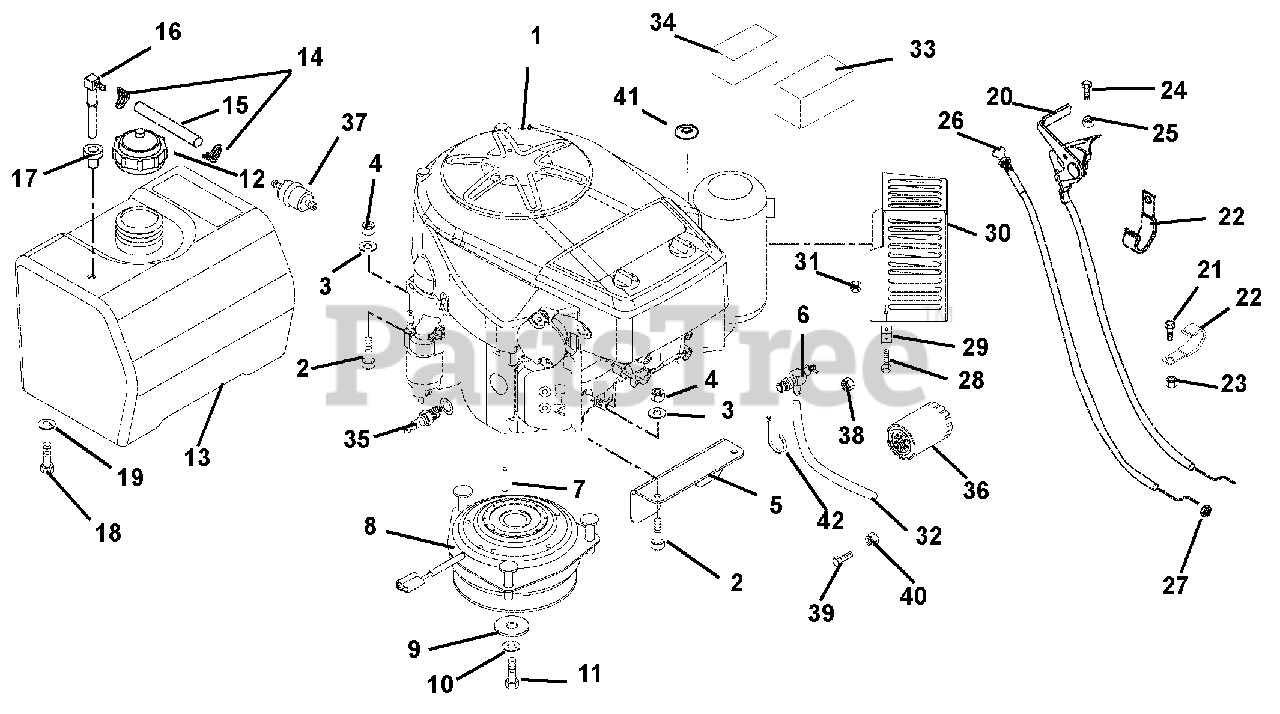

Engine, Fuel And Exhaust System Parts Diagram

  • Title

1

Gravely 08266900

Engine, 17 HP Kawasaki (108, 109, 117)

Note: (108, 109, 117)

$

$

Not available

Gravely 08266800

Engine, 15 HP Kawasaki (105, 106, 107, 113, 116,120, 312, 314)

Note: (105, 106, 107, 113, 116,120, 312, 314)

$

$

Not available

2

Gravely 05957400

Bolt-Hex .31-18 x 1.75 Grade 5
(Superseded to 05901804)

$3.49

$

In Stock, Qty 5

0

3

Gravely 06308600

Washer-Locking .31 x .078 Regular
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 06529200

Nut-Hex .31-18
(Superseded to 06500938)

$1.49

$

In Stock, Qty 8

0

5

Gravely 04923551

Bracket, Clutch
(Superseded to 03292451)

$32.99

$

Usually ships in 4-12 days

0

6

Gravely 04923600

Valve, Oil Drain

$53.99

$

Usually ships in 4-12 days

0

7

Gravely 06603400

Key-Square .25 x 1.25 x 25 SAE 8630 OR SAE 1035

$3.99

$

In Stock, Qty 7

0

8

Gravely 04915400

Clutch, Electric

$475.99

$

Usually ships in 4-12 days

0

9

Gravely 06443600

Washer-Flat-Steel .469 x 2.00 x .25
(Superseded to 06401111)

$7.99

$

In Stock, Qty 20+

0

10

Gravely 06309300

Washer-Locking .44 x .109 Regular
(Superseded to 06300121)

$2.99

$

In Stock, only 2 left!

0

11

Gravely 05965700

Bolt-Hex .44-20 x 3.00 Grade 5
(Superseded to 05900037)

$7.49

$

In Stock, Qty 17

0

12

Gravely 00273700

Cap, Fuel
(Superseded to 03859100)

$29.99

$

In Stock, only 1 left!

0

13

Gravely 04914000

Tank, Fuel

$

$

Not available

14

Gravely 06939100

Clamp-Hose Wire .49/.51 x .116

$3.99

$

In Stock, Qty 7

0

15

Gravely 021134

Gas Line-Bulk .25 I.D.
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 09112300

Fitting, Tank
(Superseded to 03875300)

$15.99

$

In Stock, only 2 left!

0

17

Gravely 050246

Bushing
(Superseded to 07511400)

$3.99

$

In Stock, Qty 20+

0

18

Gravely 05959400

Bolt-Hex .38-16 x .75 Grade 5
(Superseded to 05901702)

$1.99

$

In Stock, Qty 10

0

19

Gravely 06308800

Washer-Locking .38 x .094 Regular
(Superseded to 06300116)

$1.49

$

In Stock, Qty 17

0

20

Gravely 06949800

Cable, Throttle-with Liner (105, 106, 107, 108, 109, 113, 312)

Note: (105, 106, 107, 108, 109, 113, 312)

$59.99

$

In Stock, only 2 left!

0

Gravely 06949100

Cable- Throttle-with Liner (116, 117, 120, 314)

Note: (116, 117, 120, 314)

$83.99

$

In Stock, only 3 left!

0

21

Gravely 05947000

Bolt-Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

22

Gravely 044715

J-Clamp
(Superseded to 06916000)

$2.99

$

Usually ships in 4-12 days

0

23

Gravely 06530200

Nut-Locking-Nylon .312-18
(Superseded to 06500820)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 06116900

Screw-Machine 10-24 x .75 Hex Washer Head
(Superseded to 05901837)

$2.49

$

In Stock, only 4 left!

0

25

Gravely 06536000

Nut-Locking-Nylon 10-24 with Insert
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

26

Gravely 035137

Control, Choke
(Superseded to 06924800)

$

$

Not available

27

Gravely 06534700

Nut-Jam .375-24
(Superseded to 06500739)

$2.49

$

In Stock, Qty 5

0

28

Gravely 05947000

Bolt-Hex .31-18 x .75 Grade 5 (312, 314)
(Superseded to 05901704)

Note: (312, 314)

$1.99

$

In Stock, Qty 20+

0

29

Gravely 04935951

Bracket, Muffler Guard (312, 314)

Note: (312, 314)

$

$

Not available

30

Gravely 04935651

Guard, Muffler (312, 314)

Note: (312, 314)

$

$

Not available

31

Gravely 06529800

Nut-Locking-Center .31-18 (312, 314)
(Superseded to 06500826)

Note: (312, 314)

$1.99

$

In Stock, Qty 20+

0

32

Gravely 01590900

Tube, Oil Drain

$6.49

$

Usually ships in 4-12 days

0

33

Gravely 21538000

Filter, Air Paper (105, 106, 107, 113, 116, 120, 312, 314)

Note: (105, 106, 107, 113, 116, 120, 312, 314)

$18.99

$

In Stock, Qty 20+

0

Gravely 21538200

Filter, Air Paper (108, 109, 117)

Note: (108, 109, 117)

$21.99

$

In Stock, Qty 20+

0

34

Gravely 21538100

Filter, Air Foam (105, 106, 07, 113, 116, 120, 312, 314)

Note: (105, 106, 07, 113, 116, 120, 312, 314)

$13.99

$

In Stock, Qty 20+

0

Gravely 21538300

Filter, Air Foam (108, 109, 117)

Note: (108, 109, 117)

$11.99

$

Usually ships in 4-12 days

0

35

Gravely 21533600

Spark Plug

$4.99

$

In Stock, Qty 20+

0

36

Gravely 21535800

Filter, Oil
(Superseded to 49065-0724)

$18.99

$

In Stock, Qty 20+

0

37

Gravely 21538400

Fuel Filter- Kawasaki
(Superseded to 21573800)

$15.99

$

Usually ships in 4-12 days

0

38

Gravely 06529800

Nut-Locking-Center .31-18 (312, 314)
(Superseded to 06500826)

Note: (312, 314)

$1.99

$

In Stock, Qty 20+

0

39

Gravely 05959400

Bolt-Hex .38-16 x .75 Grade 5 (312, 314)
(Superseded to 05901702)

Note: (312, 314)

$1.99

$

In Stock, Qty 10

0

40

Gravely 06529600

Nut-Locking-Center .38-16 (312, 314)
(Superseded to 06500825)

Note: (312, 314)

$1.49

$

In Stock, Qty 20+

0

41

Gravely 06439100

Washer-Flat-Steel .38 x .87 x .179 (312, 314)
(Superseded to 06401103)

Note: (312, 314)

$3.49

$

In Stock, Qty 20+

0

42

Gravely 07517300

Cable Tie

$

$

Not available
