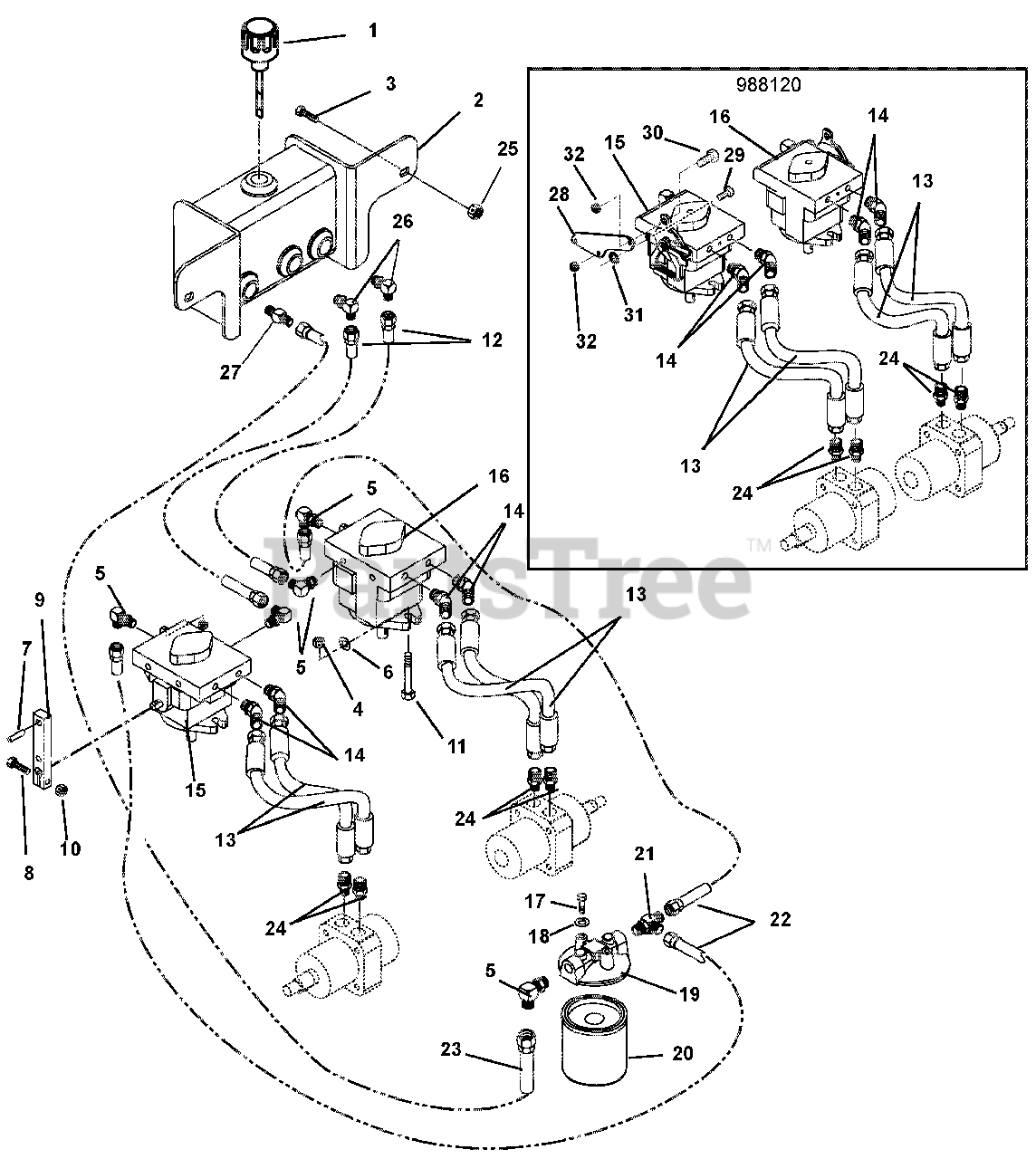

988123 (HE 1748 FX) - Gravely Pro-Hydro 48" Walk-Behind Mower Drive, 17hp Kawasaki (SN: 000101 - 005999) Hydraulics Parts Diagram

Pro-Hydro 48" Walk-Behind Mower Drive, 17hp Kawasaki

Hydraulics Parts Diagram

  • Title

1

Gravely 09273900

Breather, Dipstick

$85.99

$

In Stock, only 2 left!

0

2

Gravely 04941753

Tank Assembly, Hydraulic

$

$

Not available

3

Gravely 05948700

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

4

Gravely 039413

Nut-Nylon-Locking .44-14
(Superseded to 06527500)

$2.99

$

Usually ships in 4-12 days

0

5

Gravely 07063600

Fitting, Hydraulic

$35.99

$

Usually ships in 4-12 days

0

6

Gravely 06443800

Washer-Flat-Steel .43 x 1.00 x .16

$3.99

$

Usually ships in 4-12 days

0

7

Gravely 051889

Pin-Dowel .312 x 1.25 (105, 108)
(Superseded to 05808000)

Note: (105, 108)

$6.49

$

Usually ships in 4-12 days

0

8

Gravely 05947400

Bolt-Hex .25-20 x 1.25 Grade 5 (105, 108)
(Superseded to 05901738)

Note: (105, 108)

$2.49

$

In Stock, Qty 7

0

9

Gravely 08880700

Arm, Pump Actuating (105, 108)

Note: (105, 108)

$

$

Not available

10

Gravely 06531000

Nut-Locking-Nylon .25-20 (105, 108)
(Superseded to 06500832)

Note: (105, 108)

$5.49

$

In Stock, only 2 left!

0

11

Gravely 05962800

Bolt-Hex .44-14 x 1.50 Grade 5
(Superseded to 05901633)

$3.49

$

In Stock, Qty 11

0

12

Gravely 04925500

Hose, Hydraulic

$86.99

$

Usually ships in 4-12 days

0

13

Gravely 04925900

Hose, Hydraulic

$100.99

$

In Stock, only 2 left!

0

14

Gravely 07066200

Fitting, Hydraulic

$62.99

$

Usually ships in 4-12 days

0

15

Gravely 04915600

Pump, Hydraulic Right Hand (105, 108, 123, 126)

Note: (105, 108, 123, 126)

$716.99

$

Usually ships in 4-12 days

0

15

Gravely 00170400

Pump, Hydraulic Right Hand w/ Return (120, 124, 125, 127)

Note: (120, 124, 125, 127)

$746.99

$

Usually ships in 4-12 days

0

16

Gravely 04915700

Pump, Hydraulic Left Hand (105, 108, 123, 126)

Note: (105, 108, 123, 126)

$

$

Not available

16

Gravely 00170500

Pump, Hydraulic Left Hand w/ Return (120124, 125, 127)

Note: (120124, 125, 127)

$746.99

$

Usually ships in 4-12 days

0

17

Gravely 05947900

Bolt-Hex .25-20 x .50 Grade 5
(Superseded to 05901705)

$0.99

$

In Stock, only 3 left!

0

18

Gravely 06308400

Washer-Locking .25 x .062 Regular
(Superseded to 06401009)

$0.99

$

In Stock, Qty 11

0

19

Gravely 09072100

Head, Filter

$62.99

$

Usually ships in 4-12 days

0

20

Gravely 09246900

Filter- Oil

$28.99

$

In Stock, Qty 14

0

21

Gravely 07066100

Fitting, Hydraulic Tee

$

$

Not available

22

Gravely 04925600

Hose, Hydraulic

$

$

Not available

23

Gravely 04911500

Hose, Hydraulic

$81.99

$

In Stock, only 1 left!

0

24

Gravely 07062100

Fitting 12MP-6FP BROYHILL# TM5406-12-6

$15.99

$

Usually ships in 4-12 days

0

25

Gravely 06535800

Nut-Locking-Nylon .38-16
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

26

Gravely 07061600

Hydraulic, Fitting Elbow

$15.99

$

Usually ships in 4-12 days

0

27

Gravely 07061700

Hydraulic, Fitting Straight

$

$

Not available

28

Gravely 09282900

Bracket, Return to Neutral/Damper (120)

Note: (120)

$7.99

$

Usually ships in 4-12 days

0

29

Gravely 05947200

Bolt-Hex .31-18 x .50 Grade 5 (120)
(Superseded to 05901904)

Note: (120)

$1.99

$

In Stock, Qty 13

0

30

Gravely 05946900

Bolt-Hex .31-18 x 1.00 Grade 5 (120)
(Superseded to 05901701)

Note: (120)

$1.99

$

In Stock, Qty 5

0

31

Gravely 05522100

Bushing-Sleeve .377 x .624 x .370 (120)

Note: (120)

$5.49

$

Usually ships in 4-12 days

0

32

Gravely 06529800

Nut-Locking-Center .31-18 (120)
(Superseded to 06500826)

Note: (120)

$1.99

$

In Stock, Qty 20+
