988124 (HE 1748 FXP) - Gravely Pro-Hydro 48" Walk-Behind Mower, Pro-Steer, 17hp Kawasaki (SN: 000101 - 005999) 48" And 52" Belts, Idlers And Blades Parts Diagram

Pro-Hydro 48" Walk-Behind Mower, Pro-Steer, 17hp Kawasaki

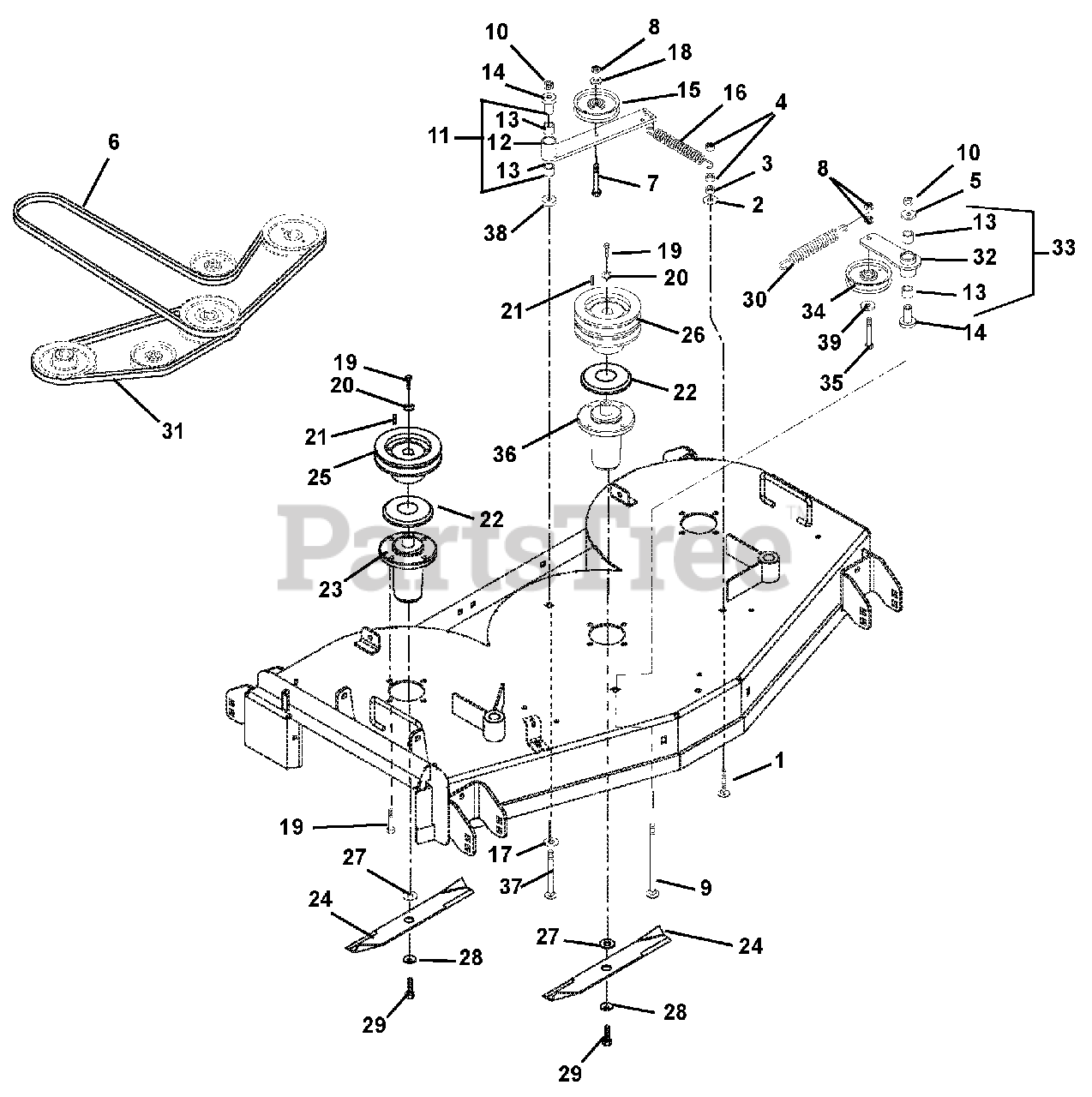

48" And 52" Belts, Idlers And Blades Parts Diagram

  • Title

1

Gravely 06224200

Bolt-Round Head Square Neck .38-16 x 1.50 Grade 5
(Superseded to 06200416)

$4.99

$

In Stock, Qty 20+

0

2

Gravely 06308800

Washer-Locking .38 x .094 Regular
(Superseded to 06300116)

$1.49

$

In Stock, Qty 17

0

3

Gravely 06529400

Nut-Hex .38-16
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 415543

Washer-Flat-Steel .531 x 1.25 x .10
(Superseded to 06441000)

$3.49

$

In Stock, only 3 left!

0

6

Gravely 07240200

V-Belt B-Section 39.38 x .65 (108, 123, 124, 125)

Note: (108, 123, 124, 125)

$82.99

$

In Stock, only 2 left!

0

Gravely 07240300

V-Belt B-Section 42.25 x .65 (126, 127)

Note: (126, 127)

$104.99

$

Usually ships in 4-12 days

0

7

Gravely 06228100

Bolt-Round Head Square Neck .38-16 x 3.00 Grade 5
(Superseded to 06200418)

$4.99

$

In Stock, Qty 19

0

8

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 06200003

Bolt-Round Head Square Neck .50-13 x 3.50 Grade 5
(Superseded to 06200340)

$6.49

$

In Stock, Qty 12

0

10

Gravely 06536300

Nut-Locking-Center .50-13
(Superseded to 06500827)

$4.99

$

In Stock, Qty 14

0

11

Gravely 09286500

Assembly, Idler Pivot Arm (Contains Items 12 & 13)

Note: (Contains Items 12 & 13)

$167.99

$

In Stock, only 2 left!

0

12

Gravely 09286451

Weldment, Idler Pivot Arm

$174.99

$

Usually ships in 4-12 days

0

13

Gravely 05435800

Bearing, 1.00 x 1.12 x .75

$9.99

$

In Stock, Qty 20+

0

14

Gravely 07053100

Bearing, Pedestal Powdered Metal
(Superseded to 07000031)

$84.99

$

In Stock, Qty 6

0

15

Gravely 07327800

Idler-Flat 4.00 x .38 (2.00 W)

Note: (2.00 W)

$91.99

$

In Stock, Qty 20+

0

16

Gravely 08336000

Spring, Extension
(Superseded to 08300728)

$28.99

$

In Stock, Qty 20+

0

17

Gravely 06441500

Washer-Flat-Steel .755 x 1.375 x .062
(Superseded to 06401016)

$3.99

$

In Stock, Qty 20+

0

18

Gravely 00440700

Seal, Idler Bearing

$79.99

$

In Stock, Qty 7

0

19

Gravely 05900013

Bolt-Hex .38-16 x 1.00 Grade 8
(Superseded to 05901721)

$2.49

$

In Stock, Qty 20+

0

20

Gravely 06400006

Washer-Flat-Steel .406 x 1.50 x .245
(Superseded to 06401110)

$4.99

$

In Stock, Qty 20+

0

21

Gravely 06611200

Key, Square .25 x .25 x 1.00 RC 40-50

$3.49

$

In Stock, Qty 20+

0

22

Gravely 09238200

Slinger-Dust

$17.99

$

In Stock, only 2 left!

0

23

Gravely 59201000

Assembly, Maintenance Free Spindle
(Superseded to 59114000)

$273.99

$

In Stock, Qty 14

0

24

Gravely 04919100

Blade- Mower (108, 123, 124, 125)

Note: (108, 123, 124, 125)

$26.99

$

In Stock, Qty 20+

0

Gravely 04916400

Blade- Mower (126, 127)

Note: (126, 127)

$27.99

$

In Stock, Qty 20+

0

Gravely 00273000

Blade - Mower (108, 123, 124, 125)
(Superseded to 05244100)

Note: (108, 123, 124, 125)

$27.99

$

In Stock, Qty 20+

0

Gravely 00273100

Blade- Mulching (126, 127)

Note: (126, 127)

$26.99

$

In Stock, Qty 9

0

25

Gravely 09242500

Pulley
(Superseded to 07331067)

$122.99

$

In Stock, Qty 7

0

26

Gravely 09253200

Sheave, Double (5.25)

Note: (5.25)

$64.99

$

In Stock, Qty 12

0

27

Gravely 06435200

Washer, Flat .64 x 1.81 x .250
(Superseded to 06400829)

$4.99

$

In Stock, Qty 20+

0

28

Gravely 06445700

Washer-Bellville .63 x 1.625 x .14

$5.49

$

In Stock, Qty 20+

0

29

Gravely 05978900

Bolt-Hex .62-18 x 1.75 Grade 8
(Superseded to 05901822)

$3.99

$

In Stock, Qty 20+

0

30

Gravely 08336100

Spring, Extension
(Superseded to 08300512)

$17.99

$

In Stock, Qty 20+

0

31

Gravely 07202900

V-Belt 5L-Section 49.97 x .672 (108, 123, 124, 125)

Note: (108, 123, 124, 125)

$50.99

$

In Stock, only 4 left!

0

Gravely 049028

V-Belt A-Section 19.10 x .672 (126, 127)
(Superseded to 07222300)

Note: (126, 127)

$63.99

$

In Stock, Qty 5

0

32

Gravely 00345600

Arm, Idler Pivot

$52.99

$

In Stock, only 4 left!

0

33

Gravely 00349100

Asm, Idler Pivot Arm (Contains Items 13 and 32)

Note: (Contains Items 13 and 32)

$65.99

$

In Stock, only 2 left!

0

34

Gravely 07327600

V-Idler, 4.00 x .38

$39.99

$

In Stock, Qty 20+

0

35

Gravely 05962900

Bolt-Hex .38-16 x 2.25 Grade 5
(Superseded to 05901640)

$4.99

$

In Stock, Qty 20+

0

36

Gravely 59202600

Spindle Assembly (Center)
(Superseded to 59225700)

Note: (Center)

$361.99

$

In Stock, Qty 20+

0

37

Gravely 06218600

Bolt-Round Head Square Neck .50-13 x 3.75

$8.49

$

Usually ships in 4-12 days

0

38

Gravely 06445000

Washer-Flat-Steel .515 x 1.625 x .25

$6.49

$

In Stock, Qty 20+

0

39

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0
