988125 (HE 1748 FLP) - Gravely Pro-Hydro 48" Walk-Behind Mower, Pro-Steer, 17hp Kawasaki (SN: 000101 - 005999) 48" And 52" Floating Deck And Mower Frame Parts Diagram

Pro-Hydro 48" Walk-Behind Mower, Pro-Steer, 17hp Kawasaki

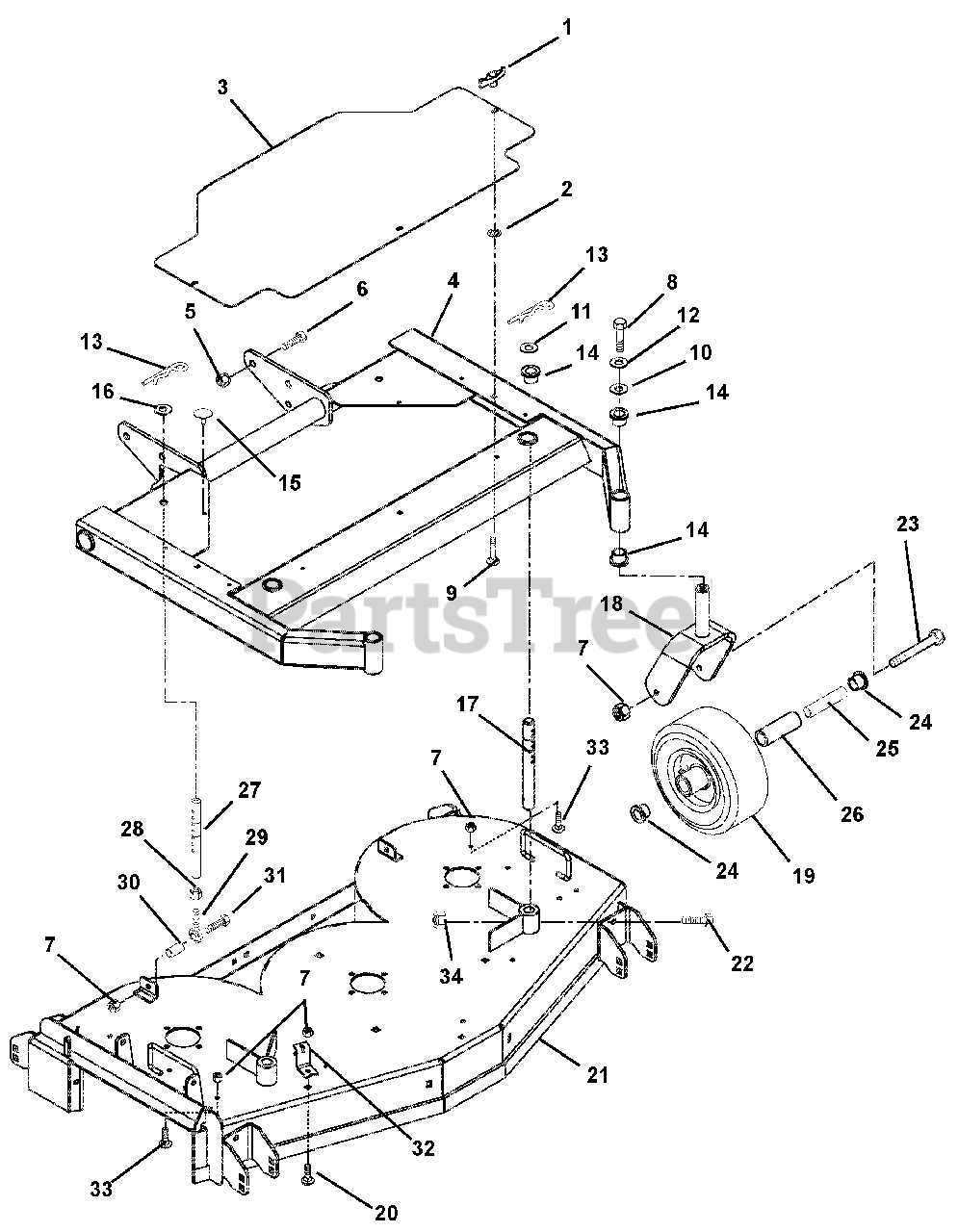

48" And 52" Floating Deck And Mower Frame Parts Diagram

  • Title

1

Gravely 07531700

Knob- Wing .312-18
(Superseded to 07534800)

$3.99

$

In Stock, Qty 20+

0

2

Gravely 040380

Nut-Push .312
(Superseded to 06514900)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 04921153

Cover, Belt Pro Mower

$

$

Not available

4

Gravely 04921253

Weldment-Mower Frame 48" Floating (108, 125)

Note: (108, 125)

$

$

Not available

Gravely 04928353

Weldment-Mower Frame 52" Floating (126, 127)

Note: (126, 127)

$

$

Not available

5

Gravely 06540700

Nut-Locking-Nylon .625-11

$4.99

$

In Stock, Qty 20+

0

6

Gravely 05968700

Bolt-Hex .62-11 x 1.50

$3.99

$

In Stock, Qty 12

0

7

Gravely 06542000

Nut-Locking-Top-Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 05958000

Bolt-Hex .38-16 x 1.25 Grade 5
(Superseded to 05901724)

$1.99

$

In Stock, Qty 17

0

9

Gravely 06221800

Bolt-Round Head Square Neck .31-18 x 1.00
(Superseded to 06200237)

$2.99

$

Usually ships in 4-12 days

0

10

Gravely 06443400

Washer-Flat-Steel .38 x 1.50 x .125
(Superseded to 06401106)

$3.99

$

In Stock, Qty 20+

0

11

Gravely 06444700

Washer-Flat-Steel .875 x 1.50 x .120
(Superseded to 06401207)

$4.99

$

In Stock, Qty 15

0

12

Gravely 06308800

Washer-Locking .38 x .094 Regular
(Superseded to 06300116)

$1.49

$

In Stock, Qty 19

0

13

Gravely 06713300

Pin-Hair-Internal .17 x .68 x 3.50
(Superseded to 06700228)

$2.99

$

Usually ships in 4-12 days

0

14

Gravely 05533600

Bushing-Flange 1.00 x 1.25 x 1.50 x 1.50
(Superseded to 05500934)

$7.99

$

In Stock, Qty 20+

0

15

Gravely 07503100

Bumper Grommet .125 x .25 Dia.

$3.99

$

In Stock, Qty 20+

0

16

Gravely 06442900

Washer-Flat-Steel .688 x 1.75 x .134
(Superseded to 06401032)

$1.49

$

In Stock, only 1 left!

0

17

Gravely 04920900

Rod- Front Height Adjustment

$87.99

$

Usually ships in 4-12 days

0

18

Gravely 04917053

Weldment-Caster Fork

$151.99

$

Usually ships in 4-12 days

0

19

Gravely 07157200

Wheel 9 x 3.50
(Superseded to 07100931)

$151.99

$

In Stock, only 2 left!

0

20

Gravely 06223900

Bolt-Round Head Square Neck .38-16 x 1.00 Grade 5
(Superseded to 06200312)

$1.99

$

In Stock, only 4 left!

0

21

Gravely 58804700

Kit, 48" Floating Mower Deck with Decals (108, 125)

Note: (108, 125)

$

$

Not available

Gravely 58804800

Kit, 52" Floating Mower Deck with Decals (126, 127)

Note: (126, 127)

$

$

Not available

22

Gravely 05967100

Bolt-Hex .25-20 x 2.00 Grade 8
(Superseded to 05901740)

$2.99

$

Usually ships in 4-12 days

0

23

Gravely 05925400

Bolt-Hex .38-16 x 5.50
(Superseded to 05982000)

$3.99

$

Usually ships in 4-12 days

0

24

Gravely 07000014

Bearing-Retainer

$40.99

$

Usually ships in 4-12 days

0

25

Gravely 04916900

Bearing .625 x .380 x 4.08

$73.99

$

Usually ships in 4-12 days

0

26

Gravely 05400003

Bearing-Roller

$23.99

$

In Stock, only 4 left!

0

27

Gravely 04921000

Rod- Rear Height Adjustment

$

$

Not available

28

Gravely 06534700

Nut-Jam .375-24
(Superseded to 06500739)

$2.49

$

In Stock, Qty 5

0

29

Gravely 051425

Rod End, .38 Right Hand
(Superseded to 08790600)

$60.99

$

Usually ships in 4-12 days

0

30

Gravely 05522100

Bushing-Sleeve .377 x .624 x .37

$5.49

$

Usually ships in 4-12 days

0

31

Gravely 05957900

Bolt-Hex .38-16 x 1.50 Grade 5
(Superseded to 05901928)

$1.99

$

In Stock, Qty 10

0

32

Gravely 09245353

Anchor, Spring

$42.99

$

Usually ships in 4-12 days

0

33

Gravely 06223900

Bolt-Round Head Square Neck .38-16 x .75 Grade 5
(Superseded to 06200312)

$1.99

$

In Stock, only 4 left!

0

34

Gravely 06543500

Nut-Locking-Top-Flange .25-20
(Superseded to 06500903)

$1.49

$

In Stock, Qty 11

0
