988125 (HE 1748 FLP) - Gravely Pro-Hydro 48" Walk-Behind Mower, Pro-Steer, 17hp Kawasaki (SN: 006000 - 006999) Parking Brake Parts Diagram

Pro-Hydro 48" Walk-Behind Mower, Pro-Steer, 17hp Kawasaki

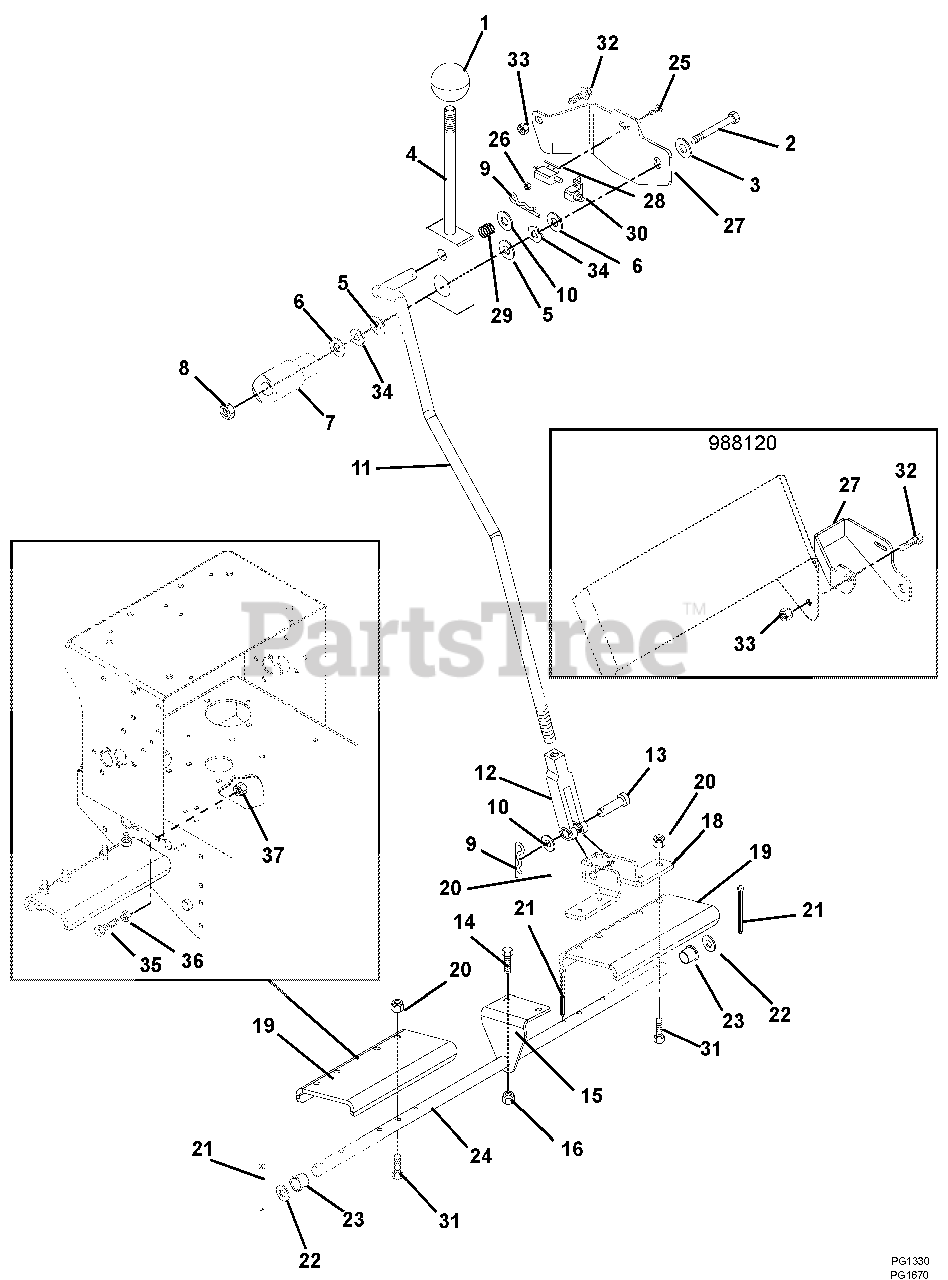

Parking Brake Parts Diagram

  • Title

1

Gravely 07533500

Knob, Ball-Black 1-.41, .375-1

$10.99

$

In Stock, only 1 left!

0

2

Gravely 05976200

Bolt-Hex .44-14 x 4.5 Grade 5

$

$

Not available

3

Gravely 06441000

Washer-Flat-Steel .50 x 1.25 x .083
(Superseded to 06401202)

$3.49

$

In Stock, only 3 left!

0

4

Gravely 04927400

Weldment- Handle

$

$

Not available

5

Gravely 06431600

Washer-Flat-Nylon .76 x 1.25 x .030

$3.99

$

Usually ships in 4-12 days

0

6

Gravely 06441500

Washer-Flat-Steel .76 x 1.38 x .062
(Superseded to 06401016)

$3.99

$

In Stock, Qty 20+

0

7

Gravely 04927300

Pivot, Brake

$

$

Not available

8

Gravely 06527500

Nut-Locking-Hex .44-14

$2.99

$

Usually ships in 4-12 days

0

9

Gravely 06713500

Pin-Hair Internal .08 x .18 x 1.18
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 04927500

Rod, Brake (105, 108, 123, 126)

Note: (105, 108, 123, 126)

$69.99

$

Usually ships in 4-12 days

0

Gravely 04938200

Rod- Brake (120, 124, 125, 127)

Note: (120, 124, 125, 127)

$

$

Not available

12

Gravely 08800400

Clevis,.38-24 Adjustable

$11.99

$

Usually ships in 4-12 days

0

13

Gravely 06813300

Pin-Clevis .37 x 1.75

$2.99

$

Usually ships in 4-12 days

0

14

Gravely 05948700

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

15

Gravely 04927151

Bracket, Brake Shaft

$

$

Not available

16

Gravely 06535800

Nut-Locking-Nylon .38-16
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

17

Gravely 05952500

Bolt-Hex .25-20 x 1.50 Grade 5
(Superseded to 05901739)

$1.99

$

In Stock, only 4 left!

0

18

Gravely 04927751

Brake, Arm

$

$

Not available

19

Gravely 04927851

Pad, Brake
(Superseded to 03397151)

$49.99

$

Usually ships in 4-12 days

0

20

Gravely 06531000

Nut-Locking-Nylon .25-20
(Superseded to 06500832)

$5.49

$

In Stock, only 2 left!

0

21

Gravely 06707100

Pin-Cotter .12 x 1.00

$0.99

$

In Stock, Qty 10

0

22

Gravely 06442800

Washer-Flat-Steel .656 x 1.31 x .095
(Superseded to 06401118)

$2.99

$

In Stock, Qty 20+

0

23

Gravely 05517400

Bushing-Flange .63 x 1.00 x .625 Nylon

$7.49

$

Usually ships in 4-12 days

0

24

Gravely 04927600

Brake, Shaft

$92.99

$

Usually ships in 4-12 days

0

25

Gravely 06116900

Screw-Machine 10-24 x .75 Hex Washer Head
(Superseded to 05901837)

$2.49

$

In Stock, only 4 left!

0

26

Gravely 06536000

Nut-Locking-Nylon 10-24 with Insert
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 04927951

Bracket, Parking Brake Switch (105, 108, 123, 126)

Note: (105, 108, 123, 126)

$

$

Not available

Gravely 04937751

Bracket- Brake Switch (120, 124, 125, 127)

Note: (120, 124, 125, 127)

$17.99

$

Usually ships in 4-12 days

0

28

Gravely 08828100

Switch, Interlock

$21.99

$

In Stock, Qty 6

0

29

Gravely 08338800

Spring-Compression .045 x .60 x .75

$7.49

$

In Stock, only 2 left!

0

30

Gravely 07534400

Boot, Rubber

$6.49

$

Usually ships in 4-12 days

0

31

Gravely 05947400

Bolt-Hex .25-20 x 1.25 Grade 5
(Superseded to 05901738)

$2.49

$

In Stock, Qty 7

0

32

Gravely 07049400

Bolt-Serrated Hex Flange Washer Head .25-20 x .75 (105, 108, 123, 126)

Note: (105, 108, 123, 126)

$2.99

$

Usually ships in 4-12 days

0

Gravely 05947000

Bolt-Hex .31-18 x .75 Grade 5 (120, 124, 125, 127)
(Superseded to 05901704)

Note: (120, 124, 125, 127)

$1.99

$

In Stock, Qty 20+

0

33

Gravely 06543500

Nut-Locking-Top-Flange .25-20 (105, 108, 123, 126)
(Superseded to 06500903)

Note: (105, 108, 123, 126)

$1.49

$

In Stock, Qty 20+

0

Gravely 06543100

Nut-Locking-Top-Flange .31-18 (120, 124, 125, 127)
(Superseded to 06500904)

Note: (120, 124, 125, 127)

$1.49

$

In Stock, Qty 20+

0

34

Gravely 09252000

Washer-Wave .076 x 1.12 x .080

$3.99

$

Usually ships in 4-12 days

0

35

Gravely 05958500

Bolt-Hex .38-16 x 1.75 Grade 5
(Superseded to 05901809)

$1.99

$

In Stock, only 3 left!

0

36

Gravely 06529400

Nut-Hex .38-16
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0

37

Gravely 06535800

Nut-Locking-Nylon .38-16
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0
