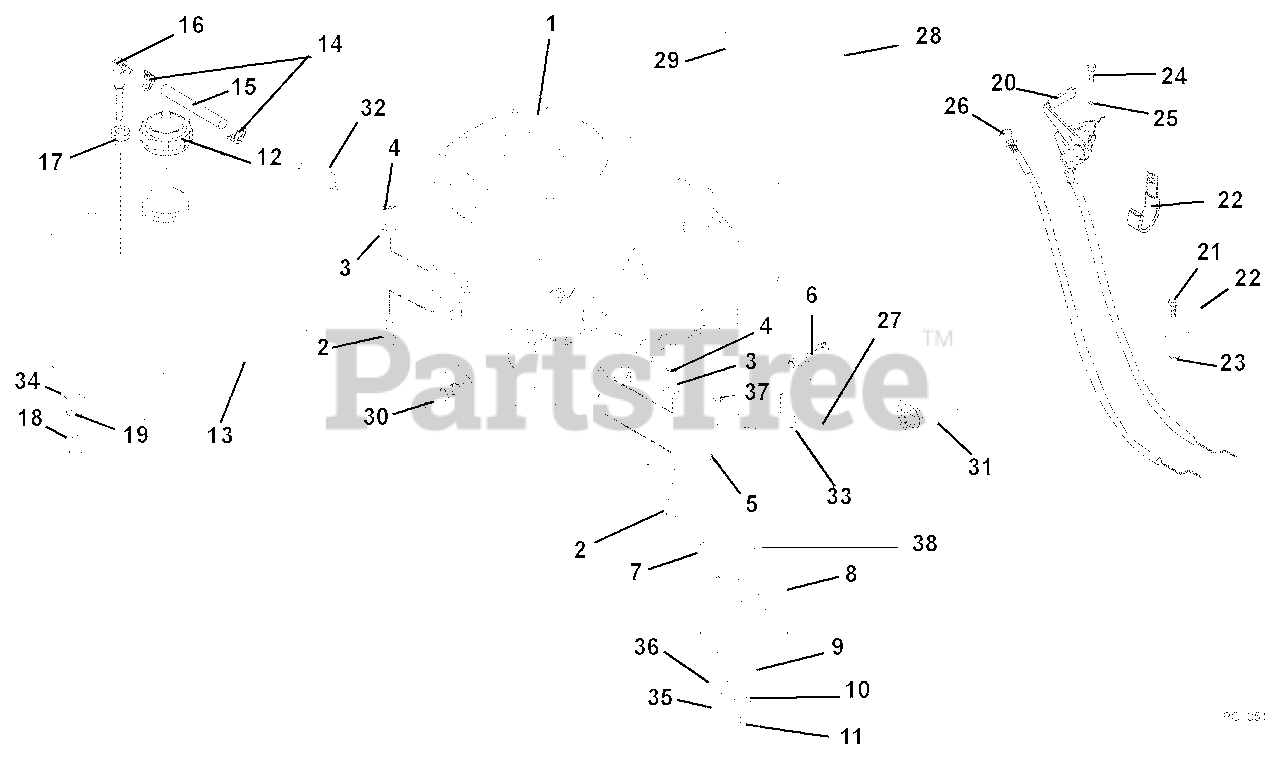

988125 (HE 1748 FLP) - Gravely Pro-Hydro 48" Walk-Behind Mower, Pro-Steer, 17hp Kawasaki (SN: 007000 & Above) Engine, Fuel And Exhaust System Parts Diagram

Pro-Hydro 48" Walk-Behind Mower, Pro-Steer, 17hp Kawasaki

Engine, Fuel And Exhaust System Parts Diagram

  • Title

1

Gravely 08266800

Engine, 15 HP Kawasaki FH430V - AS02 (105, 120)

Note: (105, 120)

$

$

Not available

Gravely 08266900

Engine, 17 HP Kawasaki FH500B - AS01 (108, 123, 124, 125 SN - 000101 to 006999)

Note: (108, 123, 124, 125 SN - 000101 to 006999)

$

$

Not available

Gravely 08200049

Engine, 19 HP Kawasaki FH580V-BS02-S (126, 127)

Note: (126, 127)

$

$

Not available

Gravely 08200139

Engine, Kawasaki 17HP FH541V-CS01-S (108, 123, 124, 125 SN - 007000 and up)

Note: (108, 123, 124, 125 SN - 007000 and up)

$

$

Not available

2

Gravely 05957400

Bolt, Hex .31-18 x 1.75 Grade 5
(Superseded to 05901804)

$3.49

$

In Stock, Qty 5

0

3

Gravely 06308600

Washer, Locking .31 x .078 Regular
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 06529200

Nut, Hex .31-18
(Superseded to 06500938)

$1.49

$

In Stock, Qty 8

0

5

Gravely 03292451

Bracket, Clutch

$32.99

$

Usually ships in 4-12 days

0

6

Gravely 04923600

Valve, Oil Drain

$53.99

$

Usually ships in 4-12 days

0

7

Gravely 06603400

Key, Square .25 x 1.25 x 25 SAE 8630 or SAE 1035

$3.99

$

In Stock, Qty 7

0

8

Gravely 00191700

Clutch, Electric PTO (105, 120, 126, 127 SN 000101 and up) (108, 123, 124, 125 SN 000101

Note: (105, 120, 126, 127 SN 000101 and up) (108, 123, 124, 125 SN 000101

$382.99

$

In Stock, only 2 left!

0

to 006999)

to 006999)

Note: to 006999)

$

$

Not available

Gravely 02999900

Clutch, Electric (108, 123, 124, 125 SN - 007000 and up)

Note: (108, 123, 124, 125 SN - 007000 and up)

$593.99

$

Usually ships in 4-12 days

0

9

Gravely 06443600

Washer, Flat-Steel .469 x 2.00 x .25
(Superseded to 06401111)

$7.99

$

In Stock, Qty 20+

0

10

Gravely 06309300

Washer, Locking .44 x .109 Regular
(Superseded to 06300121)

$2.99

$

In Stock, only 2 left!

0

11

Gravely 05965700

Bolt, Hex .44-20 x 3.00 Grade 5 (105, 120, 126, 127 SN 000101 and up) (108, 123, 124, 125
(Superseded to 05900037)

Note: (105, 120, 126, 127 SN 000101 and up) (108, 123, 124, 125

$7.49

$

In Stock, Qty 17

0

SN - 000101 to 006999)

SN - 000101 to 006999)

Note: SN - 000101 to 006999)

$

$

Not available

Gravely 05900039

Bolt, Hex .44-20 x 1.50 Grade 5 (108, 123, 124, 125 SN - 007000 and up)
(Superseded to 05902004)

Note: (108, 123, 124, 125 SN - 007000 and up)

$6.49

$

In Stock, only 2 left!

0

12

Gravely 00273700

Cap, Fuel
(Superseded to 03859100)

$29.99

$

In Stock, only 3 left!

0

13

Gravely 04914000

Tank, Fuel

$

$

Not available

14

Gravely 06939100

Clamp, Hose Wire .49/.51 x .116

$3.99

$

In Stock, Qty 7

0

15

Gravely 00924300

Gas Line, Bulk .25 I.D.
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 09112300

Fitting, Tank
(Superseded to 03875300)

$15.99

$

In Stock, only 2 left!

0

17

Gravely 07511400

Bushing (Black in color. Does not replace or interchange with orange colored grommet.)

Note: (Black in color. Does not replace or interchange with orange colored grommet.)

$3.99

$

In Stock, Qty 20+

0

Gravely 00387300

Grommet (Orange in color. Does not replace or interchange with black colored bushing.)

Note: (Orange in color. Does not replace or interchange with black colored bushing.)

$9.99

$

In Stock, Qty 13

0

18

Gravely 05959400

Bolt, Hex .38-16 x .75 Grade 5
(Superseded to 05901702)

$1.99

$

In Stock, Qty 10

0

19

Gravely 06308800

Washer, Locking .38 x .094 Regular
(Superseded to 06300116)

$1.49

$

In Stock, Qty 17

0

20

Gravely 06949800

Cable, Throttle with Liner (105, 108, 123, 126)

Note: (105, 108, 123, 126)

$59.99

$

In Stock, only 2 left!

0

Gravely 06949100

Cable, Throttle with Liner (120, 124, 125, 127)

Note: (120, 124, 125, 127)

$83.99

$

In Stock, only 3 left!

0

21

Gravely 05947000

Bolt, Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

22

Gravely 06916000

J-Clamp

$2.99

$

Usually ships in 4-12 days

0

23

Gravely 06530200

Nut, Locking-Nylon .312-18
(Superseded to 06500820)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 06116900

Screw, Machine 10-24 x .75 Hex Washer Head
(Superseded to 05901837)

$2.49

$

In Stock, only 4 left!

0

25

Gravely 06536000

Nut, Locking-Nylon 10-24 with Insert
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

26

Gravely 06924800

Control, Choke

$

$

Not available

27

Gravely 01590900

Tube, Oil Drain

$6.49

$

Usually ships in 4-12 days

0

28

Gravely 21538000

Filter, Air Paper (105, 120)

Note: (105, 120)

$18.99

$

In Stock, Qty 20+

0

Gravely 21538200

Filter, Air Paper (108, 123, 124, 125, 126, 127)

Note: (108, 123, 124, 125, 126, 127)

$21.99

$

In Stock, Qty 20+

0

29

Gravely 21538100

Filter, Air Foam (105, 120)

Note: (105, 120)

$13.99

$

In Stock, Qty 20+

0

Gravely 21538300

Filter, Air Foam (108, 123, 124, 125, 126, 127)

Note: (108, 123, 124, 125, 126, 127)

$11.99

$

Usually ships in 4-12 days

0

30

Gravely 21533600

Spark Plug

$4.99

$

In Stock, Qty 20+

0

31

Gravely 21535800

Filter, Oil
(Superseded to 49065-0724)

$18.99

$

In Stock, Qty 20+

0

32

Gravely 21538400

Fuel Filter, Kawasaki
(Superseded to 21573800)

$15.99

$

Usually ships in 4-12 days

0

33

Gravely 07517300

Cable Tie

$

$

Not available

34

Gravely 06436200

Washer, Flat Steel .409 x .812 x .065
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

35

Gravely 05980900

Bolt, Hex .312-18 x 2.00 FTH Grade 5
(Superseded to 05902003)

$3.49

$

In Stock, only 2 left!

0

36

Gravely 06437200

Washer, Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

37

Gravely 06536100

Nut, Jam .31-18
(Superseded to 06500909)

$1.49

$

In Stock, Qty 20+

0

38

Gravely 00182500

Bushing, Spacer 1.0 x 1.25 x .25 (105, 120, 126, 127 SN 000101 and up) (108, 123, 124, 125

Note: (105, 120, 126, 127 SN 000101 and up) (108, 123, 124, 125

$6.49

$

Usually ships in 4-12 days

0
