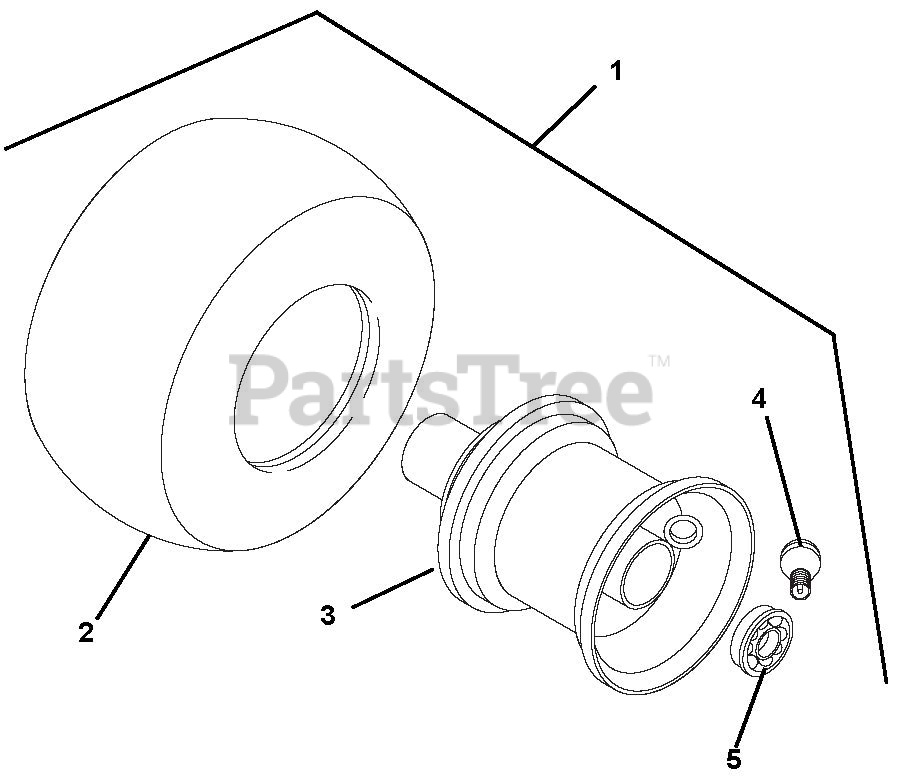

988134 (GR 1334 FX) - Gravely Pro-Gear 34" Walk-Behind Mower, Fixed Deck, 13hp Kawasaki (SN: 000101 & Above) Wheels Parts Diagram

Pro-Gear 34" Walk-Behind Mower, Fixed Deck, 13hp Kawasaki

Wheels Parts Diagram

  • Title

1

Gravely 07100240

Assembly, Wheel and Tire 8 x 5.375

Note: (Includes 2 - 5) (988100, 102, 110, 114, 118, 130, 133)

$

$

Not available

1

Gravely 07100239

Assembly, Wheel and Tire 6 x 4.5

Note: (includes 2 - 5) (988121, 122, 134)

$162.99

$

Usually ships in 4-12 days

0

2

Gravely 07100306

Tire, 16 x 6.50

Note: (988100, 102, 110, 114, 118, 130, 133)

$

$

Not available

2

Gravely 07100304

Tire, 13 x 6.50-6 4Ply

Note: (988121, 122, 134)

$

$

Not available

3

Gravely 07100305

Rim Assembly, 16 x 6.50

Note: (988100, 102, 110, 114, 118, 130, 133)

$

$

Not available

3

Gravely 07100303

Assembly, Wheel 13 x 6.50-6

Note: (988121, 122, 134)

$

$

Not available

4

Gravely 07520000

Valve Stem Assembly

$2.99

$

In Stock, only 4 left!

0

5

Gravely 05436500

Bearing, 1" Sealed

$31.99

$

Usually ships in 4-12 days

0
