988140 (HR 1536 FX) - Gravely Pro-Hydro 36" Walk-Behind Mower, Fixed Deck, 15hp Kawasaki (SN: 000101 - 000400) Traction Control Parts Diagram

Pro-Hydro 36" Walk-Behind Mower, Fixed Deck, 15hp Kawasaki

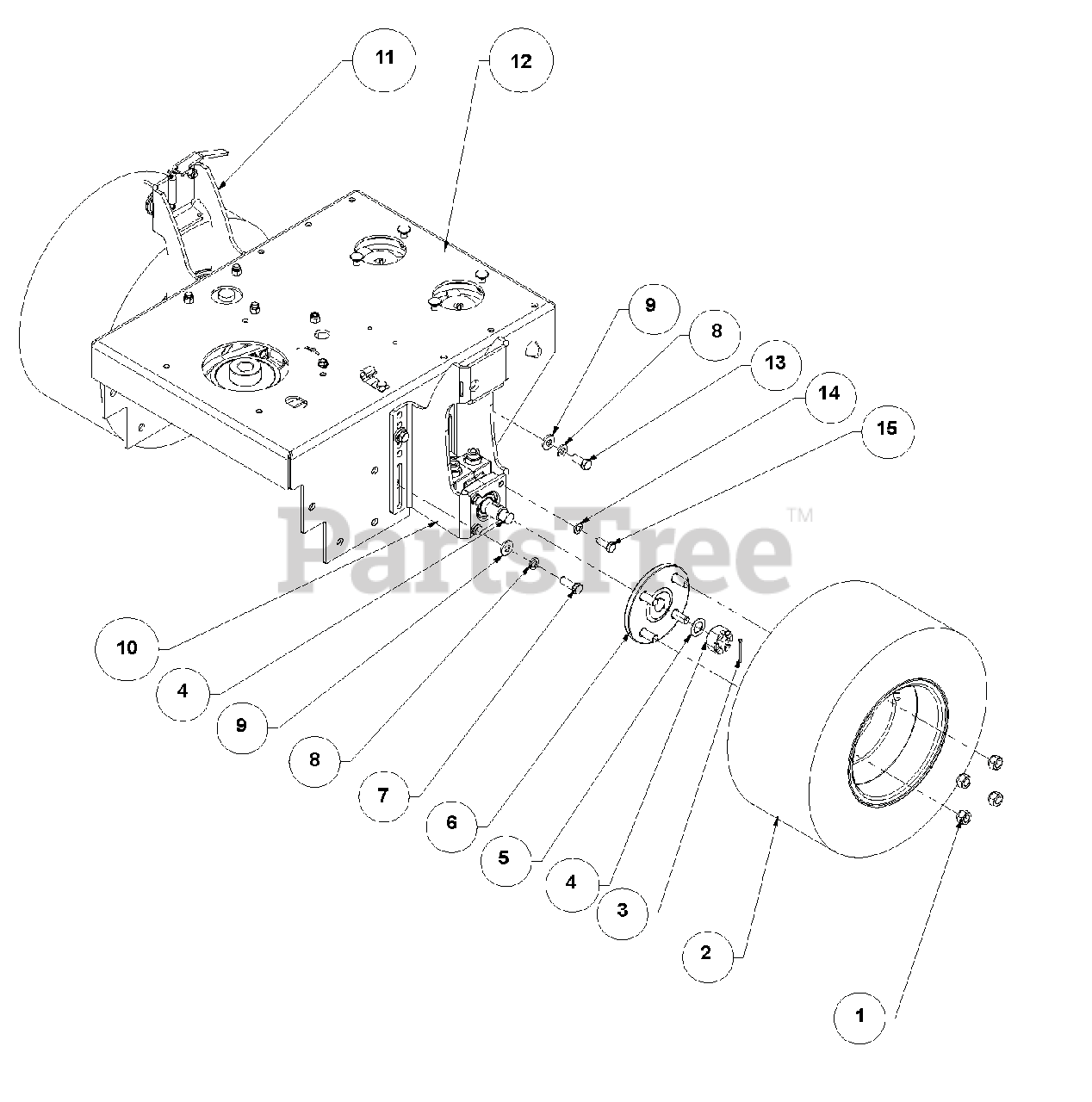

Traction Control Parts Diagram

  • Title

1

Gravely 00960526

NUT, 1/2-20 LUG C
(Superseded to 06517600)

$2.49

$

In Stock, Qty 20+

0

2

Gravely 00200531

ASSY, WHEEL & TIRE - 16X6.5-8

$121.99

$

Usually ships in 4-12 days

0

3

Gravely 00962019

PIN, COT .125X1.50 EXTP Y
(Superseded to 06714300)

$2.99

$

Usually ships in 4-12 days

0

4

Gravely D18311

MOTOR, HYDRAULIC WHEEL

$896.99

$

Usually ships in 4-12 days

0

5

Gravely 00150052

BUSHING, MACH .750X1.25X.048 Y

$5.99

$

Usually ships in 4-12 days

0

6

Gravely 00203842

ASSY, WHEEL HUB

$198.99

$

Usually ships in 4-12 days

0

7

Gravely 00960080

BOLT, 7/16-14X1.25 HEX 5 Y
(Superseded to 05963800)

$3.49

$

In Stock, only 1 left!

0

8

Gravely 00960603

WASHER, .438 MED SPRG LOCK Y
(Superseded to 06309300)

$3.49

$

In Stock, Qty 19

0

9

Gravely 00960712

WASHER, .468X1.00X.125 FLAT Y
(Superseded to 06400914)

$

$

Not available

10

Gravely 03780353

BRKT, LH COMBO WD GRAVELY

Note: (142)

$

$

Not available

Gravely 03763653

BRACKET, LH COMBO GRAVELY

Note: (140, 141)

$

$

Not available

11

Gravely 03780553

BRKT, RH COMBO WD GRAVELY

Note: (142)

$

$

Not available

Gravely 03763753

BRACKET, RH COMB GRAVELY

Note: (140, 141)

$

$

Not available

12

Gravely 03754953

WLDT, ENGINE PLATE TDF GRAVELY

$

$

Not available

13

Gravely 00960079

BOLT, 7/16-14X1.00 HEX 5 Y
(Superseded to 05901913)

$3.49

$

In Stock, only 1 left!

0

14

Gravely 00960602

WASHER, .375 MED SPRG LOCK Y

$

$

Not available

15

Gravely D14280

BOLT, 3/8-16 X 1 GR8 BLACK

$3.49

$

Usually ships in 4-12 days

0
