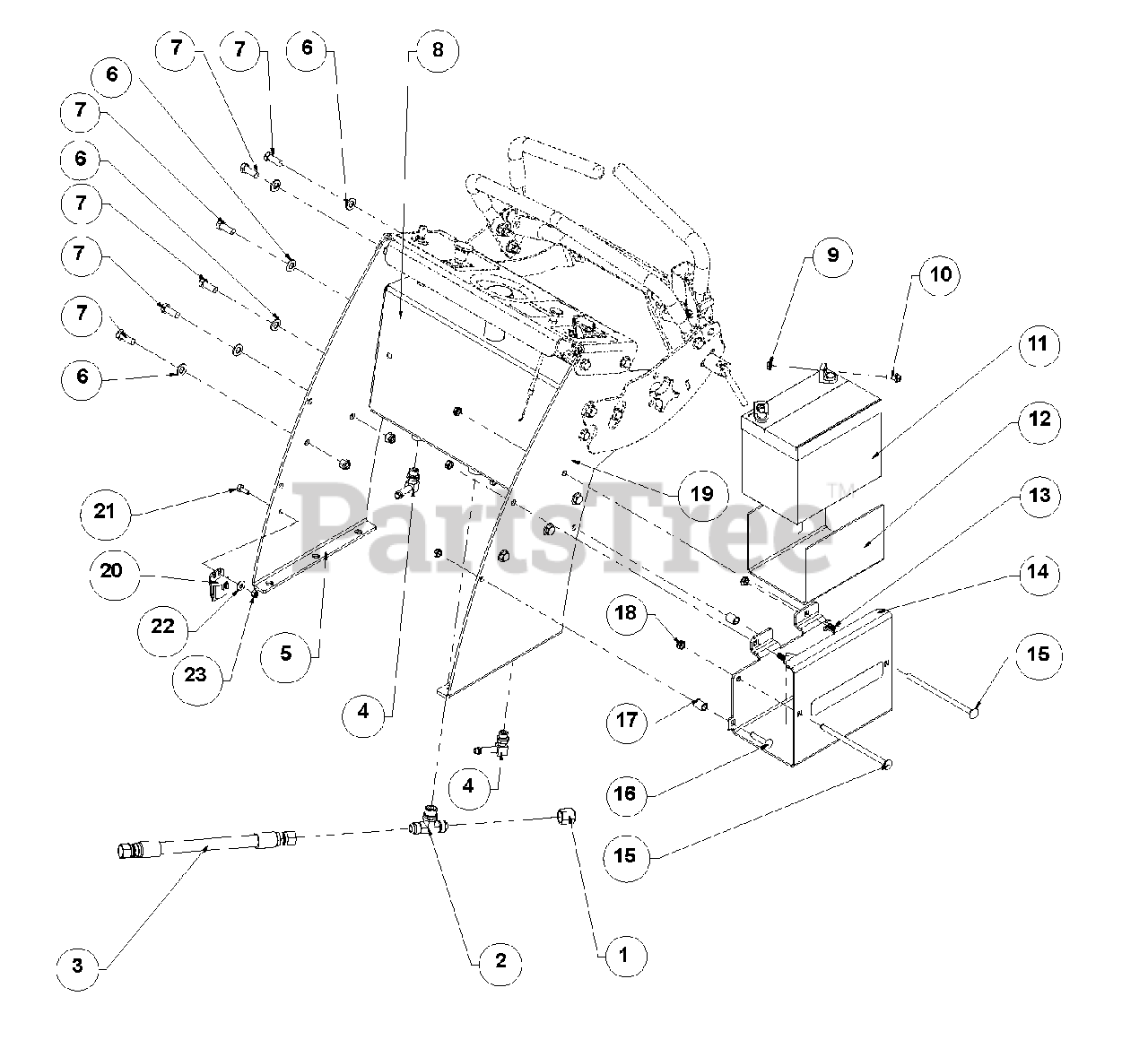

988140 (HR 1536 FX) - Gravely Pro-Hydro 36" Walk-Behind Mower, Fixed Deck, 15hp Kawasaki (SN: 000101 - 000400) Upright Assembly Parts Diagram

Pro-Hydro 36" Walk-Behind Mower, Fixed Deck, 15hp Kawasaki

Upright Assembly Parts Diagram

  • Title

1

Gravely 00231281

Cap, .75-16 JIC

$

$

Not available

2

Gravely D14199

Fitting, TMB JIC

$9.99

$

Usually ships in 4-12 days

0

3

Gravely D38033

Hose, Hydraulic-8-12FJIC 12

$21.99

$

Usually ships in 4-12 days

0

4

Gravely D27048

Fitting, 90 .5625 MOR x .3750 HOSE

$

$

Not available

5

Gravely 03756551

Weldment, Right Hand Handle Tower

$

$

Not available

6

Gravely 00964501

Washer, .406 x .813 x .065 Flat
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 00960046

Bolt, .38-16 x 1.00 Hex 5
(Superseded to 05948700)

$1.99

$

In Stock, Qty 20+

0

8

Gravely D35031

Weldment, Tank

$103.99

$

Usually ships in 4-12 days

0

9

Gravely 00964040

Locknut, .25-20 WHIZ

$

$

Not available

10

Gravely AA963001

Bolt, .25-20 x .625 WSH

$

$

Not available

11

Gravely 00191832

Battery, 12V
(Superseded to 01554800)

$

$

Not available

12

Gravely D28159

Strip, Rubber

$

$

Not available

13

Gravely 00967152

Bolt, .3125-18 x .750 Round Head Square Neck
(Superseded to 06215700)

$2.99

$

In Stock, Qty 20+

0

14

Gravely 00203873

Tray, Battery 1948 Hydro
(Superseded to 04450951)

$43.99

$

Usually ships in 4-12 days

0

15

Gravely 03H1832

Bolt, .3125 x 6 Long Neck Round Head D-Z

$

$

Not available

16

Gravely 00963075

Bolt, .3125-18 x 1.50 Round Head Square Neck
(Superseded to 06200144)

$

$

Not available

17

Gravely 00203926

Bushing, .364 x .540 x .700

$10.99

$

Usually ships in 4-12 days

0

18

Gravely 00967115

Locknut, .3125-18 Nyloc
(Superseded to 06500820)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 03756451

Weldment, Left Hand Handle Tower

$

$

Not available

20

Gravely 00200410

Module, Electronic (140)
(Superseded to 08885700)

Note: (140)

$89.99

$

In Stock, only 4 left!

0

21

Gravely 00960001

Bolt, .25-20 x .750 Hex 5 (140)

Note: (140)

$

$

Not available

22

Gravely AA960700

Washer, .250 Regular Flat (140)
(Superseded to 06435800)

Note: (140)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 00964048

Locknut, .25-20 Nyloc (140)

Note: (140)

$

$

Not available
