988141 (HR 1948 FX) - Gravely Pro-Hydro 48" Walk-Behind Mower, Fixed Deck, 19hp Kawasaki (SN: 000101 - 000400) Deck Assembly - 48" Parts Diagram

Pro-Hydro 48" Walk-Behind Mower, Fixed Deck, 19hp Kawasaki

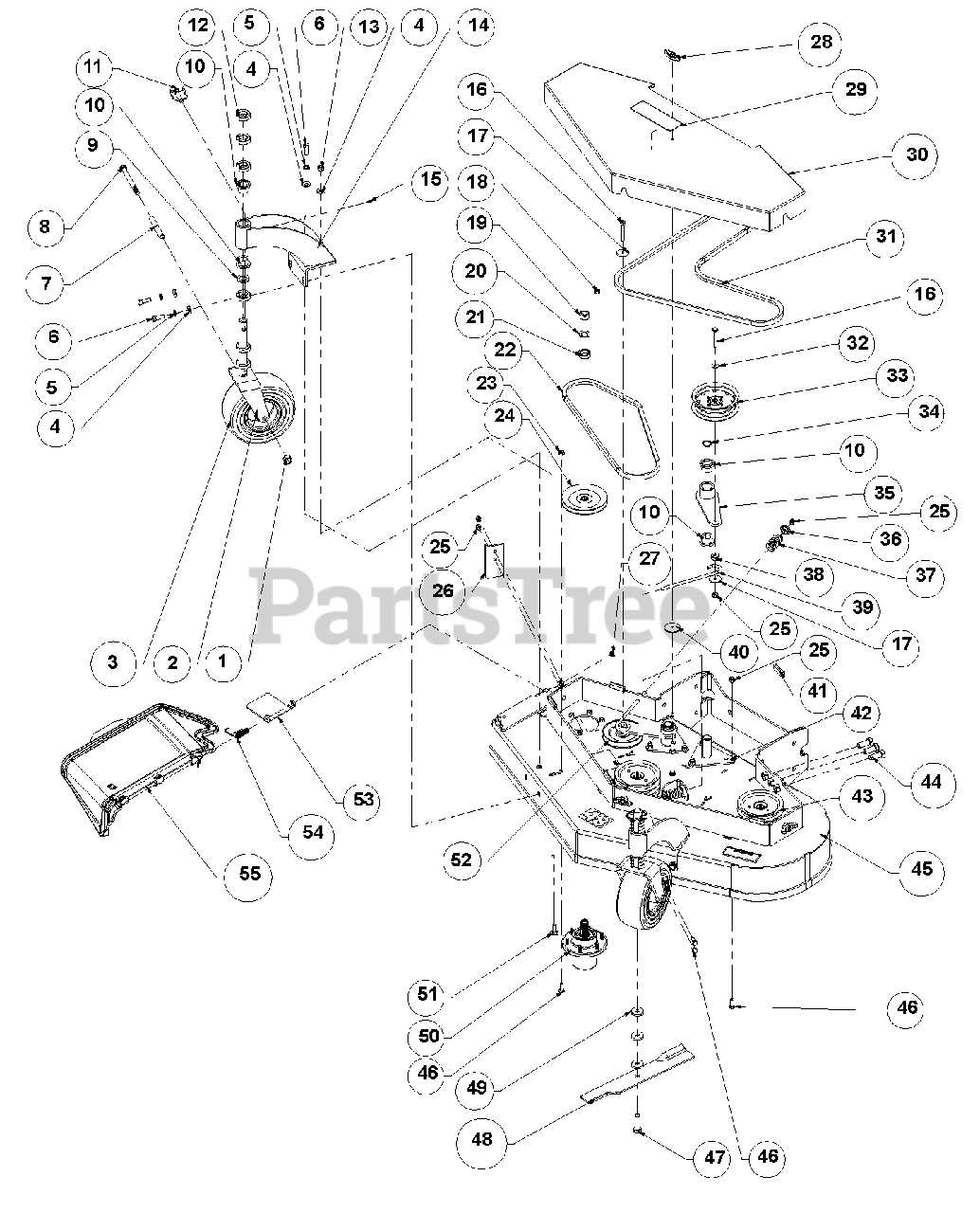

Deck Assembly - 48" Parts Diagram

  • Title

1

Gravely 00964015

LOCKNUT, 1/2-13 NYLOC Y
(Superseded to 06500830)

$2.99

$

In Stock, Qty 20+

0

2

Gravely 00203933

WLDT, CASTER YOKE W/GRVLY PNT

$208.99

$

Usually ships in 4-12 days

0

3

Gravely 07100302

ASSY, WHEEL AND TIRE 9X3.5
(Superseded to 07100931)

$151.99

$

In Stock, only 4 left!

0

4

Gravely 00960702

WASHER, .375 REG FLAT Y
(Superseded to 06435900)

$1.99

$

In Stock, Qty 20+

0

5

Gravely 00960603

WASHER, .438 MED SPRG LOCK Y
(Superseded to 06309300)

$2.99

$

In Stock, Qty 20+

0

6

Gravely 00960080

BOLT, 7/16-14X1.25 HEX 5 Y
(Superseded to 05963800)

$2.99

$

In Stock, only 1 left!

0

7

Gravely D13003

TUBE, CASTER AXLE

$21.99

$

In Stock, only 2 left!

0

8

Gravely 00960129

BOLT, 1/2-13X5.50 HEX 5 Y
(Superseded to 05901632)

$7.49

$

In Stock, Qty 12

0

9

Gravely D13008

BUSHING, 1.03 X 1.50 X .179 Y

$10.99

$

In Stock, Qty 8

0

10

Gravely D18076

BRG, FLG 1.00X1.25X1.00

$7.49

$

In Stock, Qty 13

0

11

Gravely 00161397

PIN, KLIK .438X2.00

$9.99

$

In Stock, only 2 left!

0

12

Gravely 00164145

C-SPACER, 1.00 X 1.77 X .500

$5.99

$

In Stock, only 2 left!

0

13

Gravely 00964025

LOCKNUT, 7/16-14 CROWN Y
(Superseded to 06508200)

$

$

Not available

14

Gravely 00203934

WLDT, CASTER SUPP W/GRVLY PNT

$

$

Not available

15

Gravely 00959995

FTG, 1/4-28 STRGT GREASE ZERK

$3.99

$

In Stock, only 2 left!

0

16

Gravely 00960052

BOLT, 3/8-16X2.50 HEX 5 Y

$

$

Not available

17

Gravely 00964502

WASHER, .375X1.50X.063 FLAT Y
(Superseded to 06439300)

$3.49

$

In Stock, Qty 13

0

18

Gravely 00960502

NUT, 3/8-16 STD HEX GR5 Y

$

$

Not available

19

Gravely 00964024

LOCKNUT, 3/4-16 CROWN PL
(Superseded to 06500031)

$3.99

$

In Stock, Qty 18

0

20

Gravely 03399703

WASHER, .75X1.3125X.120
(Superseded to 06401037)

$2.49

$

In Stock, Qty 9

0

21

Gravely D13024

SPACER, SPINDLE TOP-PULLEY

$14.99

$

In Stock, only 2 left!

0

22

Gravely D38019

BELT, HB 51.4 EL AMD

$34.99

$

Usually ships in 4-12 days

0

23

Gravely 00964022

LOCKNUT, 3/8-16 CROWN Y

$

$

Not available

24

Gravely D18083

PULLEY, NARROW SPLINE
(Superseded to 07329567)

$93.99

$

In Stock, only 2 left!

0

25

Gravely 00968087

LOCKNUT, 3/8-16 NYLOC Y

$

$

Not available

26

Gravely 03754053

PLATE, EXTENDER GRAVELY DECK

$

$

Not available

27

Gravely H141123

RETAINER #

$

$

Not available

28

Gravely M119352

KNOB, 3/8-16 INSERT

$3.99

$

In Stock, only 4 left!

0

29

Gravely 05500904

DECAL, GRAVELY PRO 1948

$

$

Not available

30

Gravely 03388953

WLDT, 48" BELT SHIELD GRAVELY

$

$

Not available

31

Gravely D18087

BELT, HB 77.5 EL AMD OHR

$76.99

$

Usually ships in 4-12 days

0

32

Gravely 00964501

WASHER, .406X.813X.065 FLAT Y
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

33

Gravely D18032

PULLEY, FLAT 5.00X.375 W/BRG
(Superseded to 07346700)

$82.99

$

In Stock, Qty 9

0

34

Gravely 00424390

SNAP RING, 1.00 X .042 EXT
(Superseded to 05700160)

$3.99

$

Usually ships in 4-12 days

0

35

Gravely D15032

WLDT, IDLER ARM

$34.99

$

Usually ships in 4-12 days

0

36

Gravely D33062

KEEPER, SPRING

$40.99

$

Usually ships in 4-12 days

0

37

Gravely D38128

SPRING, COM 1.22X.162X2.50 Y

$18.99

$

Usually ships in 4-12 days

0

38

Gravely D13023

BUSHING, .380 X 1.00 X .410 Y

$20.99

$

Usually ships in 4-12 days

0

39

Gravely D23040

J-BOLT, 3/8-16 X 7.88 Y

$11.99

$

Usually ships in 4-12 days

0

40

Gravely D24019

WASHER, .402X2.00X.055 FEND Y

$

$

Not available

41

Gravely 00999538

TRIM, LOCK 1/4" EDGE

$6.49

$

Usually ships in 4-12 days

0

42

Gravely 00203918

WLDT, IDLER PIVOT MOUNT
(Superseded to 05180151)

$49.99

$

Usually ships in 4-12 days

0

43

Gravely 03399702

PULLEY, SPLINE SPINDLE LSE

$76.99

$

In Stock, only 2 left!

0

44

Gravely 05901321

BOLT, HEX 5/8-11 1.5" GR8 YWZC
(Superseded to 05901723)

$3.99

$

Usually ships in 4-12 days

0

45

Gravely 03753901

48" GRAVELY HYDRO DECK DECALS

$

$

Not available

46

Gravely 00960046

BOLT, 3/8-16X1.00 HEX 5 Y
(Superseded to 05948700)

$1.99

$

In Stock, Qty 20+

0

47

Gravely 00967348

BOLT, 5/8-11 X 2.00 HEX 8 Y
(Superseded to 05901725)

$6.49

$

In Stock, Qty 9

0

48

Gravely GDU10230

BLADE, 16.500 X .80 LIFT

$29.99

$

In Stock, Qty 8

0

49

Gravely D18055

WASHER, .630X1.50X.250 FLAT Y
(Superseded to 06401033)

$7.49

$

In Stock, Qty 13

0

50

Gravely 00200260

ASSY, SPINDLE HOUSING
(Superseded to 00200262)

$294.99

$

Usually ships in 4-12 days

0

51

Gravely 00963029

BOLT, 7/16-14X1.25 CRG 5 Y
(Superseded to 06200130)

$

$

Not available

52

Gravely D18031

PULLEY, IDLER 5.0 V-GROOVE

$40.99

$

In Stock, Qty 5

0

53

Gravely 00200095

BRKT, SUPPORT DISCHARGE CHUTE

$25.99

$

Usually ships in 4-12 days

0

54

Gravely 03393800

SPRING, TORSION .460"X.138"

$6.49

$

Usually ships in 4-12 days

0

55

Gravely TCA16387

CHUTE DISCHARGE ASSY #

$37.99

$

In Stock, only 2 left!

0
