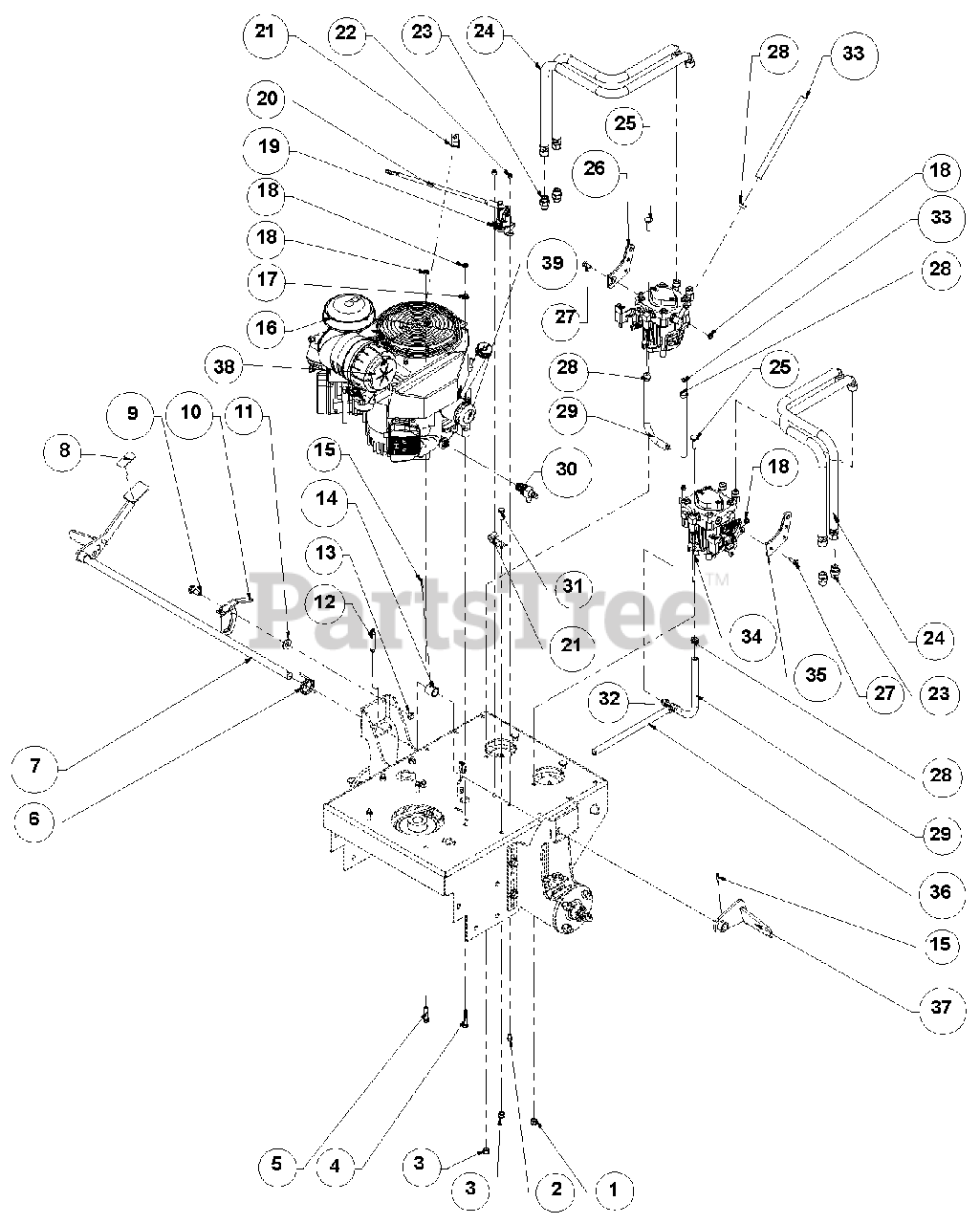

988141 (HR 1948 FX) - Gravely Pro-Hydro 48" Walk-Behind Mower, Fixed Deck, 19hp Kawasaki (SN: 000101 - 000400) Frame Assembly Parts Diagram

Pro-Hydro 48" Walk-Behind Mower, Fixed Deck, 19hp Kawasaki

Frame Assembly Parts Diagram

  • Title

1

Gravely 00968087

Locknut, .38-16 Nyloc

$

$

Not available

2

Gravely 00960000

Bolt, Hex .25-20 x .500 Grade 5

$

$

Not available

3

Gravely 00968087

Locknut, .38-16 Nyloc

$

$

Not available

4

Gravely 00960026

Bolt, .3125-18 x 1.75 Hex 5
(Superseded to 05901804)

$3.49

$

In Stock, Qty 7

0

5

Gravely 00960025

Bolt, .3125-18 x 1.50 Hex 5

$

$

Not available

6

Gravely D18138

Spring, RH Torsion Parking Brake

$40.99

$

Usually ships in 4-12 days

0

7

Gravely 03763951

Weldment Brake System, By Bracket (140, 141)

Note: (140, 141)

$

$

Not available

Gravely 03780851

Weldment Brake System, WD By Bracket (142)

Note: (142)

$

$

Not available

8

Gravely 00200401

Tape, Traction- 1.00 x 2.00

$

$

Not available

9

Gravely 00135139

Bolt, .50 x 1.06 x .38-16 SLD 5
(Superseded to 07070119)

$3.99

$

Usually ships in 4-12 days

0

10

Gravely 03763851

Latch, Brake CBMB

$

$

Not available

11

Gravely 00964505

Washer, .500 x 1.00 x .105 Flat
(Superseded to 06441900)

$1.49

$

In Stock, only 4 left!

0

12

Gravely D18140

Spring

$

$

Not available

13

Gravely 00964062

Locknut, .38-16 Center
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 03749151

Bushing, 1.00 x .188 x 1.00

$

$

Not available

15

Gravely 34H60

Pin, Spring

$

$

Not available

16

Gravely 00200675

Engine, Kawasaki 19HP FH580V (141, 142)

Note: (141, 142)

$

$

Not available

Gravely 00200342

Engine, Kawasaki 15HP Vertical (140)

Note: (140)

$

$

Not available

17

Gravely 00964019

Locknut, .3125-18 WHIZ
(Superseded to 06530400)

$1.99

$

In Stock, Qty 20+

0

18

Gravely 00967115

Locknut, .3125-18 Nyloc
(Superseded to 06500820)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 03551000

Solenoid

$43.99

$

In Stock, Qty 9

0

20

Gravely 00180842

Cable, 12" Starter

$15.99

$

Usually ships in 4-12 days

0

21

Gravely AH89557

Pillow-Clip, .500 Insulated

$5.49

$

In Stock, only 1 left!

0

22

Gravely 00964048

Locknut, .25-20 Nyloc

$

$

Not available

23

Gravely D14197

Fitting, Straight

$

$

Not available

24

Gravely 00201091

Hose, Hydraulic .50 x 26 .50 EZFLEX

$78.99

$

Usually ships in 4-12 days

0

25

Gravely 00963053

Bolt, Round Head Square Neck .38-16 x 1.25

$

$

Not available

26

Gravely 03732751

Weldment, CSWS Hydro Pump Arm

$

$

Not available

27

Gravely 00960022

Bolt, .3125-18 x .750 Hex 5

$

$

Not available

28

Gravely D18379

Clamp, Hose- .50 Pinch

$3.99

$

In Stock, Qty 14

0

29

Gravely 00200455

Hose, Hydraulic .38 x 6.00

$

$

Not available

30

Gravely TCA16240

Fitting, Oil Drain

$

$

Not available

31

Gravely 00960046

Bolt, .38-16 x 1.00 Hex 5
(Superseded to 05948700)

$1.99

$

In Stock, Qty 20+

0

32

Gravely M86863

Fitting, TUN .38 Hose

$

$

Not available

33

Gravely 03832600

Hose, Hydraulic .38 x 9.5

$

$

Not available

34

Gravely N/A

Assembly, Left Hand Pump Walkbehind

$

$

Currently unavailable

35

Gravely 03754851

Weldment, CSWS Left Hand Hydro Pump Arm

$

$

Not available

36

Gravely 03832601

Hose, Hydraulic .38 x 11.00

$

$

Not available

37

Gravely 03393951

Weldment, Left Hand Brake Arm

$79.99

$

Usually ships in 4-12 days

0

38

Gravely 00186700

Air Filter (141, 142)

Note: (141, 142)

$

$

Not available

Gravely 03748502

Air Filter (140)
(Superseded to 21538000)

Note: (140)

$18.99

$

In Stock, Qty 20+

0

39

Gravely 00181073

Oil Filter
(Superseded to 21535800)

$18.99

$

In Stock, Qty 20+

0

NS

Gravely 00186800

Spark Plug
(Superseded to 21533600)

$4.99

$

In Stock, Qty 20+

0

NS

Gravely 21538400

Fuel Filter
(Superseded to 21573800)

$15.99

$

Usually ships in 4-12 days

0
