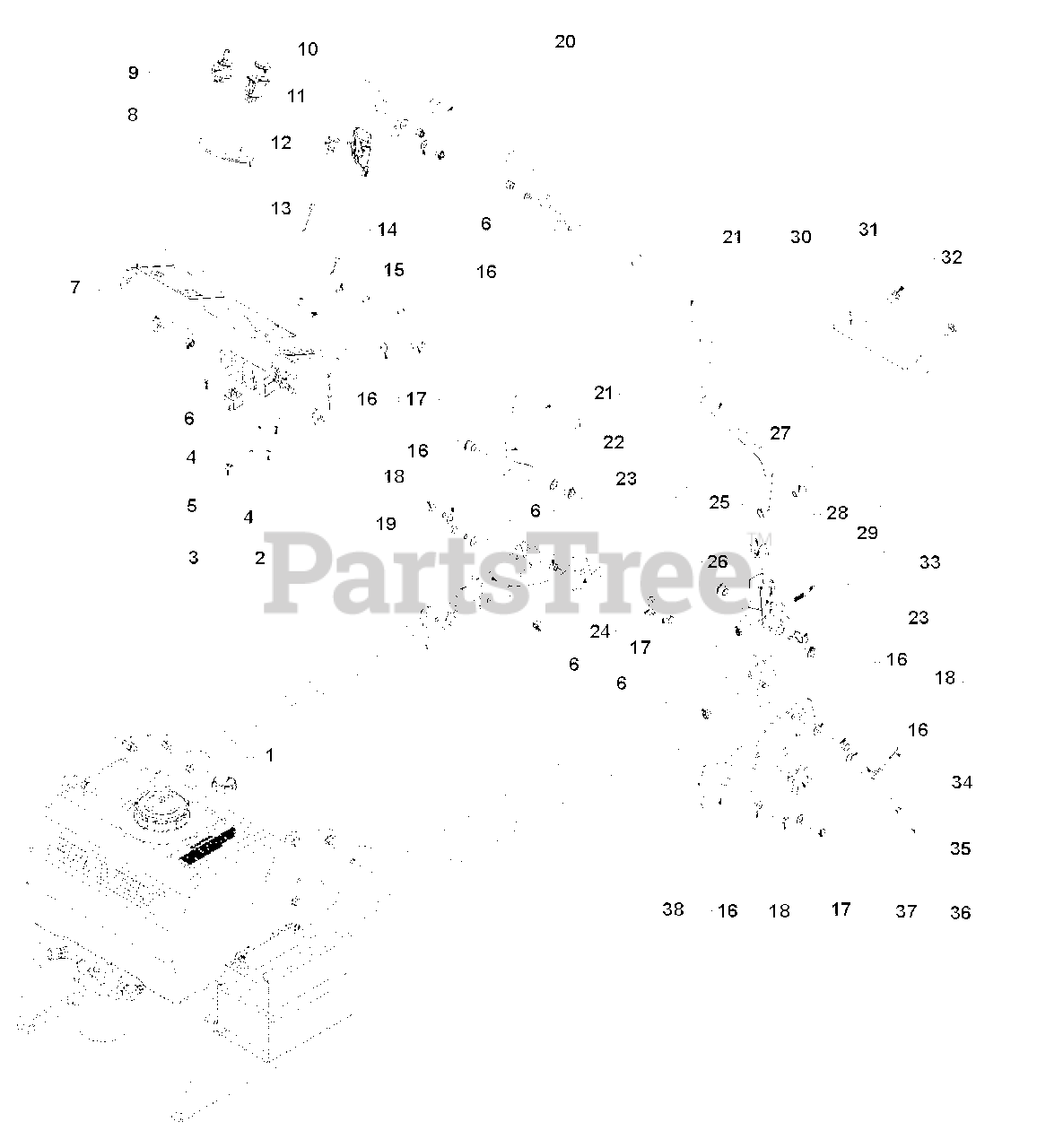

988141 (HR 1948 FX) - Gravely Pro-Hydro 48" Walk-Behind Mower, Fixed Deck, 19hp Kawasaki (SN: 000101 - 000400) Handlebar/Console Assembly Parts Diagram

Pro-Hydro 48" Walk-Behind Mower, Fixed Deck, 19hp Kawasaki

Handlebar/Console Assembly Parts Diagram

  • Title

1

Gravely D18333

Cap, Oil Fill Breather

$25.99

$

In Stock, only 1 left!

0

2

Gravely 00967038

Washer, #8 Medium Spring Lock
(Superseded to 06300112)

$

$

Not available

3

Gravely 00967054

Nut, .38-24 Standard Hex
(Superseded to 06522900)

$2.99

$

In Stock, only 2 left!

0

4

Gravely 00967037

Nut, 8-32 Standard Hex
(Superseded to 06529900)

$

$

Not available

5

Gravely 00102770

Relay, ISO Mini Electric

$27.99

$

Usually ships in 4-12 days

0

6

Gravely 00968087

Locknut, .38-16 Nyloc

$

$

Not available

7

Gravely 00200409

Weldment, Handle Brace

$43.99

$

Usually ships in 4-12 days

0

8

Gravely D32054

Console, Loop Handle Hydro

$

$

Not available

9

Gravely 00180620

Switch, Key- 3 Position

$36.99

$

In Stock, only 1 left!

0

10

Gravely 00200413

Cable, Throtle 49.5"
(Superseded to 06900714)

$35.99

$

In Stock, Qty 6

0

11

Gravely 00136574

Switch, PTO Engagement

$29.99

$

In Stock, Qty 5

0

12

Gravely 00180273

Cable, Choke 48.0"

$56.99

$

In Stock, only 2 left!

0

13

Gravely 00170900

Trim, Rubber Edge 12"

$12.24

$

Usually ships in 4-12 days

0

14

Gravely D24020

Screw, 8-32 x .50

$

$

Not available

15

Gravely 00967036

Screw, 8-32 x .500 Round Head Machine
(Superseded to 06006023)

$2.99

$

Usually ships in 4-12 days

0

16

Gravely 00964501

Washer, .406 x .813 x .065 Flat
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 00960046

Bolt, .38-16 x 1.00 Hex 5
(Superseded to 05948700)

$1.99

$

In Stock, Qty 20+

0

18

Gravely 00960047

Bolt, .38-16 x 1.25 Hex 5
(Superseded to 05958000)

$1.99

$

In Stock, Qty 16

0

19

Gravely 00203886

Weldment, Right Hand Control Mount

$

$

Not available

20

Gravely D38026

Handle, Loop Hydro

$128.99

$

Usually ships in 4-12 days

0

21

Gravely D18093

Grip, Control
(Superseded to 07500222)

$8.49

$

In Stock, only 1 left!

0

22

Gravely 00203897

Weldment, Right Hand Drive Lever

$

$

Not available

23

Gravely D18013

Bearing, Flange .500 x .625 x .500

$7.49

$

Usually ships in 4-12 days

0

24

Gravely 00203893

Weldment, Pin and Lock

$34.99

$

Usually ships in 4-12 days

0

25

Gravely AM103119

Switch, Seat Overide
(Superseded to 02754100)

$9.99

$

In Stock, Qty 20+

0

26

Gravely 00967115

Locknut, .3125-18 Nyloc
(Superseded to 06500820)

$1.49

$

In Stock, Qty 20+

0

27

Gravely D33004

Spacer, .500 x .330 x .980

$8.49

$

Usually ships in 4-12 days

0

28

Gravely 00203898

Weldment, Left Hand Handle Mount

$

$

Not available

29

Gravely 00960026

Bolt, .3125-18 x 1.75 Hex 5
(Superseded to 05901804)

$3.49

$

In Stock, Qty 7

0

30

Gravely 00203902

Weldment, Left Hand Drive Lever

$

$

Not available

31

Gravely 00203882

Drive Arm Back Plate

$

$

Not available

32

Gravely 00963033

Bolt, .38-16 x .750 Round Head Square Neck

$

$

Not available

33

Gravely D38003

Spring, Torque 1.00 x .062

$9.99

$

Usually ships in 4-12 days

0

34

Gravely 34H60

Pin, Spring

$

$

Not available

35

Gravely D13309

Lever, Lock Y Assembly

$

$

Not available

36

Gravely D13308

Lever, Lock Y Assembly

$

$

Not available

37

Gravely D18047

Knob, Star .38-16 x 1.00

$10.99

$

Usually ships in 4-12 days

0

38

Gravely 00203885

Weldment, Left Hand Control Mount

$

$

Not available
