988141 (HR 1948 FX) - Gravely Pro-Hydro 48" Walk-Behind Mower, Fixed Deck, 19hp Kawasaki (SN: 000401 & Above) Spindle Assembly Parts Diagram
Pro-Hydro 48" Walk-Behind Mower, Fixed Deck, 19hp Kawasaki

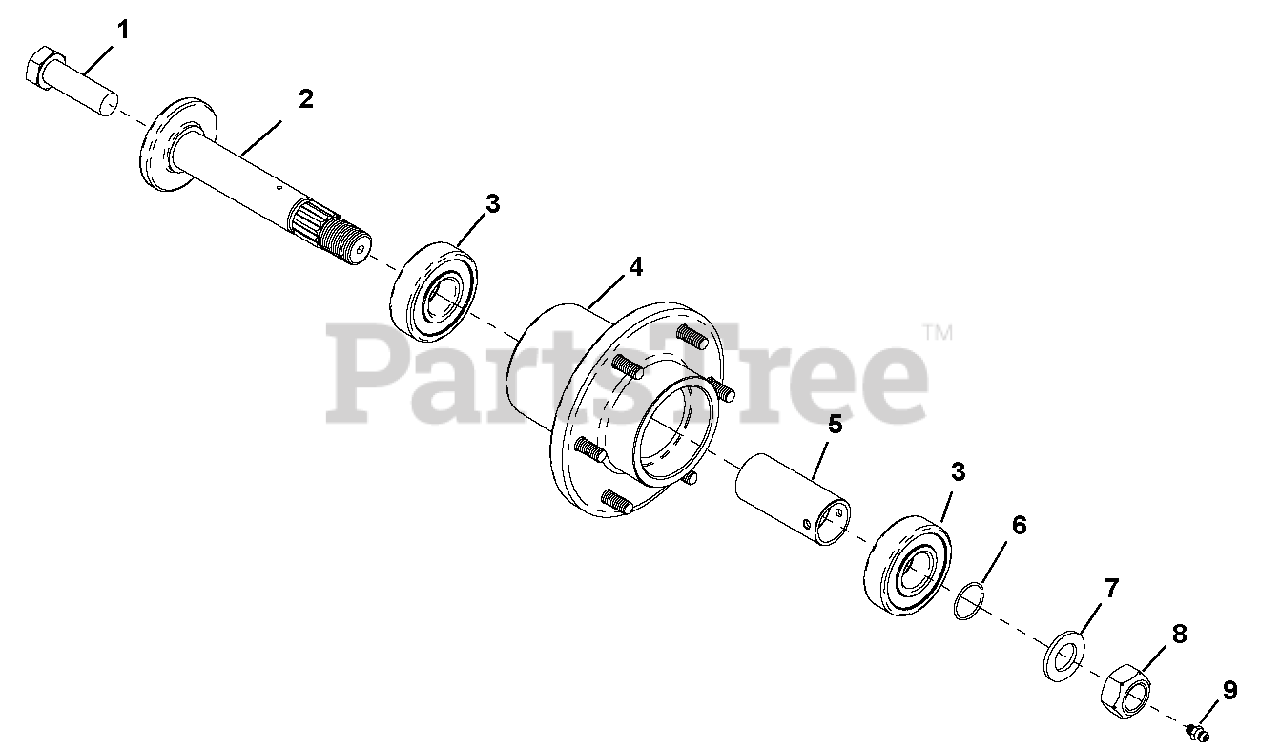

Spindle Assembly Parts Diagram
1
00967648
Bolt, Blade .625-11 x 2.00 Hex Grade 8
$
$
Not available
Gravely 00200196
Shaft, Spindle .75-16
$
$
Not available
Gravely 00200046
Bearing
$29.99
$
Usually ships in 4-12 days
Gravely 00200042
Casting, Spindle w/Studs
$96.99
$
Usually ships in 4-12 days
Gravely 00200044
Spacer, 1.25 x 1.00 x 2.78
$30.99
$
Usually ships in 4-12 days
Gravely 00200263
Ring, Retainer
$7.49
$
Usually ships in 4-12 days
$2.49
$
In Stock, Qty 10
$3.99
$
In Stock, Qty 20+
Gravely 00959995
Fitting, .25-28 Straight Grease Zerk
$3.99
$
Usually ships in 4-12 days
