988141 (HR 1948 FX) - Gravely Pro-Hydro 48" Walk-Behind Mower, Fixed Deck, 19hp Kawasaki (SN: 000401 & Above) Traction Control Parts Diagram

Pro-Hydro 48" Walk-Behind Mower, Fixed Deck, 19hp Kawasaki

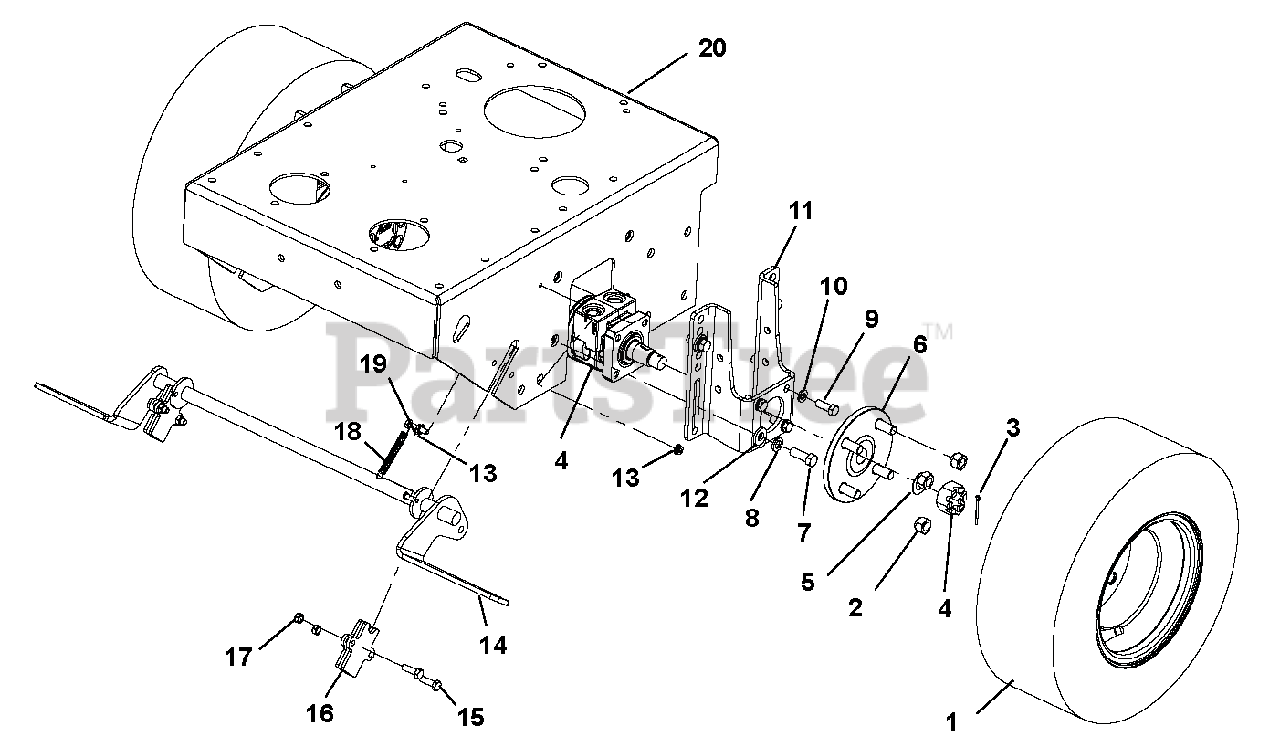

Traction Control Parts Diagram

  • Title

1

Gravely 00200531

ASSY, WHEEL & TIRE - 16X6.5-8

$116.99

$

Usually ships in 4-12 days

0

2

Gravely 00960526

NUT, 1/2-20 LUG C
(Superseded to 06517600)

$1.99

$

In Stock, Qty 20+

0

3

Gravely 00962019

PIN, COT .125X1.50 EXTP Y
(Superseded to 06714300)

$2.49

$

Usually ships in 4-12 days

0

4

Gravely D18311

MOTOR, HYDRAULIC WHEEL

$857.99

$

Usually ships in 4-12 days

0

5

Gravely 00150052

BUSHING, MACH .750X1.25X.048 Y

$5.49

$

Usually ships in 4-12 days

0

6

Gravely 00203842

ASSY, WHEEL HUB

$189.99

$

Usually ships in 4-12 days

0

7

Gravely 059638005

Bolt, .44-14 x 1.25 Hex Grade 5

$

$

Not available

8

Gravely 00960603

WASHER, .438 MED SPRG LOCK Y
(Superseded to 06309300)

$2.99

$

In Stock, Qty 20+

0

9

Gravely D14280

BOLT, 3/8-16 X 1 GR8 BLACK

$2.99

$

Usually ships in 4-12 days

0

10

Gravely 00960602

WASHER, .375 MED SPRG LOCK Y

$

$

Not available

11

Gravely 00203937

BRACKET, MOTOR MNT W/GRVLY PNT

Note: (988140)

$

$

Not available

Gravely 03396853

BRACKET, 52 MOTOR MNT GRAVELY

Note: (988141, 142)

$

$

Not available

12

Gravely 00960712

WASHER, .468X1.00X.125 FLAT Y
(Superseded to 06400914)

$

$

Not available

13

Gravely 00964040

LOCKNUT, 1/4-20 WHIZ Y

$

$

Not available

14

Gravely 03908351

WLDT, BRAKE SYS 36" FLWLK

Note: (988140)

$80.99

$

Usually ships in 4-12 days

0

Gravely 03990751

WLDT, BRAKE SYSTEM 48/52 FXWLK

Note: (988141, 142)

$

$

Not available

15

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, Qty 20+

0

16

Gravely 03885753

SHOE, FLWLK BRAKE SYS GRAVELY

$

$

Not available

17

Gravely 00967115

LOCKNUT, 5/16-18 NYLOC Y
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0

18

Gravely 00135292

SPRING, EXT .375X.055X2.25 Y

$21.99

$

Usually ships in 4-12 days

0

19

Gravely 05947400

BLT-HEX .25-20X1.25 GR5 YWZC
(Superseded to 05901738)

$2.49

$

In Stock, only 2 left!

0

20

Gravely 04083453

WLDT, 18" ENG BED FXFL GRAVELY

$219.99

$

Usually ships in 4-12 days

0
