988142 (HR 1952 FX) - Gravely Pro-Hydro 52" Walk-Behind Mower, Fixed Deck, 19hp Kawasaki (SN: 000101 - 000400) Deck Assembly - 52" Parts Diagram

Pro-Hydro 52" Walk-Behind Mower, Fixed Deck, 19hp Kawasaki

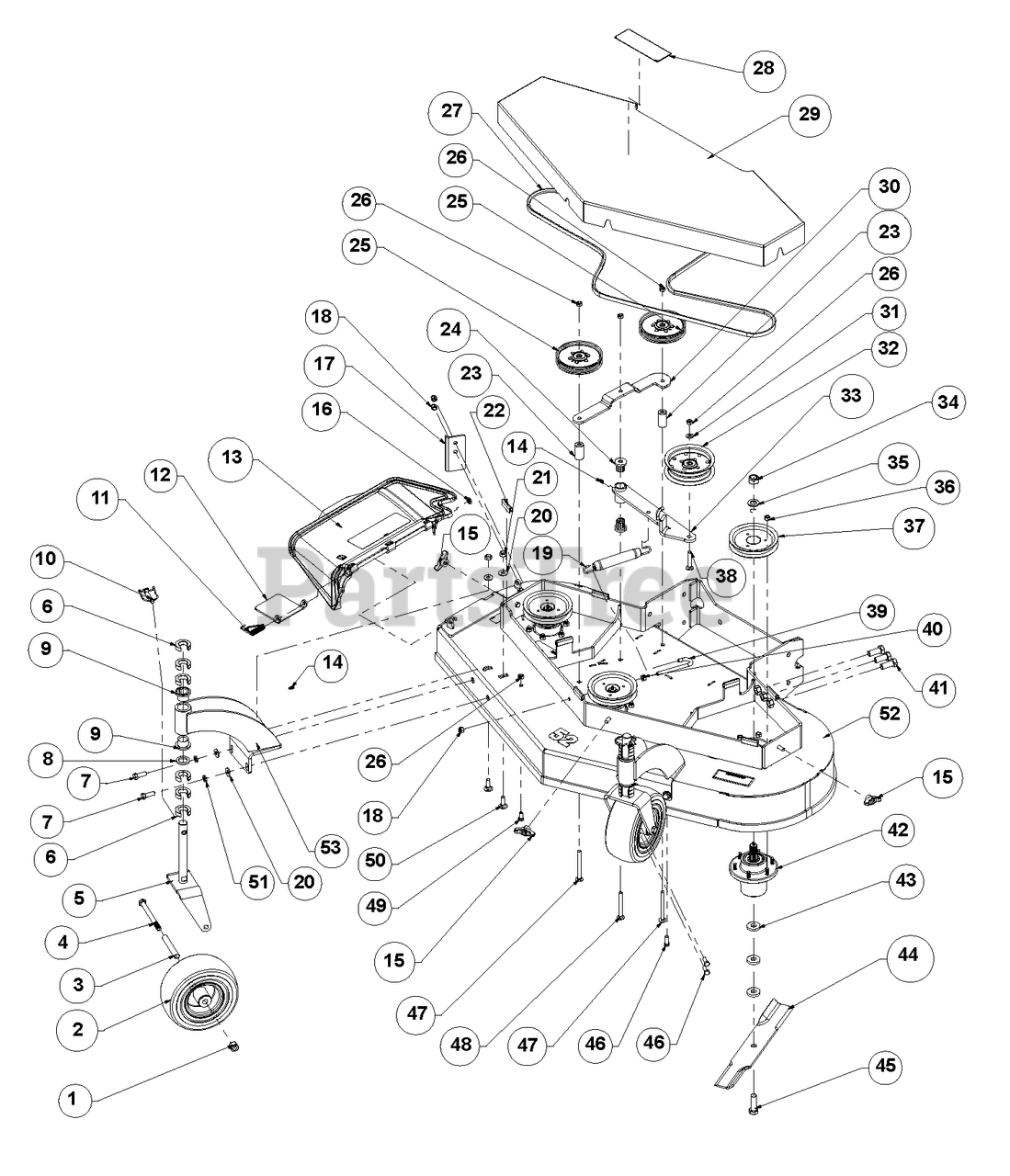

Deck Assembly - 52" Parts Diagram

  • Title

1

Gravely 00964015

LOCKNUT, 1/2-13 NYLOC Y
(Superseded to 06500830)

$3.49

$

In Stock, Qty 20+

0

2

Gravely 07100302

ASSY, WHEEL AND TIRE 9X3.5
(Superseded to 07100931)

$158.99

$

In Stock, only 3 left!

0

3

Gravely D13003

TUBE, CASTER AXLE

$22.99

$

Usually ships in 4-12 days

0

4

Gravely 00960129

BOLT, 1/2-13X5.50 HEX 5 Y
(Superseded to 05901632)

$7.99

$

In Stock, Qty 12

0

5

Gravely 00203933

WLDT, CASTER YOKE W/GRVLY PNT

$218.99

$

Usually ships in 4-12 days

0

6

Gravely 00164145

C-SPACER, 1.00 X 1.77 X .500

$5.99

$

In Stock, only 2 left!

0

7

Gravely 00960080

BOLT, 7/16-14X1.25 HEX 5 Y
(Superseded to 05963800)

$3.49

$

In Stock, only 1 left!

0

8

Gravely D13008

BUSHING, 1.03 X 1.50 X .179 Y

$10.99

$

In Stock, Qty 8

0

9

Gravely D18076

BRG, FLG 1.00X1.25X1.00

$7.99

$

In Stock, Qty 7

0

10

Gravely 00161397

PIN, KLIK .438X2.00

$10.99

$

In Stock, only 2 left!

0

11

Gravely 03393800

SPRING, TORSION .460"X.138"

$6.99

$

Usually ships in 4-12 days

0

12

Gravely 00200095

BRKT, SUPPORT DISCHARGE CHUTE

$26.99

$

Usually ships in 4-12 days

0

13

Gravely TCA16387

CHUTE DISCHARGE ASSY #

$38.99

$

In Stock, only 2 left!

0

14

Gravely 00959995

FTG, 1/4-28 STRGT GREASE ZERK

$4.99

$

In Stock, only 2 left!

0

15

Gravely M119352

KNOB, 3/8-16 INSERT

$4.99

$

In Stock, only 4 left!

0

16

Gravely H141123

RETAINER #

$

$

Not available

17

Gravely 03754053

PLATE, EXTENDER GRAVELY DECK

$

$

Not available

18

Gravely 00968087

LOCKNUT, 3/8-16 NYLOC Y

$

$

Not available

19

Gravely N242189

SPRING, EXT

$14.99

$

Usually ships in 4-12 days

0

20

Gravely 00960702

WASHER, .375 REG FLAT Y
(Superseded to 06435900)

$2.99

$

In Stock, Qty 20+

0

21

Gravely 00964025

LOCKNUT, 7/16-14 CROWN Y
(Superseded to 06508200)

$

$

Not available

22

Gravely 00999538

TRIM, LOCK 1/4" EDGE

$6.99

$

Usually ships in 4-12 days

0

23

Gravely TCU18742

SPACER

$20.99

$

Usually ships in 4-12 days

0

24

Gravely TCU14540

BRG, FLG M10XM25XM27 FLUTED

$19.99

$

In Stock, only 4 left!

0

25

Gravely D28050

PULLEY, FLAT IDLER
(Superseded to 07352400)

$43.99

$

In Stock, Qty 20+

0

26

Gravely 00964022

LOCKNUT, 3/8-16 CROWN Y

$

$

Not available

27

Gravely TCU18848

BELT, HB 109.3 EL AMD

$112.99

$

In Stock, only 2 left!

0

28

Gravely 05239600

DECAL, PRO-1952

$

$

Not available

29

Gravely 03724153

WLDT, 52" BELT SHIELD GRAVELY

$

$

Not available

30

Gravely 03721451

STRAP, IDLER PULLEY HYDRO WALK

$

$

Not available

31

Gravely 00964501

WASHER, .406X.813X.065 FLAT Y
(Superseded to 06401013)

$2.49

$

In Stock, Qty 20+

0

32

Gravely D18032

PULLEY, FLAT 5.00X.375 W/BRG
(Superseded to 07346700)

$86.99

$

In Stock, Qty 9

0

33

Gravely TCA15346

ARM, IDLER *

$152.99

$

In Stock, only 3 left!

0

34

Gravely 00964024

LOCKNUT, 3/4-16 CROWN PL
(Superseded to 06500031)

$4.99

$

In Stock, Qty 16

0

35

Gravely 03399703

WASHER, .75X1.3125X.120
(Superseded to 06401037)

$2.99

$

In Stock, Qty 8

0

36

Gravely 00960502

NUT, 3/8-16 STD HEX GR5 Y

$

$

Not available

37

Gravely 03399702

PULLEY, SPLINE SPINDLE LSE

$79.99

$

In Stock, only 2 left!

0

38

Gravely 03H1658

BOLT, 3/8-16X2.25 CRG 5 Y
(Superseded to 06200301)

$5.49

$

In Stock, Qty 8

0

39

Gravely D23058

J-BOLT, 3/8-16 X 4.00 Y

$6.99

$

In Stock, only 2 left!

0

40

Gravely 00964016

LOCKNUT, 3/8-16 WHIZ Y
(Superseded to 06534900)

$2.49

$

In Stock, Qty 20+

0

41

Gravely 05901321

BOLT, HEX 5/8-11 1.5" GR8 YWZC
(Superseded to 05901723)

$4.99

$

Usually ships in 4-12 days

0

42

Gravely 00200260

ASSY, SPINDLE HOUSING
(Superseded to 00200262)

$307.99

$

Usually ships in 4-12 days

0

43

Gravely D18055

WASHER, .630X1.50X.250 FLAT Y
(Superseded to 06401033)

$7.99

$

In Stock, only 4 left!

0

44

Gravely GDU10231

BLADE, 18.000 X .80 LIFT

$33.99

$

In Stock, Qty 20+

0

45

Gravely 00967348

BOLT, 5/8-11 X 2.00 HEX 8 Y
(Superseded to 05901725)

$6.99

$

In Stock, Qty 7

0

46

Gravely 00960046

BOLT, 3/8-16X1.00 HEX 5 Y
(Superseded to 05948700)

$2.49

$

In Stock, Qty 20+

0

47

Gravely 03H1809

BOLT, 3/8X4 SHTNK RDHD BOLT A1

$

$

Not available

48

Gravely 03H1836

BOLT, 3/8-16X3.50 CRG 5 Y

$

$

Not available

49

Gravely 00960045

BOLT, 3/8-16X.750 HEX 5 Y
(Superseded to 05959400)

$2.49

$

In Stock, Qty 11

0

50

Gravely 00963029

BOLT, 7/16-14X1.25 CRG 5 Y
(Superseded to 06200130)

$

$

Not available

51

Gravely 00960603

WASHER, .438 MED SPRG LOCK Y
(Superseded to 06309300)

$3.49

$

In Stock, Qty 19

0

52

Gravely 03757901

ASSY, 52" GRAVELY DECK W/DECAL

$

$

Not available

53

Gravely 00203934

WLDT, CASTER SUPP W/GRVLY PNT

$

$

Not available
