988142 (HR 1952 FX) - Gravely Pro-Hydro 52" Walk-Behind Mower, Fixed Deck, 19hp Kawasaki (SN: 000401 & Above) 52-inch Deck Assembly Parts Diagram

Pro-Hydro 52" Walk-Behind Mower, Fixed Deck, 19hp Kawasaki

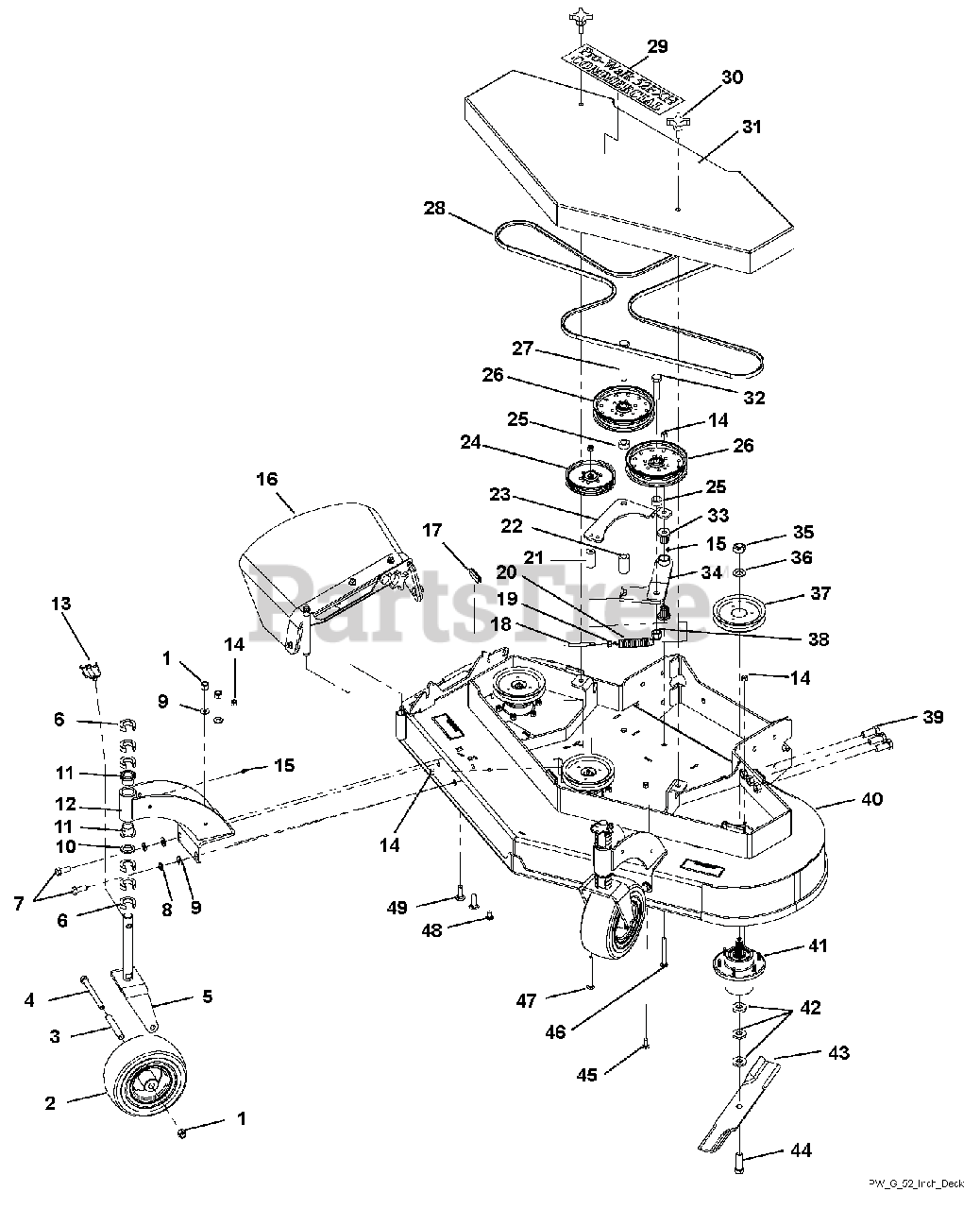

52-inch Deck Assembly Parts Diagram

  • Title

1

Gravely 06540600

NUT-LK-NYL .50-13 YWZC
(Superseded to 06500830)

$2.99

$

In Stock, Qty 20+

0

2

Gravely 07100302

ASSY, WHEEL AND TIRE 9X3.5
(Superseded to 07100931)

$151.99

$

In Stock, only 4 left!

0

3

Gravely D13003

TUBE, CASTER AXLE

$21.99

$

In Stock, only 2 left!

0

4

Gravely 05964100

BLT-HEX .50-13X5.50 GR5YWZC
(Superseded to 05901632)

$7.49

$

In Stock, Qty 12

0

5

Gravely 00203933

WLDT, CASTER YOKE W/GRVLY PNT

$208.99

$

Usually ships in 4-12 days

0

6

Gravely 00164145

C-SPACER, 1.00 X 1.77 X .500

$5.99

$

In Stock, only 2 left!

0

7

Gravely 05958900

BLT-HEX .50-13X1.25 GR5 YWZC
(Superseded to 05901637)

$3.49

$

In Stock, Qty 6

0

8

Gravely 06307300

WSHR-LK .50X.125 REG YWZC
(Superseded to 06300115)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 06441000

WSHR-FL-STL.50X1.25X.083 YWZC
(Superseded to 06401202)

$3.49

$

In Stock, Qty 11

0

10

Gravely D13008

BUSHING, 1.03 X 1.50 X .179 Y

$10.99

$

In Stock, Qty 8

0

11

Gravely D18076

BRG, FLG 1.00X1.25X1.00

$7.49

$

In Stock, Qty 13

0

12

Gravely 03987453

WLDT, STRUT FRONT FXWLK GRVL

$

$

Not available

13

Gravely 00161397

PIN, KLIK .438X2.00

$9.99

$

In Stock, only 2 left!

0

14

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

15

Gravely 00959995

FTG, 1/4-28 STRGT GREASE ZERK

$3.99

$

In Stock, only 2 left!

0

16

Gravely 56155053

ASSY, DISCHARGE SHIELD

$203.99

$

In Stock, only 1 left!

0

17

Gravely 00999538

TRIM, LOCK 1/4" EDGE

$6.49

$

Usually ships in 4-12 days

0

18

Gravely 00104024

ROD, THREADED ADJUSTMENT

$25.99

$

Usually ships in 4-12 days

0

19

Gravely 06534900

NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.99

$

In Stock, Qty 20+

0

20

Gravely 00110580

SPRG, EXTENSION

$17.99

$

In Stock, only 2 left!

0

21

Gravely TCU18742

SPACER

$19.99

$

Usually ships in 4-12 days

0

22

Gravely 03984702

BUSHING, .688X1.13X1.89

$

$

Not available

23

Gravely 03985751

STRAP, IDLER 52 FXWLK G2

$

$

Not available

24

Gravely D28050

PULLEY, FLAT IDLER
(Superseded to 07352400)

$40.99

$

In Stock, Qty 20+

0

25

Gravely 03846235

BUSHING, .688 X 1.13 X .55

$

$

Not available

26

Gravely 00140280

PULLEY, FLAT 6.00X.635 W/BRG

$70.99

$

In Stock, only 3 left!

0

27

Gravely 05983100

BLT-HEX .62-11X4.50 GR5 YWZC

$7.49

$

In Stock, only 3 left!

0

28

Gravely 07200530

BELT, HB WRAPPED

$85.99

$

Usually ships in 4-12 days

0

29

Gravely 05237806

DECAL, PROWLK COMMERCIAL 52FXH

$

$

Not available

30

Gravely 03820400

KNOB, 3/8 X 1.25 - 4 PRONG

$10.99

$

In Stock, only 4 left!

0

31

Gravely 03988053

WLDT, BELT SHIELD 52 FXWLK G2

$

$

Not available

32

Gravely 05969300

BLT-HEX .62-11X2.50 GR5 YWZC

$5.49

$

Usually ships in 4-12 days

0

33

Gravely TCU14540

BRG, FLG M10XM25XM27 FLUTED

$18.99

$

In Stock, Qty 6

0

34

Gravely 03986951

WLDT, IDLER ARM 52 FXWLK G2

$

$

Not available

35

Gravely 00964024

LOCKNUT, 3/4-16 CROWN PL
(Superseded to 06500031)

$3.99

$

In Stock, Qty 18

0

36

Gravely 03399703

WASHER, .75X1.3125X.120
(Superseded to 06401037)

$2.49

$

In Stock, Qty 9

0

37

Gravely 03399702

PULLEY, SPLINE SPINDLE LSE

$76.99

$

In Stock, only 2 left!

0

38

Gravely 06540700

NUT-LK-NYL .625-11 YWZC

$4.99

$

In Stock, Qty 20+

0

39

Gravely 05901321

BOLT, HEX 5/8-11 1.5" GR8 YWZC
(Superseded to 05901723)

$3.99

$

Usually ships in 4-12 days

0

40

Gravely 03984701

ASSY, DECK 52" GRAVELY W/DECAL

$

$

Not available

41

Gravely 00200262

ASSY, SPINDLE S/O

$294.99

$

Usually ships in 4-12 days

0

42

Gravely D18055

WASHER, .630X1.50X.250 FLAT Y
(Superseded to 06401033)

$7.49

$

In Stock, Qty 13

0

43

Gravely GDU10230

BLADE, 16.500 X .80 LIFT

$29.99

$

In Stock, Qty 8

0

44

Gravely 05968100

BLT-HEX .62-11X2.00 GR5 YWZC

$3.99

$

Usually ships in 4-12 days

0

45

Gravely 06212000

BLT-RDHDSHSQNK.38-16X1.0 G5YZ
(Superseded to 06200235)

$1.99

$

In Stock, Qty 20+

0

46

Gravely 06200125

BLT-RHDSSQNK .38-16X3.50 G5YZ
(Superseded to 06200238)

$3.99

$

In Stock, Qty 18

0

47

Gravely 06200126

BLT-RHDSSQNK .38-16X4.00 G5YZ
(Superseded to 06200239)

$7.99

$

In Stock, only 2 left!

0

48

Gravely 06200004

BLT-RHDSSQNK .38-16X.75 G5YZ
(Superseded to 06200336)

$2.99

$

In Stock, Qty 15

0

49

Gravely 06223100

BLT-RDHDSQNK .50-13X1.50 G5YZ
(Superseded to 06200421)

$5.49

$

Usually ships in 4-12 days

0
