988142 (HR 1952 FX) - Gravely Pro-Hydro 52" Walk-Behind Mower, Fixed Deck, 19hp Kawasaki (SN: 000401 & Above) Discharge Shield Parts Diagram

Pro-Hydro 52" Walk-Behind Mower, Fixed Deck, 19hp Kawasaki

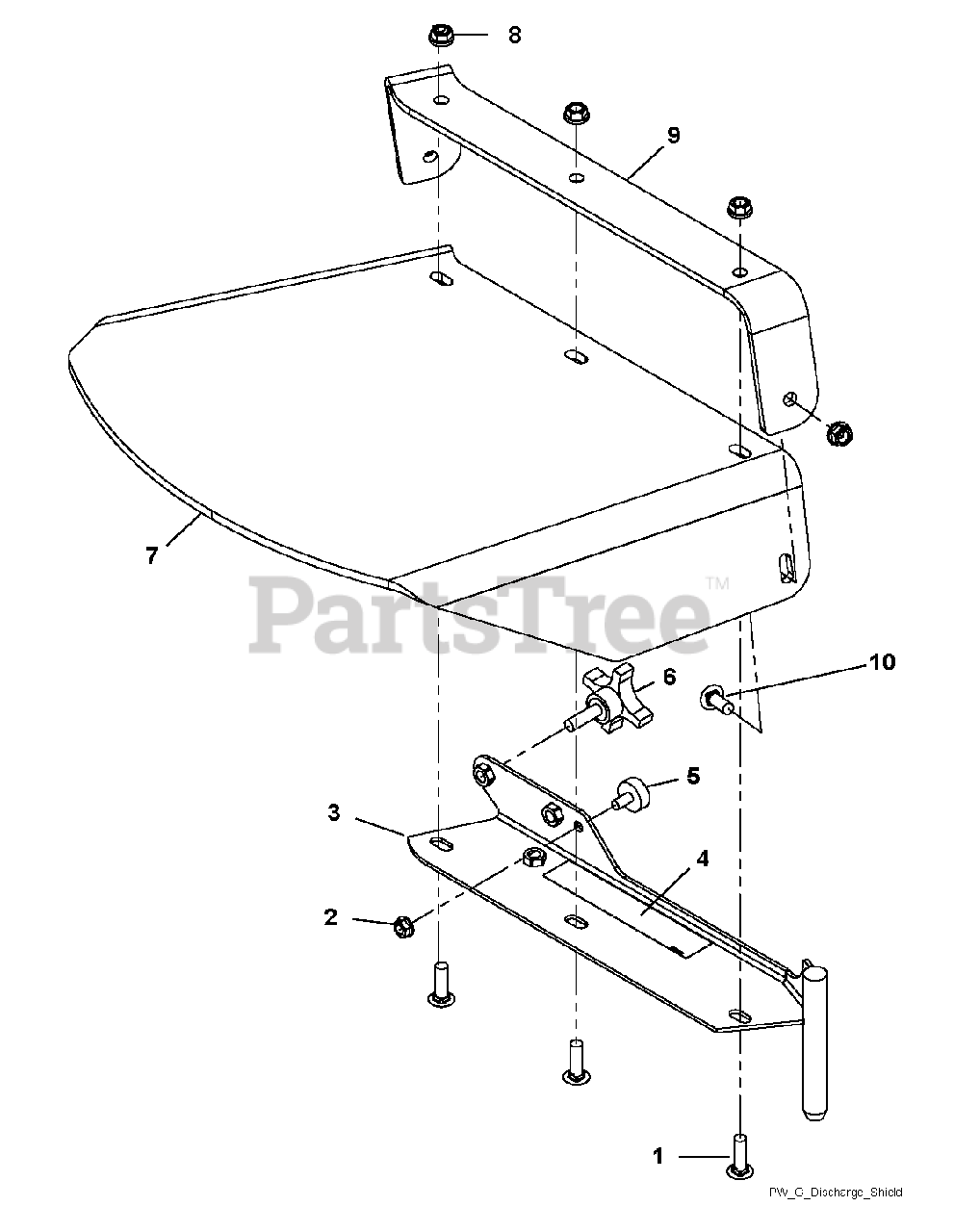

Discharge Shield Parts Diagram

  • Title

1

Gravely 06222200

Bolt, Round Head Square Neck .38-16 x 1.25 Grade 5
(Superseded to 06200236)

$2.99

$

In Stock, Qty 12

0

2

Gravely 00964019

Locknut, .313-18 Whiz
(Superseded to 06530400)

$1.99

$

In Stock, Qty 20+

0

3

Gravely 03981953

Weldment, Discharge

$90.99

$

Usually ships in 4-12 days

0

4

Gravely 07742300

Decal, Warning

$11.99

$

Usually ships in 4-12 days

0

5

Gravely 07533600

Bumper, Rubber

$12.99

$

In Stock, only 3 left!

0

6

Gravely 03820400

Knob, .375 x 1.25-4 Prong

$10.99

$

In Stock, only 2 left!

0

7

Gravely 04044200

Shield, Walk Rubber Discharge

$70.99

$

Usually ships in 4-12 days

0

8

Gravely 06534900

Nut, Spin Lock Flange .375-16
(Superseded to 06500735)

$1.99

$

In Stock, Qty 20+

0

9

Gravely 03983853

Strap, Gravely Walk Rubber Discharge Chute

$63.99

$

Usually ships in 4-12 days

0

10

Gravely 06212000

Bolt, .38-16 x 1.0 Round Head Square Neck Grade 5
(Superseded to 06200235)

$1.99

$

In Stock, Qty 20+

0
