988142 (HR 1952 FX) - Gravely Pro-Hydro 52" Walk-Behind Mower, Fixed Deck, 19hp Kawasaki (SN: 000401 & Above) Frame And Engine Assembly Parts Diagram

Pro-Hydro 52" Walk-Behind Mower, Fixed Deck, 19hp Kawasaki

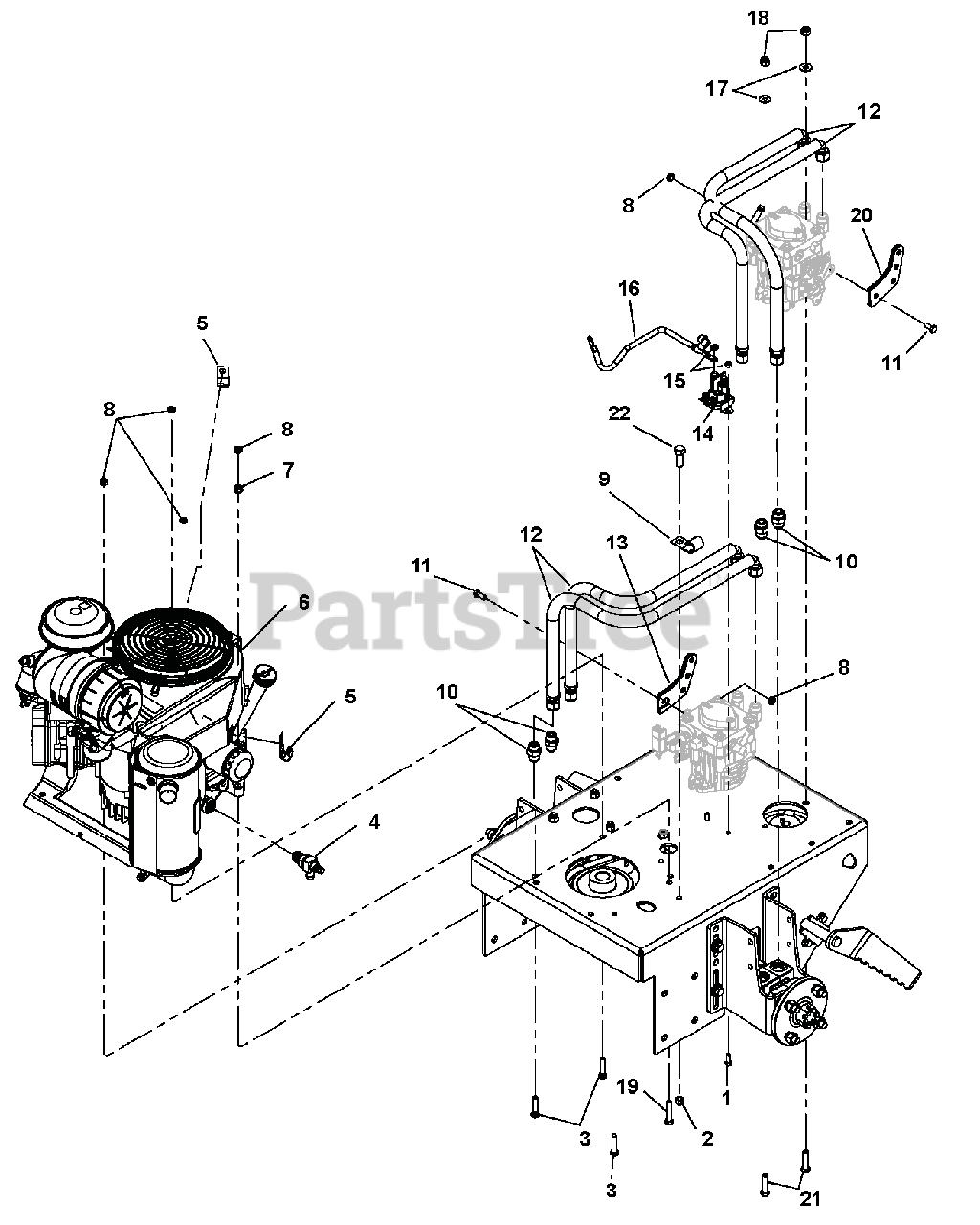

Frame And Engine Assembly Parts Diagram

  • Title

1

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

Note: (988141, 142)

$1.99

$

In Stock, Qty 20+

0

2

Gravely 00968087

LOCKNUT, 3/8-16 NYLOC Y

Note: (988140)

$

$

Not available

3

Gravely 05952400

BLT-HEX .31-18X1.50 GR5 YWZC
(Superseded to 05901710)

$2.49

$

In Stock, Qty 9

0

4

Gravely TCA16240

FITTING, OIL DRAIN #

$

$

Not available

5

Gravely AH89557

P-CLIP, .500 INSULATED

$5.49

$

Usually ships in 4-12 days

0

6

Gravely 00200675

ENGINE, KAWASAKI 19HP FH580V

Note: (988141, 142)

$

$

Not available

Gravely 00200342

ENGINE, KAWASAKI 15HP VERT

Note: (988140)

$

$

Not available

7

Gravely 00964019

LOCKNUT, 5/16-18 WHIZ Y
(Superseded to 06530400)

$2.49

$

In Stock, Qty 20+

0

8

Gravely 00967115

LOCKNUT, 5/16-18 NYLOC Y
(Superseded to 06500820)

$1.99

$

In Stock, Qty 5

0

9

Gravely AH89557

P-CLIP, .500 INSULATED

Note: (988140)

$5.49

$

Usually ships in 4-12 days

0

10

Gravely D14197

FITTING, STRAIGHT

$

$

Not available

11

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$2.49

$

In Stock, Qty 20+

0

12

Gravely 00201091

HOSE, HYD 1/2 X 26 1/2 EZFLEX

$82.99

$

Usually ships in 4-12 days

0

13

Gravely 03732751

WLDT, CSWS HYDRO PUMP ARM

$

$

Not available

14

Gravely 03551000

SOLENOID

Note: (988141, 142)

$45.99

$

In Stock, only 3 left!

0

15

Gravely 00964048

LOCKNUT, 1/4-20 NYLOC Y

Note: (988141, 142)

$

$

Not available

16

Gravely 00180842

CABLE, 12" STARTER

Note: (988141, 142)

$17.99

$

Usually ships in 4-12 days

0

17

Gravely 00960701

WASHER, .313 REG FLAT Y
(Superseded to 06401023)

$2.49

$

In Stock, Qty 20+

0

18

Gravely 00968087

LOCKNUT, 3/8-16 NYLOC Y

$

$

Not available

19

Gravely 05957400

BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$3.99

$

In Stock, Qty 9

0

20

Gravely 03754851

WLDT, CSWS LH HYDRO PUMP ARM

$

$

Not available

21

Gravely 05957900

BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$2.49

$

In Stock, Qty 13

0

22

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$2.49

$

In Stock, Qty 20+

0
