988142 (HR 1952 FX) - Gravely Pro-Hydro 52" Walk-Behind Mower, Fixed Deck, 19hp Kawasaki (SN: 000401 & Above) Handlebar And Console Assembly Parts Diagram

Pro-Hydro 52" Walk-Behind Mower, Fixed Deck, 19hp Kawasaki

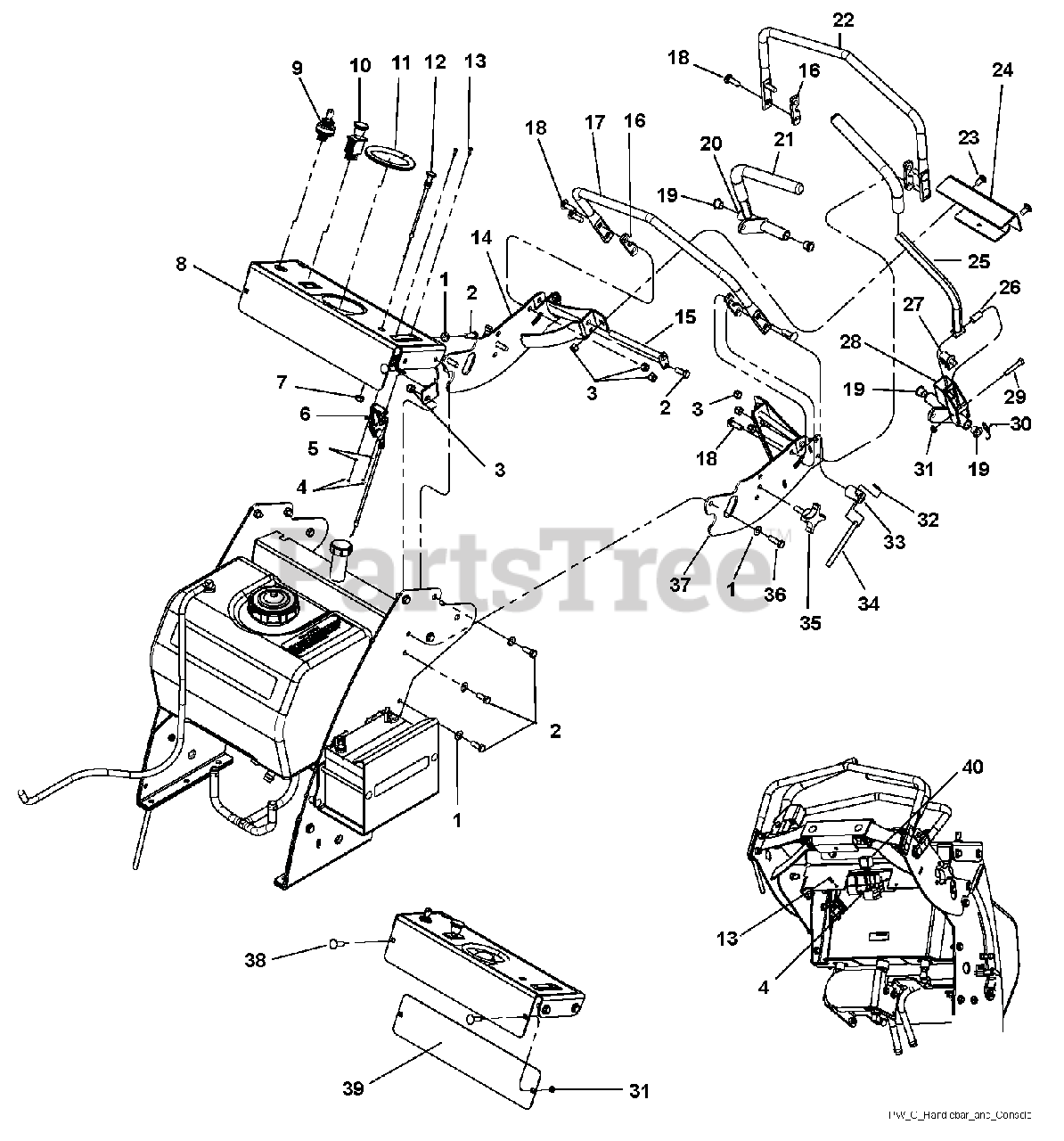

Handlebar And Console Assembly Parts Diagram

  • Title

1

Gravely 00964501

WASHER, .406X.813X.065 FLAT Y
(Superseded to 06401013)

$2.49

$

In Stock, Qty 20+

0

2

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$2.49

$

In Stock, Qty 20+

0

3

Gravely 00968087

LOCKNUT, 3/8-16 NYLOC Y

$

$

Not available

4

Gravely 06509100

NUT-KEPS 8-32

$

$

Not available

5

Gravely 00967038

WASHER, #8 MED SPRG LOCK Y
(Superseded to 06300112)

$

$

Not available

6

Gravely 00200413

CABLE, THROTLE 49.5"
(Superseded to 06900714)

$37.99

$

In Stock, only 4 left!

0

7

Gravely 00967054

NUT, 3/8-24 STD HEX Y
(Superseded to 06522900)

Note: (988141, 142)

$3.99

$

In Stock, only 2 left!

0

8

Gravely 56155001

ASSY, CONSOLE W/DECAL

$

$

Not available

9

Gravely 00180620

SWITCH, KEY - 3 POSITION

Note: (988141, 142)

$35.99

$

In Stock, only 4 left!

0

Gravely D18090

SWITCH, TWO POSITION KEY

Note: (988140)

$21.99

$

Usually ships in 4-12 days

0

10

Gravely 00136574

SWITCH, PTO ENGAGEMENT

$30.99

$

In Stock, only 4 left!

0

11

Gravely 00170900

TRIM, RUBBER EDGE 12"

$

$

Not available

12

Gravely 00180273

CABLE, CHOKE 48.0"

$59.99

$

In Stock, only 2 left!

0

13

Gravely D24020

SCREW,8-32X1/2

$

$

Not available

14

Gravely 003974451

Weldment, RH Handle Mount 5 Deg.

$

$

Not available

15

Gravely 00203893

WLDT, PIN AND LOCK Y

$36.99

$

Usually ships in 4-12 days

0

16

Gravely 03976751

SHIM, 5 DEG SPEED BAR

$

$

Not available

17

Gravely 03730751

SUPPORT, HANDLE PAINTED

$

$

Not available

18

Gravely 06224100

BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$3.49

$

In Stock, Qty 20+

0

19

Gravely D18013

BRG, FLG .500X.625X.500 BRNZ

$7.99

$

Usually ships in 4-12 days

0

20

Gravely 03976551

WLDT, RH DRIVE LEVER 5 DEG

$70.99

$

Usually ships in 4-12 days

0

21

Gravely D18093

GRIP, CONTROL
(Superseded to 07500222)

$9.49

$

In Stock, only 1 left!

0

22

Gravely 03730751

SUPPORT, HANDLE PAINTED

$

$

Not available

23

Gravely 06223900

BLT-RDHDSQNK .38-16X.75 G5YZ
(Superseded to 06200312)

$2.49

$

In Stock, Qty 20+

0

24

Gravely 03974651

PLATE, HANDLE MOUNT LINK

$

$

Not available

25

Gravely 03976651

WLDT, LH DRIVE LEVER 5 DEG

$70.99

$

Usually ships in 4-12 days

0

26

Gravely D33004

SPACER, .500 X .330 X .980

$8.99

$

Usually ships in 4-12 days

0

27

Gravely AM103119

SWITCH, SEAT OVERIDE (N.O.)
(Superseded to 02754100)

Note: (N.O.)

$10.99

$

In Stock, Qty 19

0

28

Gravely 00203898

WLDT, LH HANDLE MOUNT

$

$

Not available

29

Gravely 05957400

BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$3.99

$

In Stock, Qty 9

0

30

Gravely D38003

SPRING, TOR 1.00X.062 Y

$

$

Not available

31

Gravely 00967115

LOCKNUT, 5/16-18 NYLOC Y
(Superseded to 06500820)

$1.99

$

In Stock, Qty 5

0

32

Gravely 34H60

Pin, Spring

$

$

Not available

33

Gravely D13308

BASE, LOCK LEVER Y

$

$

Not available

34

Gravely D13309

LEVER, LOCK Y

$

$

Not available

35

Gravely 03820400

KNOB, 3/8 X 1.25 - 4 PRONG

$11.99

$

In Stock, only 4 left!

0

36

Gravely 05958000

BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$2.49

$

In Stock, Qty 20+

0

37

Gravely 03974551

WLDT, LH HANDLE MOUNT 5 DEG

$

$

Not available

38

Gravely 06215700

BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$3.49

$

In Stock, Qty 20+

0

39

Gravely 04062253

PLATE, BACK LASER GRAVELY WLK

$

$

Not available

40

Gravely 00102770

RELAY, ISO MINI ELEC.

Note: (988141, 142)

$29.99

$

Usually ships in 4-12 days

0

41

Gravely 04039200

HARNESS, WIRE NON ELEC PB WALK

Note: (988140) (NS)

$221.99

$

Usually ships in 4-12 days

0

42

Gravely 03983502

HARNESS, MY2011FSWLK ELE START

Note: (988141, 142) (NS)

$

$

Not available
