988143 (GR 1332 FX) - Gravely Pro-Gear 32" Walk-Behind Mower, Fixed Deck, 13hp Kawasaki (SN: 000401 & Above) 32-inch Deck Assembly Parts Diagram

Pro-Gear 32" Walk-Behind Mower, Fixed Deck, 13hp Kawasaki

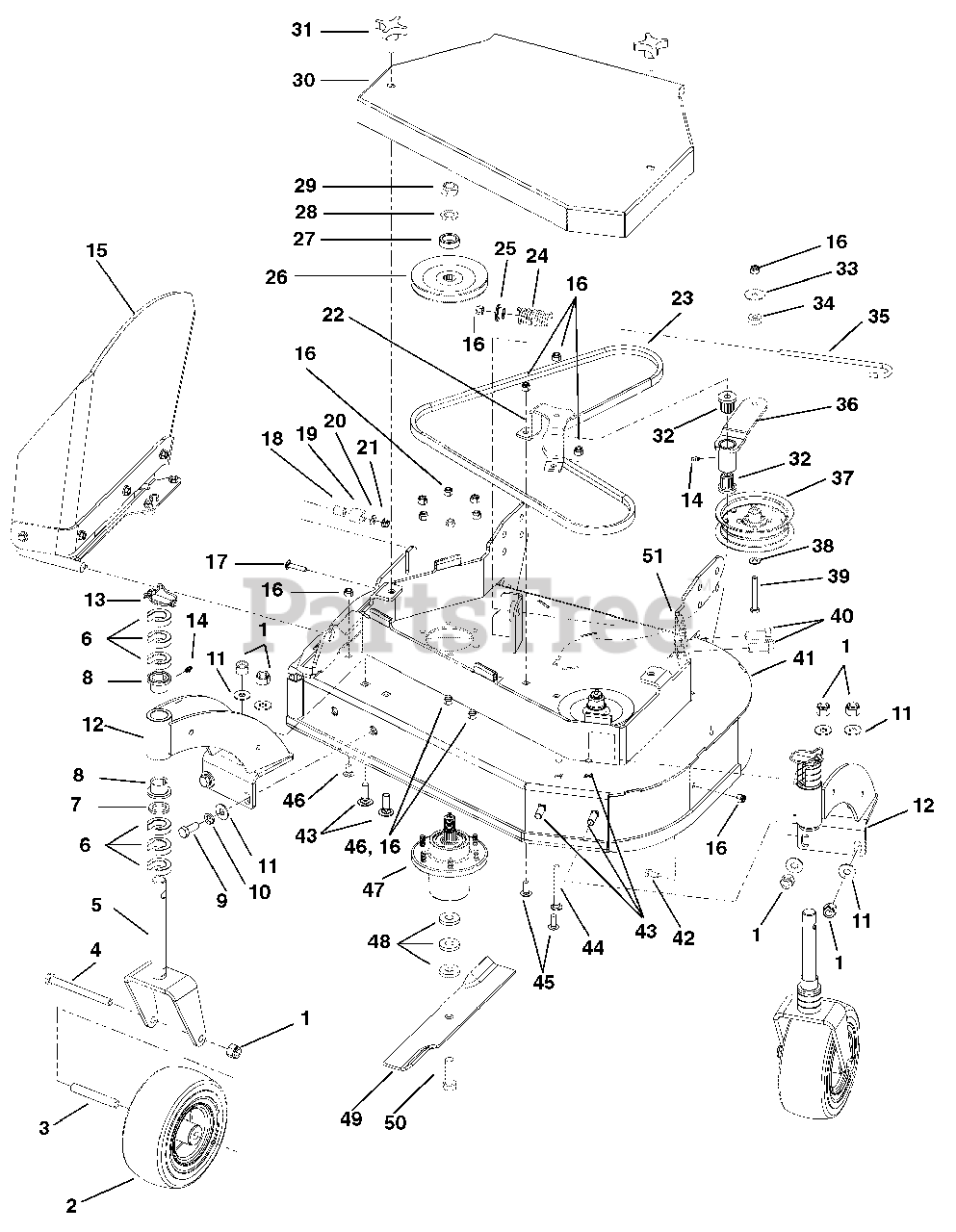

32-inch Deck Assembly Parts Diagram

  • Title

1

Gravely 00964015

LOCKNUT, 1/2-13 NYLOC Y
(Superseded to 06500830)

$2.99

$

In Stock, Qty 20+

0

2

Gravely 07100302

ASSY, WHEEL AND TIRE 9X3.5
(Superseded to 07100931)

$151.99

$

In Stock, only 4 left!

0

3

Gravely D13003

TUBE, CASTER AXLE

$21.99

$

In Stock, only 2 left!

0

4

Gravely 05964100

@BLT-HEX .50-13X5.50 GR5YWZC
(Superseded to 05901632)

$7.49

$

In Stock, Qty 12

0

5

Gravely 00203933

WLDT, CASTER YOKE W/GRVLY PNT

$208.99

$

Usually ships in 4-12 days

0

6

Gravely 00164145

C-SPACER, 1.00 X 1.77 X .500

$5.99

$

In Stock, only 2 left!

0

7

Gravely D13008

BUSHING, 1.03 X 1.50 X .179 Y

$10.99

$

In Stock, Qty 8

0

8

Gravely D18076

BRG, FLG 1.00X1.25X1.00

$7.49

$

In Stock, Qty 13

0

9

Gravely 00960080

BOLT, 7/16-14X1.25 HEX 5 Y
(Superseded to 05963800)

$2.99

$

In Stock, only 1 left!

0

10

Gravely 00960604

WASHER, .500 MED SPRG LOCK Y

$

$

Not available

11

Gravely 00960703

MANUAL, OWNERS RAPID XZ FRENCH

$

$

Not available

12

Gravely 03987453

WLDT, STRUT FRONT FXWLK GRVL

$

$

Not available

13

Gravely 00161397

PIN, KLIK .438X2.00

$9.99

$

In Stock, only 2 left!

0

14

Gravely 00959995

FTG, 1/4-28 STRGT GREASE ZERK

$3.99

$

In Stock, only 2 left!

0

15

Gravely 56155053

ASSY, DISCHARGE SHIELD

$203.99

$

In Stock, only 1 left!

0

16

Gravely 00968087

LOCKNUT, 3/8-16 NYLOC Y

$

$

Not available

17

Gravely 00963075

BOLT, 5/16-18 X 1.50 CRG 2 Y
(Superseded to 06200144)

$

$

Not available

18

Gravely A8905500

BUSHING

$

$

Not available

19

Gravely 07500007

BUMPER,RUBBER .62X1.0X.88 LG

$6.49

$

In Stock, only 1 left!

0

20

Gravely 06435800

@WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

22

Gravely 04054951

BRACKET, IDLER

$

$

Not available

23

Gravely 07200502

BELT, 5L 76.15 BANDED

$68.99

$

Usually ships in 4-12 days

0

24

Gravely D38128

SPRING, COM 1.22X.162X2.50 Y

$18.99

$

Usually ships in 4-12 days

0

25

Gravely D33062

KEEPER, SPRING

$40.99

$

Usually ships in 4-12 days

0

26

Gravely D18083

PULLEY, NARROW SPLINE
(Superseded to 07329567)

$93.99

$

In Stock, only 2 left!

0

27

Gravely D13024

SPACER, SPINDLE TOP-PULLEY

$14.99

$

In Stock, only 2 left!

0

28

Gravely 03399703

WASHER, .75X1.3125X.120
(Superseded to 06401037)

$2.49

$

In Stock, Qty 9

0

29

Gravely 00964024

LOCKNUT, 3/4-16 CROWN PL
(Superseded to 06500031)

$3.99

$

In Stock, Qty 18

0

30

Gravely 04054853

WLDT, SHIELD 32 GRWLK G2

$

$

Not available

31

Gravely 03820400

KNOB, 3/8 X 1.25 - 4 PRONG

$10.99

$

In Stock, only 4 left!

0

32

Gravely TCU14540

BRG, FLG M10XM25XM27 FLUTED

$18.99

$

In Stock, Qty 6

0

33

Gravely 00964502

WASHER, .375X1.50X.063 FLAT Y
(Superseded to 06439300)

$3.49

$

In Stock, Qty 13

0

34

Gravely D13023

BUSHING, .380 X 1.00 X .410 Y

$20.99

$

Usually ships in 4-12 days

0

35

Gravely D23040

J-BOLT, 3/8-16 X 7.88 Y

$11.99

$

Usually ships in 4-12 days

0

36

Gravely 04056251

WLDT, IDLER ARM WITH OFFSET

$70.99

$

Usually ships in 4-12 days

0

37

Gravely D18032

PULLEY, FLAT 5.00X.375 W/BRG
(Superseded to 07346700)

$82.99

$

In Stock, Qty 9

0

38

Gravely 00964501

WASHER, .406X.813X.065 FLAT Y
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

39

Gravely 05961400

@BLT-HEX .38-16X2.75 GR5 YWZC
(Superseded to 05901611)

$4.99

$

In Stock, Qty 20+

0

40

Gravely 05901321

BOLT, HEX 5/8-11 1.5" GR8 YWZC
(Superseded to 05901723)

$3.99

$

Usually ships in 4-12 days

0

41

Gravely 50522000

DECK W/DECALS, 32 GRAVELY GWLK

$

$

Not available

42

Gravely 05959400

@BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.99

$

In Stock, Qty 14

0

43

Gravely 06223100

BLT-RDHDSQNK .50-13X1.50 G5YZ
(Superseded to 06200421)

$5.49

$

Usually ships in 4-12 days

0

44

Gravely 03H1836

BOLT, 3/8-16X3.50 CRG 5 Y

$

$

Not available

45

Gravely 00963019

BOLT, 3/8-16X1.00 CRG 5 SN Y

$

$

Not available

46

Gravely 06200004

@BLT-RHDSSQNK .38-16X.75 G5YZ
(Superseded to 06200336)

$2.99

$

In Stock, Qty 15

0

47

Gravely 00200262

ASSY, SPINDLE S/O

$294.99

$

Usually ships in 4-12 days

0

48

Gravely D18055

WASHER, .630X1.50X.250 FLAT Y
(Superseded to 06401033)

$7.49

$

In Stock, Qty 13

0

49

Gravely GDU10230

BLADE, 16.500 X .80 LIFT

$29.99

$

In Stock, Qty 8

0

50

Gravely 00967348

BOLT, 5/8-11 X 2.00 HEX 8 Y
(Superseded to 05901725)

$6.49

$

In Stock, Qty 9

0

51

Gravely 00999538

TRIM, LOCK 1/4" EDGE

$6.49

$

Usually ships in 4-12 days

0
