988144 (GR 1336 FX) - Gravely Pro-Gear 36" Walk-Behind Mower, Fixed Deck, 13hp Kawasaki (SN: 000101 - 000400) Deck Assembly - 36-Inch Parts Diagram

Pro-Gear 36" Walk-Behind Mower, Fixed Deck, 13hp Kawasaki

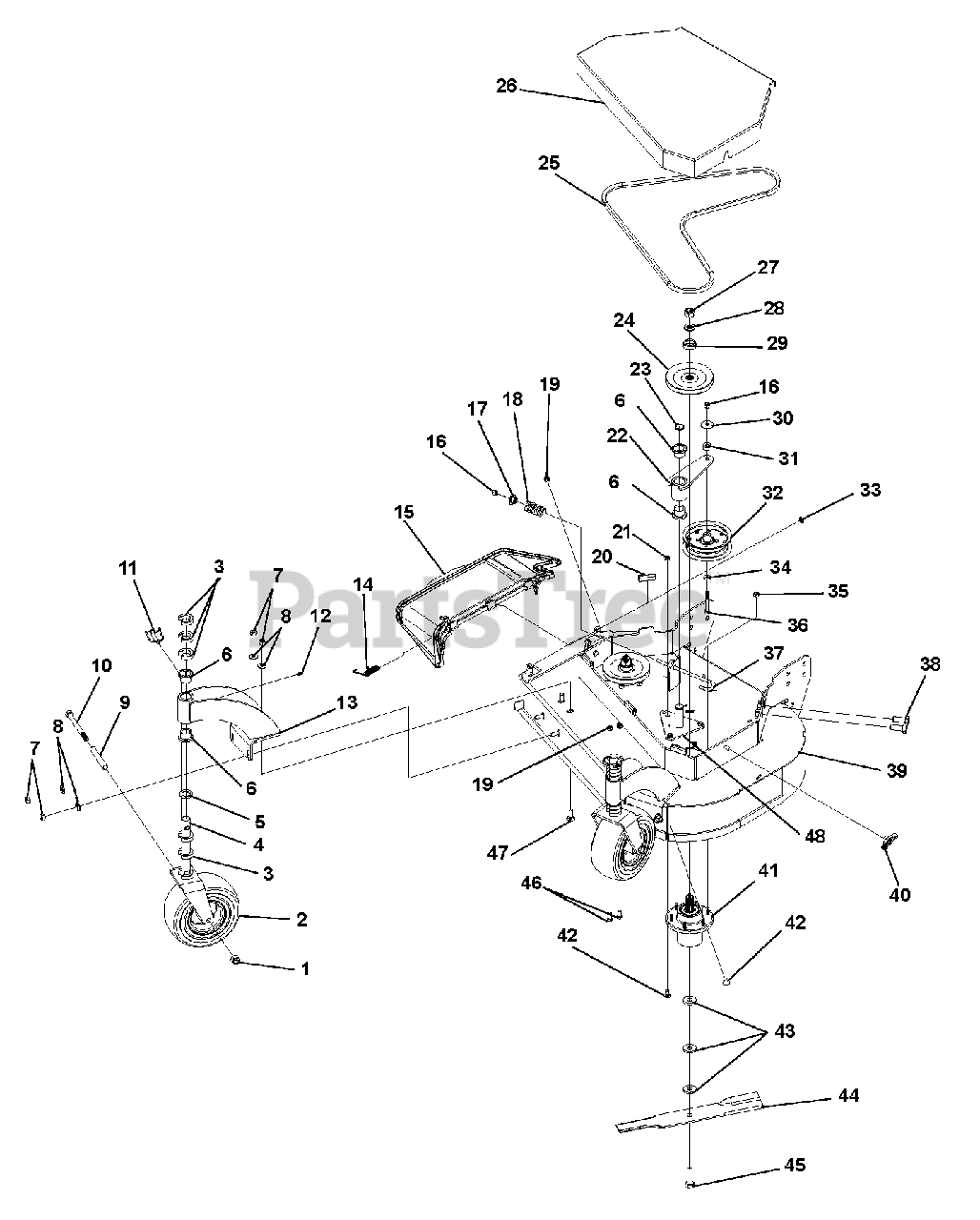

Deck Assembly - 36-Inch Parts Diagram

  • Title

1

Gravely 00964015

Locknut, .50-13 Nyloc
(Superseded to 06500830)

$2.49

$

In Stock, Qty 20+

0

2

Gravely 07100302

Assembly, Wheel and Tire 9 x 3.5
(Superseded to 07100931)

$136.99

$

In Stock, only 2 left!

0

3

Gravely 00164145

C-Spacer, 1.00 x 1.77 x .500

$3.99

$

In Stock, Qty 7

0

4

Gravely 00203933

Weldment, Caster Yoke w/Gravely Paint

$204.99

$

Usually ships in 4-12 days

0

5

Gravely D13008

Bushing, 1.03 x 1.50 x .179

$9.99

$

In Stock, only 2 left!

0

6

Gravely D18076

Bearing, Flange 1.00 x 1.25 x 1.00

$5.99

$

In Stock, only 3 left!

0

7

Gravely 00964025

Locknut, .4375-14 Crown
(Superseded to 06508200)

$3.99

$

Usually ships in 4-12 days

0

8

Gravely 00960702

Washer, .375 Regular Flat
(Superseded to 06435900)

$1.49

$

Usually ships in 4-12 days

0

9

Gravely D13003

Tube, Caster Axle

$20.99

$

In Stock, only 2 left!

0

10

Gravely 00960129

Bolt, .50-13 x 5.50 Hex 5
(Superseded to 05901632)

$6.99

$

Usually ships in 4-12 days

0

11

Gravely 00161397

Pin, LNC .438 x 2.00

$9.49

$

In Stock, only 2 left!

0

12

Gravely 00959995

Fitting, .25-28 STRGT Grease Zerk

$3.49

$

Usually ships in 4-12 days

0

13

Gravely 00203934

Weldment, Caster SUPP w/Gravely Paint

$

$

Not available

14

Gravely 03393800

Spring, Torsion .460 x .138

$5.99

$

Usually ships in 4-12 days

0

15

Gravely TCA16387

Chute Discharge Assembly

$35.99

$

In Stock, only 3 left!

0

16

Gravely 00968087

Locknut, .38-16 Nyloc

$

$

Not available

17

Gravely D33062

Keeper, Spring

$38.99

$

Usually ships in 4-12 days

0

18

Gravely D38128

Spring, COM 1.22 x .162 x 2.50

$18.99

$

Usually ships in 4-12 days

0

19

Gravely 00964022

Locknut, .38-16 Crown

$

$

Not available

20

Gravely 00999538

Trim, 1/4" Trim-LOK

$5.99

$

Usually ships in 4-12 days

0

21

Gravely 06537200

Nut, Locking-Jam-Center .375-16
(Superseded to 06500914)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 03371951

Weldment, Idler Arm

$

$

Not available

23

Gravely 00424390

Snap Ring, 1.00 x .042 External
(Superseded to 05700160)

$3.49

$

Usually ships in 4-12 days

0

24

Gravely D18083

Pulley, Narrow Spline
(Superseded to 07329567)

$56.99

$

In Stock, only 3 left!

0

25

Gravely 00201010

Belt, HB 80.3 Elbow AMD OHR

$70.99

$

In Stock, only 2 left!

0

26

Gravely 03398153

Shield, Belt 32/36 Gear Gravely

$

$

Not available

27

Gravely 00964024

Locknut, .75-16 Crown
(Superseded to 06500031)

$3.99

$

In Stock, Qty 12

0

28

Gravely 03399703

Washer, .75 x 1.3125 x .120

$3.99

$

In Stock, Qty 11

0

29

Gravely D13024

Spacer, Spindle Top-Pulley

$10.99

$

In Stock, only 2 left!

0

30

Gravely 00964502

Washer, Flat .375 x 1.50 x .063
(Superseded to 06439300)

$3.49

$

In Stock, Qty 12

0

31

Gravely D13023

Bushing, .380 x 1.00 x .410

$19.99

$

Usually ships in 4-12 days

0

32

Gravely D18032

Pulley, Flat 5.00 x .375 W/BRG
(Superseded to 07346700)

$79.99

$

In Stock, only 2 left!

0

33

Gravely H141123

Retainer

$

$

Not available

34

Gravely 00964501

Washer, .406 x .813 x .065 Flat
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

35

Gravely 00960502

Nut, .38-16 Standard Hex Grade 5

$

$

Not available

36

Gravely 00960053

Bolt, .38-16 x 2.75 Hex 5
(Superseded to 05961400)

$3.99

$

In Stock, Qty 19

0

37

Gravely D23040

J-Bolt, .38-16 x 7.88

$11.99

$

Usually ships in 4-12 days

0

38

Gravely 05901321

Bolt, Hex .625-11 1.5 Grade 8
(Superseded to 05901723)

$3.99

$

Usually ships in 4-12 days

0

39

Gravely 68825001

36" Gravely Gear Deck with Decals

$

$

Not available

40

Gravely M119352

Knob, .38-16 Insert

$3.99

$

In Stock, Qty 6

0

41

Gravely 00200260

Assembly, Spindle Housing
(Superseded to 00200262)

$250.99

$

In Stock, only 1 left!

0

42

Gravely 00963033

Bolt, .38-16 x .750 CRG 5 LN

$

$

Not available

43

Gravely D18055

Washer, .630 x 1.50 x .250 Flat
(Superseded to 06401033)

$6.99

$

In Stock, only 4 left!

0

44

Gravely GDU10231

Blade, 18.000 x .80 Lift

$27.99

$

In Stock, Qty 20+

0

45

Gravely 00967348

Bolt, .625-11 x 2.00 Hex 8
(Superseded to 05901725)

$5.99

$

In Stock, Qty 12

0

46

Gravely 00960045

Bolt, .38-16 x .750 Hex 5
(Superseded to 05959400)

$1.49

$

In Stock, only 2 left!

0

47

Gravely 00963029

Bolt, .4375-14 x 1.25 CRG 5
(Superseded to 06200130)

$

$

Not available

48

Gravely 00203918

Weldment, Idler Pivot Mount
(Superseded to 05180151)

$48.99

$

Usually ships in 4-12 days

0
