988146 (HR 1536 FL) - Gravely Pro-Hydro 36" Walk-Behind Mower, 15hp Kawasaki (SN: 000101 - 000400) 36" Deck Assembly Parts Diagram

Pro-Hydro 36" Walk-Behind Mower, 15hp Kawasaki

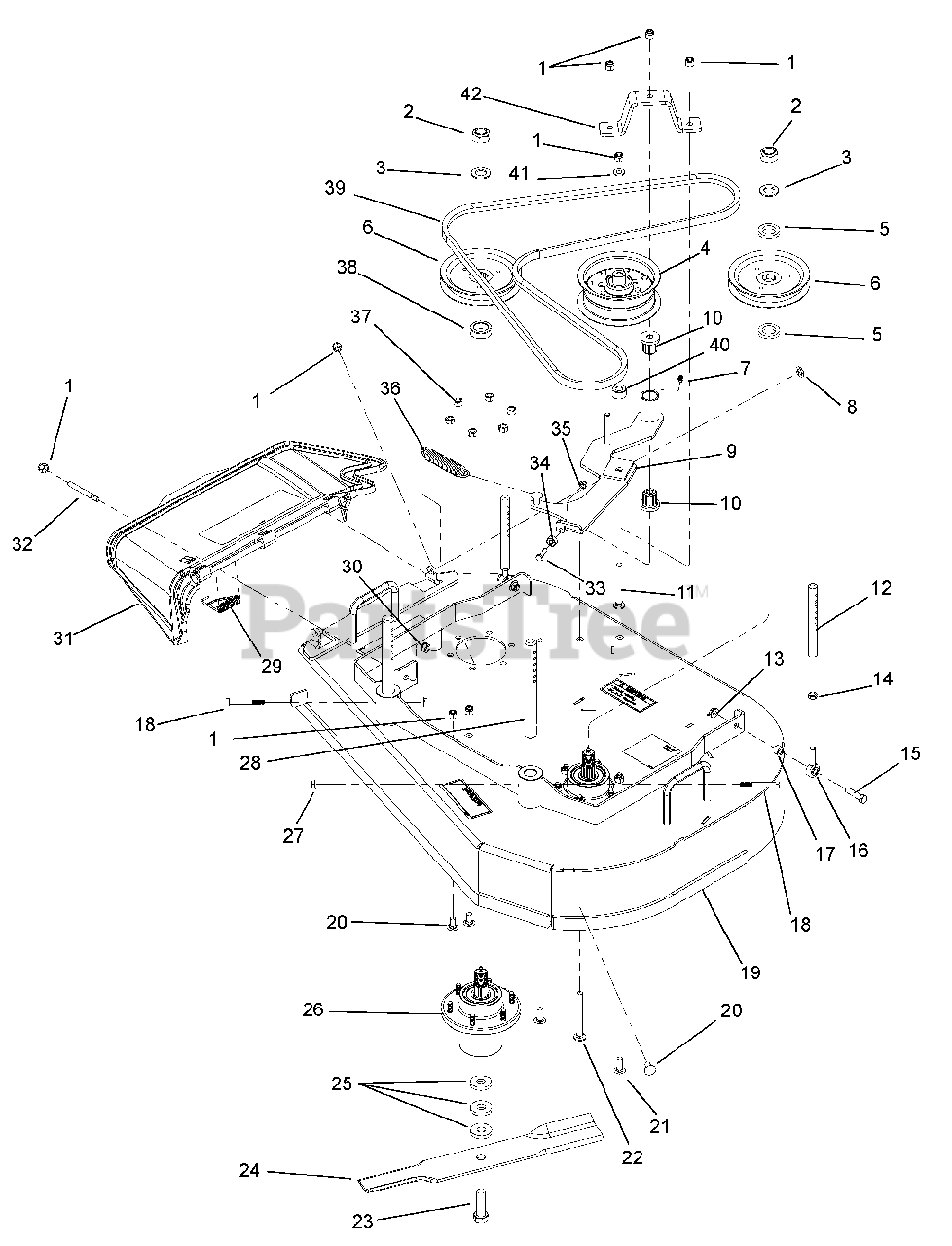

36" Deck Assembly Parts Diagram

  • Title

1

Gravely 00968087

LOCKNUT, 3/8-16 NYLOC Y

$

$

Not available

2

Gravely 00964024

LOCKNUT, 3/4-16 CROWN PL
(Superseded to 06500031)

$3.99

$

In Stock, Qty 18

0

3

Gravely 03399703

WASHER, .75X1.3125X.120
(Superseded to 06401037)

$2.49

$

In Stock, Qty 9

0

4

Gravely 07300532

PULLEY, FLAT 5.00X2.36X.375

$77.99

$

In Stock, Qty 10

0

5

Gravely 06425600

WSHR-FL-STL 1.0X1.50X.25

$6.49

$

In Stock, Qty 10

0

6

Gravely 07300531

PULLEY, SPLINE SPINDLE SHFLWLK

$70.99

$

In Stock, only 1 left!

0

7

Gravely 00959995

FTG, 1/4-28 STRGT GREASE ZERK

$3.99

$

In Stock, only 1 left!

0

8

Gravely H141123

RETAINER #

$

$

Not available

9

Gravely 03929251

WLDT, IDLER ARM 36

$54.99

$

Usually ships in 4-12 days

0

10

Gravely TCU14540

BRG, FLG M10XM25XM27 FLUTED

$18.99

$

In Stock, Qty 6

0

11

Gravely 03H1836

BOLT, 3/8-16X3.50 CRG 5 Y

$

$

Not available

12

Gravely 03841021

ROD, REAR HOC

$35.99

$

Usually ships in 4-12 days

0

13

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06534700

NUT-JAM .375-24 YWZC
(Superseded to 06500739)

$2.49

$

In Stock, only 3 left!

0

15

Gravely 00960048

BOLT, 3/8-16X1.50 HEX 5 Y
(Superseded to 05957900)

$1.99

$

In Stock, Qty 16

0

16

Gravely 08790600

ROD END, 3/8 RH

$60.99

$

Usually ships in 4-12 days

0

17

Gravely 05522100

BSHG-SLV .377X.624X.370

$5.49

$

Usually ships in 4-12 days

0

18

Gravely 00967165

BOLT, 5/16-18X2.50 HEX 8 Y

$

$

Not available

19

Gravely 03906001

ASSY, 36" GRAVELY DECK W/DECAL

$

$

Not available

20

Gravely 00963033

BOLT, 3/8-16X.750 CRG 5 LN Y

$

$

Not available

21

Gravely 00963019

BOLT, 3/8-16X1.00 CRG 5 SN Y

$

$

Not available

22

Gravely 06200117

BLT-RHDSSQNK .375-16X3.75 G5YZ
(Superseded to 06200337)

$19.99

$

Usually ships in 4-12 days

0

23

Gravely 00967348

BOLT, 5/8-11 X 2.00 HEX 8 Y
(Superseded to 05901725)

$6.49

$

In Stock, Qty 6

0

24

Gravely GDU10231

BLADE, 18.000 X .80 LIFT

$31.99

$

In Stock, Qty 20+

0

25

Gravely D18055

WASHER, .630X1.50X.250 FLAT Y
(Superseded to 06401033)

$7.49

$

In Stock, only 3 left!

0

26

Gravely 00200260

ASSY, SPINDLE HOUSING
(Superseded to 00200262)

$294.99

$

Usually ships in 4-12 days

0

27

Gravely 00964019

LOCKNUT, 5/16-18 WHIZ Y
(Superseded to 06530400)

$1.99

$

In Stock, Qty 20+

0

28

Gravely 03841019

ROD, FRONT HOC

$54.99

$

Usually ships in 4-12 days

0

29

Gravely 03393800

SPRING, TORSION .460"X.138"

$6.49

$

Usually ships in 4-12 days

0

30

Gravely 00964016

LOCKNUT, 3/8-16 WHIZ Y
(Superseded to 06534900)

$1.99

$

In Stock, Qty 20+

0

31

Gravely TCA16387

CHUTE DISCHARGE ASSY #

$37.99

$

In Stock, only 2 left!

0

32

Gravely 00104024

ROD, THREADED ADJUSTMENT

$25.99

$

Usually ships in 4-12 days

0

33

Gravely 00960002

BOLT, 1/4-20X1.00 HEX 5 Y
(Superseded to 05947700)

$1.99

$

In Stock, only 2 left!

0

34

Gravely 00191185

BRG, BAL .250X.688X.313

$10.99

$

Usually ships in 4-12 days

0

35

Gravely 00964048

LOCKNUT, 1/4-20 NYLOC Y

$

$

Not available

36

Gravely 00110580

SPRG, EXTENSION

$17.99

$

In Stock, only 2 left!

0

37

Gravely 00960502

NUT, 3/8-16 STD HEX GR5 Y

$

$

Not available

38

Gravely D13024

SPACER, SPINDLE TOP-PULLEY

$14.99

$

In Stock, only 2 left!

0

39

Gravely 07200518

BELT

$80.99

$

In Stock, only 1 left!

0

40

Gravely 03846217

SPACER, .437X1.00X.58 SMLS

$10.99

$

In Stock, Qty 14

0

41

Gravely 00964501

WASHER, .406X.813X.065 FLAT Y
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

42

Gravely 03854451

STRAP, IDLER 36

$14.99

$

Usually ships in 4-12 days

0
