988146 (HR 1536 FL) - Gravely Pro-Hydro 36" Walk-Behind Mower, 15hp Kawasaki (SN: 000101 - 000400) Console & Deck Mounting Parts Diagram

Pro-Hydro 36" Walk-Behind Mower, 15hp Kawasaki

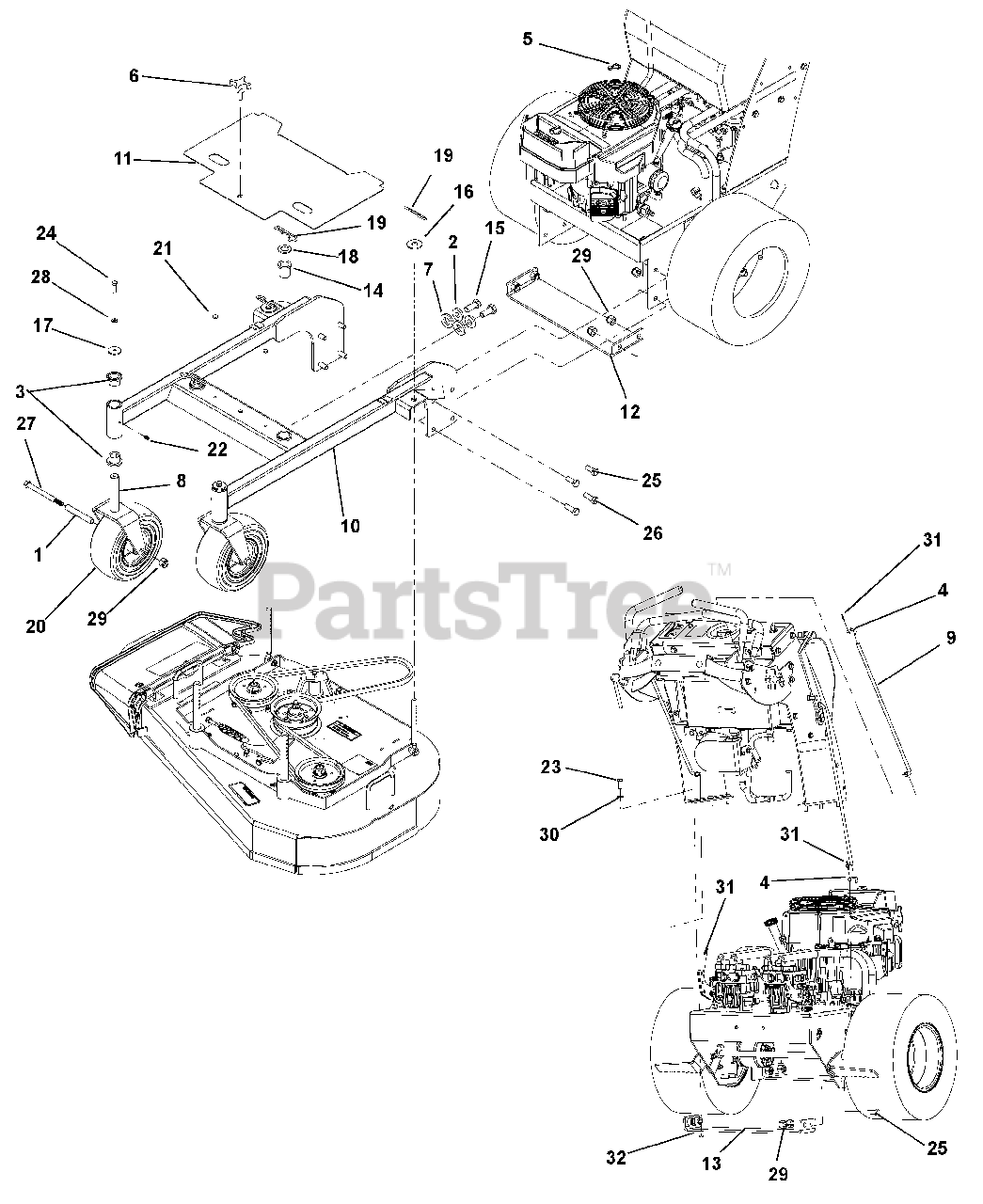

Console & Deck Mounting Parts Diagram

  • Title

1

Gravely D13003

TUBE, CASTER AXLE

$21.99

$

In Stock, only 2 left!

0

2

Gravely D18055

WASHER, .630X1.50X.250 FLAT Y
(Superseded to 06401033)

$7.49

$

In Stock, Qty 13

0

3

Gravely D18076

BRG, FLG 1.00X1.25X1.00

$7.49

$

In Stock, Qty 13

0

4

Gravely D33002

SWIVEL, 3/8-24

$12.99

$

Usually ships in 4-12 days

0

5

Gravely 00111910

CABLE TIE, .15 X 8.50

$

$

Not available

6

Gravely 03820400

KNOB, 3/8 X 1.25 - 4 PRONG

$10.99

$

In Stock, only 4 left!

0

7

Gravely 03841023

WASHER, .905X1.750X.250

$

$

Not available

8

Gravely 03855153

WLDT, FRONT WHEEL FLWLK GRVLY

$125.99

$

In Stock, only 1 left!

0

9

Gravely 03858911

ROD, DRIVE CONTROL FW

$63.99

$

Usually ships in 4-12 days

0

10

Gravely 03902653

WLDT, DECK FRAME 36" GRV FLWLK

$782.99

$

Usually ships in 4-12 days

0

11

Gravely 03912553

SHIELD, BELT 36" FLWLK GRAVELY

$22.99

$

Usually ships in 4-12 days

0

12

Gravely 03932453

PLATE, ENGINE BED FRONT 36

$27.99

$

Usually ships in 4-12 days

0

13

Gravely 03932553

PLATE, ENGINE BED REAR 36

$23.99

$

Usually ships in 4-12 days

0

14

Gravely 05533600

BSHG-FLG 1.00X1.25X1.50X1.50EP
(Superseded to 05500934)

$7.99

$

In Stock, Qty 20+

0

15

Gravely 05901321

BOLT, HEX 5/8-11 1.5" GR8 YWZC
(Superseded to 05901723)

$3.99

$

Usually ships in 4-12 days

0

16

Gravely 06442900

WSHR-FL-STL.688X1.75X.134 YWZ
(Superseded to 06401032)

$1.49

$

In Stock, Qty 13

0

17

Gravely 06443400

WSHR-FL-STL .380X1.50X.125YWZC
(Superseded to 06401106)

$3.99

$

In Stock, Qty 20+

0

18

Gravely 06444700

WSHR-FL-STL .890X1.500X.1196YZ
(Superseded to 06401207)

$4.99

$

In Stock, Qty 6

0

19

Gravely 06713300

PIN-HAIR-INT .17X.68X3.50 YWZC
(Superseded to 06700228)

$2.99

$

Usually ships in 4-12 days

0

20

Gravely 07100302

ASSY, WHEEL AND TIRE 9X3.5
(Superseded to 07100931)

$151.99

$

In Stock, only 4 left!

0

21

Gravely 07503100

BUMPER GROMMET

$3.99

$

In Stock, Qty 14

0

22

Gravely 00959995

FTG, 1/4-28 STRGT GREASE ZERK

$3.99

$

In Stock, only 2 left!

0

23

Gravely 00960046

BOLT, 3/8-16X1.00 HEX 5 Y
(Superseded to 05948700)

$1.99

$

In Stock, Qty 20+

0

24

Gravely 00960047

BOLT, 3/8-16X1.25 HEX 5 Y
(Superseded to 05958000)

$1.99

$

In Stock, Qty 18

0

25

Gravely 00960113

BOLT, 1/2-13X1.25 HEX 5 Y
(Superseded to 05958900)

$3.49

$

In Stock, Qty 6

0

26

Gravely 00960114

BOLT, 1/2-13X1.50 HEX 5 Y

$

$

Not available

27

Gravely 00960129

BOLT, 1/2-13X5.50 HEX 5 Y
(Superseded to 05901632)

$7.49

$

In Stock, Qty 12

0

28

Gravely 00960602

WASHER, .375 MED SPRG LOCK Y

$

$

Not available

29

Gravely 00964015

LOCKNUT, 1/2-13 NYLOC Y
(Superseded to 06500830)

$2.99

$

In Stock, Qty 20+

0

30

Gravely 00964501

WASHER, .406X.813X.065 FLAT Y
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

31

Gravely 00967353

RING, RUE .375 X .054 X 1.254

$2.99

$

Usually ships in 4-12 days

0

32

Gravely 00968087

LOCKNUT, 3/8-16 NYLOC Y

$

$

Not available
