988146 (HR 1536 FL) - Gravely Pro-Hydro 36" Walk-Behind Mower, 15hp Kawasaki (SN: 000401 & Above) 36" Deck Assembly Parts Diagram

Pro-Hydro 36" Walk-Behind Mower, 15hp Kawasaki

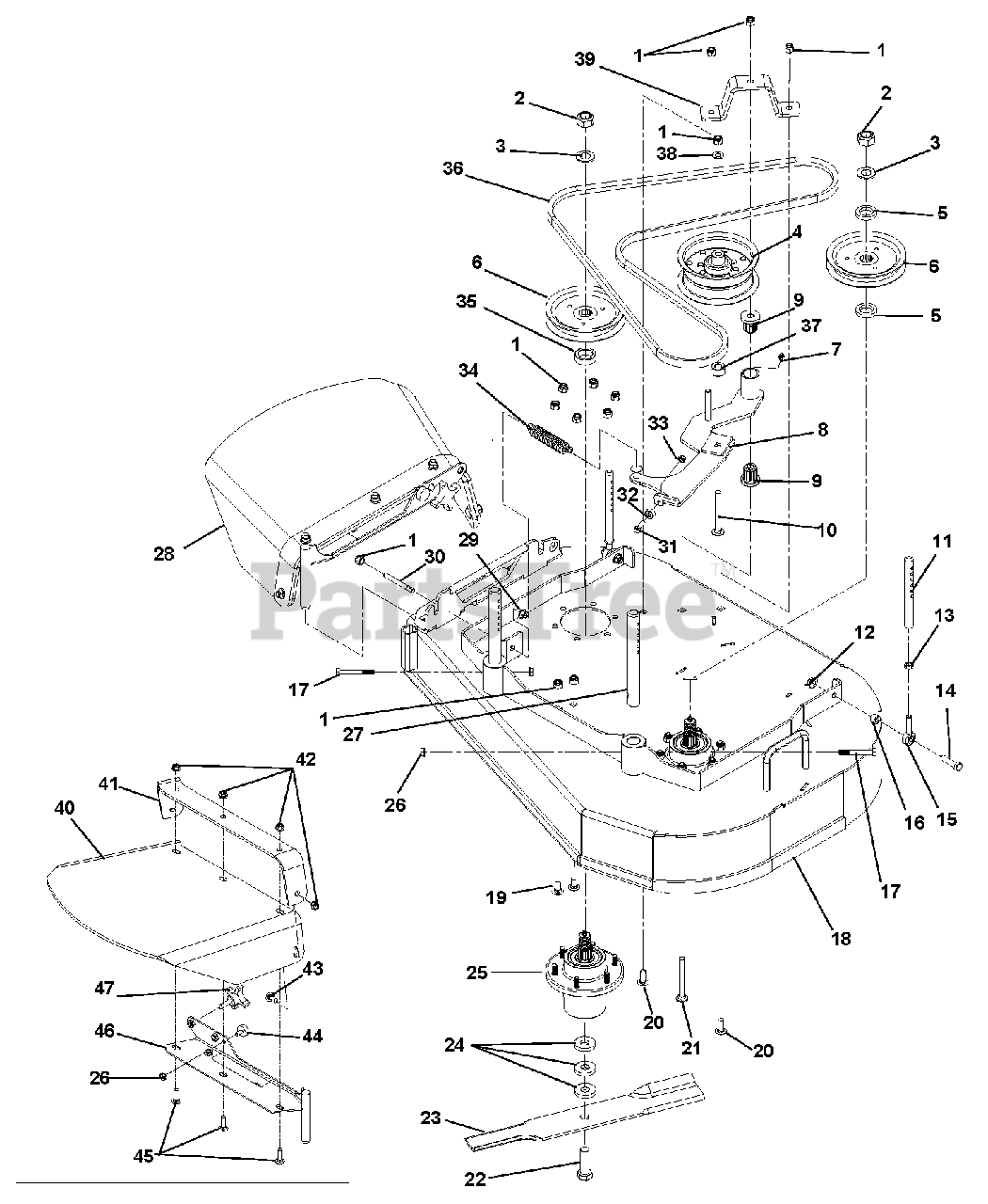

36" Deck Assembly Parts Diagram

  • Title

1

Gravely 00968087

LOCKNUT, 3/8-16 NYLOC Y

$

$

Not available

2

Gravely 00964024

LOCKNUT, 3/4-16 CROWN C
(Superseded to 06500031)

$3.99

$

In Stock, Qty 12

0

3

Gravely 03399703

WASHER, .75 X 1.3125 X .113

$3.99

$

In Stock, Qty 11

0

4

Gravely 07300532

PULLEY, FLAT 5.00 X 2.36 X .375

$68.99

$

Usually ships in 4-12 days

0

5

Gravely 06425600

WSHR, FL-STL 1.0 X 1.5 X .25

$5.99

$

Usually ships in 4-12 days

0

6

Gravely 07300531

PULLEY, SPLINE SPINDLE SHFLWLK

$68.99

$

Usually ships in 4-12 days

0

7

Gravely 00959995

FTG, 1/4-28 STRGT GREASE ZERK

$3.49

$

Usually ships in 4-12 days

0

8

Gravely 03929251

WLDT, IDLER ARM 36

$82.99

$

In Stock, only 1 left!

0

9

Gravely TCU14540

BRG, FLG M10 X M25 X M27 FLUTED

$14.99

$

In Stock, only 2 left!

0

10

Gravely 03H1836

BOLT, 3/8-16 X 3.50 CRG 5 Y

$

$

Not available

11

Gravely 03841021

ROD, REAR HOC

$34.99

$

Usually ships in 4-12 days

0

12

Gravely 06542000

NUT, LK TOP FLG .375-16 YWZC REV
(Superseded to 06500822)

$1.49

$

In Stock, Qty 19

0

13

Gravely 06534700

NUT, JAM .375-24 YWZC REV
(Superseded to 06500739)

$2.49

$

In Stock, Qty 5

0

14

Gravely 05957900

BOLT, HEX .38-16 X 1.50 GR5
(Superseded to 05901928)

$1.49

$

In Stock, Qty 5

0

15

Gravely 08790600

ROD, END 3/8 RH REV

$59.99

$

Usually ships in 4-12 days

0

16

Gravely 05522100

BSHG - SLV REV

$4.99

$

In Stock, only 2 left!

0

17

Gravely 00967165

BOLT, 5/16-18 X 2.50 HEX 8 Y

$

$

Not available

18

Gravely 50498002

ASSY, 36" FLWLK DECK W/DECALS

$1033.99

$

Usually ships in 4-12 days

0

19

Gravely 06200004

BOLT, RDHDSHSQNK .38-16 X .75 G5
(Superseded to 06200336)

$2.99

$

In Stock, Qty 20+

0

20

Gravely 00963019

BOLT, 3/8-16 X 1.00 CRG 5 SN Y

$

$

Not available

21

Gravely 03H1836

BOLT, 3/8-16 X 3.50 CRG 5

$

$

Not available

22

Gravely 00967348

BOLT, 5/8-11 X 2.00 HEX 8 Y
(Superseded to 05901725)

$5.99

$

In Stock, Qty 12

0

23

Gravely GDU10231

BLADE, 18"

$27.99

$

In Stock, Qty 20+

0

24

Gravely D18055

Washer, Blade
(Superseded to 06401033)

$6.99

$

In Stock, only 4 left!

0

25

Gravely 00200262

ASSY, SPINDLE HOUSING

$250.99

$

In Stock, only 1 left!

0

26

Gravely 00964019

LOCKNUT, 5/16-18 WHIZ Y
(Superseded to 06530400)

$1.49

$

In Stock, only 4 left!

0

27

Gravely 03841019

ROD, FRONT HOC

$52.99

$

Usually ships in 4-12 days

0

28

Gravely 56155053

ASSY, DISCHARGE SHIELD

$199.99

$

In Stock, only 1 left!

0

29

Gravely 00964016

LOCKNUT, 3/8-16 WHIZ Y
(Superseded to 06534900)

$1.49

$

In Stock, Qty 18

0

30

Gravely 00104024

ROD, THREADED ADJUSTMENT

$24.99

$

Usually ships in 4-12 days

0

31

Gravely 05947700

BOLT, HEX .25-20 X 1.00 GR5
(Superseded to 05901639)

$1.49

$

In Stock, Qty 7

0

32

Gravely 00191185

BRG, BAL .250 X .688 X .313

$9.49

$

Usually ships in 4-12 days

0

33

Gravely 00964048

LOCKNUT, 1/4-20 NYLOC Y

$

$

Not available

34

Gravely 00110580

SPRING, EXT .875 X .125 X 4.25 Y

$17.99

$

In Stock, only 1 left!

0

35

Gravely D13024

SPACER, 1.500 X 1.000 X .510 Y

$10.99

$

In Stock, only 2 left!

0

36

Gravely 07200518

BELT, HB 85.1 EL AMD

$79.99

$

Usually ships in 4-12 days

0

37

Gravely 03846217

SPACER, .437 X 1.00 X .58 SMLS

$9.99

$

In Stock, only 1 left!

0

38

Gravely 00964501

WASHER, .406 X .813 X .065 FLAT Y
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

39

Gravely 03854451

STRAP, IDLER 36

$14.99

$

Usually ships in 4-12 days

0

40

Gravely 04044200

SHIELD, WALK RUBBER DISCHARGE

$68.99

$

In Stock, only 1 left!

0

41

Gravely 03983853

STRAP, GRAVELY WLK RUBBER DIS

$62.99

$

Usually ships in 4-12 days

0

42

Gravely 06534900

NUT, SPNLK-FLG .375-16
(Superseded to 06500735)

$1.49

$

In Stock, Qty 18

0

43

Gravely 06223600

BOLT, RDHDSQNK .38-16 X 1.00 G5
(Superseded to 06200313)

$2.49

$

In Stock, Qty 19

0

44

Gravely 07533600

BUMPER, RUBBER

$14.99

$

In Stock, only 4 left!

0

45

Gravely 06224100

BOLT, RDHDSQNK .38-16 X 1.25 G5
(Superseded to 06200415)

$2.49

$

In Stock, Qty 18

0

46

Gravely 03981953

WLDT. DISCHARGE

$88.99

$

Usually ships in 4-12 days

0

47

Gravely 03820400

KNOB, 3/8 X 1.25 - 4 PRONG

$10.99

$

In Stock, only 3 left!
