988146 (HR 1536 FL) - Gravely Pro-Hydro 36" Walk-Behind Mower, 15hp Kawasaki (SN: 000401 & Above) Console And Controls - 36" Parts Diagram

Pro-Hydro 36" Walk-Behind Mower, 15hp Kawasaki

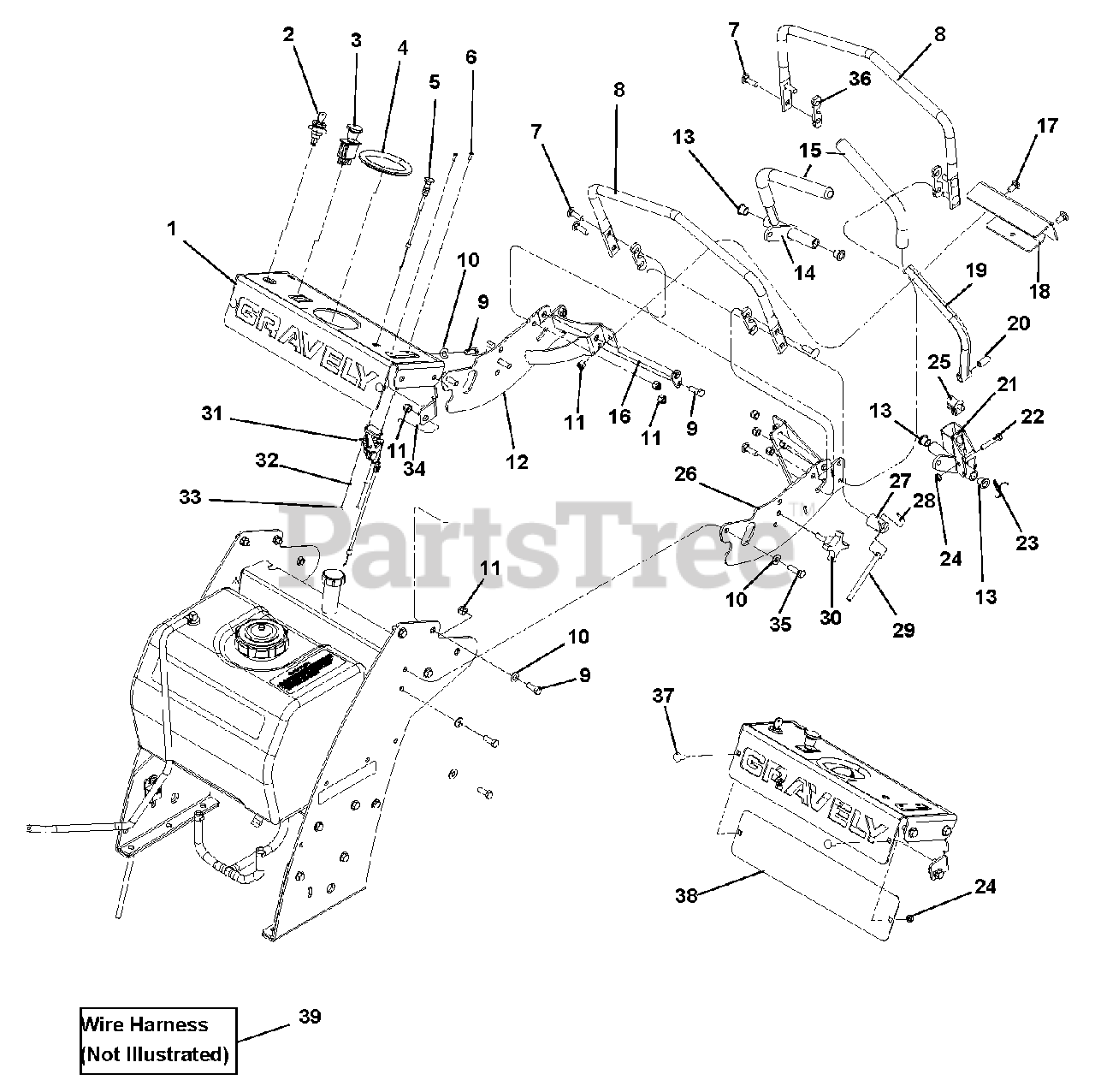

Console And Controls - 36" Parts Diagram

  • Title

1

Gravely 56155001

ASSY, CONSOLE W/DECALS

$

$

Not available

2

Gravely D18090

SWITCH, TWO POSITION KEY

$22.99

$

Usually ships in 4-12 days

0

3

Gravely 00136574

SWITCH, PTO ENGAGEMENT

$29.99

$

In Stock, Qty 5

0

4

Gravely 00170900

TRIM, RUBBER EDGE 12"

$12.24

$

Usually ships in 4-12 days

0

5

Gravely 00180273

CABLE, CHOKE 48"

$56.99

$

In Stock, only 2 left!

0

6

Gravely D24020

SCREW, 8-32 X 1/2

$

$

Not available

7

Gravely 06224100

BOLT, RDHDSQNK .38-16 X 1.25 G5
(Superseded to 06200415)

$2.99

$

In Stock, Qty 20+

0

8

Gravely 03730751

Support Handle

$

$

Not available

9

Gravely 05948700

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

10

Gravely 00964501

WASHER, .406 X .813 X .065 FLAT Y
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 00968087

LOCKNUT, 3/8-16 NYLOC

$

$

Not available

12

Gravely 03974451

WLDT, RH CONTROL MOUNT

$75.99

$

Usually ships in 4-12 days

0

13

Gravely D18013

BRG, FLG .500 X .625 X .500 BRNZ

$7.49

$

Usually ships in 4-12 days

0

14

Gravely 03976551

WLDT, RH DRIVE LEVER

$

$

Not available

15

Gravely D18093

GRIP, CONTROL
(Superseded to 07500222)

$8.49

$

In Stock, only 1 left!

0

16

Gravely 00203893

WLDT, PIN AND LOCK

$34.99

$

Usually ships in 4-12 days

0

17

Gravely 06223900

Bolt-Round Head Square Neck .38-16 x .75 Grade 2
(Superseded to 06200312)

$1.99

$

In Stock, only 1 left!

0

18

Gravely 03974651

DRIVE ARM BACK PLATE

$

$

Not available

19

Gravely 03976651

WLDT, LH DRIVE LEVER

$

$

Not available

20

Gravely D33004

SPACER, .330 X .500 X .980

$8.49

$

Usually ships in 4-12 days

0

21

Gravely 00203898

WLDT, LH HANDLE MOUNT

$

$

Not available

22

Gravely 05957400

BOLT, HEX .31-18 X 1.75 GR5 Y
(Superseded to 05901804)

$3.49

$

In Stock, Qty 5

0

23

Gravely D38003

Spring, TOR 1.00 X .062 Y

$9.99

$

Usually ships in 4-12 days

0

24

Gravely 00967115

LOCKNUT, 5/16-18 NYLOC Y
(Superseded to 06500820)

$1.49

$

In Stock, Qty 20+

0

25

Gravely AM103119

SWITCH, SEAT OVER RIDE (N.O.)
(Superseded to 02754100)

Note: (N.O.)

$9.99

$

In Stock, Qty 20+

0

26

Gravely 03974551

WLDT, LH CONTROL MOUNT

$

$

Not available

27

Gravely D13308

BASE, LOCK LEVER Y

$

$

Not available

28

Gravely 34H60

PIN, SPRING

$

$

Not available

29

Gravely D13309

LEVER, LOCK

$

$

Not available

30

Gravely 03820400

KNOB, 3/8 X 1.25 - 4 PRONG

$10.99

$

In Stock, only 2 left!

0

31

Gravely 00200413

CABLE, THROTTLE - 49.5
(Superseded to 06900714)

$35.99

$

In Stock, Qty 5

0

32

Gravely 00967038

WASHER, #8 MED SPRG LOCK Y
(Superseded to 06300112)

$

$

Not available

33

Gravely 00967037

NUT, 8-32 STD HEX Y
(Superseded to 06529900)

$

$

Not available

34

Gravely 00200409

ASSY, HANDLE BRACE

$43.99

$

Usually ships in 4-12 days

0

35

Gravely 05958000

BOLT, HEX .38-16 X 1.25 GR5
(Superseded to 05901724)

$1.99

$

In Stock, Qty 8

0

36

Gravely 03976751

SHIM, 5 DEG SPEED BAR

$

$

Not available

37

Gravely 06215700

BOLT-RDHDSQNK .31-18X.75 G5
(Superseded to 06200232)

$2.99

$

In Stock, Qty 20+

0

38

Gravely 04062253

PLATE, BACK LASER GRAVELY WLK

$

$

Not available

39

Gravely 04039200

Harness, Wire Non Electric PB Walk (Not shown)
