988146 (HR 1536 FL) - Gravely Pro-Hydro 36" Walk-Behind Mower, 15hp Kawasaki (SN: 000401 & Above) Fuel Tank, Hyraulic Tank And Brake - 36" Parts Diagram

Pro-Hydro 36" Walk-Behind Mower, 15hp Kawasaki

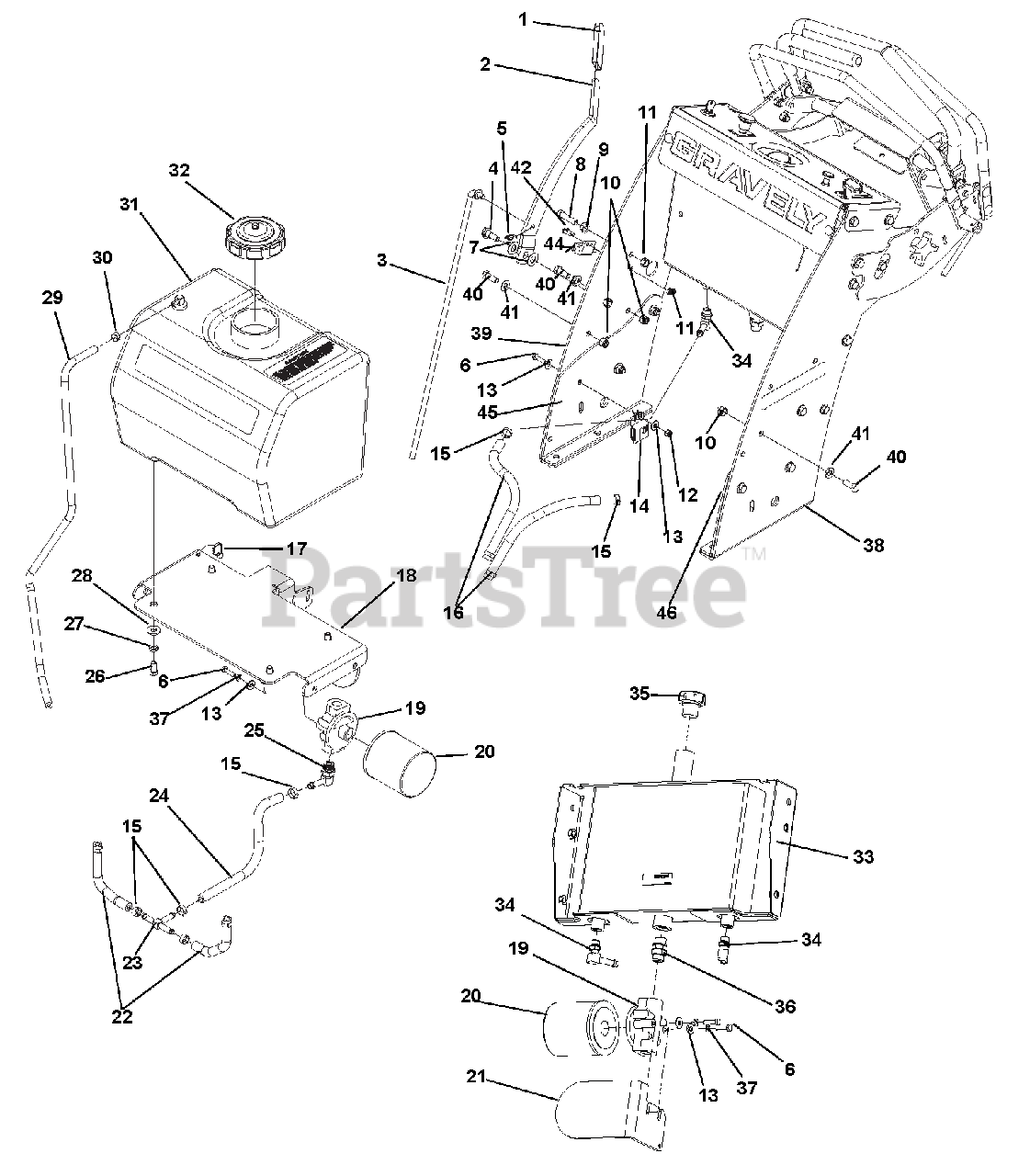

Fuel Tank, Hyraulic Tank And Brake - 36" Parts Diagram

  • Title

1

Gravely D18079

GRIP, PVC .250 X 1.00 X 3.63

$3.99

$

Usually ships in 4-12 days

0

2

Gravely 03886251

LEVER, HAND BRAKE FLOAT WALK

$51.99

$

Usually ships in 4-12 days

0

3

Gravely 03858911

ROD, DRIVE CONTROL FW

$63.99

$

Usually ships in 4-12 days

0

4

Gravely 00135139

BOLT, 1/2X1.06X3/8-16 SLD 5 Y
(Superseded to 07070119)

$3.99

$

Usually ships in 4-12 days

0

5

Gravely 00967353

RING, RUE .375 X .054 X 1.254

$2.99

$

Usually ships in 4-12 days

0

6

Gravely 05947700

BLT-HEX .25-20X1.00 GR5 YWZC
(Superseded to 05901639)

$1.99

$

In Stock, only 2 left!

0

7

Gravely 00967398

WASHER, .510X1.00X.068 NYLON

$

$

Not available

8

Gravely 05957900

BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.99

$

In Stock, Qty 17

0

9

Gravely 00964016

LOCKNUT, 3/8-16 WHIZ Y
(Superseded to 06534900)

$1.99

$

In Stock, Qty 20+

0

10

Gravely 00968087

LOCKNUT, 3/8-16 NYLOC Y

$

$

Not available

11

Gravely 00964062

LOCKNUT, 3/8-16 CENTER Y
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 00964048

LOCKNUT, 1/4-20 NYLOC Y

$

$

Not available

13

Gravely 00960700

MANUAL,OWNERS RAPID XZ TRACTOR

$

$

Not available

14

Gravely 00200410

MODULE, ELECTRONIC
(Superseded to 08885700)

$89.99

$

In Stock, only 4 left!

0

15

Gravely D18379

CLAMP, HOSE - 1/2" PINCH

$3.99

$

In Stock, Qty 14

0

16

Gravely 03832604

HOSE, HYD .375X11.5

$

$

Not available

17

Gravely 00111910

CABLE TIE, .15 X 8.50

$

$

Not available

18

Gravely 03853751

BRACKET, FUEL TANK RMHF

$

$

Not available

19

Gravely 00200463

HEAD, OIL FILTER

$

$

Not available

20

Gravely GDA10137

FILTER, OIL

$29.99

$

In Stock, Qty 5

0

21

Gravely 03911551

GUARD, HYDRO FILTER FLWLK

$

$

Not available

22

Gravely 00200455

HOSE, HYD 3/8 X 6.00

$

$

Not available

23

Gravely M86863

FTG, TUN 3/8 HOSE

$

$

Not available

24

Gravely 03832605

HOSE, HYD .375X10.5

$

$

Not available

25

Gravely 00200464

FTG, 90 BRB-OR 4601-06-08

$

$

Not available

26

Gravely 05959400

BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.99

$

In Stock, Qty 14

0

27

Gravely 00960602

WASHER, .375 MED SPRG LOCK Y

$

$

Not available

28

Gravely 00960702

WASHER, .375 REG FLAT Y
(Superseded to 06435900)

$1.99

$

In Stock, Qty 20+

0

29

Gravely 00192126

HOSE, FUEL 1/4 X 30.00

$

$

Not available

30

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 20+

0

31

Gravely 04943500

TANK - FUEL

$

$

Not available

32

Gravely 00181251

CAP, FUEL S/O

$24.99

$

In Stock, Qty 5

0

33

Gravely D35031

WLDT, TANK

$103.99

$

Usually ships in 4-12 days

0

34

Gravely D24028

FTG, 90 9/16MOR X 3/8HOSE

$10.99

$

In Stock, Qty 6

0

35

Gravely D18333

CAP, OIL FILL BREATHER

$25.99

$

In Stock, only 1 left!

0

36

Gravely 07001606

FTG, STR UNION M80-M80

$

$

Not available

37

Gravely 00960600

WDMT,IDLER PIVOT RAPID XZ 52"

$

$

Not available

38

Gravely 03982851

WLDT, LH UPRIGHT TOWER 36 G2

$107.99

$

Usually ships in 4-12 days

0

39

Gravely 03982951

WLDT, RH UPRIGHT TOWER 36 G2

$107.99

$

Usually ships in 4-12 days

0

40

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

41

Gravely 00964501

WASHER, .406X.813X.065 FLAT Y
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

42

Gravely 00967340

SCREW, 10-24X.625 PAN PHL MACY

$0.99

$

Usually ships in 4-12 days

0

43

Gravely 00964013

LOCKNUT, 10-24 NYLOC Y

$

$

Not available

44

Gravely 03606600

SWITCH- DOUBLE POLE N.O./N.O.

$17.99

$

In Stock, Qty 20+

0

45

Gravely 04083500

PLATE, DOUBLE RH UPRIGHT BI

$

$

Not available

46

Gravely 04083300

PLATE, DOUBLE LH UPRIGHT BI

$

$

Not available
