988146 (HR 1536 FL) - Gravely Pro-Hydro 36" Walk-Behind Mower, 15hp Kawasaki (SN: 000401 & Above) PTO, Wheel Motors And Parking Brake - 36" Parts Diagram

Pro-Hydro 36" Walk-Behind Mower, 15hp Kawasaki

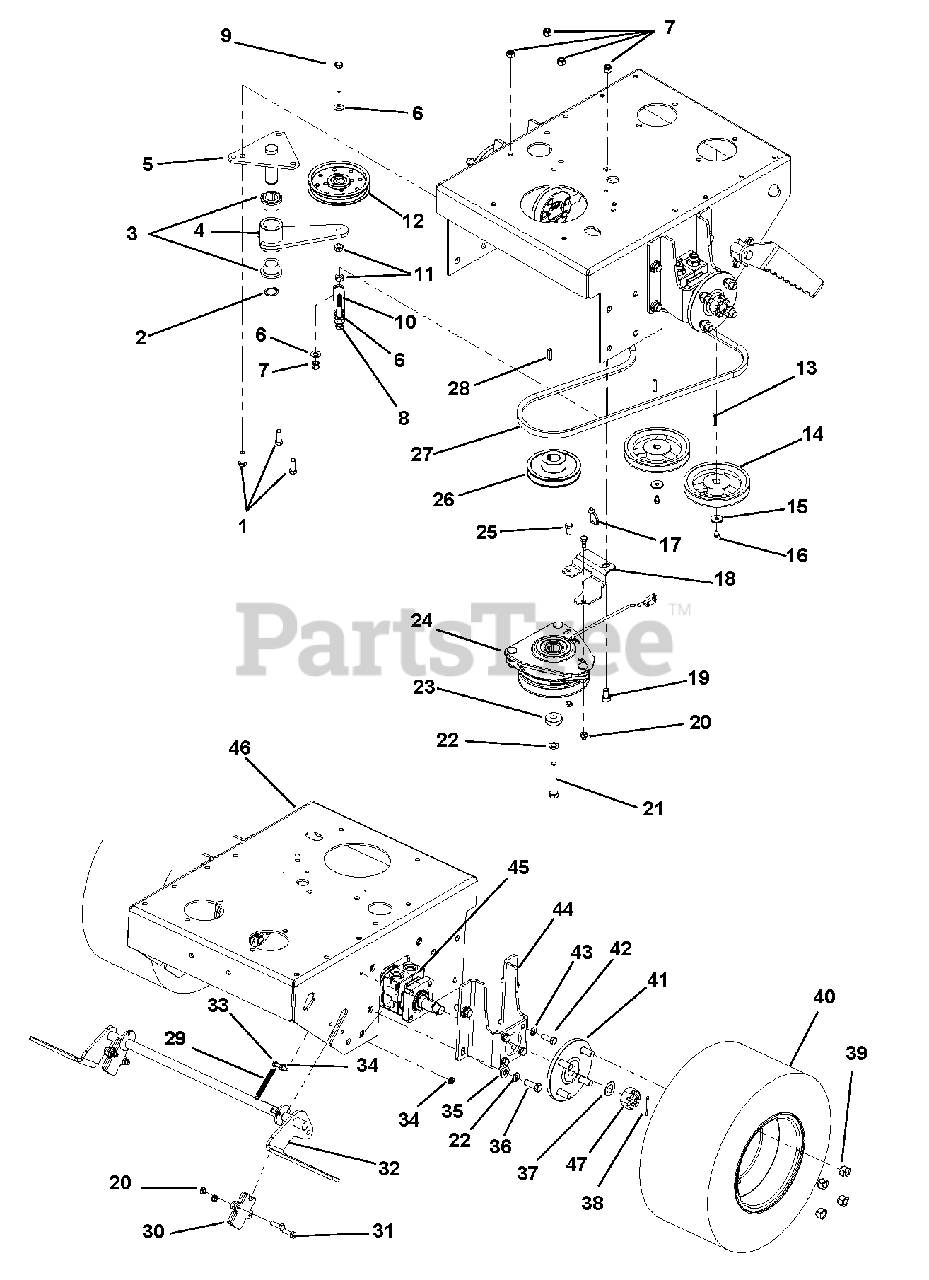

PTO, Wheel Motors And Parking Brake - 36" Parts Diagram

  • Title

1

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$2.49

$

In Stock, Qty 20+

0

2

Gravely 00424390

SNAP RING, 1.00 X .042 EXT
(Superseded to 05700160)

$4.99

$

Usually ships in 4-12 days

0

3

Gravely D18076

BRG, FLG 1.00X1.25X1.00

$7.99

$

In Stock, Qty 7

0

4

Gravely D15032

WLDT, IDLER ARM

$36.99

$

Usually ships in 4-12 days

0

5

Gravely 00203918

WLDT, IDLER PIVOT MOUNT
(Superseded to 05180151)

$51.99

$

Usually ships in 4-12 days

0

6

Gravely 00964501

WASHER, .406X.813X.065 FLAT Y
(Superseded to 06401013)

$2.49

$

In Stock, Qty 20+

0

7

Gravely 00968087

LOCKNUT, 3/8-16 NYLOC Y

$

$

Not available

8

Gravely 00967112

BOLT, 3/8-16X3.00 HEX 8 Y
(Superseded to 05901816)

$4.99

$

Usually ships in 4-12 days

0

9

Gravely 05958400

BLT-HEX .38-16X2.50 GR5 YWZC
(Superseded to 05901812)

$3.49

$

In Stock, Qty 20+

0

10

Gravely D18071

SPRING, EXT .900X.135X4.50 Y

$15.99

$

Usually ships in 4-12 days

0

11

Gravely 00964016

LOCKNUT, 3/8-16 WHIZ Y
(Superseded to 06534900)

$2.49

$

In Stock, Qty 20+

0

12

Gravely GDA10032

PULLEY, FLAT 4.50X.375 W/BRG

$46.99

$

Usually ships in 4-12 days

0

13

Gravely 00966058

KEY, M5 X M5 X M30 RD

$4.99

$

In Stock, only 1 left!

0

14

Gravely TCA15316

ASSY, PUMP PULLEY W/SET SCREW

$54.99

$

Usually ships in 4-12 days

0

15

Gravely D14160

WASHER, .250 WIDE HEAVY FLAT Y

$4.99

$

Usually ships in 4-12 days

0

16

Gravely 00967041

BOLT, M6X1.00X10 HEX 8.8 Y

$

$

Not available

17

Gravely 00111910

CABLE TIE, .15 X 8.50

$

$

Not available

18

Gravely 00203840

PLATE, CLUTCH DOG

$29.99

$

Usually ships in 4-12 days

0

19

Gravely 05900121

BLT-HEX .44-14X.75 GR5 YWZC
(Superseded to 05901920)

$3.49

$

Usually ships in 4-12 days

0

20

Gravely 00967115

LOCKNUT, 5/16-18 NYLOC Y
(Superseded to 06500820)

$1.99

$

In Stock, Qty 5

0

21

Gravely 05900037

BLT-HEX .44-20X3.00 G5 YZ EP80

$7.99

$

In Stock, Qty 11

0

22

Gravely 00960603

WASHER, .438 MED SPRG LOCK Y
(Superseded to 06309300)

$3.49

$

In Stock, Qty 19

0

23

Gravely D18056

SPACER, .468 X 1.38 X .375 Y

$22.99

$

Usually ships in 4-12 days

0

24

Gravely 00200665

CLUTCH ASSY, OGURA# GT1A-HU02

$315.99

$

Usually ships in 4-12 days

0

25

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$2.49

$

In Stock, Qty 20+

0

26

Gravely D18085

PULLEY, V-BELT 4.45X1.00 W/KEY

$70.99

$

Usually ships in 4-12 days

0

27

Gravely D38006

BELT, HA 55.1 EL AMD OHR

$56.99

$

In Stock, only 2 left!

0

28

Gravely D18145

KEY, .250 X .250 X .995 TPR

$7.99

$

Usually ships in 4-12 days

0

29

Gravely 00135292

SPRING, EXT .375X.055X2.25 Y

$23.99

$

Usually ships in 4-12 days

0

30

Gravely 03885753

SHOE, FLWLK BRAKE SYS GRAVELY

$

$

Not available

31

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$2.49

$

In Stock, Qty 20+

0

32

Gravely 03908351

WLDT, BRAKE SYS 36" FLWLK

$84.99

$

Usually ships in 4-12 days

0

33

Gravely 05947400

BLT-HEX .25-20X1.25 GR5 YWZC
(Superseded to 05901738)

$2.99

$

In Stock, only 2 left!

0

34

Gravely 00964040

LOCKNUT, 1/4-20 WHIZ Y

$

$

Not available

35

Gravely 00960712

WASHER, .468X1.00X.125 FLAT Y
(Superseded to 06400914)

$

$

Not available

36

Gravely 05963800

BLT-HEX .44-14X1.25 GR5 YWZC

$3.49

$

In Stock, only 1 left!

0

37

Gravely 00150052

BUSHING, MACH .750X1.25X.048 Y

$5.99

$

Usually ships in 4-12 days

0

38

Gravely 00962019

PIN, COT .125X1.50 EXTP Y
(Superseded to 06714300)

$2.99

$

Usually ships in 4-12 days

0

39

Gravely 00960526

NUT, 1/2-20 LUG C
(Superseded to 06517600)

$2.49

$

In Stock, Qty 20+

0

40

Gravely 00200531

ASSY, WHEEL & TIRE - 16X6.5-8

$121.99

$

Usually ships in 4-12 days

0

41

Gravely 00203842

ASSY, WHEEL HUB

$198.99

$

Usually ships in 4-12 days

0

42

Gravely D14280

BOLT, 3/8-16 X 1 GR8 BLACK

$3.49

$

Usually ships in 4-12 days

0

43

Gravely 00960602

WASHER, .375 MED SPRG LOCK Y

$

$

Not available

44

Gravely 03901553

BRKT, MOTOR MOUNT GRV FLWLK

$51.99

$

Usually ships in 4-12 days

0

45

Gravely D18311

MOTOR, HYDRAULIC WHEEL

$896.99

$

Usually ships in 4-12 days

0

46

Gravely 04083453

WLDT, 18" ENG BED FXFL GRAVELY

$229.99

$

Usually ships in 4-12 days

0

47

Gravely 14H1086

NUT, .75 UNF2B HEX SLOT JDS14

$

$

Not available
