988147 (HR 1948 FL) - Gravely Pro-Hydro 48" Walk-Behind Mower, 19hp Kawasaki (SN: 000401 & Above) 48" And 52" Deck Assembly Parts Diagram

Pro-Hydro 48" Walk-Behind Mower, 19hp Kawasaki

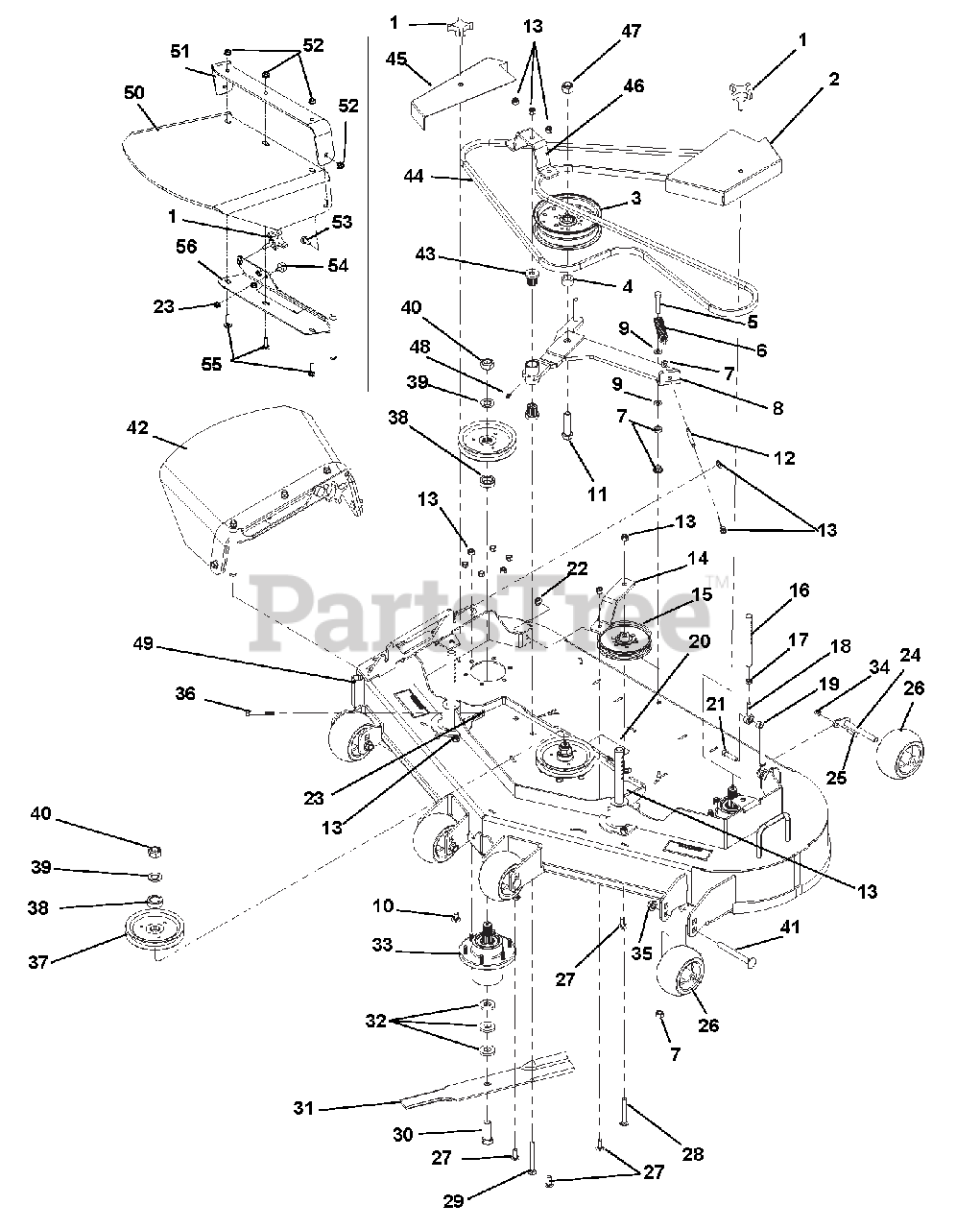

48" And 52" Deck Assembly Parts Diagram

  • Title

1

Gravely 03820400

KNOB, 3/8 X 1.25 - 4 PRONG

$11.99

$

In Stock, only 4 left!

0

2

Gravely 03899253

SHIELD, LH SPNDL 52 GRV FLWLK

Note: (988148)

$35.99

$

Usually ships in 4-12 days

0

Gravely 03901153

SHIELD, LH SPINDLE 48 GRAVELY

Note: (988147)

$36.99

$

Usually ships in 4-12 days

0

3

Gravely 07300535

PULLEY, FLAT IDLER 6.00 X .635

$68.99

$

Usually ships in 4-12 days

0

4

Gravely 03846235

BUSHING, .688 X 1.13 X .55

$

$

Not available

5

Gravely 05958500

BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$2.99

$

In Stock, Qty 20+

0

6

Gravely 00110580

SPRG, EXTENSION

$18.99

$

In Stock, only 2 left!

0

7

Gravely 00964016

LOCKNUT, 3/8-16 WHIZ Y
(Superseded to 06534900)

$2.49

$

In Stock, Qty 20+

0

8

Gravely 03860151

WLDT, IDLER ARM 52" FLOAT WALK

$199.99

$

Usually ships in 4-12 days

0

9

Gravely 00964501

WASHER, .406X.813X.065 FLAT Y
(Superseded to 06401013)

$2.49

$

In Stock, Qty 20+

0

10

Gravely 06200004

BLT-RHDSSQNK .38-16X.75 G5YZ
(Superseded to 06200336)

$3.99

$

In Stock, Qty 20+

0

11

Gravely 05969300

BLT-HEX .62-11X2.50 GR5 YWZC

$5.99

$

Usually ships in 4-12 days

0

12

Gravely 00104024

ROD, THREADED ADJUSTMENT

$25.99

$

Usually ships in 4-12 days

0

13

Gravely 00968087

LOCKNUT, 3/8-16 NYLOC Y

$

$

Not available

14

Gravely 03856451

STRAP, IDLER 48/52 WALK

$14.99

$

Usually ships in 4-12 days

0

15

Gravely D28050

PULLEY, FLAT IDLER
(Superseded to 07352400)

$43.99

$

In Stock, Qty 20+

0

16

Gravely 03841021

ROD, REAR HOC

$36.99

$

Usually ships in 4-12 days

0

17

Gravely 06534700

NUT-JAM .375-24 YWZC
(Superseded to 06500739)

$2.99

$

In Stock, only 3 left!

0

18

Gravely 08790600

ROD END, 3/8 RH

$63.99

$

Usually ships in 4-12 days

0

19

Gravely 05522100

BSHG-SLV .377X.624X.370

$5.99

$

Usually ships in 4-12 days

0

20

Gravely 03841019

ROD, FRONT HOC

$56.99

$

Usually ships in 4-12 days

0

21

Gravely 05957900

BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$2.49

$

In Stock, Qty 12

0

22

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.99

$

In Stock, Qty 20+

0

23

Gravely 00964019

LOCKNUT, 5/16-18 WHIZ Y
(Superseded to 06530400)

$2.49

$

In Stock, Qty 20+

0

24

Gravely GDA10103

PIVOT, RETAINER WELD

$59.99

$

In Stock, Qty 5

0

25

Gravely 03H1729

BOLT, 1/4 X 1.00 A17D ZINC
(Superseded to 06219800)

$2.99

$

In Stock, only 3 left!

0

26

Gravely TCU18744

WHEEL, GAGE

$15.99

$

In Stock, Qty 10

0

27

Gravely 00963019

BOLT, 3/8-16X1.00 CRG 5 SN Y

$

$

Not available

28

Gravely 06228100

BLT-RDHDSQNK .38-16X3.00 G5YZ
(Superseded to 06200418)

$5.49

$

In Stock, Qty 16

0

29

Gravely 03H1836

BOLT, 3/8-16X3.50 CRG 5 Y

$

$

Not available

30

Gravely 00967348

BOLT, 5/8-11 X 2.00 HEX 8 Y
(Superseded to 05901725)

$6.99

$

In Stock, Qty 6

0

31

Gravely GDU10231

BLADE, 18.000 X .80 LIFT

Note: (988148)

$33.99

$

In Stock, Qty 20+

0

Gravely GDU10230

BLADE, 16.500 X .80 LIFT

Note: (988147)

$30.99

$

In Stock, Qty 5

0

32

Gravely D18055

WASHER, .630X1.50X.250 FLAT Y
(Superseded to 06401033)

$7.99

$

In Stock, only 3 left!

0

33

Gravely 00200262

ASSY, SPINDLE S/O

$307.99

$

Usually ships in 4-12 days

0

34

Gravely H122207

NUT-1/4" FLANGE PREVAILING TOR

$

$

Not available

35

Gravely E62934

LOCKNUT 1/2 W/FLANGE

$

$

Not available

36

Gravely 00967165

BOLT, 5/16-18X2.50 HEX 8 Y

$

$

Not available

37

Gravely 07300531

PULLEY, SPLINE SPINDLE SHFLWLK

$72.99

$

In Stock, only 1 left!

0

38

Gravely D13024

SPACER, SPINDLE TOP-PULLEY

$15.99

$

In Stock, only 2 left!

0

39

Gravely 03399703

WASHER, .75X1.3125X.120
(Superseded to 06401037)

$2.99

$

In Stock, Qty 8

0

40

Gravely 00964024

LOCKNUT, 3/4-16 CROWN PL
(Superseded to 06500031)

$4.99

$

In Stock, Qty 16

0

41

Gravely 03H1853

BOLT, 1/2-13X4.50 CRG 5 Y

$

$

Not available

42

Gravely 56155053

ASSY, DISCHARGE SHIELD

$213.99

$

In Stock, only 1 left!

0

43

Gravely TCU14540

BRG, FLG M10XM25XM27 FLUTED

$19.99

$

In Stock, only 4 left!

0

44

Gravely 00181711

BELT, HB 131.0 EL AMD

Note: (988148)

$99.99

$

In Stock, only 2 left!

0

Gravely 07200519

BELT, HB

Note: (988147)

$113.99

$

In Stock, Qty 20+

0

45

Gravely 03999753

SHIELD, RH SPINDLE 52 FLWLK G2

Note: (988148)

$35.99

$

Usually ships in 4-12 days

0

Gravely 04045853

SHIELD, RH SPINDLE 48 FLWLK G2

Note: (988147)

$96.99

$

Usually ships in 4-12 days

0

46

Gravely 03854951

STRAP, IDLER FLOAT WALK

Note: (988148)

$34.99

$

Usually ships in 4-12 days

0

Gravely 03842051

STRAP, IDLER 48 FLWLK

Note: (988147)

$29.99

$

Usually ships in 4-12 days

0

47

Gravely 06540700

NUT-LK-NYL .625-11 YWZC

$5.49

$

In Stock, Qty 20+

0

48

Gravely 00959995

FTG, 1/4-28 STRGT GREASE ZERK

$4.99

$

In Stock, only 2 left!

0

49

Gravely 50498000

ASSY, 52" FLWLK DECK W/DECALS

Note: (988148)

$1560.99

$

Usually ships in 4-12 days

0

Gravely 50498001

ASSY, 48" FLWLKDECK W/DECALS

Note: (988147)

$1238.99

$

Usually ships in 4-12 days

0

50

Gravely 04044200

SHIELD, WALK RUBBER DISCHARGE

$72.99

$

Usually ships in 4-12 days

0

51

Gravely 03983853

STRAP, GRAVELY WLK RUBBER DIS

$67.99

$

Usually ships in 4-12 days

0

52

Gravely 06534900

NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$2.49

$

In Stock, Qty 20+

0

53

Gravely 06223600

BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$3.49

$

In Stock, Qty 20+

0

54

Gravely 07533600

BUMPER, RUBBER

$13.99

$

In Stock, only 2 left!

0

55

Gravely 06224100

BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$3.49

$

In Stock, Qty 20+

0

56

Gravely 03981953

WLDT. DISCHARGE

$94.99

$

Usually ships in 4-12 days

0
