988147 (HR 1948 FL) - Gravely Pro-Hydro 48" Walk-Behind Mower, 19hp Kawasaki (SN: 000401 & Above) Console And Deck Mounting - 48" And 52" Parts Diagram

Pro-Hydro 48" Walk-Behind Mower, 19hp Kawasaki

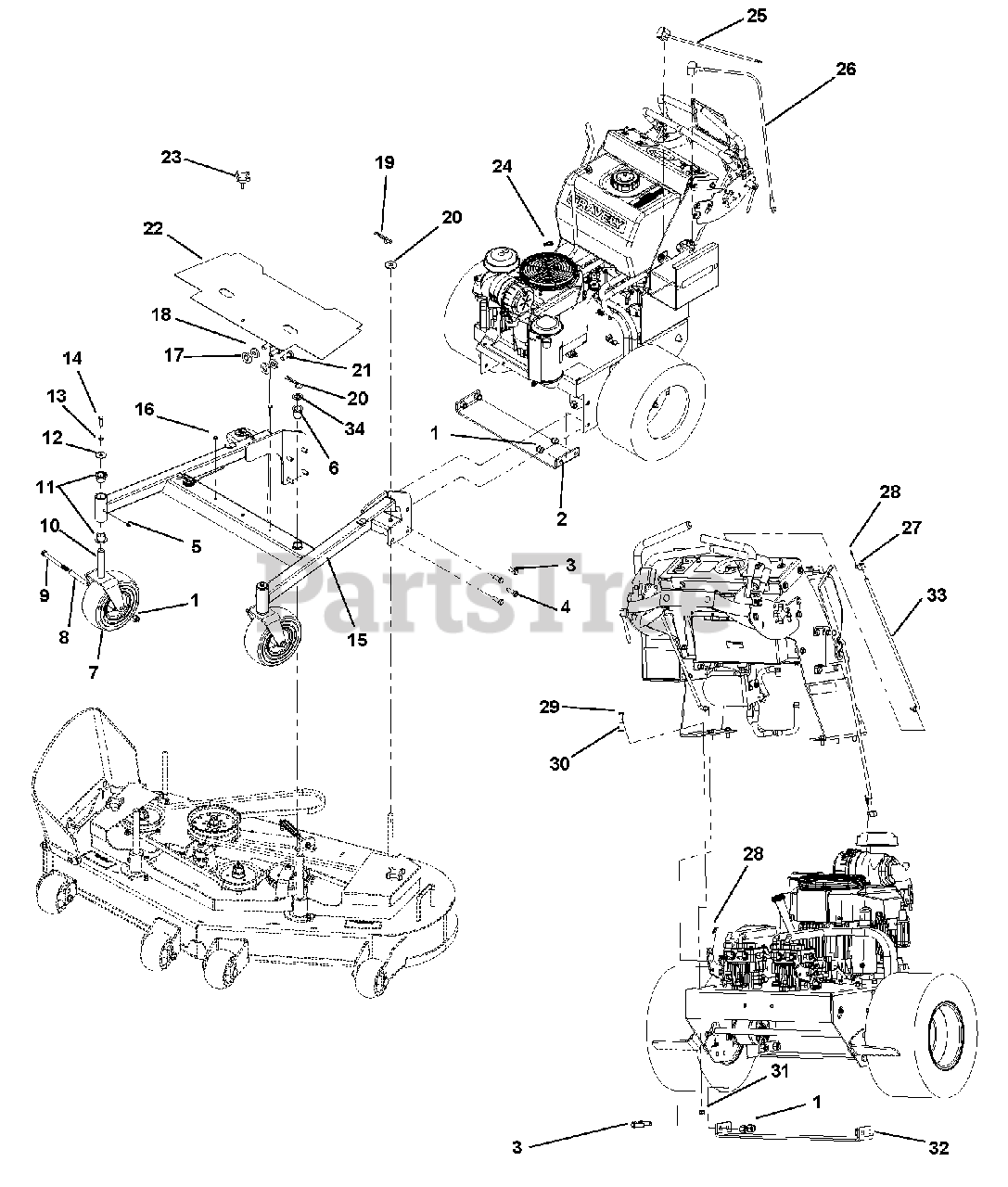

Console And Deck Mounting - 48" And 52" Parts Diagram

  • Title

1

Gravely 00964015

LOCKNUT, 1/2-13 NYLOC Y
(Superseded to 06500830)

$2.49

$

In Stock, Qty 20+

0

2

Gravely 03925453

PLATE, ENGINE BED FRONT 48/52

$25.99

$

Usually ships in 4-12 days

0

3

Gravely 00960113

BOLT, 1/2-13 X 1.25 HEX 5 Y
(Superseded to 05958900)

$3.49

$

In Stock, only 1 left!

0

4

Gravely 00960114

BOLT, 1/2-13 X 1.50 HEX 5 Y

$

$

Not available

5

Gravely 00959995

FTG, 1/4-28 STRGT GREASE ZERK

$3.49

$

Usually ships in 4-12 days

0

6

Gravely 05533600

BSHG, FLG 1.00 X 1.25 X 1.50 X 1.50 EP REV
(Superseded to 05500934)

$6.99

$

In Stock, Qty 20+

0

7

Gravely 07100302

ASSY, WHEEL & TIRE - 9X3.5-4
(Superseded to 07100931)

$136.99

$

In Stock, only 4 left!

0

8

Gravely D13003

TUBE, CASTER AXLE

$20.99

$

In Stock, only 2 left!

0

9

Gravely 00960129

BOLT, 1/2-13 X 5.50 HEX 5 Y
(Superseded to 05901632)

$6.99

$

Usually ships in 4-12 days

0

10

Gravely 03855153

WLDT, FRONT WHEEL FLOAT WALK

$119.99

$

Usually ships in 4-12 days

0

11

Gravely D18076

BRG, FLG 1.00X1.25X1.00

$5.99

$

Usually ships in 4-12 days

0

12

Gravely 06443400

WSH-FL-ST .38 X 1.50 X .125 REV
(Superseded to 06401106)

$3.49

$

In Stock, Qty 20+

0

13

Gravely 00960602

WASHER, .375 MED SPRG LOCK Y

$

$

Not available

14

Gravely 00960047

BOLT, 3/8-16 X 1.25 HEX 5 Y
(Superseded to 05958000)

$1.49

$

In Stock, only 4 left!

0

15

Gravely 03841053

WLDT, DECK FRAME 52 FLWLK (988148)

Note: (988148)

$681.99

$

Usually ships in 4-12 days

0

Gravely 03858953

WLDT, DECK FRAME 48 FLWLK (988147)

Note: (988147)

$774.99

$

Usually ships in 4-12 days

0

16

Gravely 07503100

BUMPER GROMMET .125 X .25 REV

$3.49

$

Usually ships in 4-12 days

0

17

Gravely 03841023

WASHER, .905 X 1.750X.250

$

$

Not available

18

Gravely D18055

WASHER, BLADE
(Superseded to 06401033)

$6.99

$

In Stock, only 4 left!

0

19

Gravely 06442900

WASHER, FLAT-STEEL .688 X 1.75 X.134 REV
(Superseded to 06401032)

$1.49

$

In Stock, only 2 left!

0

20

Gravely 06713300

PIN, HAIR-INTERNAL .17 X .68 X 3.50 REV B
(Superseded to 06700228)

$2.99

$

Usually ships in 4-12 days

0

21

Gravely 05901321

BOLT, 5/8-11 X 1.50 HEX 8 Y
(Superseded to 05901723)

$3.99

$

Usually ships in 4-12 days

0

22

Gravely 03855453

SHIELD, BELT 52 FLOAT WALK (988148)

Note: (988148)

$

$

Not available

Gravely 03912453

SHIELD, BELT 48 FLOAT WALK (988147)

Note: (988147)

$

$

Not available

23

Gravely D18047

KNOB, STAR 3/8-16 X 1.00

$9.99

$

Usually ships in 4-12 days

0

24

Gravely 00111910

CABLE TIE, .15 X 8.50

$

$

Not available

25

Gravely 03387900

CABLE, BATTERY GROUND 25"

$35.99

$

Usually ships in 4-12 days

0

26

Gravely 03388500

CABLE, BATTERY - 25" POSITIVE

$35.99

$

Usually ships in 4-12 days

0

27

Gravely D33002

SWIVEL, 3/8-24

$10.99

$

Usually ships in 4-12 days

0

28

Gravely 00967353

RING, RUE .375 X .054 x 1.254

$2.49

$

Usually ships in 4-12 days

0

29

Gravely 00960046

BOLT, 3/8-16 X 1.00 HEX 5 Y
(Superseded to 05948700)

$1.49

$

In Stock, Qty 20+

0

30

Gravely 00964501

WASHER, .406 X .813 X .065 FLAT Y
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

31

Gravely 00968087

LOCKNUT, 3/8-16 NYLOC Y

$

$

Not available

32

Gravely 03932053

PLATE, ENGINE BED REAR

$27.99

$

Usually ships in 4-12 days

0

33

Gravely 03858912

ROD, DRIVE CONTROL FW

$

$

Not available

34

Gravely 06444700

WASHER, FLAT-STEEL REV
(Superseded to 06401207)

$3.99

$

In Stock, Qty 20+

0
