988148 (HR 1952 FL) - Gravely Pro-Hydro 52" Walk-Behind Mower, 19hp Kawasaki (SN: 000101 - 000400) Engine & Hydraulic Pumps Parts Diagram

Pro-Hydro 52" Walk-Behind Mower, 19hp Kawasaki

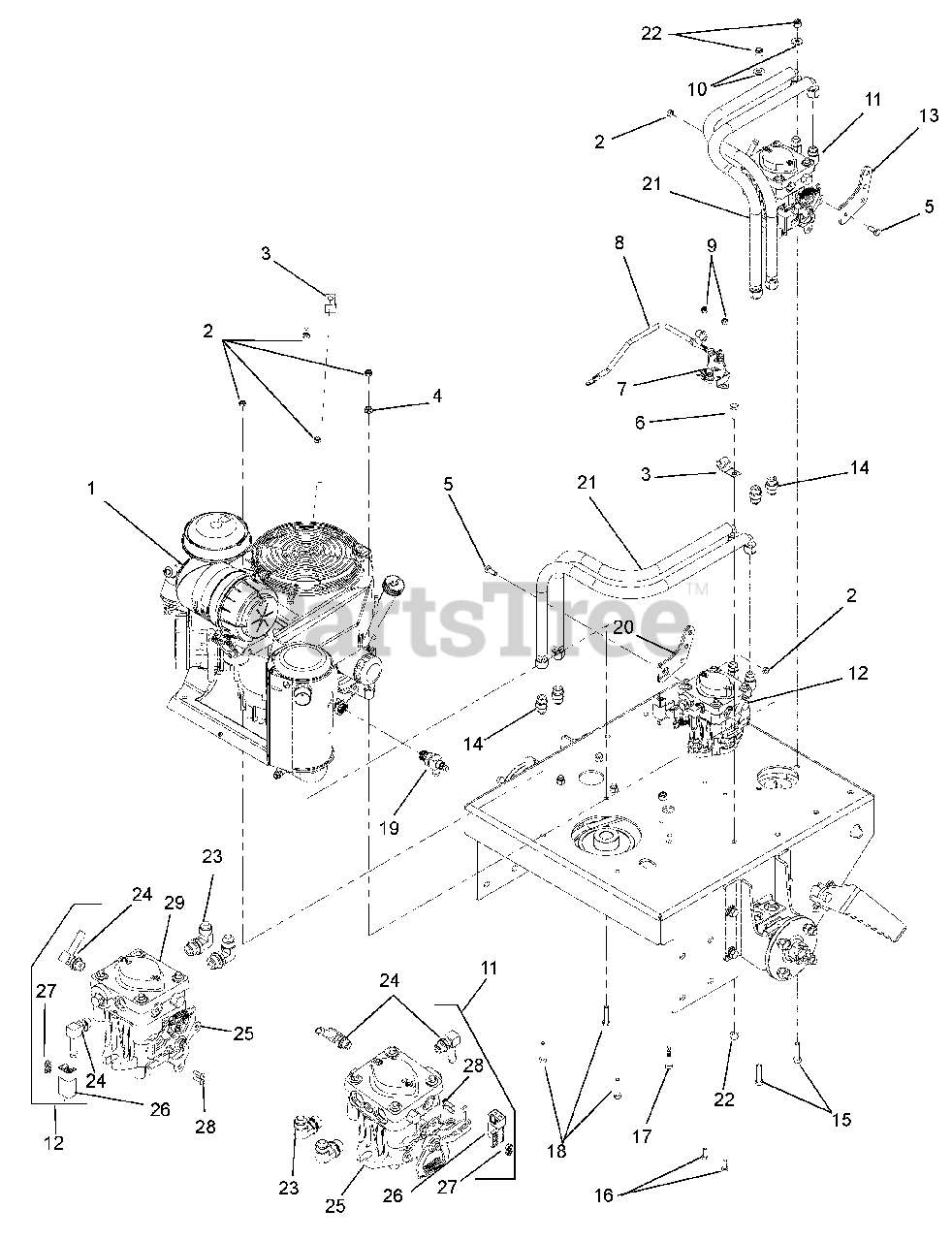

Engine & Hydraulic Pumps Parts Diagram

  • Title

1

Gravely 00200675

ENGINE, KAWASAKI 19HP FH580V

$

$

Not available

2

Gravely 00967115

LOCKNUT, 5/16-18 NYLOC Y
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

3

Gravely AH89557

P-CLIP, .500 INSULATED

$5.49

$

In Stock, only 1 left!

0

4

Gravely 00964019

LOCKNUT, 5/16-18 WHIZ Y
(Superseded to 06530400)

$1.49

$

In Stock, only 3 left!

0

5

Gravely 00960022

BOLT, 5/16-18 X .750 HEX 5 Y

$

$

Not available

6

Gravely 00960046

BOLT, 3/8-16 X 1.00 HEX 5 Y
(Superseded to 05948700)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 03551000

SOLENOID, 12 V STARTER

$34.99

$

In Stock, Qty 7

0

8

Gravely 00180842

CABLE, 12" STARTER

$15.99

$

Usually ships in 4-12 days

0

9

Gravely 00964048

LOCKNUT, 1/4-20 NYLOC Y

$

$

Not available

10

Gravely 00960701

WASHER, .313 REG FLAT Y
(Superseded to 06401023)

$1.49

$

In Stock, Qty 15

0

11

Gravely 03754201

ASSY, LH PUMP WALKBEHIND (INCLUDES ITEMS 23, 24, 26 – 28)

Note: (INCLUDES ITEMS 23, 24, 26 – 28)

$

$

Not available

12

Gravely 03754202

ASSY, RH PUMP WALKBEHIND (INCLUDES ITEMS 23 – 29)

Note: (INCLUDES ITEMS 23 – 29)

$

$

Not available

13

Gravely 03754851

WLDT, CSWS LH HYDRO PUMP ARM

$

$

Not available

14

Gravely D14197

FITTING, STRAIGHT

$3.49

$

Usually ships in 4-12 days

0

15

Gravely 00960048

BOLT, 3/8-16 X 1.50 HEX 5 Y
(Superseded to 05957900)

$1.49

$

In Stock, Qty 7

0

16

Gravely 00960001

BOLT, 1/4-20 X .750 HEX 5 Y

$

$

Not available

17

Gravely 00960026

BOLT, 5/16-18 X 1.75 HEX 5 Y
(Superseded to 05901804)

$2.99

$

In Stock, Qty 12

0

18

Gravely 00960025

BOLT, 5/16-18 X 1.50 HEX 5 Y

$

$

Not available

19

Gravely TCA16240

OIL DRAIN FITTING

$

$

Not available

20

Gravely 03732751

WLDT, CSWS HYDRO PUMP ARM

$

$

Not available

21

Gravely 00201091

HOSE, HYD 1/2 X 26 1/2 EZFLEX

$75.99

$

Usually ships in 4-12 days

0

22

Gravely 00968087

LOCKNUT, 3/8-16 NYLOC Y

$

$

Not available

23

Gravely D14196

FTG, ADP JIC-ORB 6801-08-08

$5.99

$

Usually ships in 4-12 days

0

24

Gravely D24028

FTG, 90 9/16 MOR X 3/8 HOSE

$9.99

$

Usually ships in 4-12 days

0

25

Gravely TCA14966

PUMP, HYD - PG-1HDA-D41X-XXXX RH

$841.99

$

Usually ships in 4-12 days

0

26

Gravely 00191256

SWITCH, PLUNGER DP - N.O. - N.C.
(Superseded to 08828100)

$20.99

$

In Stock, only 1 left!

0

27

Gravely 00964013

LOCKNUT, 10-24 NYLOC Y

$

$

Not available

28

Gravely 00967340

SCREW, 10-24X.625 PAN PHL MACY

$2.49

$

Usually ships in 4-12 days

0

29

Gravely TCA14965

PUMP, HYD - PG-1KDA-D61X-XXXX LH

$841.99

$

Usually ships in 4-12 days

0
