988151 (36 GR) - Gravely Pro-Gear 36" Walk-Behind Mower, Recoil Start (SN: 000101 & Above) Deck Assembly-36" Parts Diagram

Pro-Gear 36" Walk-Behind Mower, Recoil Start

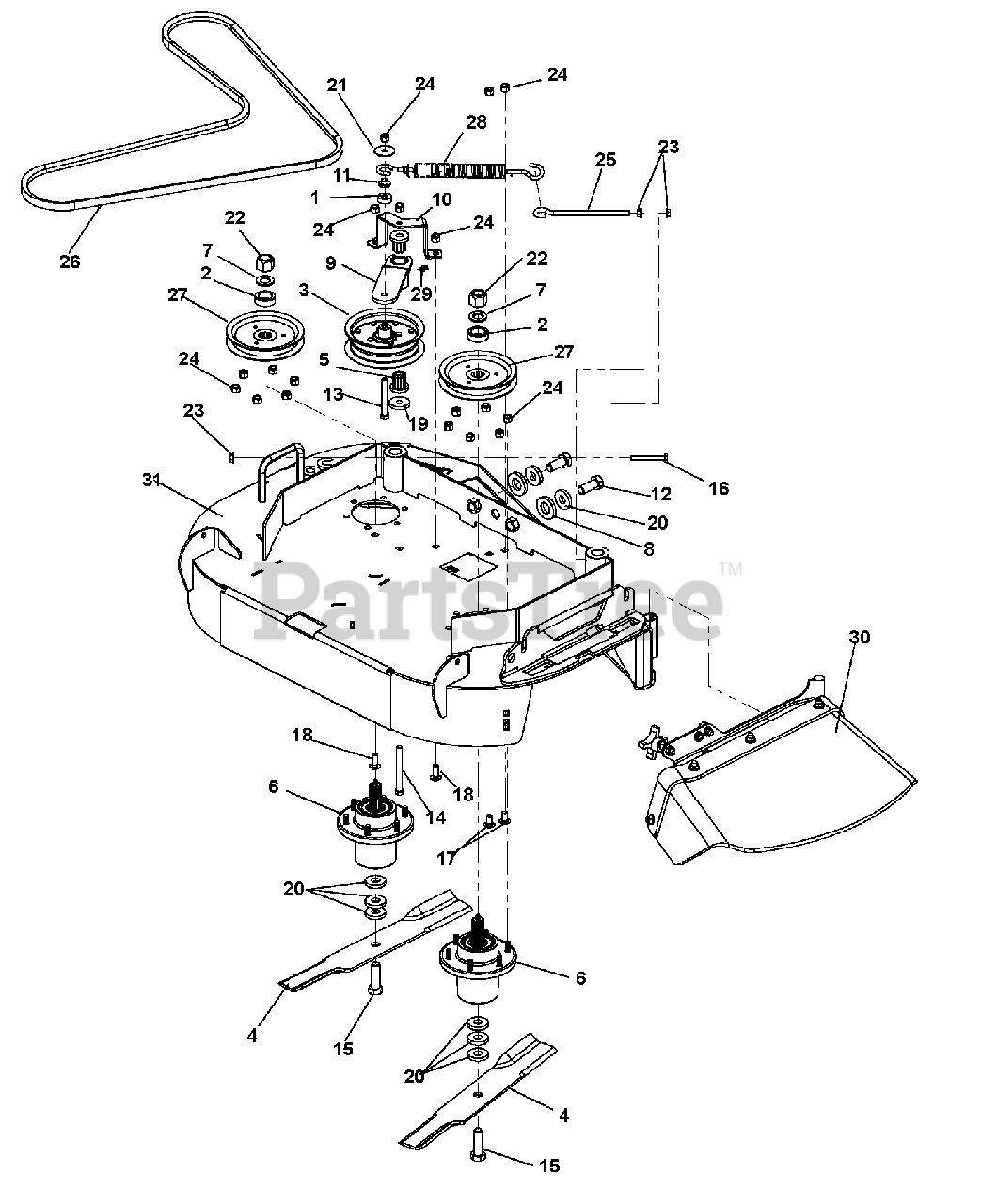

Deck Assembly-36" Parts Diagram

  • Title

1

Gravely D13023

Bushing, .380 x 1.00 x .410

$20.99

$

Usually ships in 4-12 days

0

2

Gravely D13024

Spacer, 1.500 x 1.000 x .510 (SN 000101 – 020999)

Note: (SN 000101 – 020999)

$14.99

$

In Stock, only 2 left!

0

Gravely 06425600

Washer, Flat Steel 1.0 x 1.50 x .25 (SN 021000 +)

Note: (SN 021000 +)

$6.49

$

In Stock, Qty 11

0

3

Gravely D18032

Pulley, Flat 5.0 x .38 w/BRG
(Superseded to 07346700)

$82.99

$

In Stock, Qty 6

0

4

Gravely GDU10231

Blade, 18"

$31.99

$

In Stock, Qty 16

0

5

Gravely TCU14540

Bearing, Flange M10 x M25 x M27 Fluted

$18.99

$

In Stock, only 3 left!

0

6

Gravely 00200262

Assembly, Spindle S/O

$294.99

$

In Stock, only 1 left!

0

7

Gravely 03399703

Washer, .75 x 1.313 x .113
(Superseded to 06401037)

$2.49

$

In Stock, Qty 10

0

8

Gravely 03841023

Washer, .905 x 1.75 x .250

$

$

Not available

9

Gravely 04056251

Weldment, Idler Arm w/Offset

$70.99

$

Usually ships in 4-12 days

0

10

Gravely 04262151

Bracket, Idler Support

$34.99

$

Usually ships in 4-12 days

0

11

Gravely 05500435

Bushing, Flange .385 x .500 x .875 x .406

$2.49

$

In Stock, Qty 20+

0

12

Gravely 05901321

Bolt, Hex .625-11 1.50 Grade 8
(Superseded to 05901723)

$3.99

$

Usually ships in 4-12 days

0

13

Gravely 05957800

Bolt, .38-16 x 3.00 Hex Grade 5
(Superseded to 05901814)

$2.99

$

In Stock, Qty 19

0

14

Gravely 05959500

Bolt, .38-16 x 3.75 Hex Grade 5 (SN 000101 – 020999)
(Superseded to 05902025)

Note: (SN 000101 – 020999)

$3.49

$

Usually ships in 4-12 days

0

Gravely 06200117

Bolt, Round Head Square Neck .375-16 x 3.75 (SN 021000 +)

Note: (SN 021000 +)

$

$

Not available

15

Gravely 05970002

Bolt, .62-11 x 2.00 Hex Grade 8
(Superseded to 05901725)

$6.49

$

In Stock, only 2 left!

0

16

Gravely 05984900

Bolt, .31-18 x 2.50 Hex Grade 8
(Superseded to 05901717)

$3.49

$

Usually ships in 4-12 days

0

17

Gravely 06200004

Bolt, Round Head Square Neck .38-16 x .75
(Superseded to 06200336)

$2.99

$

In Stock, Qty 20+

0

18

Gravely 06212000

Bolt, .38-16 x 1.00 Round Head Square Neck Grade 5
(Superseded to 06200235)

$1.99

$

In Stock, Qty 20+

0

19

Gravely 06400006

Washer, .406 x 1.50 x .245 Flat
(Superseded to 06401110)

$4.99

$

In Stock, Qty 20+

0

20

Gravely 06400913

Washer, .630 x 1.50 x .25 Flat
(Superseded to 06401033)

$7.49

$

In Stock, only 2 left!

0

21

Gravely 06439300

Washer, .380 x 1.50 x .062 Flat
(Superseded to 06401028)

$3.49

$

In Stock, Qty 20+

0

22

Gravely 06500709

Locknut, .75-16 Crown Grade 5
(Superseded to 06500836)

$7.49

$

In Stock, only 1 left!

0

23

Gravely 06530400

Nut, Spinlock Flange .312-18
(Superseded to 06500815)

$1.99

$

In Stock, Qty 20+

0

24

Gravely 06535800

Nut, Locking-Nylon .38-16
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

25

Gravely 07001629

Bolt, Eye .31-18 x 5.50 .62 DIA

$12.99

$

Usually ships in 4-12 days

0

26

Gravely 07200504

Gravely 36" Drive Belt

$70.99

$

In Stock, only 4 left!

0

27

Gravely 07300531

Pulley, Spline Spindle (SN 000101 – 021000)

Note: (SN 000101 – 021000)

$70.99

$

In Stock, only 4 left!

0

Gravely 07339251

Pulley, Spindle 5.75 OD .25 HB (SN 021001 +)
(Superseded to 58875500)

Note: (SN 021001 +)

$87.99

$

Usually ships in 4-12 days

0

28

Gravely 08300505

Spring, Extension

$27.99

$

In Stock, Qty 20+

0

29

Gravely 00959995

Fitting, .25-28 Straight Grease Zerk

$3.99

$

Usually ships in 4-12 days

0

30

Gravely 56155053

Discharge Shield Assembly (see page 23 for individual parts)

Note: (see page 23 for individual parts)

$203.99

$

In Stock, only 1 left!

0

31

Gravely 58808400

Assembly, Deck 36" with Decals

$791.99

$

Usually ships in 4-12 days

0
