988151 (36 GR) - Gravely Pro-Gear 36" Walk-Behind Mower, Recoil Start (SN: 000101 & Above) Deck Carrier Frame Parts Diagram

Pro-Gear 36" Walk-Behind Mower, Recoil Start

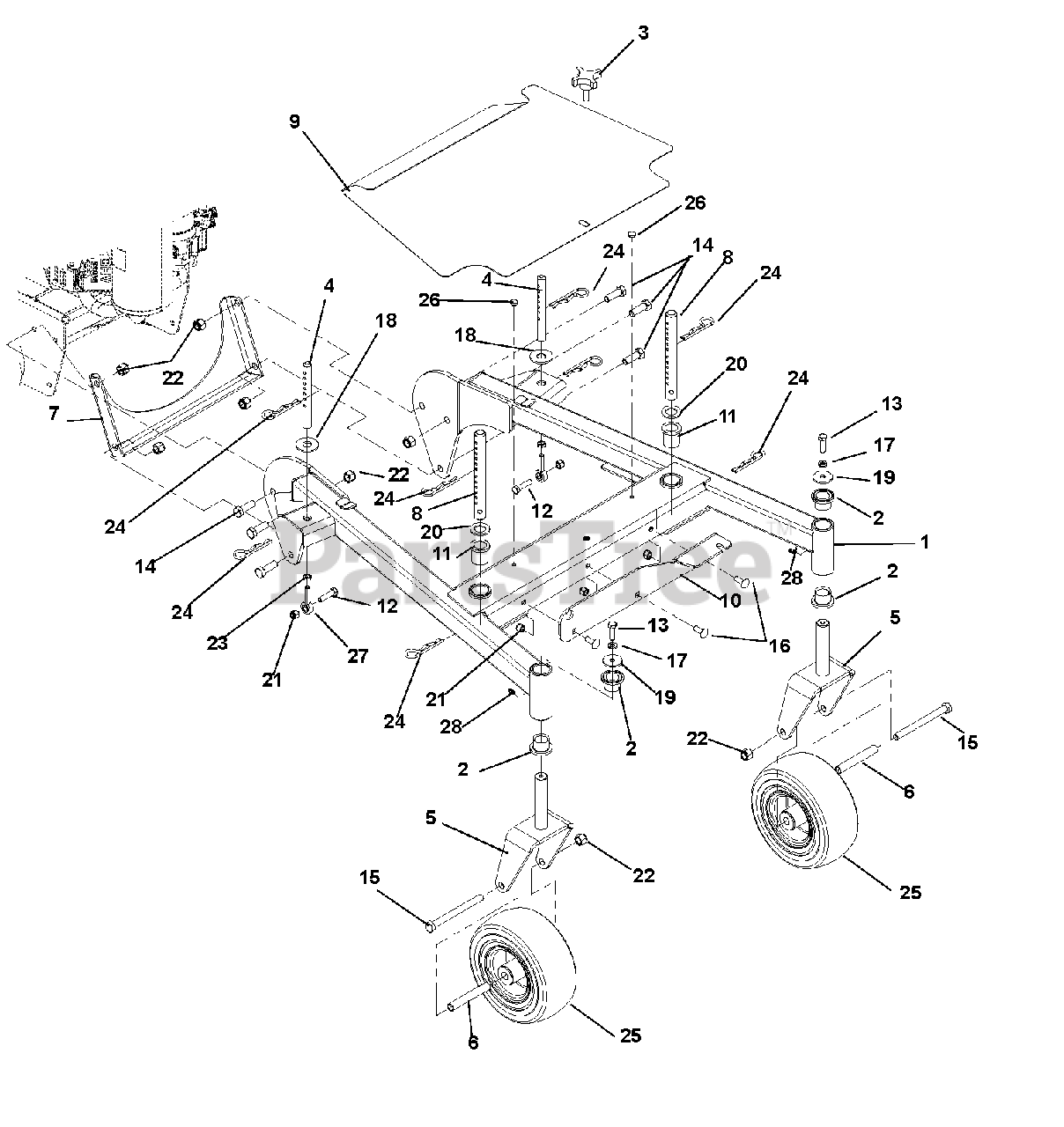

Deck Carrier Frame Parts Diagram

  • Title

1

Gravely 04149253

Frame, Pro-Gear Carrier

$692.99

$

Usually ships in 4-12 days

0

2

Gravely 04366100

Bearing, Flange 1.00 x 1.25 x 1.00

$17.99

$

In Stock, only 3 left!

0

3

Gravely 03820400

Knob, .38 x 1.25- 4-Prong (SN 000101 – 019999)

Note: (SN 000101 – 019999)

$10.99

$

In Stock, only 2 left!

0

Gravely 04378100

Knob, .38-16 x .75 (SN 020000 +)

Note: (SN 020000 +)

$13.99

$

Usually ships in 4-12 days

0

4

Gravely 03841021

Rod, Rear HOC

$35.99

$

Usually ships in 4-12 days

0

5

Gravely 03855153

Weldment, Front Wheel

$125.99

$

In Stock, only 2 left!

0

6

Gravely D13003

Tube, Caster Axle

$21.99

$

In Stock, only 1 left!

0

7

Gravely 04161851

Bracket, Engine Crossplate

$25.99

$

Usually ships in 4-12 days

0

8

Gravely 04197700

Pin, HOC

$43.99

$

Usually ships in 4-12 days

0

9

Gravely 04214753

Shield, Carrier Frame (SN 000101 – 020999)

Note: (SN 000101 – 020999)

$52.99

$

Usually ships in 4-12 days

0

Gravely 04586953

Shield, Carrier Frame (SN 021001 +)

Note: (SN 021001 +)

$25.99

$

Usually ships in 4-12 days

0

10

Gravely 04258653

Bracket, Chute Storage

$28.99

$

Usually ships in 4-12 days

0

11

Gravely 05500934

Bushing, Flange 1.00 x 1.25 x 1.50 x 1.50

$7.99

$

In Stock, Qty 20+

0

12

Gravely 05957900

Bolt, Hex .38-16 x 1.50 Grade 5
(Superseded to 05901928)

$1.99

$

In Stock, Qty 10

0

13

Gravely 05958000

Bolt, Hex .38-16 x 1.25 Grade 5
(Superseded to 05901724)

$1.99

$

In Stock, Qty 16

0

14

Gravely 05962000

Bolt, Hex .50-13 x 1.50 Grade 5
(Superseded to 05901631)

$4.99

$

In Stock, Qty 7

0

15

Gravely 05964100

Bolt, Hex .50-13 x 5.50 Grade 5
(Superseded to 05901632)

$7.49

$

Usually ships in 4-12 days

0

16

Gravely 06212000

Bolt, Round Head Square Neck .38-16 x 1.00 G5
(Superseded to 06200235)

$1.99

$

Usually ships in 4-12 days

0

17

Gravely 06308800

Washer, Locking .38 x .094 Regular
(Superseded to 06300116)

$1.49

$

In Stock, Qty 18

0

18

Gravely 06442900

Washer, Flat-Steel .688 x 1.75 x .134
(Superseded to 06401032)

$1.49

$

In Stock, Qty 5

0

19

Gravely 06443400

Washer, Flat-Steel .380 x 1.50 x .125
(Superseded to 06401106)

$3.99

$

In Stock, Qty 20+

0

20

Gravely 06444700

Washer, Flat-Steel .875 x 1.500 x .1196
(Superseded to 06401207)

$4.99

$

In Stock, Qty 15

0

21

Gravely 06535800

Nut, Locking-Nylon .38-16
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

22

Gravely 06540600

Nut, Locking-Nylon .50-13
(Superseded to 06500830)

$2.99

$

In Stock, Qty 20+

0

23

Gravely 06534700

Nut, Jam .375-24
(Superseded to 06500739)

$2.49

$

In Stock, Qty 5

0

24

Gravely 06713300

Pin, Hair-Internal .17 x .68 x 3.50
(Superseded to 06700228)

$2.99

$

In Stock, only 2 left!

0

25

Gravely 07100302

Assembly, Wheel and Tire 9 x 3.5 (SN 000101 – 010000)
(Superseded to 07100931)

Note: (SN 000101 – 010000)

$151.99

$

In Stock, only 2 left!

0

Gravely 07100931

9 x 3.5-4 Carefree Bolt Together (SN 010001 +)

Note: (SN 010001 +)

$151.99

$

In Stock, only 2 left!

0

26

Gravely 07503100

Bumper Grommet .125 x .250 Diameter

$3.99

$

In Stock, Qty 20+

0

27

Gravely 08790600

Rod End, .38 Right Hand

$60.99

$

Usually ships in 4-12 days

0

28

Gravely 00959995

Fitting, 1/4-28 STRGT Grease Zerk

$3.99

$

Usually ships in 4-12 days

0
