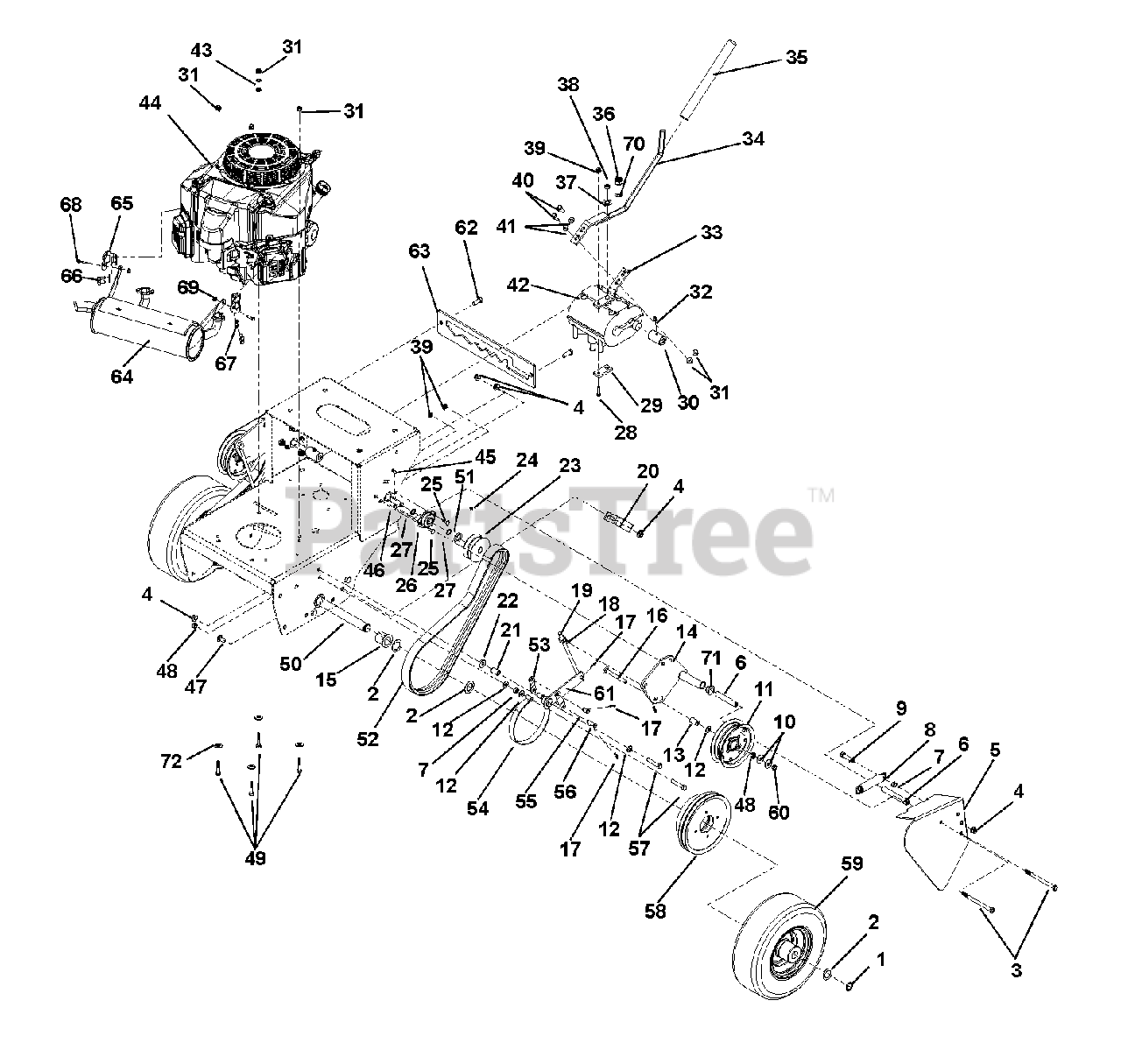

988151 (36 GR) - Gravely Pro-Gear 36" Walk-Behind Mower, Recoil Start (SN: 000101 & Above) Engine & Traction Control Parts Diagram

Pro-Gear 36" Walk-Behind Mower, Recoil Start

Engine & Traction Control Parts Diagram

  • Title

1

Gravely 05707300

Ring, Retaining-External 1.00 x .078

$3.49

$

In Stock, Qty 17

0

2

Gravely 06436300

Washer, Flat-Steel 1.010 x 1.505 x .062
(Superseded to 06401132)

$1.99

$

In Stock, Qty 15

0

3

Gravely 05957700

Bolt, .38-16 x 5.00 Hex Grade 5
(Superseded to 05901927)

$2.99

$

Usually ships in 4-12 days

0

4

Gravely 06545500

Nut, Nyloc Flange, .38-16
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

5

Gravely 04267351

Cover, RH Traction Belt

$32.99

$

Usually ships in 4-12 days

0

5

Gravely 04267451

Cover, LH Traction Belt

$35.99

$

Usually ships in 4-12 days

0

6

Gravely 05500835

Bushing, S.385 x .610 x 4.32 Steel

$33.99

$

Usually ships in 4-12 days

0

7

Gravely 06529400

Nut, Hex .38-16
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 08346800

Spring-Tension .105 x 1.00 x 5.0

$15.99

$

In Stock, Qty 5

0

9

Gravely 05958500

Bolt, .38-16 x 1.75 Hex Grade 5
(Superseded to 05901809)

$1.99

$

In Stock, only 3 left!

0

10

Gravely 06425500

Washer, Flat Steel .375 x 1.125 x .065
(Superseded to 06401139)

$2.99

$

In Stock, Qty 20+

0

11

Gravely D18032

Pulley, FLat 5.00 x .375 w/Bearing
(Superseded to 07346700)

$82.99

$

In Stock, Qty 6

0

12

Gravely 06436200

Washer, .406 x .812 x .065 Flat
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 05509000

Bushing, Sleeve .375 x .625 x 1.000

$10.99

$

Usually ships in 4-12 days

0

14

Gravely 04209651

Weldment, Wheel Clutching Arm

$58.99

$

Usually ships in 4-12 days

0

15

Gravely 05517900

Bushing, Flange 1.010 x 1.38 x 1.4 x 1.65

$6.49

$

In Stock, Qty 12

0

16

Gravely 06222400

Bolt, Round Head Square Neck .38-16 x 3.5 Grade 5
(Superseded to 06200302)

$9.99

$

In Stock, Qty 11

0

17

Gravely 06714800

Pin, Hair
(Superseded to 06700223)

$0.99

$

In Stock, only 4 left!

0

18

Gravely D33002

Swivel, .375-24

$12.99

$

Usually ships in 4-12 days

0

19

Gravely 03369100

Rod, Brake Actuating

$14.99

$

Usually ships in 4-12 days

0

20

Gravely 03299151

Plate, Belt Finger

$14.99

$

Usually ships in 4-12 days

0

21

Gravely 08833400

Bushing, S.391 x .622 x .95 St

$6.49

$

In Stock, only 4 left!

0

22

Gravely 06444000

Washer, Flat Steel .406 x 1.00 x .188
(Superseded to 06401108)

$2.99

$

In Stock, Qty 20+

0

23

Gravely 07328567

Sheave, Drive 3.25 x .625 ID
(Superseded to 07328551)

$211.99

$

Usually ships in 4-12 days

0

24

Gravely 06005500

Screw, Set .31-18X.38 Socket Head

$3.49

$

In Stock, only 2 left!

0

25

Gravely 06219900

Bolt, .25-20 x .750 Round Head Square Neck Grade 5
(Superseded to 06200307)

$1.49

$

Usually ships in 4-12 days

0

26

Gravely 05426400

Bearing, Flange .625 x 1.875 x .797

$73.99

$

In Stock, Qty 8

0

27

Gravely 05711900

Ring, Retaining-External .579 x .035

$1.49

$

In Stock, Qty 20+

0

28

Gravely 05947700

Bolt, .25-20 x 1.00 Hex Grade 5
(Superseded to 05901639)

$1.99

$

In Stock, Qty 8

0

29

Gravely 04923000

Plate, Shift

$19.99

$

Usually ships in 4-12 days

0

30

Gravely 04901200

Coupler

$40.99

$

Usually ships in 4-12 days

0

31

Gravely 06545400

Nut, Nyloc Flange, .31-18
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

32

Gravely 00959995

Fitting, .25-28 STRGT Grease Zerk

$3.99

$

Usually ships in 4-12 days

0

33

Gravely 04922951

Bracket, Shift Lever

$40.99

$

Usually ships in 4-12 days

0

34

Gravely 03369851

Weldment, Shift Lever

$111.99

$

Usually ships in 4-12 days

0

35

Gravely 00675200

Grip, Handlebar

$9.99

$

In Stock, only 1 left!

0

36

Gravely 02913100

Switch, Neutral Start (N.O.)

Note: (N.O.)

$46.99

$

In Stock, Qty 6

0

37

Gravely 06306700

WSHR-LK .375 X .130 YWZC

$3.99

$

In Stock, only 1 left!

0

38

Gravely 06539400

Nut, Locking-Center .375-24
(Superseded to 06500929)

$2.49

$

In Stock, only 4 left!

0

39

Gravely 06500012

Nut, Nyloc Flange, .25-20
(Superseded to 06500813)

$1.99

$

Usually ships in 4-12 days

0

40

Gravely 05946900

Bolt, .31-18 x 1.00 Hex Grade 5
(Superseded to 05901701)

$1.99

$

In Stock, only 4 left!

0

41

Gravely 06437200

Washer, Flat Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

42

Gravely 04901000

Transmission

$527.99

$

Usually ships in 4-12 days

0

43

Gravely 06307200

Washer, Locking-EXT .326 x .599 x .031
(Superseded to 06300125)

$0.99

$

In Stock, only 1 left!

0

44

Gravely 08200612

Engine, Kawasaki (SN 000101 – 010000)

Note: (SN 000101 – 010000)

$

$

Not available

44

Gravely 08200725

Engine, Kawasaki FS481 (SN 010001 +)

Note: (SN 010001 +)

$

$

Not available

45

Gravely 06608700

Key, Woodruff .19 x .75 HRD#9

$1.49

$

In Stock, Qty 20+

0

46

Gravely 04923100

Shaft, Half

$70.99

$

Usually ships in 4-12 days

0

47

Gravely 06223600

Bolt .38-16 x 1.00 Round Head Square Neck Grade 5
(Superseded to 06200313)

$2.99

$

In Stock, only 3 left!

0

48

Gravely 06529600

Locknut, .38-16 Center
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

49

Gravely 05901507

Bolt, Hex .38-16 x 1.25 FTH Grade 5 EP80YZ (SN 000101 – 020999)

Note: (SN 000101 – 020999)

$2.99

$

Usually ships in 4-12 days

0

49

Gravely 05901522

Bolt, Hex .38-16 x 1.25 Grade 5 NYTORQ (SN 021000 +)
(Superseded to 05901808)

Note: (SN 021000 +)

$2.49

$

Usually ships in 4-12 days

0

50

Gravely 03386800

Shaft, Axle

$85.99

$

Usually ships in 4-12 days

0

51

Gravely 06400830

Washer, Flat .765 x 1.125 x .187

$3.99

$

Usually ships in 4-12 days

0

52

Gravely 07400037

Belt, Gear Drive 49" Elbow COG

$105.99

$

In Stock, only 2 left!

0

53

Gravely 08831951

Link, Brake Arm

$23.99

$

In Stock, only 1 left!

0

54

Gravely 08880600

Assembly, Brake Band, Pro

$59.99

$

In Stock, Qty 9

0

55

Gravely 06814800

Pin, Clevis .38 x .750

$3.99

$

In Stock, only 4 left!

0

56

Gravely 06814900

Pin, Clevis .38 x 1.25

$4.99

$

In Stock, only 2 left!

0

57

Gravely 05963300

Bolt, .375-16 x 2.00 Hex Grade 5
(Superseded to 05901718)

$3.49

$

In Stock, Qty 20+

0

58

Gravely 07326900

Assembly, Pulley and Drum

$211.99

$

In Stock, Qty 6

0

59

Gravely 07100734

Assembly, Wheel and Tire 6 x 3.5 (988150)

Note: (988150)

$151.99

$

Usually ships in 4-12 days

0

59

Gravely 07100239

Assembly, Wheel and Tire 6 x 4.5 (988151, 152)

Note: (988151, 152)

$162.99

$

Usually ships in 4-12 days

0

60

Gravely 06537200

Nut, Locking-Jam-Center .375-16
(Superseded to 06500914)

$1.49

$

In Stock, Qty 20+

0

61

Gravely 03371851

Weldment, Brake Actuating Lever

$29.99

$

Usually ships in 4-12 days

0

62

Gravely 05948700

Bolt, Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

63

Gravely 04950453

Plate, Shift Lever Detent

$29.99

$

Usually ships in 4-12 days

0

64

Gravely 04375200

Muffler, Kawasaki FS PROWALK (SN 021000 +)

Note: (SN 021000 +)

$288.99

$

In Stock, only 1 left!

0

65

Gravely 04430251

Bracket, Exhaust (SN 021000 – 029999)

Note: (SN 021000 – 029999)

$26.99

$

Usually ships in 4-12 days

0

65

Gravely 04676751

Shield, Muffler (SN 030000 +)
(Superseded to 09658251)

Note: (SN 030000 +) (NOT SHOWN)

$67.99

$

Usually ships in 4-12 days

0

66

Gravely 05973300

Bolt, Hex M8-1.25 x 20 (SN 021000 +)
(Superseded to 05901628)

Note: (SN 021000 +)

$1.99

$

Usually ships in 4-12 days

0

67

Gravely 06308600

Washer, Locking .31 x .078 Regular (SN 021000 +)
(Superseded to 06300119)

Note: (SN 021000 +)

$1.49

$

In Stock, Qty 20+

0

68

Gravely 06006104

Bolt, Hex .25-20 x 1.00 Grade 5 (SN 021000 +)

Note: (SN 021000 +)

$2.99

$

Usually ships in 4-12 days

0

69

Gravely H137328

Nut, Locking Nylon Flange .25-20 (SN 021000 +)

Note: (SN 021000 +)

$

$

Not available

70

Gravely 06400031

Washer, Flat .563 x 1.00 x 18GA

$3.99

$

Usually ships in 4-12 days

0

71

Gravely 05500907

Bushing, Flange, .625 x .750 x 1.00

$6.99

$

In Stock, Qty 20+

0

72

Gravely 06400927

Washer, 3/8" Spring Disc (SN 021000 +)

Note: (SN 021000 +)

$3.99

$

Usually ships in 4-12 days

0

73

Gravely 03748502

Air Filter
(Superseded to 21538000)

$18.99

$

In Stock, Qty 20+

0

74

Gravely 00181073

Oil Filter
(Superseded to 21535800)

$18.99

$

In Stock, Qty 20+

0

75

Gravely 21538400

Fuel Filter
(Superseded to 21573800)

$15.99

$

Usually ships in 4-12 days

0

76

Gravely 00186800

Spark Plug
(Superseded to 21533600)

$4.99

$

In Stock, Qty 20+
