988151 (36 GR) - Gravely Pro-Gear 36" Walk-Behind Mower, Recoil Start (SN: 000101 & Above) Rubber Discharge Shield Assembly Parts Diagram

Pro-Gear 36" Walk-Behind Mower, Recoil Start

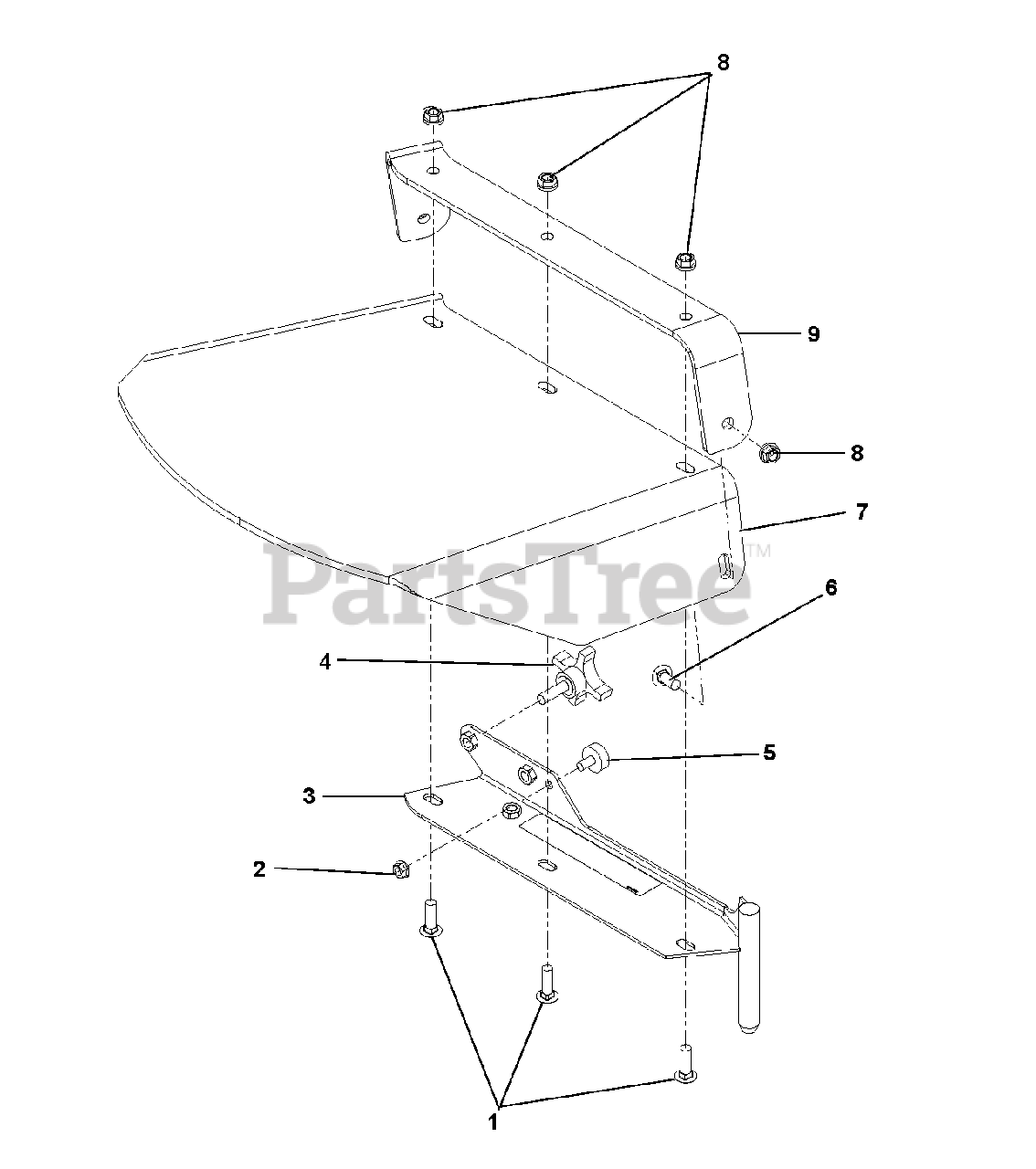

Rubber Discharge Shield Assembly Parts Diagram

  • Title

1

Gravely 06224100

Bolt, Round Head Square Neck .38-16 x 1.25 Grade 5
(Superseded to 06200415)

$2.99

$

In Stock, Qty 20+

0

2

Gravely 06530400

Nut, Spin Lock-Flange .312-18
(Superseded to 06500815)

$1.99

$

In Stock, Qty 20+

0

3

Gravely 03981953

Weldment, Discharge

$90.99

$

Usually ships in 4-12 days

0

4

Gravely 03820400

Knob, .375 x 1.25-4 Prong (SN 000101 – 019999)

Note: (SN 000101 – 019999)

$10.99

$

In Stock, only 2 left!

0

Gravely 04378100

Knob, .38-16 x .75 (SN 020000 +)

Note: (SN 020000 +)

$13.99

$

Usually ships in 4-12 days

0

5

Gravely 07533600

Bumper, Rubber

$12.99

$

In Stock, only 3 left!

0

6

Gravely 06223600

Bolt, Round Head Square Neck .38-16 x 1.00 Grade 5
(Superseded to 06200313)

$2.99

$

In Stock, only 3 left!

0

7

Gravely 04044200

Shield, Walk Rubber Discharge

$70.99

$

Usually ships in 4-12 days

0

8

Gravely 06534900

Nut, Spin Lock Flange .375-16
(Superseded to 06500735)

$1.99

$

In Stock, Qty 20+

0

9

Gravely 03983853

Strap, Gravely Walk Rubber Discharge Chute

$63.99

$

Usually ships in 4-12 days

0
