988152 (48 GR) - Gravely Pro-Gear 48" Walk-Behind Mower, Recoil Start (SN: 000101 & Above) Deck Assembly-48" Parts Diagram

Pro-Gear 48" Walk-Behind Mower, Recoil Start

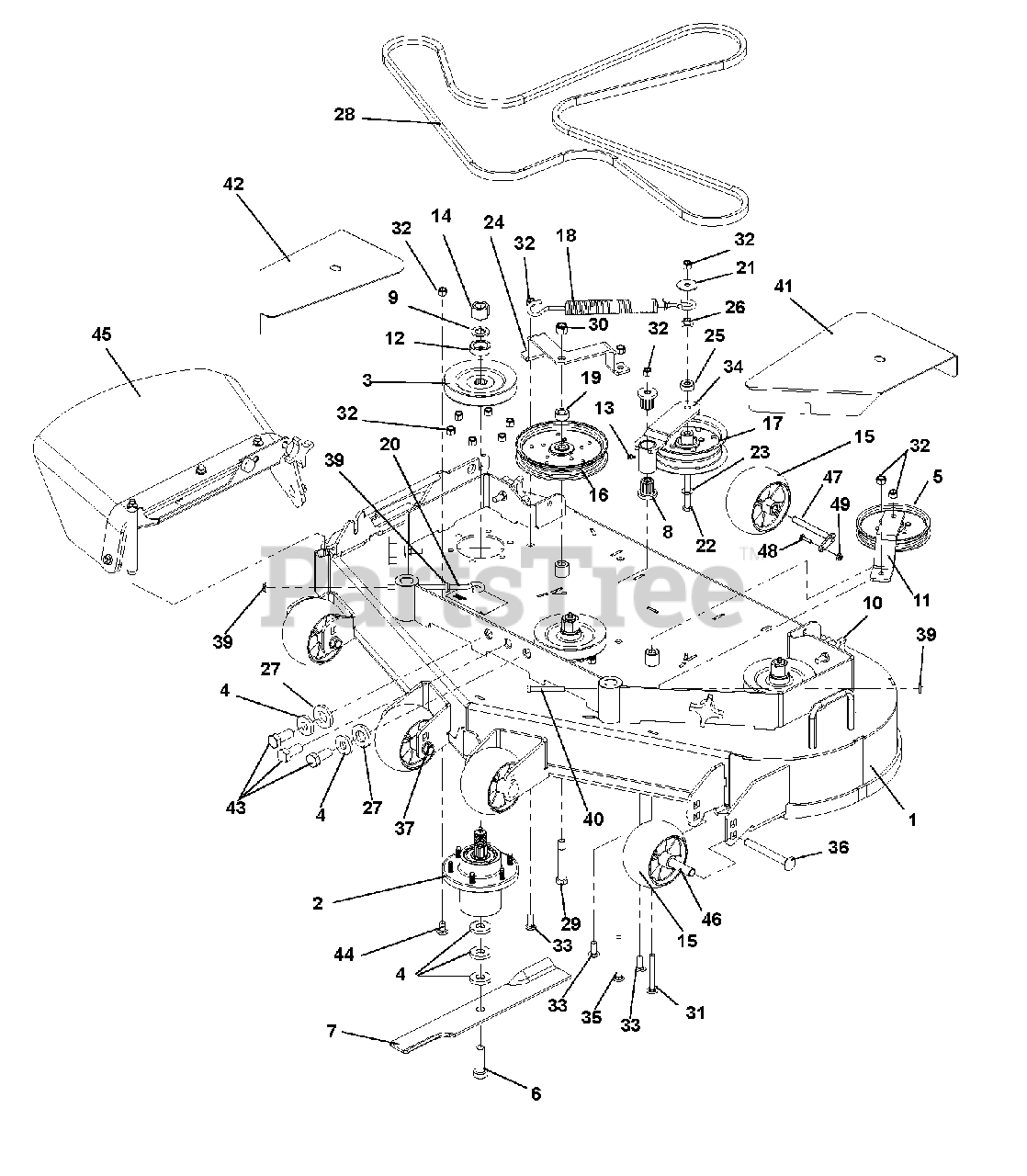

Deck Assembly-48" Parts Diagram

  • Title

1

Gravely 58808500

48" Gravely Gear Deck with Decals
(Superseded to 58815201)

$581.99

$

Usually ships in 4-12 days

0

2

Gravely 00200262

Assembly, Spindle S/O

$250.99

$

In Stock, only 1 left!

0

3

Gravely 03854502

Pulley, Spline Spindle SH (SN 000101 – 021000)

Note: (SN 000101 – 021000)

$60.99

$

Usually ships in 4-12 days

0

Gravely 07337351

Pulley, Spindle .25 Hub (SN 021001 +)
(Superseded to 58875400)

Note: (SN 021001 +)

$76.99

$

In Stock, only 1 left!

0

4

Gravely 06400913

Washer, Flat-Steel .630 x 1.50 x .25
(Superseded to 06401033)

$6.99

$

In Stock, only 4 left!

0

5

Gravely D28050

Pulley, Flat Idler
(Superseded to 07352400)

$34.99

$

In Stock, only 1 left!

0

6

Gravely 05970002

Bolt, Hex .62-11 x 2.00 Grade 8
(Superseded to 05901725)

$5.99

$

In Stock, Qty 12

0

7

Gravely GDU10230

Blade, 16.500 Lo-Lift

$27.99

$

In Stock, Qty 19

0

8

Gravely TCU14540

Bearing, Flange M10 x M25 x M27 Fluted

$14.99

$

In Stock, only 2 left!

0

9

Gravely 03399703

Washer, .75 x 1.3125 x .120

$3.99

$

In Stock, Qty 11

0

10

Gravely 03820400

Knob, .375 x 1.25-4 Prong (SN 000101 – 019999)

Note: (SN 000101 – 019999)

$10.99

$

In Stock, only 3 left!

0

Gravely 04378100

Knob, .38-16 x .75 (SN 020000 +)

Note: (SN 020000 +)

$11.99

$

Usually ships in 4-12 days

0

11

Gravely 03856451

Strap, Idler 48/52 WALK

$13.99

$

Usually ships in 4-12 days

0

12

Gravely D13024

Spacer, 1.500 x 1.000 x .510 (SN 000101 – 020999)

Note: (SN 000101 – 020999)

$10.99

$

In Stock, only 2 left!

0

Gravely 06425600

Washer, Flat-Steel 1.0 x 1.50 x .25 (SN 021000 +)

Note: (SN 021000 +)

$5.99

$

Usually ships in 4-12 days

0

13

Gravely 00959995

Fitting, .25-28 STRGT Grease Zerk

$3.49

$

Usually ships in 4-12 days

0

14

Gravely 06500709

Locknut, .75-16 Crown Grade 5
(Superseded to 06500836)

$6.99

$

In Stock, only 2 left!

0

15

Gravely 03905900

Anti-Scalp Wheel- 5X3 Center

$10.99

$

In Stock, Qty 20+

0

16

Gravely 07316700

Idler, Flat-Pulley 6.75 x .510

$63.99

$

In Stock, only 4 left!

0

17

Gravely D18032

Pulley, Flat 5.00 x .375 w/BRG
(Superseded to 07346700)

$79.99

$

In Stock, only 3 left!

0

18

Gravely 08300505

Spring, Extension

$23.99

$

In Stock, Qty 9

0

19

Gravely 05500905

Bushing, Spacer .502 x .997 x .50

$11.99

$

In Stock, Qty 14

0

20

Gravely 07001629

Bolt, Eye .31-18X5.50 .62 Diameter

$12.99

$

Usually ships in 4-12 days

0

21

Gravely 06439300

Washer, Flat-Steel .38 x 1.50 x .062
(Superseded to 06401028)

$3.49

$

In Stock, Qty 12

0

22

Gravely 05957800

Bolt, Hex .38-16 x 3.00 Grade 5
(Superseded to 05901814)

$2.49

$

Usually ships in 4-12 days

0

23

Gravely 06436200

Washer, Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 04223451

Bracket, Idler Support

$32.99

$

Usually ships in 4-12 days

0

25

Gravely D13023

Bushing, .380 x 1.00 x .410

$19.99

$

Usually ships in 4-12 days

0

26

Gravely 05500435

Bushing-Flange .385 x .500 x .875 x .406

$2.49

$

Usually ships in 4-12 days

0

27

Gravely 03841023

Washer, .905 x 1.750 x .250

$

$

Not available

28

Gravely 07240700

V-Belt, B-Wrapped

$85.99

$

In Stock, only 1 left!

0

29

Gravely 05960000

Bolt, Hex .50-13 x 3.25 Grade 5
(Superseded to 05901634)

$3.99

$

In Stock, only 1 left!

0

30

Gravely 06540600

Nut, Locking-Nylon .50-13
(Superseded to 06500830)

$2.49

$

In Stock, Qty 20+

0

31

Gravely 06228100

Bolt, Round Head Square Neck .38-16 x 3.00 Grade 5
(Superseded to 06200418)

$3.99

$

In Stock, Qty 11

0

32

Gravely 06535800

Nut, Locking-Nylon .38-16
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0

33

Gravely 06212000

Bolt, .38-16 x 1.00 Round Head Square Neck Grade 5
(Superseded to 06200235)

$1.49

$

In Stock, Qty 20+

0

34

Gravely 04056251

Weldment, Idler Arm w/Offset

$68.99

$

Usually ships in 4-12 days

0

35

Gravely 06222400

Bolt, .38-16 x 3.50 Round Head Square Neck Grade 5
(Superseded to 06200302)

$9.49

$

In Stock, Qty 5

0

36

Gravely 06200132

Bolt, .50-13 x 4.50 Round Head Square Neck Grade 5
(Superseded to 06200505)

$5.99

$

In Stock, Qty 20+

0

37

Gravely 06500010

Nut, Locking-Nylon-Flange .50-13
(Superseded to 06500810)

$2.49

$

In Stock, Qty 20+

0

38

Gravely 06219800

Bolt, .25-20 x 1.00 Round Head Square Neck Grade 5 (SN 000101 – 020999)
(Superseded to 06200402)

Note: (SN 000101 – 020999)

$2.49

$

In Stock, only 3 left!

0

Gravely 06219900

Bolt, Round Head Square Neck .25-20 x .75 Grade 5 (SN 021000 +)
(Superseded to 06200307)

Note: (SN 021000 +)

$0.99

$

In Stock, Qty 20+

0

39

Gravely 06530400

Nut, Spin Lock-Flange .312-18
(Superseded to 06500815)

$1.49

$

In Stock, only 4 left!

0

40

Gravely 05984900

Bolt, 5/16-18 x 2.50 Hex 8
(Superseded to 05901717)

$2.99

$

Usually ships in 4-12 days

0

41

Gravely 04231053

Guard, LH 48" Belt

$39.99

$

In Stock, only 1 left!

0

42

Gravely 04230953

Guard, RH 48" Belt

$25.99

$

In Stock, only 1 left!

0

43

Gravely 05901321

Bolt, Hex .62-11 1.5 Grade 8
(Superseded to 05901723)

$3.99

$

Usually ships in 4-12 days

0

44

Gravely 06200004

Bolt, .38-16 x .75 Round Head Square Neck Grade 5
(Superseded to 06200336)

$2.99

$

In Stock, Qty 20+

0

45

Gravely 56155053

Discharge Shield Assembly (see page 23 for individual parts)

Note: (see page 23 for individual parts)

$199.99

$

In Stock, only 1 left!

0

46

Gravely 00473700

Spacer, .510 x .625 x 3.25

$18.99

$

In Stock, Qty 20+

0

47

Gravely GDA10103

Pivot, Retainer Weldment

$55.99

$

In Stock, Qty 7

0

48

Gravely 06219800

Bolt, Round Head Square Neck .25-20 x 1.00 Grade 5
(Superseded to 06200402)

$2.49

$

In Stock, only 3 left!

0

49

Gravely 06531000

Nut, Locking-Nylon .250-20
(Superseded to 06500832)

$4.99

$

In Stock, only 2 left!
