988152 (48 GR) - Gravely Pro-Gear 48" Walk-Behind Mower, Recoil Start (SN: 000101 & Above) Deck Assembly-48" Parts Diagram

Pro-Gear 48" Walk-Behind Mower, Recoil Start

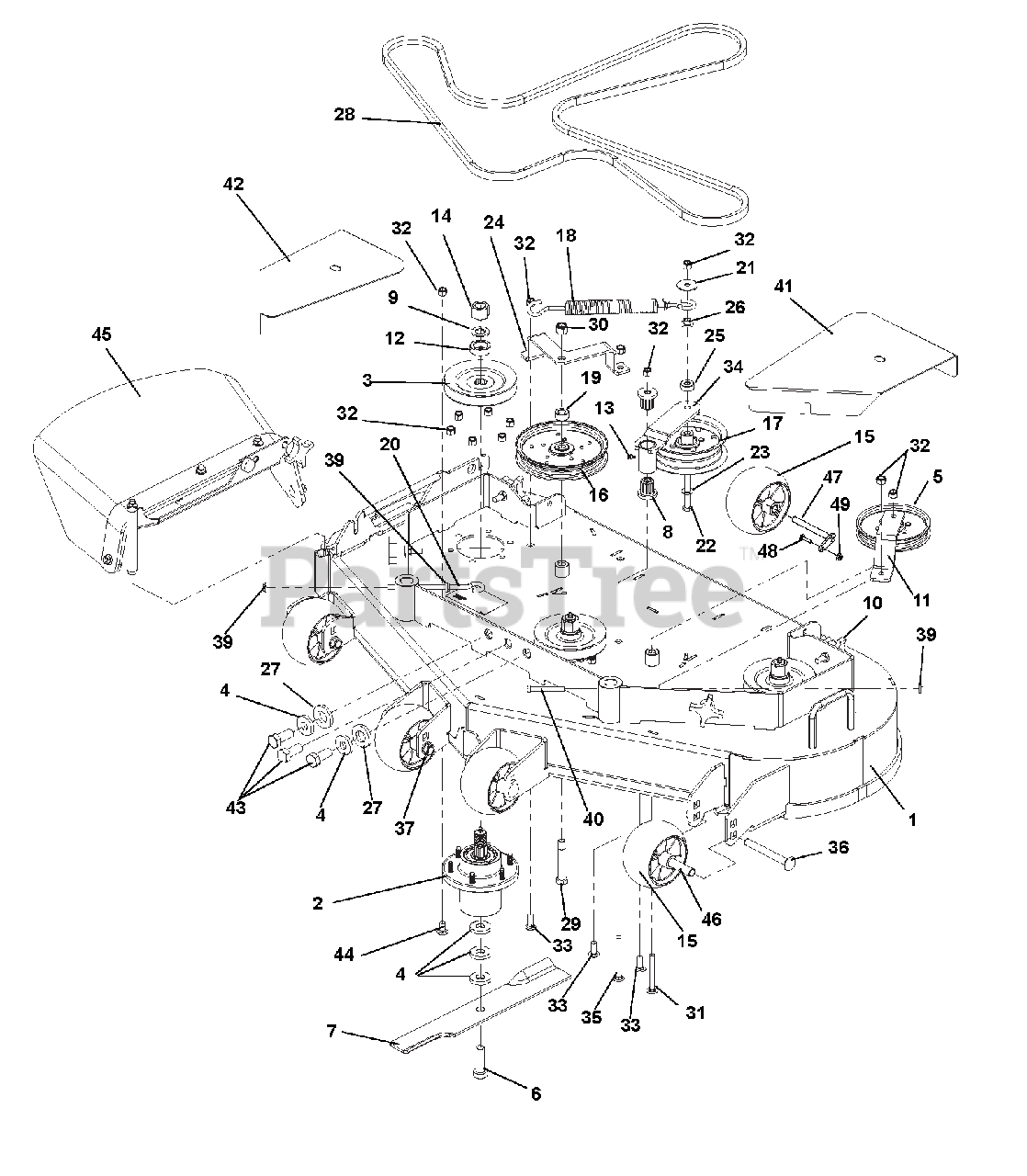

Deck Assembly-48" Parts Diagram

  • Title

1

Gravely 58808500

ASSM, 48" GEAR DECK W/DECALS
(Superseded to 58815201)

$

$

Not available

2

Gravely 00200262

ASSY, SPINDLE S/O

$294.99

$

Usually ships in 4-12 days

0

3

Gravely 03854502

PULLEY, SPLINE SPINDLE SH

Note: (SN 000101 - 021000)

$62.99

$

Usually ships in 4-12 days

0

Gravely 07337351

PULLEY, SPINDLE .25 HUB
(Superseded to 58875400)

Note: (SN 021001 +)

$85.99

$

In Stock, only 1 left!

0

4

Gravely 06400913

WSHR-FL-STL .630X1.50X.25 YWZC
(Superseded to 06401033)

$7.49

$

In Stock, Qty 13

0

5

Gravely D28050

PULLEY, FLAT IDLER
(Superseded to 07352400)

$40.99

$

In Stock, Qty 20+

0

6

Gravely 05970002

@BLT-HEX .62-11X 2.00 GR8 YWZC
(Superseded to 05901725)

$6.49

$

In Stock, Qty 9

0

7

Gravely GDU10230

BLADE, 16.500 X .80 LIFT

$29.99

$

In Stock, Qty 8

0

8

Gravely TCU14540

BRG, FLG M10XM25XM27 FLUTED

$18.99

$

In Stock, Qty 6

0

9

Gravely 03399703

WASHER, .75X1.3125X.120
(Superseded to 06401037)

$2.49

$

In Stock, Qty 9

0

10

Gravely 03820400

KNOB, 3/8 X 1.25 - 4 PRONG

Note: (SN 000101 - 019999)

$10.99

$

In Stock, only 4 left!

0

Gravely 04378100

KNOB, 3/8 -16 X .75

Note: (SN 020000 +)

$13.99

$

Usually ships in 4-12 days

0

11

Gravely 03856451

STRAP, IDLER 48/52 WALK

$14.99

$

Usually ships in 4-12 days

0

12

Gravely D13024

SPACER, SPINDLE TOP-PULLEY

Note: (SN 000101 - 020999)

$14.99

$

In Stock, only 2 left!

0

Gravely 06425600

WSHR-FL-STL 1.0X1.50X.25

Note: (SN 021000 +)

$6.49

$

In Stock, Qty 10

0

13

Gravely 00959995

FTG, 1/4-28 STRGT GREASE ZERK

$3.99

$

In Stock, only 2 left!

0

14

Gravely 06500709

LOCKNUT, 3/4-16 CROWN GR 5
(Superseded to 06500836)

$7.49

$

In Stock, only 1 left!

0

15

Gravely 03905900

ANTI-SCALP WHEEL - 5X3 CTR

$13.99

$

In Stock, Qty 20+

0

16

Gravely 07316700

IDLER-FLAT-PLY 6.75X.510

$65.99

$

In Stock, only 3 left!

0

17

Gravely D18032

PULLEY, FLAT 5.00X.375 W/BRG
(Superseded to 07346700)

$82.99

$

In Stock, Qty 9

0

18

Gravely 08300505

SPRING, EXTENSION

$27.99

$

In Stock, Qty 20+

0

19

Gravely 05500905

BSHG, SPCR .502X.997X.50 PM

$11.99

$

In Stock, Qty 20+

0

20

Gravely 07001629

BOLT, EYE .31-18X5.50 .62 DIA

$12.99

$

Usually ships in 4-12 days

0

21

Gravely 06439300

WSHR-FL-STL .380X1.50X.062 YWZ
(Superseded to 06401028)

$3.49

$

In Stock, Qty 13

0

22

Gravely 05957800

@BLT-HEX .38-16X3.00 GR5 YWZC
(Superseded to 05901814)

$2.99

$

In Stock, Qty 13

0

23

Gravely 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 04223451

BRKT, IDLER SUPPORT - BLACK

$33.99

$

Usually ships in 4-12 days

0

25

Gravely D13023

BUSHING, .380 X 1.00 X .410 Y

$20.99

$

Usually ships in 4-12 days

0

26

Gravely 05500435

BSHG-FLG .385X.500X.875X.406

$2.49

$

In Stock, Qty 20+

0

27

Gravely 03841023

WASHER, .905X1.750X.250

$

$

Not available

28

Gravely 07240700

V-BELT, B-WRAPPED

$88.99

$

In Stock, Qty 15

0

29

Gravely 05960000

@BLT-HEX .50-13X3.25 GR5 YWZC
(Superseded to 05901634)

$3.99

$

In Stock, Qty 20+

0

30

Gravely 06540600

@NUT-LK-NYL .50-13 YWZC
(Superseded to 06500830)

$2.99

$

In Stock, Qty 20+

0

31

Gravely 06228100

@BLT-RDHDSQNK .38-16X3.00 G5YZ
(Superseded to 06200418)

$4.99

$

In Stock, Qty 20+

0

32

Gravely 06535800

@NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

33

Gravely 06212000

@BLT-RDHDSHSQNK.38-16X1.0 G5YZ
(Superseded to 06200235)

$1.99

$

In Stock, Qty 20+

0

34

Gravely 04056251

WLDT, IDLER ARM WITH OFFSET

$70.99

$

Usually ships in 4-12 days

0

35

Gravely 06222400

@BLT-RDHDSQNK .38-16X3.50 G5YZ
(Superseded to 06200302)

$9.99

$

In Stock, Qty 9

0

36

Gravely 06200132

BLT-RDHDSQNK .50-13X4.50 G5 Y
(Superseded to 06200505)

$

$

Not available

37

Gravely 06500010

@NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.99

$

In Stock, Qty 20+

0

37

Gravely 06500010

@NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.99

$

In Stock, Qty 20+

0

38

Gravely 06219800

@BLT-RDHDSQNK .25-20X1.00 G5YZ
(Superseded to 06200402)

Note: (SN 000101 - 020999)

$2.49

$

In Stock, only 3 left!

0

Gravely 06219900

BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

Note: (SN 021000 +)

$1.49

$

In Stock, Qty 20+

0

39

Gravely 06530400

NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.99

$

In Stock, Qty 20+

0

40

Gravely 05984900

BOLT, 5/16-18X2.50 HEX 8 YWZC
(Superseded to 05901717)

$3.49

$

Usually ships in 4-12 days

0

41

Gravely 04231053

GUARD, LH 48" BELT - RED

$40.99

$

Usually ships in 4-12 days

0

42

Gravely 04230953

GUARD, RH 48" BELT - RED

$26.99

$

Usually ships in 4-12 days

0

43

Gravely 05901321

BOLT, HEX 5/8-11 1.5" GR8 YWZC
(Superseded to 05901723)

$3.99

$

Usually ships in 4-12 days

0

44

Gravely 06200004

@BLT-RHDSSQNK .38-16X.75 G5YZ
(Superseded to 06200336)

$2.99

$

In Stock, Qty 15

0

45

Gravely 56155053

ASSY, DISCHARGE SHIELD

Note: (see page 23 for individual parts)

$203.99

$

In Stock, only 1 left!

0

46

Gravely 00473700

SPACER, .510X.625X3.35

$19.99

$

In Stock, Qty 20+

0

47

Gravely GDA10103

PIVOT, RETAINER WELD

$56.99

$

In Stock, Qty 7

0

48

Gravely 06219800

@BLT-RDHDSQNK .25-20X1.00 G5YZ
(Superseded to 06200402)

$2.49

$

In Stock, only 3 left!

0

49

Gravely 06531000

@NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$5.49

$

In Stock, Qty 12

0
