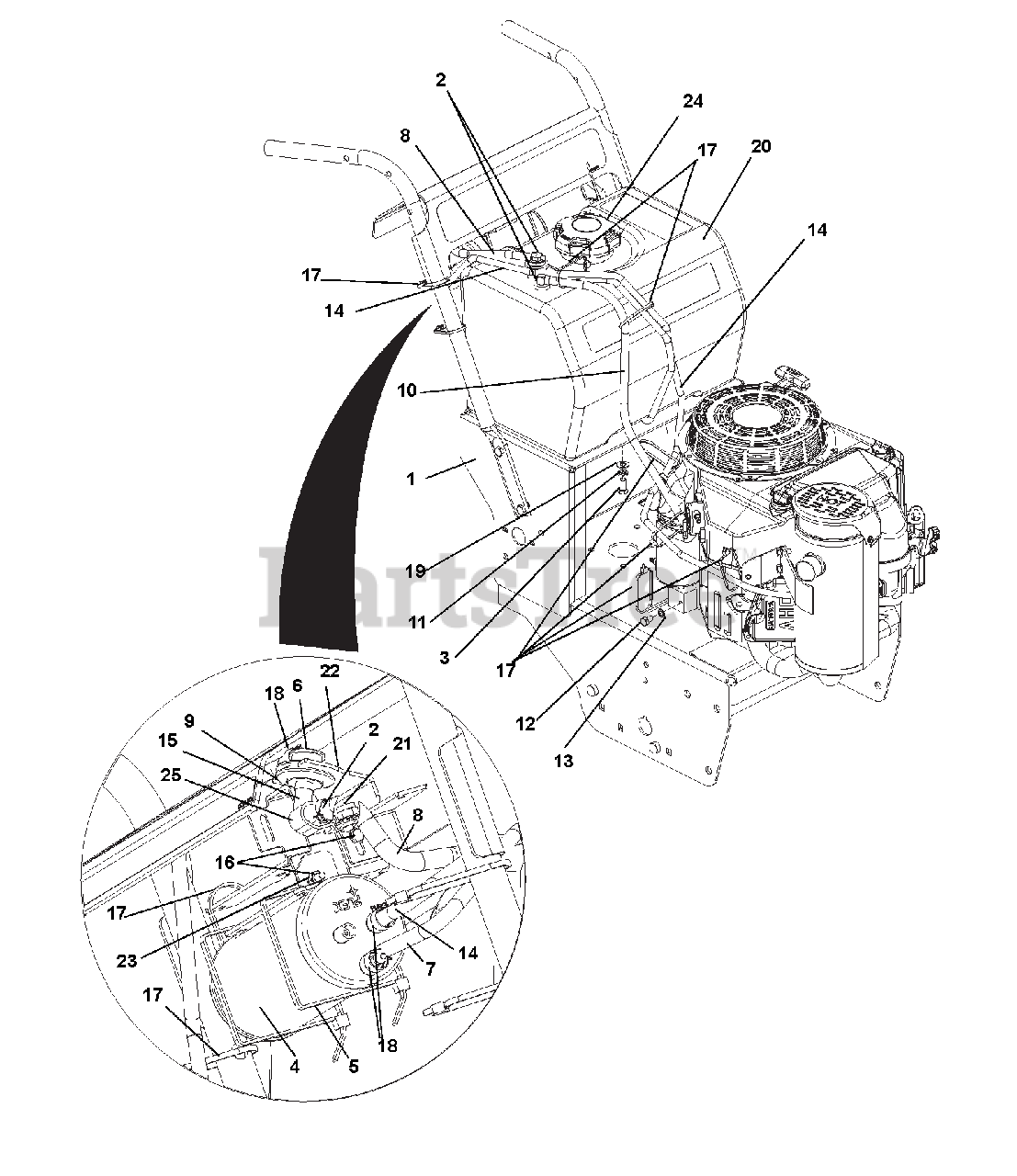

988152 (48 GR) - Gravely Pro-Gear 48" Walk-Behind Mower, Recoil Start (SN: 000101 & Above) Gas Tank Assembly Parts Diagram

Pro-Gear 48" Walk-Behind Mower, Recoil Start

Gas Tank Assembly Parts Diagram

  • Title

1

Gravely 58808600

GRAVELY GRWK FRAME W/DECALS

Note: (SN 000101 - 020999)

$263.99

$

Usually ships in 4-12 days

0

Gravely 58809800

GRAVELY, FRAM GRWLK W/DECALS

Note: (SN 021000 +)

$463.99

$

Usually ships in 4-12 days

0

2

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 20+

0

3

Gravely 05959400

@BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.99

$

In Stock, Qty 14

0

4

Gravely 04058210

400 CC CARBON CANISTER 3/16 PT

$99.99

$

In Stock, only 1 left!

0

5

Gravely 00967006

CABLE TIE, .19 X 14.4

$

$

Not available

6

Gravely 04068920

VALVE, REMOTE ROLL OVER

$20.99

$

Usually ships in 4-12 days

0

7

Gravely 03832619

HOSE, 3/16 REMOTE ROV-CANISTER

$

$

Not available

8

Gravely 03832618

HOSE, 1/4" TANK-REMOTE ROV GRW

$

$

Not available

9

Gravely 04068925

GROMMET, REMOTE ROV

$

$

Not available

10

Gravely 03832612

HOSE, FUEL 1/4 X 18.00

$

$

Not available

11

Gravely 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 05970001

@BLT-HEX M8 X 1.25X14 YWZC
(Superseded to 05902018)

$3.99

$

Usually ships in 4-12 days

0

13

Gravely 06307200

@WSHR-LK-EXT.326X.599X.031YWZC
(Superseded to 06300125)

$0.99

$

In Stock, Qty 9

0

14

Gravely 03832617

HOSE, PURGE LINE 3/16 GRWLK

$

$

Not available

15

Gravely 07001632

ELBOW FITTING, 1/4 X 1/4 ASSY

$

$

Not available

16

Gravely 06116900

SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

$2.49

$

In Stock, Qty 11

0

17

Gravely 00111910

CABLE TIE, .15 X 8.50

$

$

Not available

18

Gravely 04097715

CLAMP, DBL PINCH 5/16"-7/16"

$3.99

$

Usually ships in 4-12 days

0

19

Gravely 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 04953200

ASSY, FUEL TANK FF CLPE WALK

Note: (SN 000101 - 020999)

$258.99

$

Usually ships in 4-12 days

0

Gravely 04952000

TANK, FUEL LOW PERM
(Superseded to 05283900)

Note: (SN 021000 +)

$

$

Not available

21

Gravely 06542300

NUT-LK-FLG M8-1.25 YWZC
(Superseded to 06500725)

$3.99

$

Usually ships in 4-12 days

0

22

Gravely 04265351

BRACKET, ROV & CC GEAR WALK

$20.99

$

Usually ships in 4-12 days

0

23

Gravely 06536000

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

Note: (SN 000101 - 019999)

$0.99

$

In Stock, Qty 20+

0

Gravely 06500704

NUT, 10-24 KEPS

Note: (SN 020000 +)

$4.99

$

Usually ships in 4-12 days

0

24

Gravely 04952005

CAP, FUEL NONVENT, AUTOLOCK

$48.99

$

Usually ships in 4-12 days

0

25

Gravely AH89557

P-CLIP, .500 INSULATED

$5.49

$

Usually ships in 4-12 days

0
