988152 (48 GR) - Gravely Pro-Gear 48" Walk-Behind Mower, Recoil Start (SN: 000101 & Above) Handelbars & Control Panel Parts Diagram

Pro-Gear 48" Walk-Behind Mower, Recoil Start

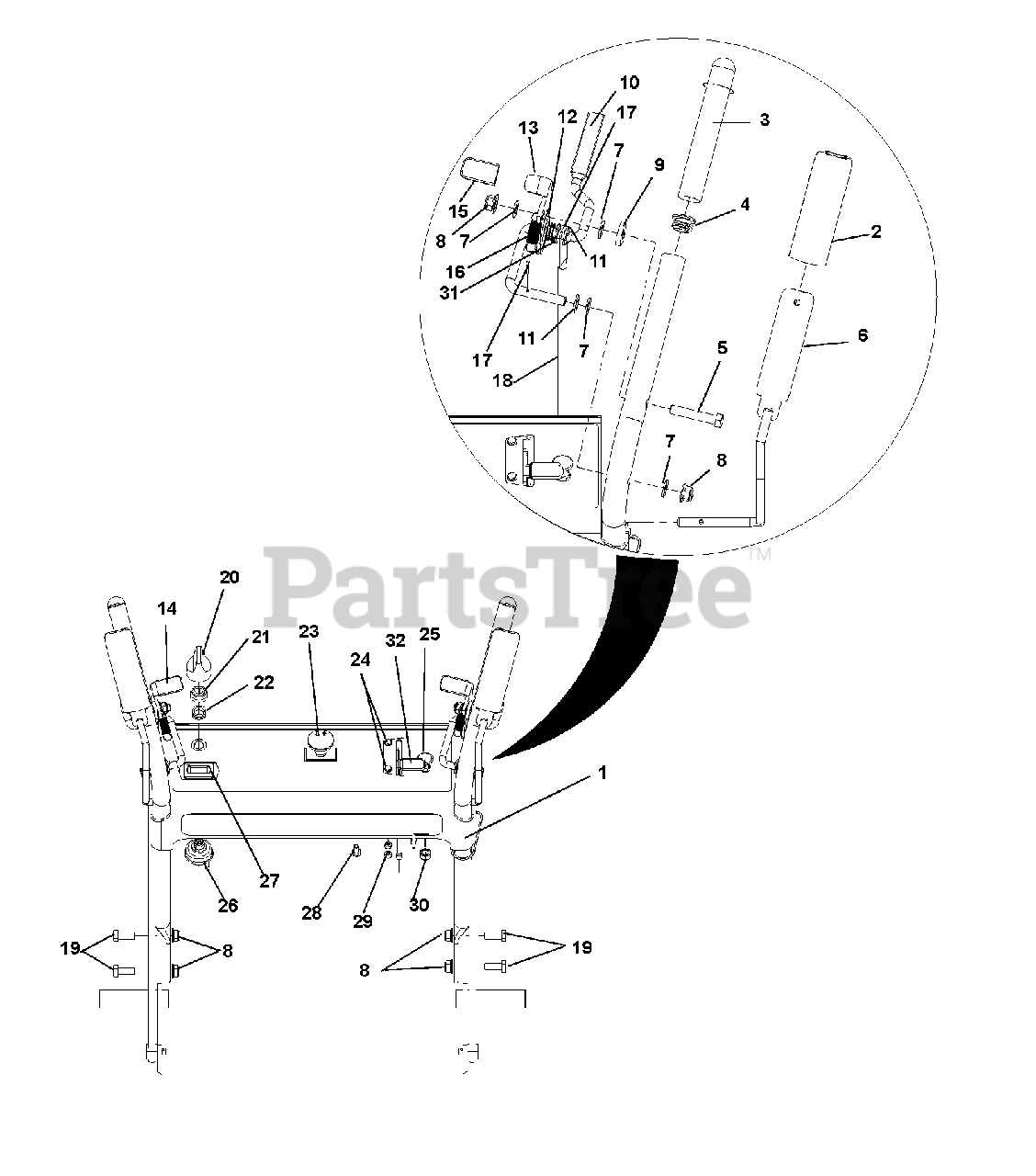

Handelbars & Control Panel Parts Diagram

  • Title

1

Gravely 50522004

Weldment, Pro Handlebar w/Decals

$394.99

$

Usually ships in 4-12 days

0

2

Gravely 00384500

Grip, Clutch Lever

$2.49

$

In Stock, Qty 7

0

3

Gravely 04928800

Grip, Handlebar

$10.99

$

In Stock, Qty 12

0

4

Gravely 07533300

Caplug, Handlebar

$2.99

$

In Stock, only 3 left!

0

5

Gravely 05963300

Bolt-Hex .38-16 x 2.00 Grade 5
(Superseded to 05901718)

$3.49

$

In Stock, Qty 12

0

6

Gravely 04214651

Weldment-Left Hand Lever-Operator Presence
(Superseded to 78806400)

$237.99

$

Usually ships in 4-12 days

0

Gravely 04214551

Weldment-Right Hand Lever-Operator Presence
(Superseded to 78806400)

$237.99

$

Usually ships in 4-12 days

0

7

Gravely 06433600

Washer-Flat-Nylon .375 x .75 x .060

$0.99

$

In Stock, Qty 9

0

8

Gravely 06545500

Nut-Locking-Nylon-Flange .38-16
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

9

Gravely 06444000

Washer-Flat-Steel .406 x 1.00 x .188
(Superseded to 06401108)

$2.99

$

In Stock, Qty 20+

0

10

Gravely 04905200

Lever, Hand Control Left Hand

$81.99

$

In Stock, only 2 left!

0

Gravely 04922400

Lever, Hand Control Right Hand

$73.99

$

In Stock, Qty 5

0

11

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 06441000

Washer-Flat-Steel .50 x 1.25 x .083
(Superseded to 06401202)

$3.49

$

In Stock, only 2 left!

0

13

Gravely 04194951

Latch, Left Hand Thumb

$10.99

$

Usually ships in 4-12 days

0

14

Gravely 04194751

Latch, Right Hand Thumb

$13.99

$

Usually ships in 4-12 days

0

15

Gravely 04928700

Grip, Thumb Latch

$3.99

$

Usually ships in 4-12 days

0

16

Gravely 08339300

Spring-Tension .041 x .500 x 1.750

$6.49

$

In Stock, Qty 12

0

17

Gravely 06706900

Pin-Center .09 x .75 Extended Prong Square Cut

$0.99

$

In Stock, Qty 8

0

18

Gravely 03371700

Rod, Steering

$17.99

$

Usually ships in 4-12 days

0

19

Gravely 05948700

Bolt, Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

20

Gravely 09284600

Key with Shield

$18.99

$

In Stock, only 2 left!

0

21

Gravely 07517700

Cap, Ignition Switch

$3.99

$

In Stock, Qty 18

0

22

Gravely 06517400

Nut, Panel .562-24

$21.99

$

In Stock, Qty 7

0

23

Gravely 04311800

Switch, Clutch

$46.99

$

In Stock, only 4 left!

0

24

Gravely 06116900

Screw, Machine 10-24 x .75 Hex Washer Head
(Superseded to 05901837)

$2.49

$

In Stock, only 3 left!

0

25

Gravely 06944700

Cable, Choke

$60.99

$

Usually ships in 4-12 days

0

26

Gravely 03602300

Key Switch

$26.99

$

In Stock, Qty 20+

0

27

Gravely 04196515

Meter, Hour INDCTV Recoil Engine

$58.99

$

Usually ships in 4-12 days

0

28

Gravely 05946800

Bolt, Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$1.49

$

In Stock, Qty 12

0

29

Gravely 06536000

Nut, Locking-Nylon 10-24 with Insert
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

30

Gravely 06522900

Nut, Hex .375-24 Grade 2
(Superseded to 06500940)

$2.99

$

In Stock, only 2 left!

0

31

Gravely 08338800

Spring, Compression .045 x .600 x .750

$7.49

$

In Stock, only 2 left!

0

32

Gravely 06949100

Cable, Throttle with Liner

$83.99

$

In Stock, only 3 left!

0
