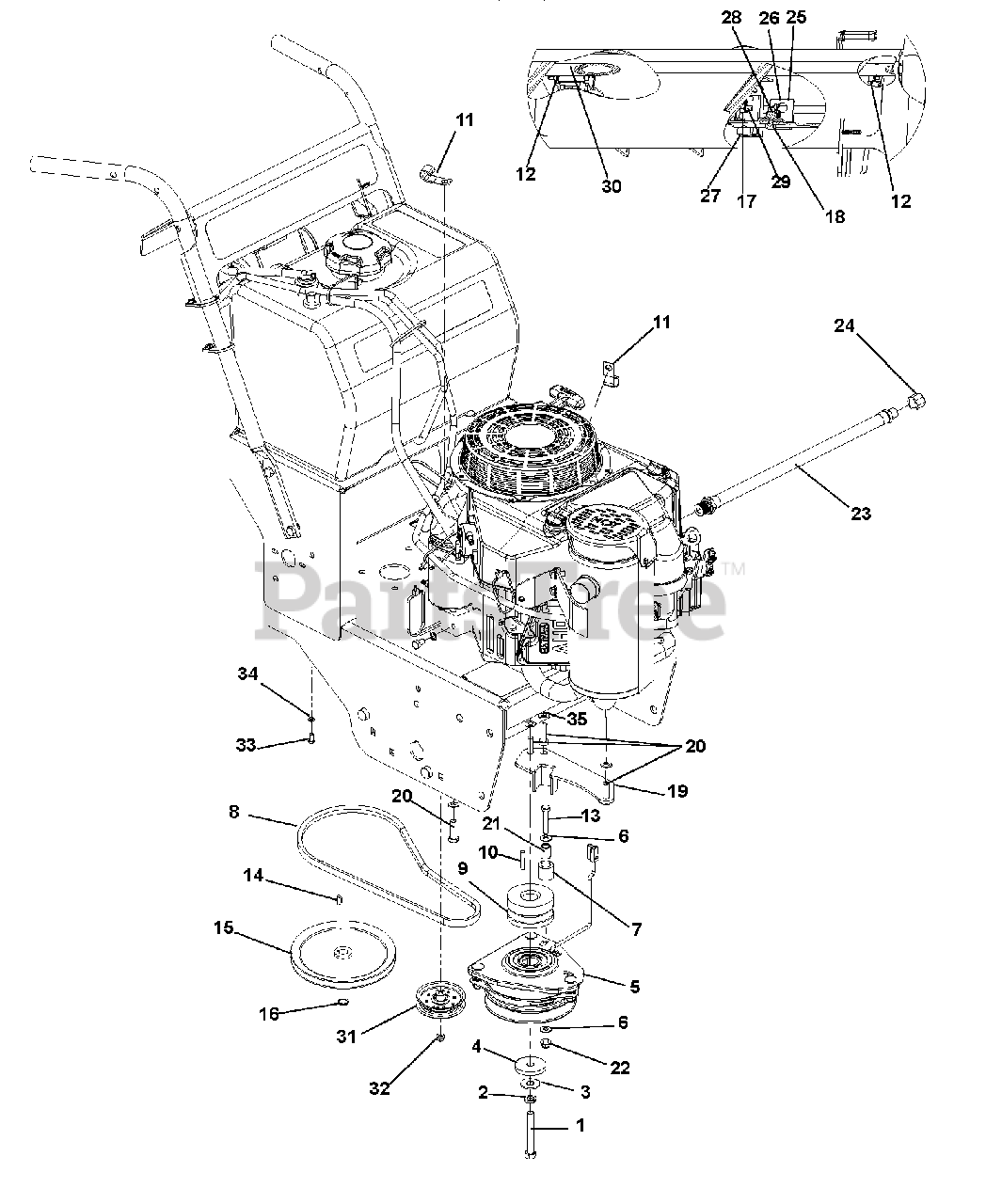

988152 (48 GR) - Gravely Pro-Gear 48" Walk-Behind Mower, Recoil Start (SN: 000101 & Above) Transmission & Console Parts Diagram

Pro-Gear 48" Walk-Behind Mower, Recoil Start

Transmission & Console Parts Diagram

  • Title

1

Gravely 05900037

Bolt, .44-20 x 3.00 Hex Grade 5

$7.49

$

In Stock, Qty 17

0

2

Gravely 06309300

Washer, Lock .44 x .109
(Superseded to 06300121)

$2.99

$

In Stock, only 2 left!

0

3

Gravely 06441000

Washer, Flat-Steel .50 x 1.25 x .083
(Superseded to 06401202)

$3.49

$

In Stock, only 3 left!

0

4

Gravely 06443600

Washer, Flat-Steel .469 x 2.00 x .25
(Superseded to 06401111)

$7.99

$

In Stock, Qty 20+

0

5

Gravely 00200665

Clutch Assembly, Ogura

$383.99

$

In Stock, only 2 left!

0

6

Gravely 06435800

Washer, Flat-Steel .531 x 1.062 x .095
(Superseded to 06401124)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 07500007

Bumper, Rubber .62 x 1.0 x .88

$6.49

$

In Stock, Qty 9

0

8

Gravely 07225500

Belt, HA 40.60 Raw Laminated

$40.99

$

In Stock, only 1 left!

0

9

Gravely 07300501

Sheave,1.002 ID x 3.222 PIN

$149.99

$

In Stock, only 1 left!

0

10

Gravely 06606900

Key, Square .248 x 1.25 x .248

$2.99

$

Usually ships in 4-12 days

0

11

Gravely AH89557

P-Clip, .500 Insulated

$5.49

$

In Stock, only 1 left!

0

12

Gravely 07415800

Screw, Tap 10-24 x .50 HWH
(Superseded to 07400130)

$2.49

$

In Stock, Qty 5

0

13

Gravely 05957400

Bolt, Hex .31-18 x 1.75 Grade 5
(Superseded to 05901804)

$3.49

$

In Stock, Qty 5

0

14

Gravely 06608700

Key, Woodruff .19 x .75 HRD #9

$1.49

$

In Stock, Qty 20+

0

15

Gravely 07328600

Pulley, V 7.50 x .626

$71.99

$

In Stock, Qty 7

0

16

Gravely 05711900

Ring, Retaining-External .579 x .035

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06536000

Nut, Locking Nylon 10-24 w/Insert (SN 000101 – 019999)
(Superseded to 06500915)

Note: (SN 000101 – 019999)

$0.99

$

In Stock, Qty 20+

0

Gravely 06500704

Nut, 10-24 KEPS (SN 020000 +)

Note: (SN 020000 +)

$4.99

$

Usually ships in 4-12 days

0

18

Gravely 05946800

Bolt, .25-20 x .750 Hex Grade 5
(Superseded to 05901716)

$1.49

$

In Stock, Qty 12

0

19

Gravely 04061951

Weldment, Clutch Stop

$19.99

$

Usually ships in 4-12 days

0

20

Gravely 05901507

Bolt, Hex .38-16 x 1.25 FTH Grade 5 EP80YZ (SN 000101 – 020999)

Note: (SN 000101 – 020999)

$2.99

$

Usually ships in 4-12 days

0

Gravely 05901522

Bolt, Hex .38-16 x 1.25 Grade 5 NYTORQ (SN 021000 +)
(Superseded to 05901808)

Note: (SN 021000 +)

$2.49

$

Usually ships in 4-12 days

0

21

Gravely A8905500

Bushing

$

$

Not available

22

Gravely 06545400

Nut, Nyloc Flange, .31-18
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

23

Gravely 04271700

Drain, M20 Oil

$35.99

$

Usually ships in 4-12 days

0

24

Gravely 03873200

Pipe Cap 3/8 NPT Female

$14.99

$

Usually ships in 4-12 days

0

25

Gravely 04928951

Bracket, Brake Link
(Superseded to 78806400)

$237.99

$

Usually ships in 4-12 days

0

26

Gravely 08337000

Spring, Tension .047 x .438 x 1.45

$6.49

$

In Stock, Qty 10

0

27

Gravely 08828100

Switch, Interlock

$21.99

$

In Stock, Qty 6

0

28

Gravely 06500012

Nut, .25-20 Nyloc Flange
(Superseded to 06500813)

$1.99

$

Usually ships in 4-12 days

0

29

Gravely 06116900

Screw, Machine 10-24 x .75 Hex Washer Head
(Superseded to 05901837)

$2.49

$

In Stock, only 4 left!

0

30

Gravely 04214451

Weldment, Pivot Tube
(Superseded to 78806400)

$237.99

$

Usually ships in 4-12 days

0

31

Gravely 07300039

Assembly, Idler 4"
(Superseded to 07350100)

$50.99

$

In Stock, Qty 20+

0

32

Gravely 06545500

Nut, Locking NylonFlange .38-16
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

33

Gravely 05947000

Bolt, Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

34

Gravely 06308600

Washer, Lock .31 x .078 Reg
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

35

Gravely 06400927

Washer, 3/8" Spring Disc

$3.99

$

Usually ships in 4-12 days
