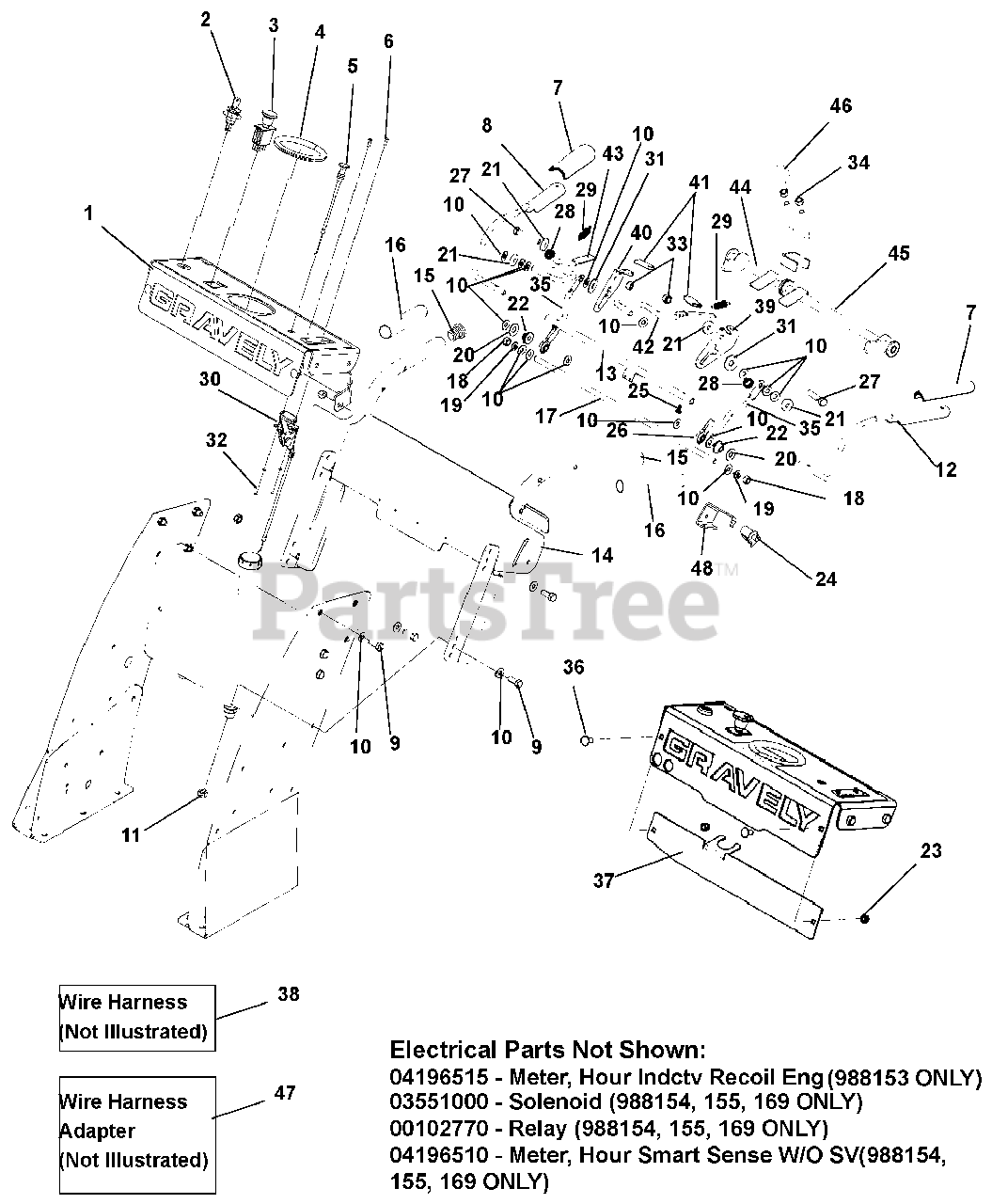

988154 (48 HE) - Gravely Pro-Hydro 48" Walk-Behind Mower, Pistol Grip, Electric (SN: 000101 & Above)

Pro-Hydro 48" Walk-Behind Mower, Pistol Grip, Electric

988154 (48 HE) - Gravely Pro-Hydro 48" Walk-Behind Mower, Pistol Grip, Electric (SN: 000101 & Above) > Parts Diagrams (9) > Pistol Grip Console And Controls

  • Title
58808700

1

ASSM, HYDRO WALK CONSOLE W/DECALS (SN 000101 - 020000)

Part# 58808700

Note: (SN 000101 - 020000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $100.56

58815301

1

ASSM, PG UPPER CON W/DECAL GRV (988153) (SN 020001 and up)

Part# 58815301

Note: (988153) (SN 020001 and up)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $50.25

58815402

1

ASSM, UPPER CON, 48/52/61 RED (988154, 155, 169) (SN 020001 and up)

Part# 58815402

Note: (988154, 155, 169) (SN 020001 and up)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $50.25

D18090

2

SWITCH, TWO POSITION KEY (988153)

Part# D18090

Note: (988153)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $20.07

00180620

2

SWITCH, THREE POSITION KEY (988154, 155, 169)

Part# 00180620

Note: (988154, 155, 169)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $33.48

04311800

3

SWITCH, CLUTCH w/GRAPHIC

Part# 04311800

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $36.22

00170900

4

TRIM, RUBBER EDGE 12"

Part# 00170900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $11.12

00180273

5

CABLE, CHOKE 48" (SN 000101 - 020000)

Part# 00180273

Note: (SN 000101 - 020000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $51.37

06900044

5

CABLE, CHOKE 43" (988153) (SN 020001 and up)

Part# 06900044

Note: (988153) (SN 020001 and up)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $44.66

06944700

5

CABLE, CHOKE (988154, 155, 169) (SN 020001 and up)

Part# 06944700

Note: (988154, 155, 169) (SN 020001 and up)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $58.08

06006023

6

SCR-PANHDSLT 8-32X.50 YWZC (SN 000101 - 020000)

Part# 06006023

Note: (SN 000101 - 020000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.85

06006023

6

SCR-PANHDSLT 8-32X.50 YWZC (988153) (SN 020001 and up)

Part# 06006023

Note: (988153) (SN 020001 and up)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.85

06116900

6

SCREW-MACHINE 10-24X.75 HEX WASHER HEAD (988154, 155, 169) (SN 020001 and up)

Part# 06116900

Note: (988154, 155, 169) (SN 020001 and up)

OEM Warranty Repair Part for Gravely

Not available

00384500

7

GRIP, CLUTCH LEVER, LH AND RH

Part# 00384500

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $5.53

04214551

8

WMT-RH LEVER-OP

Part# 04214551 (Superseded to 78806400)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $59.27

05948700

9

BOLT, HEX .38-16 X 1.00 GR5 Y

Part# 05948700

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

06436200

10

WASHER, .406 X .813 X .065 FLAT Y

Part# 06436200

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

06535800

11

LOCKNUT, .38-16 NYLOC Y

Part# 06535800 (Superseded to 06500831)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

04214651

12

WMT-LH LEVER-OP

Part# 04214651 (Superseded to 78806400)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $59.27

04214451

13

WMT-PIVOT TUBE

Part# 04214451 (Superseded to 78806400)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $59.27

58808900

14

GRAVELY PG HYDRO W/DECALS (SN 000101 - 020000)

Part# 58808900

Note: (SN 000101 - 020000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $212.36

58809700

14

CONSOLE, LOWER PG CE W/DECAL (SN 020001 and up)

Part# 58809700

Note: (SN 020001 and up)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $362.84

07533300

15

CAPLUG, HANDLEBAR

Part# 07533300

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

04928800

16

GRIP, HANDLEBAR

Part# 04928800

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $8.89

04926600

17

ROD, SPEED CONTROL

Part# 04926600

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $24.54

06522900

18

NUT-HEX .375-24 YWZC GR2

Part# 06522900

OEM Warranty Repair Part for Gravely

Not available

06308800

19

WASHER-LOCK .38 X .094 REG

Part# 06308800

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

06443300

20

WASHER-FLAT-NYL .52 X 1.00 X .08

Part# 06443300

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

06444000

21

WASHER-FLAT-STL .406 X 1.00 X .188

Part# 06444000

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

05501028

22

BUSHING-FLANG .385 X .500 X .875 X .31

Part# 05501028

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $18.95

06530200

23

NUT-LOCKING-NYLON .312-18

Part# 06530200

OEM Warranty Repair Part for Gravely

Not available

AM103119

24

SWITCH, SEAT OVER RIDE (N.O.)

Part# AM103119

Note: (N.O.)

OEM Warranty Repair Part for Gravely

Not available

07415800

25

SCREW-TAP 10-24 X .50 HWH

Part# 07415800

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

03563100

26

ROD END, .38 RH

Part# 03563100

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $24.54

05963300

27

BOLT - HEX .38-16 X 2.00 GR5

Part# 05963300

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

08338800

28

SPRING-COMPRESSION .045 X .600 X .750

Part# 08338800

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

08339300

29

SPRING-TENSION .041 X .500 X 1.750

Part# 08339300

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $5.53

00200413

30

CABLE, THROTTLE - 49.5 (SN 000101 - 020000)

Part# 00200413

Note: (SN 000101 - 020000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $33.48

06900043

30

CABLE, THROTTLE 43" (988153) (SN 020001 and up)

Part# 06900043

Note: (988153) (SN 020001 and up)

OEM Warranty Repair Part for Gravely

Not available

00200413

30

CABLE, THROTTLE 49.5" (988154, 155, 169) (SN 020001 and up)

Part# 00200413

Note: (988154, 155, 169) (SN 020001 and up)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $33.48

06441000

31

WASHER-FLAT-STEEL .50 X 1.25 X .083

Part# 06441000

OEM Warranty Repair Part for Gravely

Not available

06531300

32

NUT-LK-NYL 8-32 W/INSTR YWZC (SN 000101 - 020000)

Part# 06531300

Note: (SN 000101 - 020000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.40

06531300

32

NUT-LK-NYL 8-32 W/INSTR YWZC (988154, 155, 169) (SN 020001 and up)

Part# 06531300

Note: (988154, 155, 169) (SN 020001 and up)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.40

06536000

32

NUT-LK-NYL 10-24 W/INSRT (988153) (SN 020001 and up)

Part# 06536000

Note: (988153) (SN 020001 and up)

OEM Warranty Repair Part for Gravely

Not available

06529600

33

NUT-LK-CTR .375-16

Part# 06529600

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

06529400

34

NUT-HEX .38-16

Part# 06529400 (Superseded to 06500917)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

04926200

35

ROD, STEERING LINK

Part# 04926200

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $24.54

06215700

36

BOLT-RDHDSQNK .31-18X.75 G5

Part# 06215700 (Superseded to 06200232)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

04263353

37

BRACKET, REMOTE ROV HYDRO (SN 000101 - 010000)

Part# 04263353

Note: (SN 000101 - 010000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $6.65

04263351

37

BRACKET, REMOTE ROV HYDRO (SN 010001 and up)

Part# 04263351

Note: (SN 010001 and up)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $6.65

04039200

38

HARNESS, WIRE NON ELECTRIC PB WALK (NOT SHOWN) (988153)

Part# 04039200

Note: (NOT SHOWN) (988153)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $160.15

03983502

38

HARNESS, WIRE ELECTRIC START (NOT SHOWN) (988154, 155, 169)

Part# 03983502

Note: (NOT SHOWN) (988154, 155, 169)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $241.45

04220451

39

LATCH-LH THUMB

Part# 04220451

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $12.24

04220351

40

LATCH-RH THUMB

Part# 04220351

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $15.93

04928700

41

GRIP, THUMB LATCH

Part# 04928700

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

04905200

42

LEVER, HAND CONTROL LH

Part# 04905200

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $51.37

04922400

43

LEVER, HAND CONTROL RH

Part# 04922400

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $55.84

04926300

44

WELDMENT, RH LEVER

Part# 04926300

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $145.28

04926400

45

WELDMENT, LH LEVER

Part# 04926400

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $135.22

07533500

46

KNOB,BALL -BLACK 1.47" .375-16

Part# 07533500

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $8.89

04261100

47

ADAPTER-HARNESS-PRO WALK HYDRO (NOT SHOWN)

Part# 04261100

Note: (NOT SHOWN)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $33.48

04309051

48

BRKT, OPC SWITCH

Part# 04309051 (Superseded to 78806400)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $59.27

04196515

49

METER, HOUR INDCTV RECOIL ENG

Part# 04196515

Note: (NOT SHOWN) (988153)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $51.37

00102770

50

RELAY, ISO MINI ELEC.

Part# 00102770

Note: (NOT SHOWN) (988154, 155, 157, 158, 159, 169)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $20.07

04196510

51

METER, HOUR SMART SENSE W/O SV

Part# 04196510

Note: (NOT SHOWN) (988154, 155, 157, 158, 159, 169)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $55.84

03551000

52

SOLENOID

Part# 03551000

Note: (NOT SHOWN) (988154, 155, 157, 158, 159, 169)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $16.71
