988156 (36 HR) - Gravely Pro-Hydro 36" Walk-Behind Mower (SN: 000101 - 049999) 36" Deck Assembly Parts Diagram

Pro-Hydro 36" Walk-Behind Mower

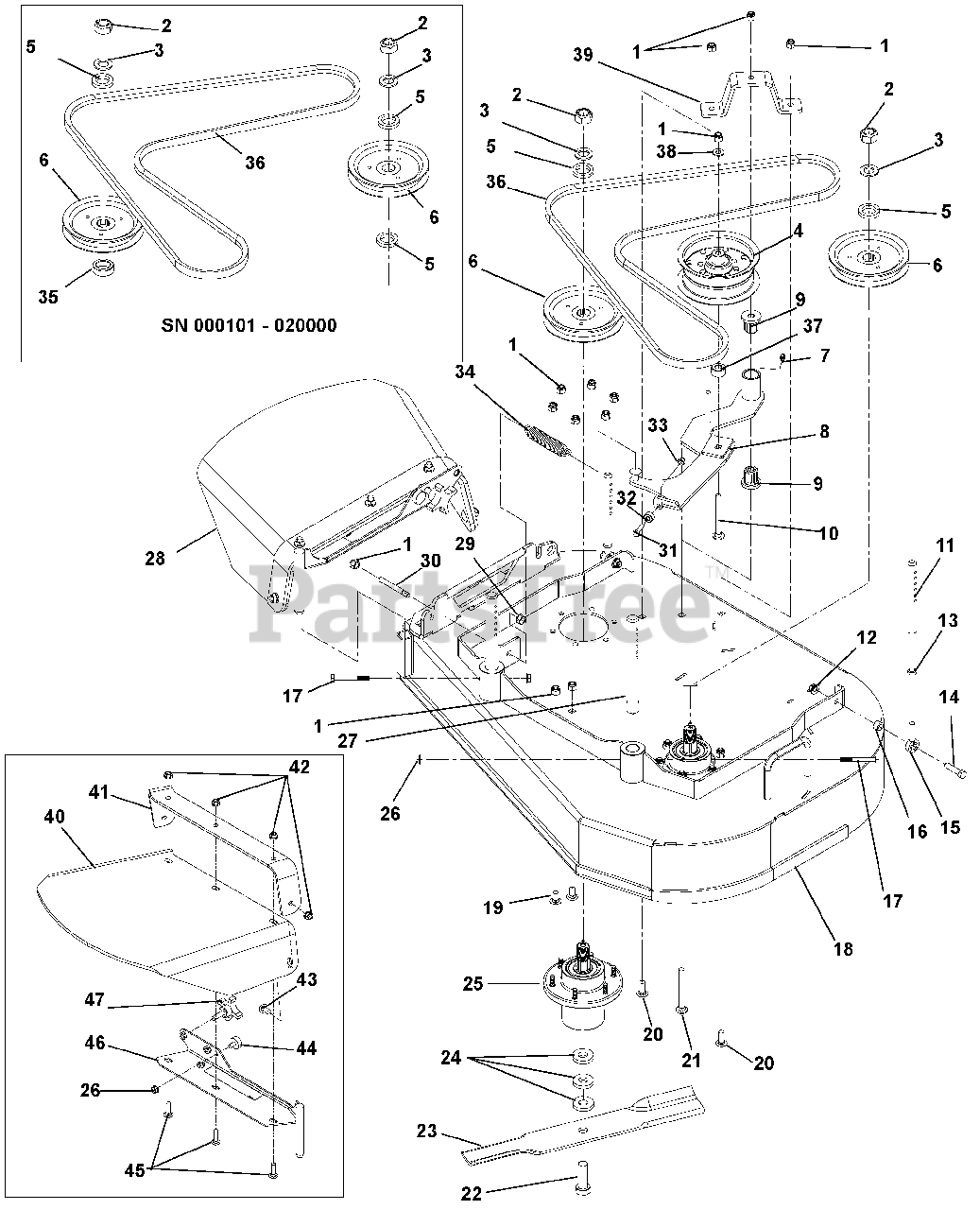

36" Deck Assembly Parts Diagram

  • Title

1

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

2

Gravely 06500709

LOCKNUT, 3/4-16 CROWN GR 5
(Superseded to 06500836)

$7.49

$

In Stock, only 1 left!

0

3

Gravely 03399703

WASHER, .75X1.3125X.120
(Superseded to 06401037)

$2.49

$

In Stock, Qty 9

0

4

Gravely 07300532

PULLEY, FLAT 5.00X2.36X.375

$77.99

$

In Stock, Qty 14

0

5

Gravely 06425600

WSHR-FL-STL 1.0X1.50X.25

Note: (SSN 000101 - 020000)

$6.49

$

In Stock, Qty 10

0

Gravely 06425600

WSHR-FL-STL 1.0X1.50X.25

Note: (SN 020001 and up)

$6.49

$

In Stock, Qty 10

0

6

Gravely 07300531

PULLEY, SPLINE SPINDLE SHFLWLK

Note: (SN 000101 - 020000)

$70.99

$

In Stock, only 1 left!

0

Gravely 07337551

PULLEY, SPINDLE 5.75 OD .76 HB
(Superseded to 58875700)

Note: (SN 020001 and up)

$96.99

$

In Stock, only 1 left!

0

7

Gravely 00959995

FTG, 1/4-28 STRGT GREASE ZERK

$3.99

$

In Stock, only 2 left!

0

8

Gravely 03929251

WLDT, IDLER ARM 36

Note: (SN 000101 - 020999)

$54.99

$

Usually ships in 4-12 days

0

Gravely 04578451

WLDMT, IDLER DECK 36" HYD MY13

Note: (SN 021000 and up)

$

$

Not available

9

Gravely TCU14540

BRG, FLG M10XM25XM27 FLUTED

$18.99

$

In Stock, Qty 6

0

10

Gravely 06222400

BLT-RDHDSQNK .38-16X3.50 G5YZ
(Superseded to 06200302)

$9.99

$

In Stock, Qty 9

0

11

Gravely 03841021

ROD, REAR HOC

$35.99

$

Usually ships in 4-12 days

0

12

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

Note: (SN 000101 - 020999)

$1.49

$

In Stock, Qty 20+

0

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

Note: (SN 021000 and up)

$3.49

$

In Stock, Qty 20+

0

13

Gravely 06534700

NUT-JAM .375-24 YWZC
(Superseded to 06500739)

$2.49

$

In Stock, only 3 left!

0

14

Gravely 05957900

BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

Note: (SN 000101 - 020999)

$1.99

$

In Stock, Qty 17

0

Gravely 05958500

BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

Note: (SN 021000 and up)

$1.99

$

In Stock, Qty 20+

0

15

Gravely 08790600

ROD END, 3/8 RH

$60.99

$

Usually ships in 4-12 days

0

16

Gravely 05522100

BSHG-SLV .377X.624X.370

$5.49

$

Usually ships in 4-12 days

0

17

Gravely 05984900

BOLT, 5/16-18X2.50 HEX 8 YWZC
(Superseded to 05901717)

$3.49

$

Usually ships in 4-12 days

0

18

Gravely 50498002

ASSY, 36" FLWLKDECK W/DECALS

Note: (SN 000101 - 020000)

$1053.99

$

Usually ships in 4-12 days

0

Gravely 58815603

ASSM, 36" GRV DECK W/DECALS

Note: (SN 020001 and up)

$

$

Not available

19

Gravely 06200004

BLT-RHDSSQNK .38-16X.75 G5YZ
(Superseded to 06200336)

$2.99

$

In Stock, Qty 15

0

20

Gravely 06223600

BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.99

$

In Stock, Qty 20+

0

21

Gravely 06222400

BLT-RDHDSQNK .38-16X3.50 G5YZ
(Superseded to 06200302)

$9.99

$

In Stock, Qty 9

0

22

Gravely 05970002

BLT-HEX .62-11X 2.00 GR8 YWZC
(Superseded to 05901725)

$6.49

$

In Stock, Qty 9

0

23

Gravely GDU10231

BLADE, 18.000 X .80 LIFT

$31.99

$

In Stock, Qty 20+

0

24

Gravely 06400913

WSHR-FL-STL .630X1.50X.25 YWZC
(Superseded to 06401033)

$7.49

$

In Stock, Qty 13

0

25

Gravely 00200262

ASSY, SPINDLE S/O

$294.99

$

Usually ships in 4-12 days

0

26

Gravely 06530400

NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.99

$

In Stock, Qty 20+

0

27

Gravely 04197700

PIN, FRONT HOC

$43.99

$

Usually ships in 4-12 days

0

28

Gravely 56155053

ASSY, DISCHARGE SHIELD

$203.99

$

In Stock, only 1 left!

0

29

Gravely 06534900

NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.99

$

In Stock, Qty 20+

0

30

Gravely 00104024

ROD, THREADED ADJUSTMENT

Note: (SN 000101 - 021000)

$25.99

$

Usually ships in 4-12 days

0

Gravely D23058

J-BOLT, 3/8-16 X 4.00 Y

Note: (SN 021001 and up)

$6.49

$

In Stock, only 2 left!

0

31

Gravely 05947700

BLT-HEX .25-20X1.00 GR5 YWZC
(Superseded to 05901639)

$1.99

$

In Stock, only 2 left!

0

32

Gravely 00191185

BRG, BAL .250X.688X.313

$10.99

$

Usually ships in 4-12 days

0

33

Gravely 06531000

NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$5.49

$

In Stock, Qty 12

0

34

Gravely 00110580

SPRG, EXTENSION

Note: (SN 000101 - 020999)

$17.99

$

In Stock, only 2 left!

0

Gravely B10195

SPRING AXLE AERATOR

Note: (SN 021000 and up)

$

$

Not available

35

Gravely D13024

SPACER, SPINDLE TOP-PULLEY

Note: (SN 000101 - 020000)

$14.99

$

In Stock, only 2 left!

0

36

Gravely 07200518

BELT

$80.99

$

In Stock, only 1 left!

0

37

Gravely 03846217

SPACER, .437X1.00X.58 SMLS

$10.99

$

In Stock, Qty 14

0

38

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

39

Gravely 03854451

STRAP, IDLER 36

$14.99

$

Usually ships in 4-12 days

0

40

Gravely 04044200

SHIELD, WALK RUBBER DISCHARGE

$70.99

$

Usually ships in 4-12 days

0

41

Gravely 03983853

STRAP, GRAVELY WLK RUBBER DIS

$63.99

$

Usually ships in 4-12 days

0

42

Gravely 06534900

NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.99

$

In Stock, Qty 20+

0

43

Gravely 06223600

BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.99

$

In Stock, Qty 20+

0

44

Gravely 07533600

BUMPER, RUBBER

$12.99

$

In Stock, Qty 5

0

45

Gravely 06224100

BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$2.99

$

In Stock, Qty 20+

0

46

Gravely 03981953

WLDT. DISCHARGE

$90.99

$

Usually ships in 4-12 days

0

47

Gravely 03820400

KNOB, 3/8 X 1.25 - 4 PRONG

$10.99

$

In Stock, only 4 left!

0
