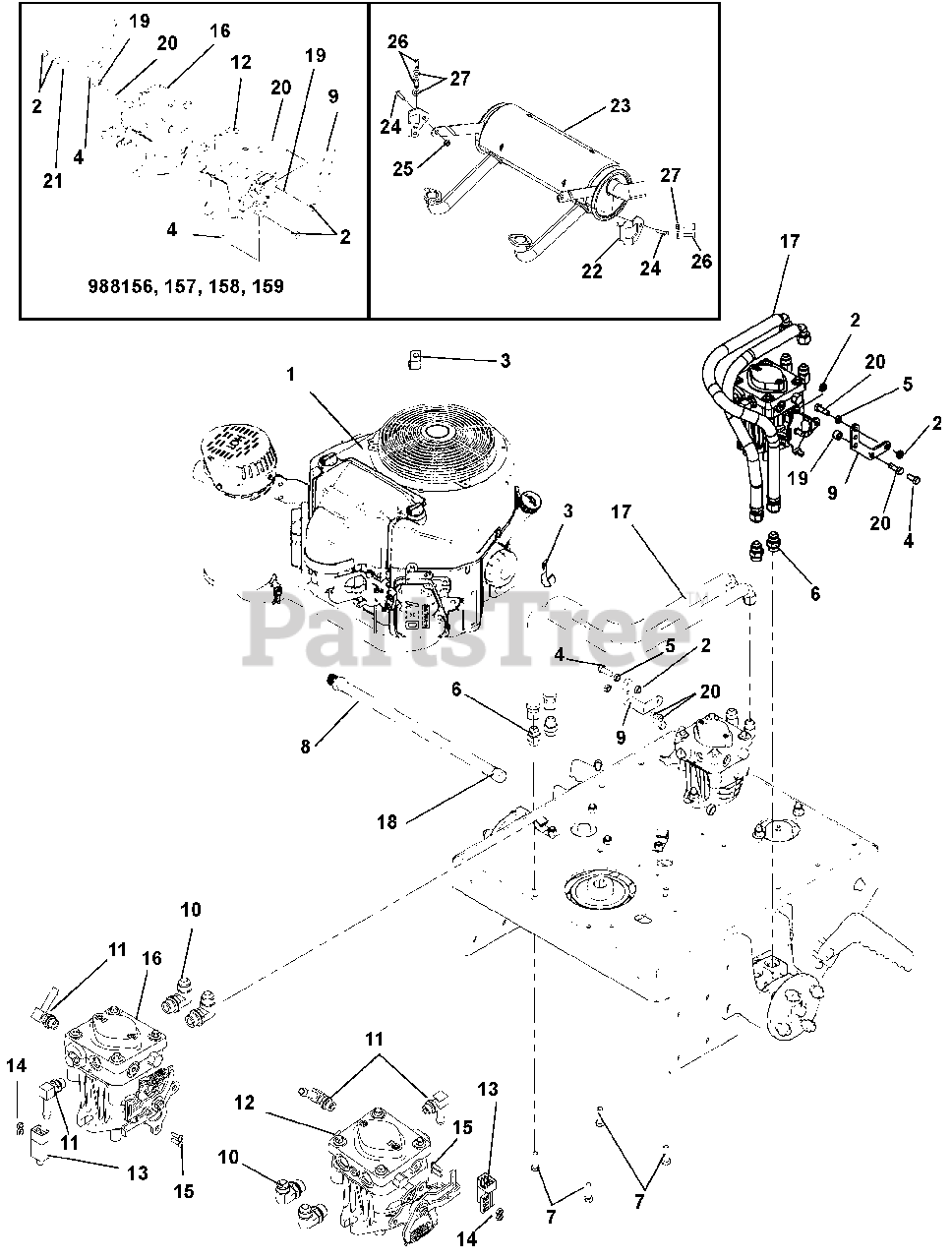

988156 (36 HR) - Gravely Pro-Hydro 36" Walk-Behind Mower (SN: 000101 - 049999) Engine And Hydraulic Pumps Parts Diagram

Pro-Hydro 36" Walk-Behind Mower

Engine And Hydraulic Pumps Parts Diagram

  • Title

1

Gravely 08200613

ENGINE, KAWASAKI FS600 (988154, 155, 157, 158) (SN 000101 - 020999)

Note: (988154, 155, 157, 158) (SN 000101 - 020999)

$

$

Not available

1

Gravely 08200726

ENGINE, KAWASAKI FS600 (988154, 155, 157, 158) (SN 021000 and up)

Note: (988154, 155, 157, 158) (SN 021000 and up)

$

$

Not available

1

Gravely 08200612

ENGINE, KAWASAKI FS481 (988153, 156) (SN 000101 - 020999)

Note: (988153, 156) (SN 000101 - 020999)

$

$

Not available

1

Gravely 08200725

ENGINE, KAWASAKI FS481 (988153, 156) (SN 021000 and up)

Note: (988153, 156) (SN 021000 and up)

$

$

Not available

1

Gravely 08200621

ENGINE, KAWASAKI FS691 (988159, 169)

Note: (988159, 169)

$

$

Not available

2

Gravely 06500011

NUT, LOCKING-CENTER-JAM .31-18 (988153, 154, 155, 169)
(Superseded to 06500913)

Note: (988153, 154, 155, 169)

$1.49

$

In Stock, Qty 5

0

2

Gravely 06500011

NUT, LOCKING-CENTER-JAM .31-18 (988156, 157, 158, 159)
(Superseded to 06500913)

Note: (988156, 157, 158, 159)

$1.49

$

In Stock, Qty 5

0

3

Gravely AH89557

P-CLIP, .500 INSULATED

$5.49

$

In Stock, only 1 left!

0

4

Gravely 05947000

BOLT-HEX .31-18X.75 GRADE
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

5

Gravely 06536100

NUT, JAM .312-18
(Superseded to 06500909)

$1.49

$

In Stock, Qty 20+

0

6

Gravely D14197

FITTING, STRAIGHT (988153, 154, 155, 156, 157, 158)

Note: (988153, 154, 155, 156, 157, 158)

$

$

Not available

Gravely 04378700

FITTING, 45 DEGREE WHL MOTOR (988159, 169)

Note: (988159, 169)

$16.99

$

Usually ships in 4-12 days

0

7

Gravely 05901507

BLT-HEX.38-16X1.25FTHG5 EP80YZ

$2.99

$

Usually ships in 4-12 days

0

8

Gravely 04271700

OIL DRAIN, M20

$35.99

$

Usually ships in 4-12 days

0

9

Gravely 04198051

BRKT-PUMP CONTROL (988153, 154, 155, 169)

Note: (988153, 154, 155, 169)

$

$

Not available

Gravely 04324551

BRKT, LH PS PUMP CONTROL (988156, 157, 158, 159) (SN 000101 - 020000)

Note: (988156, 157, 158, 159) (SN 000101 - 020000)

$23.99

$

Usually ships in 4-12 days

0

Gravely 04498551

BRKT, LH PUMP CONTROL WRS (988156, 157, 158, 159) (SN 020001 and up)

Note: (988156, 157, 158, 159) (SN 020001 and up)

$

$

Not available

10

Gravely D14196

FTG, ADP JIC-ORB 6801-08-08

$6.49

$

Usually ships in 4-12 days

0

11

Gravely D24028

FTG, 90 9/16 MOR X 3/8 HOSE (SN 000101 - 020000)

Note: (SN 000101 - 020000)

$10.99

$

In Stock, Qty 6

0

Gravely 07001641

FTG, 90 9/16MOR X 3/8HOSE SHRT (020001 and up)

Note: (020001 and up)

$

$

Not available

12

Gravely 04269500

PUMP, LH HYD PE (10cc) (988153, 154, 155)

Note: (10cc) (988153, 154, 155)

$692.99

$

Usually ships in 4-12 days

0

Gravely 04326000

PUMP, LH HYD PE (10CC) (988156, 157, 158)

Note: (10CC) (988156, 157, 158)

$659.99

$

Usually ships in 4-12 days

0

13

Gravely 00191256

SWITCH, PLUNGER DP - N.O. - N.C.
(Superseded to 08828100)

$21.99

$

In Stock, Qty 6

0

14

Gravely 06536000

LOCKNUT, 10-24 NYLOC Y
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 06116900

SCREW, 10-24X.625 PAN PHL MACY
(Superseded to 05901837)

$2.49

$

In Stock, only 4 left!

0

16

Gravely 04269600

PUMP, RH HYD PE (10cc) (988153, 154, 155, 169)

Note: (10cc) (988153, 154, 155, 169)

$692.99

$

Usually ships in 4-12 days

0

Gravely 04326100

PUMP, RH HYD PE (10cc) (988156, 157, 158, 159)

Note: (10cc) (988156, 157, 158, 159)

$

$

Not available

17

Gravely 00201091

HOSE, HYD 1/2 X 26 1/2 EZFLEX (SN 000101 - 020000)

Note: (SN 000101 - 020000)

$78.99

$

Usually ships in 4-12 days

0

Gravely 04504900

SHAFT, HEX W/SPLINE HRD (988153, 156) (SN 020001 and up)

Note: (988153, 156) (SN 020001 and up)

$

$

Not available

Gravely 00201091

HOSE, HYD 1/2 X 26 1/2 EZFLEX (988154, 155, 157, 158, 159, 169) (SN 020001 and up)

Note: (988154, 155, 157, 158, 159, 169) (SN 020001 and up)

$78.99

$

Usually ships in 4-12 days

0

18

Gravely 03873200

PIPE CAP 3/8 NPT FEMALE

$14.99

$

Usually ships in 4-12 days

0

19

Gravely 05522100

BUSHING-SLV .377 x .624 x .370

$5.49

$

Usually ships in 4-12 days

0

20

Gravely 05946900

BOLT-HEX .31-18 x 1.00 GR5
(Superseded to 05901701)

$1.99

$

In Stock, Qty 5

0

21

Gravely 04324451

BRACKET, RH PS PUMP CONTROL (988156, 157, 158, 159) (SN 000101 - 020000)

Note: (988156, 157, 158, 159) (SN 000101 - 020000)

$29.99

$

Usually ships in 4-12 days

0

Gravely 04498451

BRACKET, RH PS PUMP CONTROL (988156, 157, 158, 159) (SN 020001 and up)

Note: (988156, 157, 158, 159) (SN 020001 and up)

$

$

Not available

22

Gravely 04430251

BRACKET, EXHAUST (988159, 169) (SN 000101 - 029999)

Note: (988159, 169) (SN 000101 - 029999)

$26.99

$

Usually ships in 4-12 days

0

Gravely 04430251

BRACKET, EXHAUST (988153, 154, 155, 156, 157, 158) (SN 021001 - 029999)

Note: (988153, 154, 155, 156, 157, 158) (SN 021001 - 029999)

$26.99

$

Usually ships in 4-12 days

0

Gravely 04676751

SHIELD, MUFFLER (SN 030000 and up)
(Superseded to 09658251)

Note: (SN 030000 and up)

$67.99

$

Usually ships in 4-12 days

0

23

Gravely 04420400

EXHAUST, KAWASAKI PROSTANCE (988159, 169) (SN 000101 and up)

Note: (988159, 169) (SN 000101 and up)

$298.99

$

Usually ships in 4-12 days

0

23

Gravely 04375200

EXHAUST, KAWASAKI PROSTANCE

Note: (SN 021001 and up 988153, 154, 156, 157, 158 SN 000101 - 020999 Oil Filter Side = Kawaski 99999-0414 Fuel Pump Side Kawsaki 99999-0415

$288.99

$

In Stock, only 1 left!

0

24

Gravely 06006104

SCREW, HEX-FL M8X1.25X16 10.9

$2.99

$

Usually ships in 4-12 days

0

25

Gravely H137328

LOCKNUT,M8X1.25,FLANGED ZN

$

$

Not available

26

Gravely 05973300

BOLT-HEX M8-1.25X20
(Superseded to 05901628)

$1.99

$

Usually ships in 4-12 days

0

27

Gravely 06308600

WASHER-LOCKING .31X.078 REGULAR
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0
