988156 (36 HR) - Gravely Pro-Hydro 36" Walk-Behind Mower (SN: 050000 & Above) Clutch, Belt And Idler - 36" Parts Diagram

Pro-Hydro 36" Walk-Behind Mower

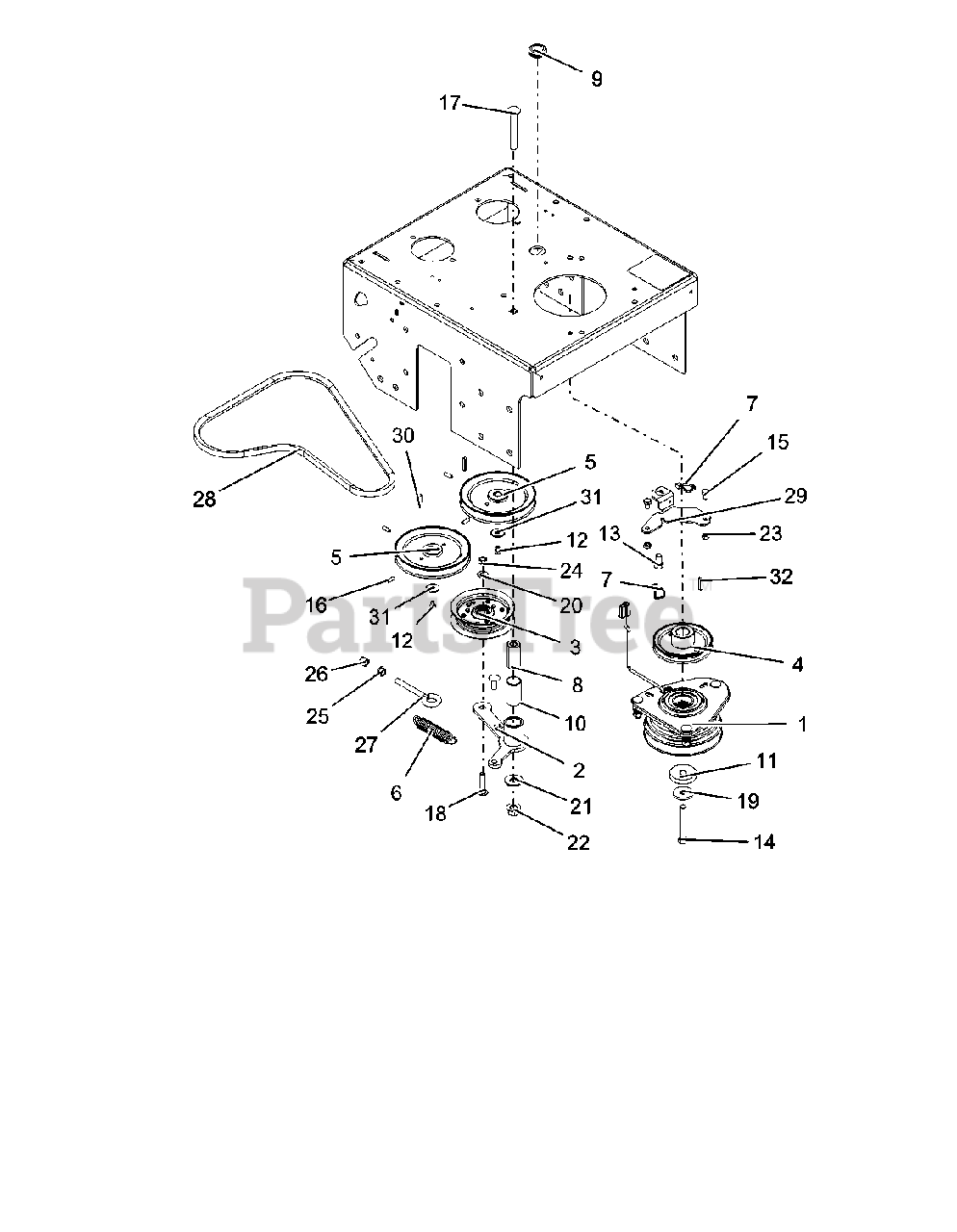

Clutch, Belt And Idler - 36" Parts Diagram

  • Title

1

Gravely 00200665

CLUTCH ASSY, OGURA

$387.99

$

In Stock, only 1 left!

0

2

Gravely 04451451

WLDMT, IDLER HYD WLK TRANS

$64.99

$

Usually ships in 4-12 days

0

3

Gravely 07300039

ASM, IDLER 4"
(Superseded to 07350100)

$48.99

$

In Stock, Qty 20+

0

4

Gravely 07338700

PULLEY, V-BELT WLK TRANS DRIVE

$79.99

$

Usually ships in 4-12 days

0

5

Gravely 07338800

PULLEY, V-BELT PUMP HYD WLK

$77.99

$

Usually ships in 4-12 days

0

6

Gravely 00110580

SPRG, EXTENSION

$17.99

$

In Stock, only 1 left!

0

7

Gravely 00111910

CABLE TIE, .15 X 8.50

$

$

Not available

8

Gravely 01581700

BSHG, SPCR .502X.997X2.03

$5.99

$

In Stock, Qty 20+

0

9

Gravely 03384007

GROMMET:RUB:.88IDx1.38ODX.14GR

$3.49

$

Usually ships in 4-12 days

0

10

Gravely 05500123

BSHG, 1.00X1.125X1.937
(Superseded to 05501234)

$10.99

$

In Stock, Qty 20+

0

11

Gravely 05501222

SPCR, .450 X 2.00 X .396

$6.99

$

In Stock, only 1 left!

0

12

Gravely 05900045

BLT-HEX M6 X 1.0X10 YWZC

$

$

Not available

13

Gravely 05900121

BLT-HEX .44-14X.75 GR5 YWZC

$

$

Not available

14

Gravely 05901535

BLT-HEX .44-20X3.00 GR8 YWZC NYTORQ
(Superseded to 05901819)

$5.99

$

In Stock, only 1 left!

0

15

Gravely 05947200

BLT-HEX .31-18X.50 GR5 YWZC
(Superseded to 05901904)

$1.49

$

In Stock, Qty 15

0

16

Gravely 06000222

SCR-SET, 25-20X.75 SKHCUPDL REV

$1.99

$

In Stock, only 1 left!

0

17

Gravely 06200003

BLT-RHDSSQNK .50-13X3.50 G5YZ
(Superseded to 06200340)

$5.99

$

In Stock, Qty 11

0

18

Gravely 06223800

BLT-RDHDSQNK .38-16X1.75 G5 YWZC
(Superseded to 06200417)

$3.99

$

In Stock, only 2 left!

0

19

Gravely 06400936

WSHR, 7/16" SPRING DISC

$11.99

$

In Stock, only 1 left!

0

20

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 06442000

WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$3.49

$

In Stock, Qty 15

0

22

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$2.49

$

In Stock, Qty 20+

0

23

Gravely 06500011

NUT-LK-CTR-JAM .31-18 YWZC
(Superseded to 06500913)

$0.99

$

In Stock, Qty 9

0

24

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 06534900

@NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.49

$

In Stock, Qty 18

0

26

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0

27

Gravely 07001701

BOLT, EYE .38-16X4.50 .75 DIA

$12.99

$

Usually ships in 4-12 days

0

28

Gravely 07200542

V-Belt, A-RAW EDGE

$62.99

$

Usually ships in 4-12 days

0

29

203840

PLATE, CLUTCH DOG

$

$

Not available

30

966058

KEY, RND - M5XM5XM30

$

$

Not available

31

Gravely D14160

WASHER, .250 WIDE HEAVY FLAT Y

$3.49

$

Usually ships in 4-12 days

0

32

Gravely D18145

KEY, .250 X .250 X .995 TPR

$7.49

$

Usually ships in 4-12 days

0
