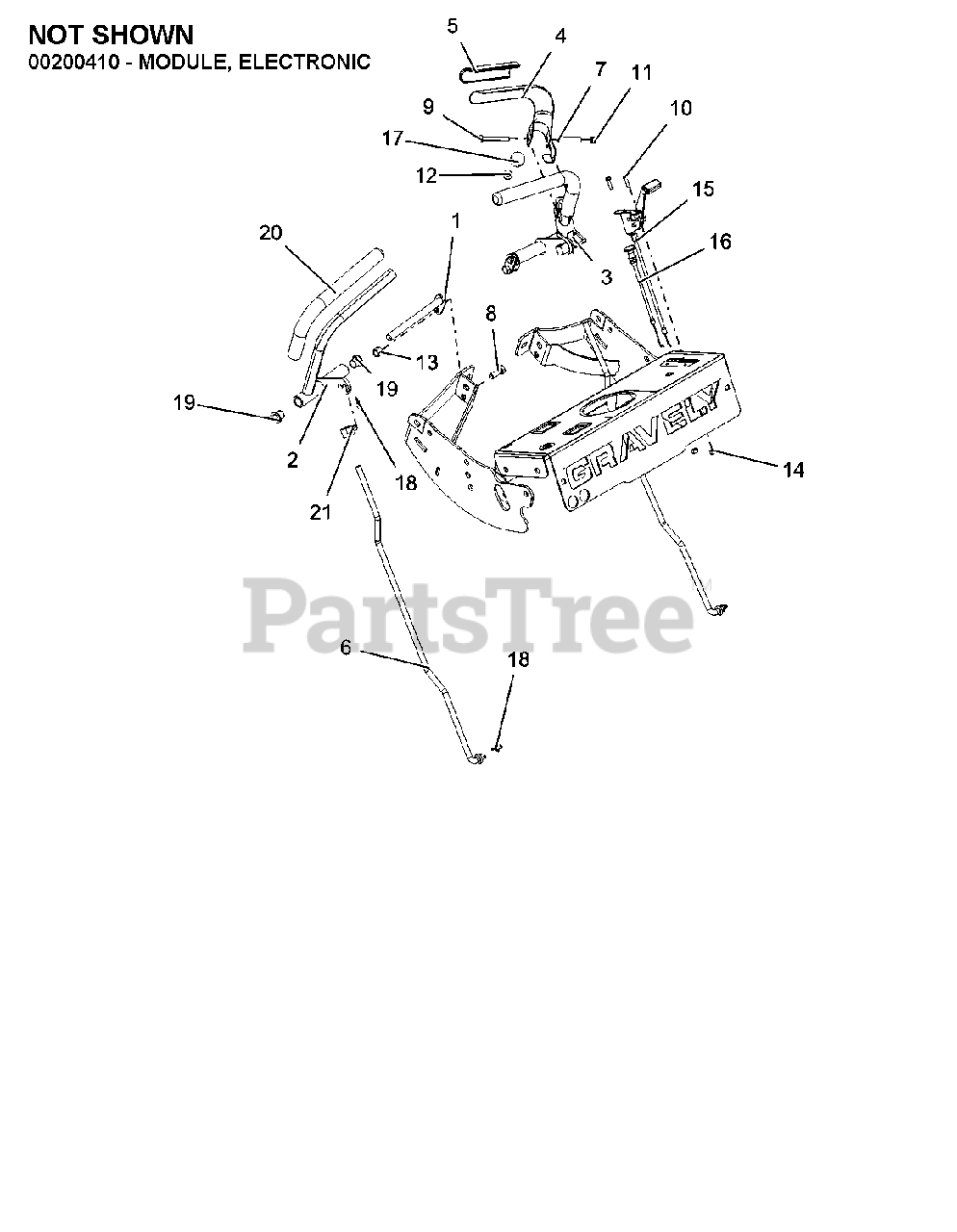

988156 (36 HR) - Gravely Pro-Hydro 36" Walk-Behind Mower (SN: 050000 & Above) Controls - 36" Parts Diagram

Pro-Hydro 36" Walk-Behind Mower

Controls - 36" Parts Diagram

  • Title

1

Gravely 00203893

WLDT, PIN AND LOCK Y

$34.99

$

Usually ships in 4-12 days

0

2

Gravely 03976551

WLDT, RH DRIVE LEVER 5 DEG

$

$

Not available

3

Gravely 04269051

WLDT, LH DRIVE LEVER

$

$

Not available

4

Gravely 04269751

WMT, OPC HANDLE

$105.99

$

Usually ships in 4-12 days

0

5

Gravely 00384500

GRIP, CLUTCH LEVER, LH AND RH

$2.49

$

In Stock, only 2 left!

0

6

Gravely 03858913

ROD, DRIVE TWIN LOOP DBL OFFST

$55.99

$

Usually ships in 4-12 days

0

7

Gravely 04344600

BUSHING, OPERATOR PRESENCE

$14.99

$

Usually ships in 4-12 days

0

8

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

9

Gravely 05967100

BLT-HEX .25-20X2.00 GR5 YWZC
(Superseded to 05901740)

$2.99

$

In Stock, only 3 left!

0

10

Gravely 06116900

SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

$2.49

$

In Stock, Qty 11

0

11

Gravely 06529700

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 06530400

NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.99

$

In Stock, Qty 20+

0

13

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

14

Gravely 06536000

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 06900043

CABLE, THROTTLE 43"
(Superseded to 06900714)

$35.99

$

In Stock, Qty 5

0

16

Gravely 06900044

CABLE, CHOKE 43"

$50.99

$

Usually ships in 4-12 days

0

17

Gravely 07533600

BUMPER, RUBBER

$12.99

$

In Stock, Qty 5

0

18

Gravely 00967353

RING, RUE .375 X .054 X 1.254

$2.99

$

Usually ships in 4-12 days

0

19

Gravely D18013

BRG, FLG .500X.625X.500 BRNZ

$7.49

$

Usually ships in 4-12 days

0

20

Gravely D18093

GRIP, CONTROL
(Superseded to 07500222)

$8.49

$

In Stock, only 1 left!

0

21

Gravely D33002

SWIVEL, 3/8-24

$12.99

$

Usually ships in 4-12 days

0

22

Gravely 00200410

MODULE, ELECTRONIC
(Superseded to 08885700)

Note: NOT SHOWN

$89.99

$

In Stock, only 4 left!

0
