988156 (36 HR) - Gravely Pro-Hydro 36" Walk-Behind Mower (SN: 050000 & Above) Controls - 36" Parts Diagram

Pro-Hydro 36" Walk-Behind Mower

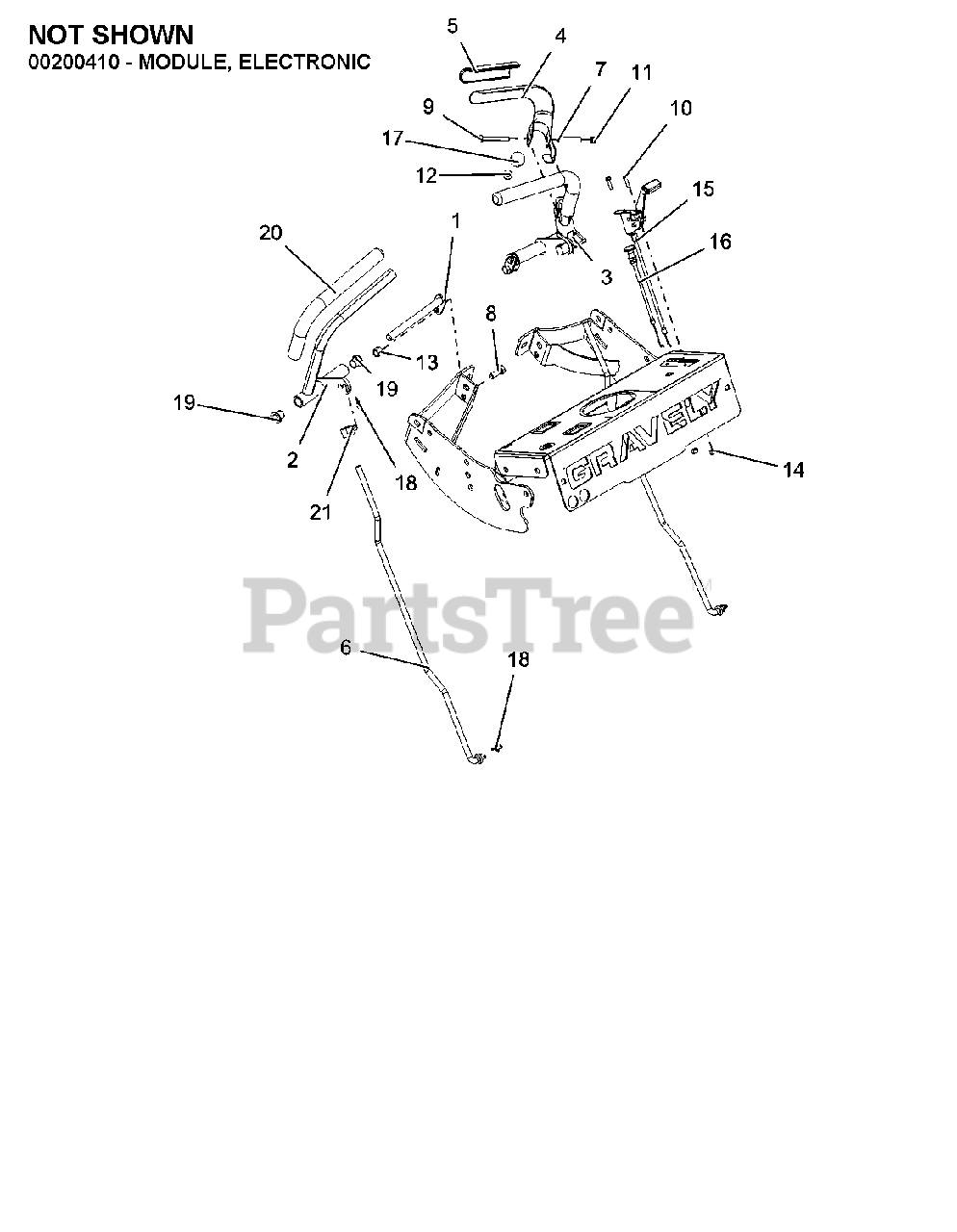

Controls - 36" Parts Diagram

  • Title

1

Gravely 00203893

WLDMT, PIN & LOCK

$34.99

$

Usually ships in 4-12 days

0

2

Gravely 03976551

WLDT, RH DRIVE LEVER 5 DEG-BLACK

$67.99

$

Usually ships in 4-12 days

0

3

Gravely 04269051

WLDT, LH DRIVE LEVER-BLACK

$100.99

$

Usually ships in 4-12 days

0

4

Gravely 04269751

WMT, OPC HANDLE-BLACK

$103.99

$

Usually ships in 4-12 days

0

5

Gravely 00384500

GRIP, CLUTCH LEVER, LH AND RH

$2.49

$

Usually ships in 4-12 days

0

6

Gravely 03858913

ROD, DRIVE TWIN LOOP DBL OFST

$54.99

$

Usually ships in 4-12 days

0

7

Gravely 04344600

BSHG, OPERATOR PRESENCE

$14.99

$

Usually ships in 4-12 days

0

8

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 05967100

BLT-HEX .25-20X2.00 GR5 YWZC
(Superseded to 05901740)

$2.49

$

In Stock, only 2 left!

0

10

Gravely 06116900

@SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

$2.49

$

Usually ships in 4-12 days

0

11

Gravely 06529700

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, only 4 left!

0

13

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0

14

Gravely 06536000

NUT-LK-NYL #10-24 YWZC
(Superseded to 06500915)

$0.99

$

In Stock, only 4 left!

0

15

Gravely 06900043

CABLE, THROTTLE 43"
(Superseded to 06900714)

$34.99

$

In Stock, only 3 left!

0

16

Gravely 06900044

CABLE, CHOKE 43"

$45.99

$

Usually ships in 4-12 days

0

17

Gravely 07533600

BUMPER, RUBBER

$14.99

$

In Stock, only 4 left!

0

18

967353

RING, RUE .375 x .054 x 1.254

$

$

Not available

19

Gravely D18013

BRG, FLG .500 X .625 X .500 BRNZ

$5.99

$

Usually ships in 4-12 days

0

20

Gravely D18093

GRIP, CONTROL
(Superseded to 07500222)

$7.99

$

In Stock, only 2 left!

0

21

Gravely D33002

SWIVEL, 3/8-24

$10.99

$

Usually ships in 4-12 days

0

22

Gravely 00200410

MODULE, ELECTRONIC
(Superseded to 08885700)

Note: NOT SHOWN

$87.99

$

Usually ships in 4-12 days

0
